RCF EVOX JMIX8 Active 12" 2-Way 1400W Portable Line Array PA System with 8-Input Mixer (Black)
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$3,499.00
RRP $4,275.00
SAVE $776.00 (18%)
In Stock
Description
FEATURES
- 128 dB Max SPL
- 1400 Watt 2-way power
- 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil

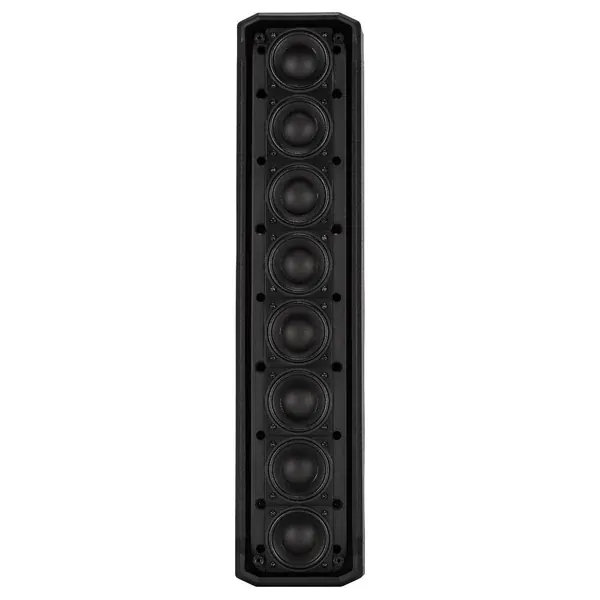

- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 24,4/53.8 kg/lbs
Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.
Specification
RCF EVOX JMIX 8 Specs
PA Speaker
| Configuration | Active 2-Way |
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | LF: 1000 W Peak 500 W RMS HF: 400 W Peak 200 W RMS |
| Amplifier Class | Class-D |
Drivers
| Full-Range Driver | 8 x 2" / 5.1 cm |
| HF Voice Coil | 1" / 2.5 cm |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| LF Voice Coil | 2.5" / 6.4 cm |
Performance
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 128 dB |
| Coverage Angle | 120° H x 30° V |
| Input Sensitivity | +4 dBu / -2 dBu |
| Gain Range | 0 to 45 dB |
| I/O Impedance | Mic Input: 3 Kilohms Line Input: 11 Kilohms Hi-Z Input: 1 Megohms Output: 150 Ohms |
| THD | 0.004% |
| Protections | RMS, Thermal |
Connectivity
| Audio I/O | 1 x 1/4" TRS Footswitch Input 4 x Combo XLR-1/4" TRS 1 x XLR 3-Pin Female Input 1 x XLR 3-Pin Male Output 2 x 1/4" TS Input 1 x Stereo RCA Input 1 x speakON NL2 Input 1 x speakON NL2 Output 1 x 1/4" TRS Aux Output |
| USB | 1 x USB-B |
Signal Processing
| Crossover | 220 Hz |
| Filters | High-Pass: 20 Hz to 1 kHz |
| Dynamic Processing | Soft Limiter |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
Physical
| Construction Material | Metal Grille, Polypropylene |
| Certifications | CE *as per Manufacturer |
| Dimensions | 24.5 x 15.7 x 18.1" / 62.3 x 40 x 46 cm |
| Weight | 53.8 lb / 24.4 kg |
Packaging Info
| Package Weight | 65.5 lb |
| Box Dimensions (LxWxH) | 27 x 23 x 18" |
(RCF-EVOX-JMIX8-BLACK)
| SKU | RCF-EVOX-JMIX8-BLACK |
| Brand | RCF |
