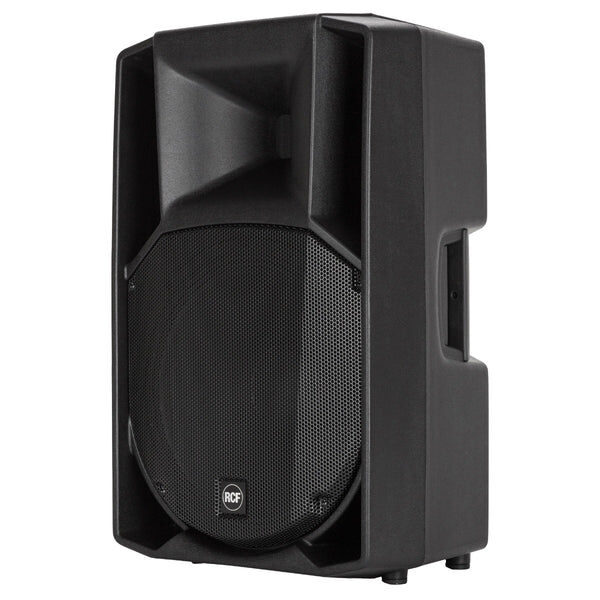

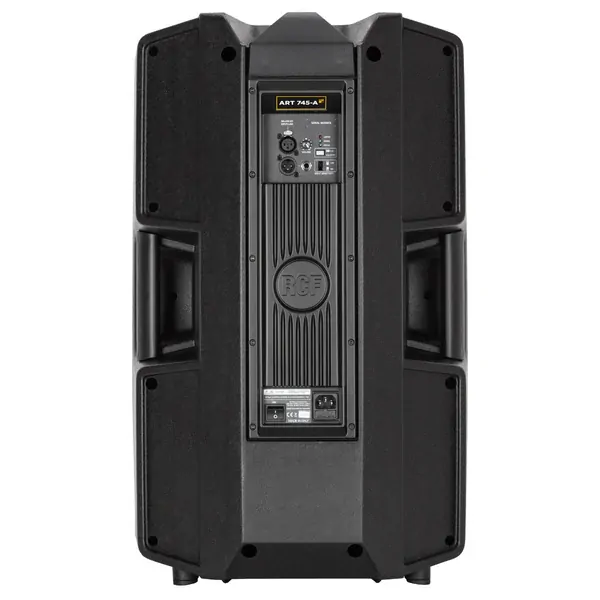

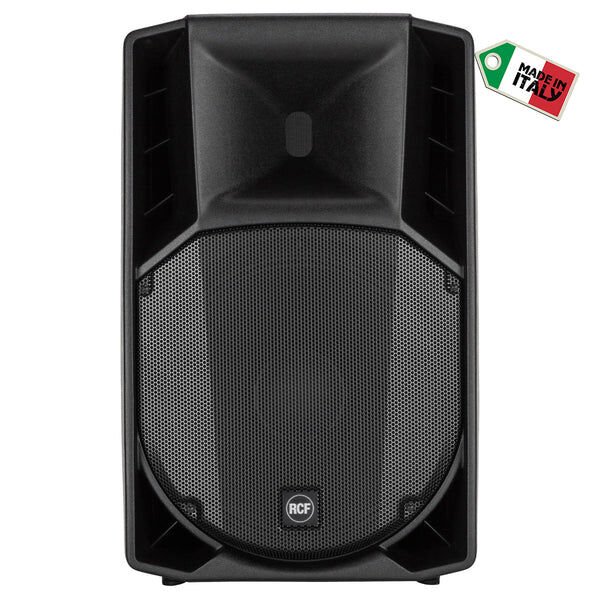

RCF ART 745-A MK4 ACTIVE TWO-WAY SPEAKER 700W RMS

Description

The ART 745-A MK4 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections

• 133 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 4.0" v.c. Neodimium
• 15" Neodimium Woofer
• 650 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology.

Specification

SPECIFICATIONS

Acoustical specifications



FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz



MAX SPL @ 1M: 133 dB



HORIZONTAL COVERAGE ANGLE: 90°



VERTICAL COVERAGE ANGLE: 60°



Transducers



COMPRESSION DRIVER: 1 x 1.4'' neo, 4.0'' v.c



WOOFER: 15'' neo, 3.5'' v.c



Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR, Jack



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



MIC. INPUT SENSITIVITY: -32 dBu



Processor section



CROSSOVER FREQUENCIES: 650 Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, Boost, Mic/Line



Power section



TOTAL POWER: 1400 W Peak, 700 W RMS



HIGH FREQUENCIES: 400 W Peak, 200 W RMS



LOW FREQUENCIES: 1000 W Peak, 500 W RMS



COOLING: Convection



CONNECTIONS: VDE





Physical specifications



CABINET/CASE MATERIAL: PP Composite



HARDWARE: 2 x M10



HANDLES: 1 Top, 2 Side



POLE MOUNT/CAP: Yes



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 708 mm / 27.87 inches



WIDTH: 437 mm / 17.2 inches



DEPTH: 389 mm / 15.31 inches



WEIGHT: 18.8 kg / 41.45 lbs



Shipping informations



PACKAGE HEIGHT: 750 mm / 29.53 inches



PACKAGE WIDTH: 500 mm / 19.69 inches



PACKAGE DEPTH: 440 mm / 17.32 inches



PACKAGE WEIGHT: 22 kg / 48.5
