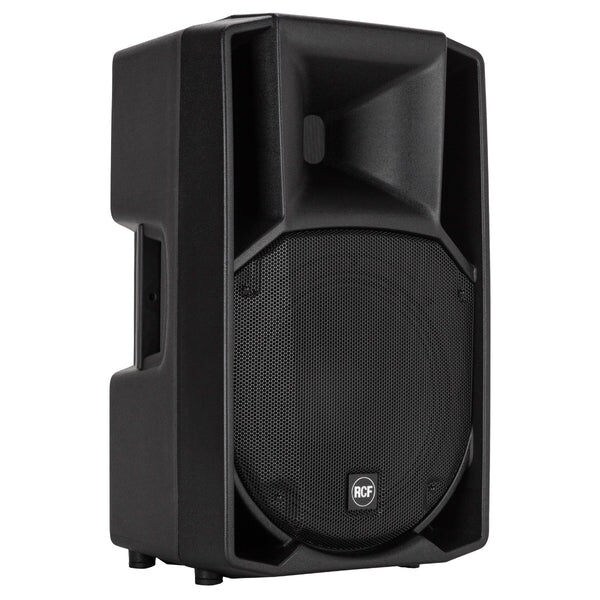

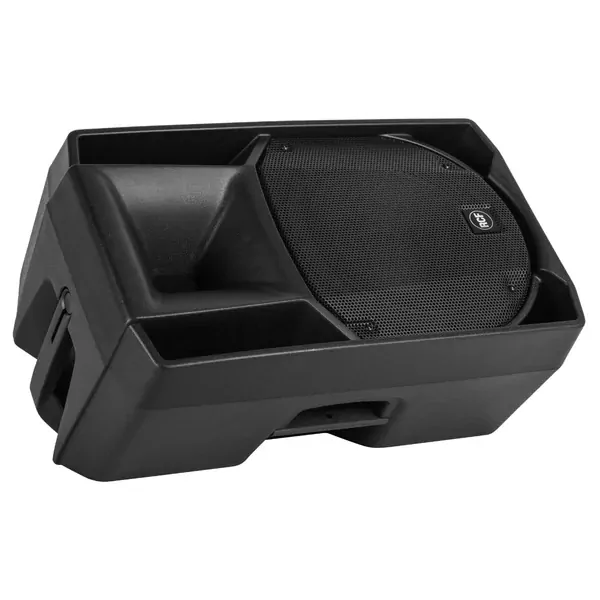

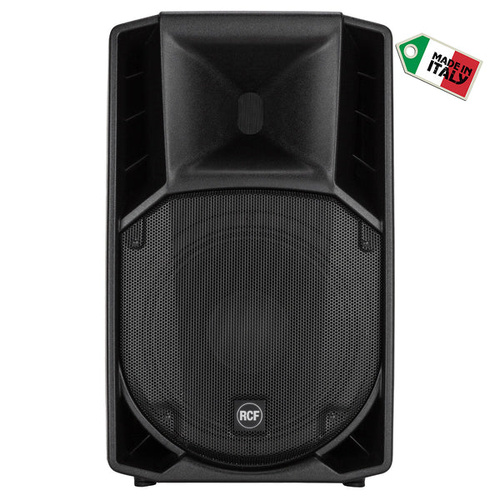

RCF ART 732-A MK4 ACTIVE TWO-WAY SPEAKER 700W RMS

Description

The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections

• 131 dB Max SPL
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 12" Woofer
• 700 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology
• 1400 WATT 2-way peak power

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SPECIFICATIONS

Acoustical specifications



FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz



MAX SPL @ 1M: 131 dB



HORIZONTAL COVERAGE ANGLE: 90°



VERTICAL COVERAGE ANGLE: 60°



Transducers



COMPRESSION DRIVER: 1 x 1.4'' neo, 3.0'' v.c



WOOFER: 12'', 2.5'' v.c

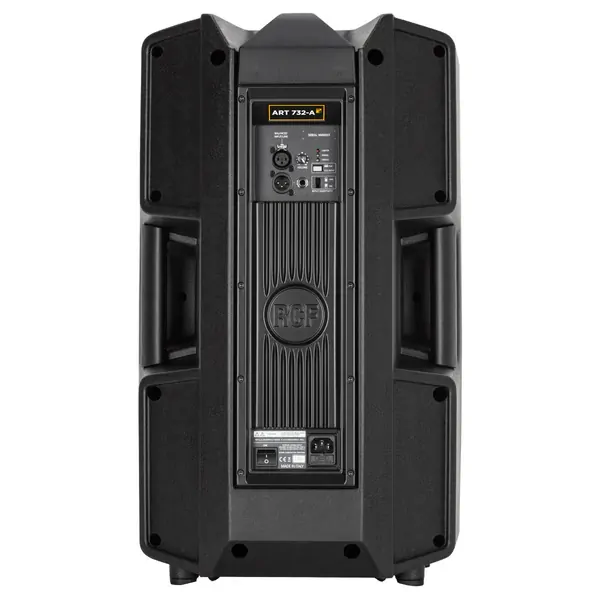

Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR, Jack



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



MIC. INPUT SENSITIVITY: -32 dBu



Processor section



CROSSOVER FREQUENCIES: 700 Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, Boost, Mic/Line



Power section



TOTAL POWER: 1400 W Peak, 700 W RMS



HIGH FREQUENCIES: 400 W Peak, 200 W RMS



LOW FREQUENCIES: 1000 W Peak, 500 W RMS



COOLING: Convection



CONNECTIONS: VDE



Standard compliance



CE MARKING: Yes



Physical specifications



CABINET/CASE MATERIAL: PP Composite



HARDWARE: 2 x M10



HANDLES: 1 Top, 2 Side



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 637 mm / 25.08 inches



WIDTH: 384 mm / 15.12 inches



DEPTH: 363 mm / 14.29 inches



WEIGHT: 17.8 kg / 39.24 lbs



Shipping informations



PACKAGE HEIGHT: 680 mm / 26.77 inches



PACKAGE WIDTH: 440 mm / 17.32 inches



PACKAGE DEPTH: 420 mm / 16.54 inches



PACKAGE WEIGHT: 20.6 kg / 45.42 lbs
