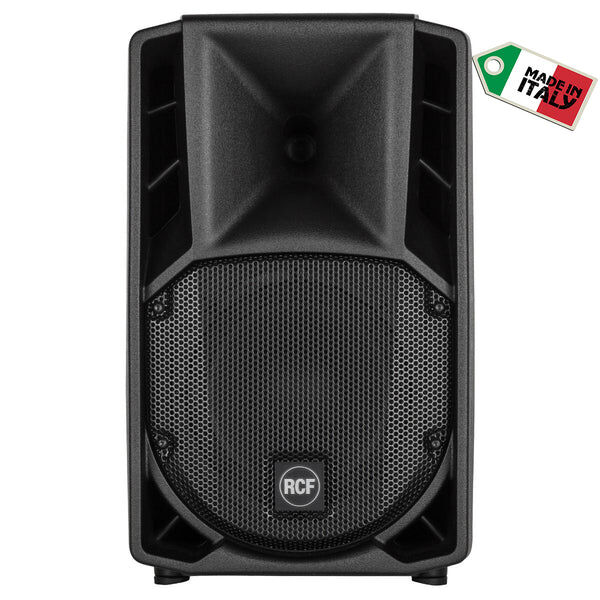

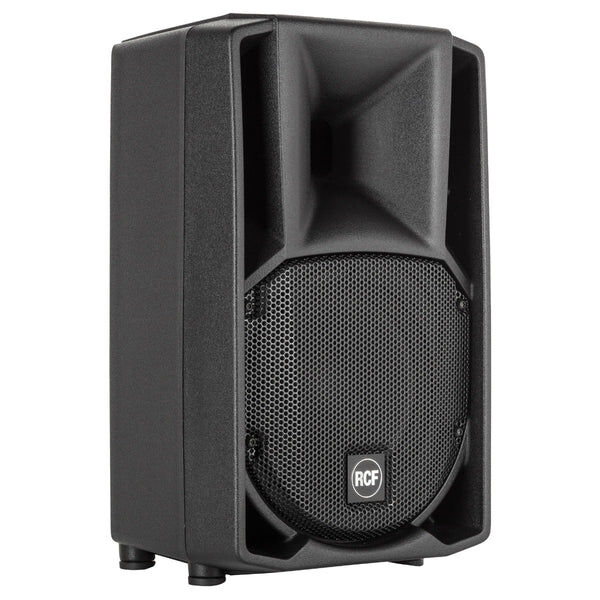

RCF ART 708-A MK4 ACTIVE TWO-WAY SPEAKER

Description

ART 708-A MK4 is a unique product in its category. The 1.0" compression driver offersunique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 800 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.



• 127 dB Max SPL
• 800 WATT 2-way peak power
• 90 x 70, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 1" Compression Driver, 1.0" v.c.

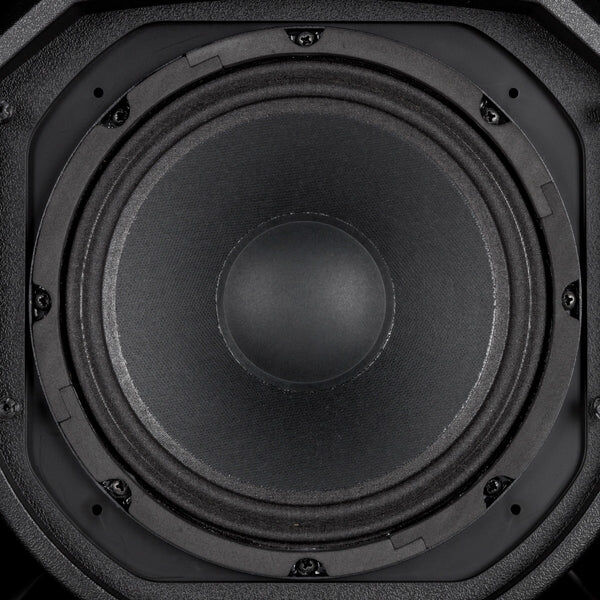

• 8" Woofer
• FiRPHASE Technology

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SPECIFICATIONS

Acoustical specifications



FREQUENCY RESPONSE: 60 Hz ÷ 20000 Hz



MAX SPL @ 1M: 127 dB



HORIZONTAL COVERAGE ANGLE: 90°



VERTICAL COVERAGE ANGLE: 70°



Transducers



COMPRESSION DRIVER: 1 x 1.0'', 1.0'' v.c



WOOFER: 8'', 2.0'' v.c



Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR, Jack



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



MIC. INPUT SENSITIVITY: -32 dBu



Processor section



CROSSOVER FREQUENCIES: 1600 Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, Boost, Mic/Line



Power section



TOTAL POWER: 800 W Peak, 400 W RMS



HIGH FREQUENCIES: 200 W Peak, 100 W RMS



LOW FREQUENCIES: 600 W Peak, 300 W RMS



COOLING: Convection



CONNECTIONS: VDE

Standard compliance



CE MARKING: Yes



Physical specifications



CABINET/CASE MATERIAL: PP Composite



HARDWARE: 2 x M10



HANDLES: 1 Top



POLE MOUNT/CAP: Yes



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 480 mm / 18.9 inches



WIDTH: 291 mm / 11.46 inches



DEPTH: 276 mm / 10.87 inches



WEIGHT: 10.4 kg / 22.93 lbs



Shipping informations



PACKAGE HEIGHT: 520 mm / 20.47 inches



PACKAGE WIDTH: 331 mm / 13.03 inches



PACKAGE DEPTH: 346 mm / 13.62 inches



PACKAGE WEIGHT: 12.2 kg / 26.9 lbs
