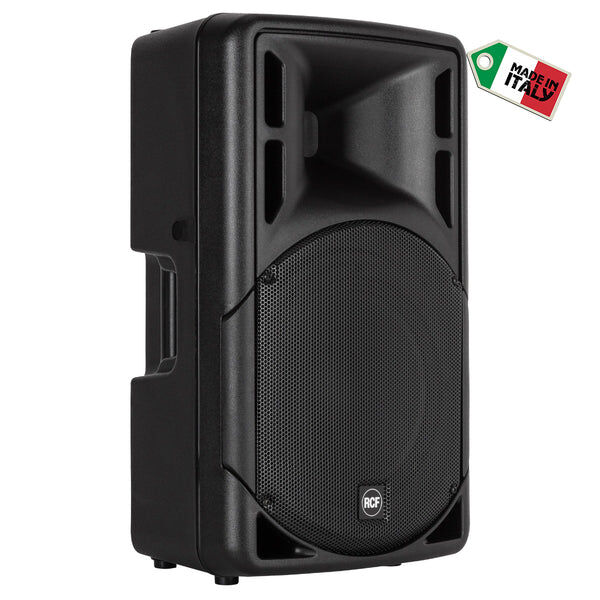

RCF ART 315-A MK4 ACTIVE TWO-WAY SPEAKER 800W

DESCRIPTION

Active speakers for live sound reinforcement and stage monitoring as well as distributed
sound systems for clubs, music venues and corporate events.

ART 315-A MK4 is the ideal speaker when an exceptional full range,
outstanding bass reproduction and accurate high frequency delivery are required.



• 129 dB Max SPL
• 800 WATT 2-way peak power
• DSP Processing with FiRPHASE
• 15" woofer, high power 2.5" voice coil
• 1" HF driver, mylar dome, 1.5" voice coil

Active speakers for live sound reinforcement and stage monitoring as well as distributed sound systems for clubs, music venues and corporate events. ART 315-A MK4 is the ideal speaker when an exceptional full range, outstanding bass reproduction and accurate high frequency delivery are required.



NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SPECIFICATIONS



Acoustical specifications



FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz



MAX SPL @ 1M: 129 dB



HORIZONTAL COVERAGE ANGLE: 90°



VERTICAL COVERAGE ANGLE: 60°



Transducers



COMPRESSION DRIVER: 1 x 1.0'', 1.5'' v.c



WOOFER: 15'', 2.5'' v.c



Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR, Jack



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



MIC. INPUT SENSITIVITY: -32 dBu



Processor section



CROSSOVER FREQUENCIES: 1800 Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, Boost, Mic/Line



Power section



TOTAL POWER: 800 W Peak, 400 W RMS



HIGH FREQUENCIES: 200 W Peak, 100 W RMS



LOW FREQUENCIES: 600 W Peak, 300 W RMS



COOLING: Convection



CONNECTIONS: VDE



Standard compliance



CE MARKING: Yes



Physical specifications



CABINET/CASE MATERIAL: PP Composite



HARDWARE: 4 x M10



HANDLES: 1 Top, 2 Side



POLE MOUNT/CAP: Yes



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 680 mm / 26.77 inches



WIDTH: 405 mm / 15.94 inches



DEPTH: 345 mm / 13.58 inches



WEIGHT: 17.1 kg / 37.7 lbs



Shipping informations



PACKAGE HEIGHT: 406 mm / 15.98 inches



PACKAGE WIDTH: 466 mm / 18.35 inches



PACKAGE DEPTH: 798 mm / 31.42 inches



PACKAGE WEIGHT: 20.2 kg / 44.53 lbs
