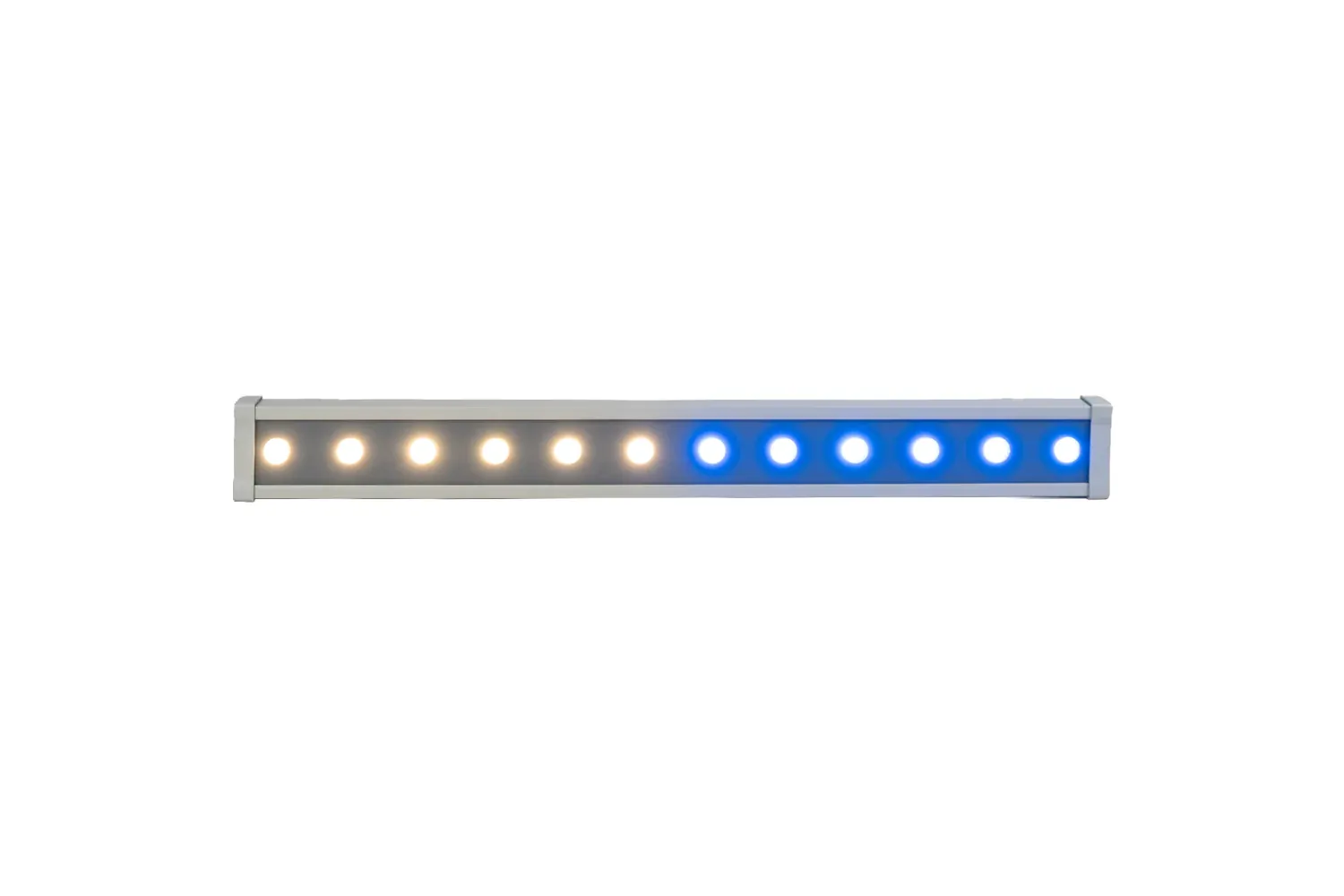

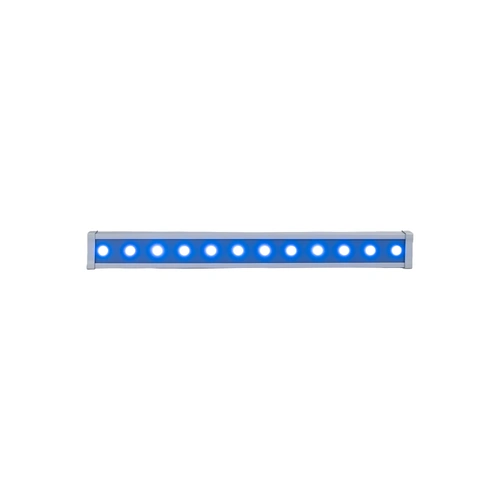

Event Lighting ARCBAR2405QW - Architectural Lighting Bar with 12 x 2W RGB+WW LEDs

The ARCBAR2405QW is a rugged, professional-grade 500mm LED architectural bar designed to bring vibrant colour and precision lighting to outdoor environments. Combining a sleek profile with heavy-duty performance, this fixture is the go-to solution for wall washing, facade lighting, and detailed architectural highlighting.

Key Features

• Powerful RGBW Output: Equipped with 12 x 2W LEDs, including a dedicated 3000K Warm White, allowing for a full spectrum of rich colours and soft, natural white tones.

• Dynamic Pixel Control: Features 2-segment control, enabling fluid chasing effects and granular lighting designs.

• Precision Optics: Comes standard with a 10x60° beam angle, perfect for vertical grazing. A wide variety of optional lenses (from 5° to 120°) are available via indent order to suit any project requirement.

• Built for the Elements: With an IP66 rating, this fixture is fully protected against dust and powerful water jets, ensuring longevity in harsh outdoor conditions.

• Low Voltage Safety: Operates on an external 24V DC system, simplifying installation and enhancing safety for permanent outdoor installs.

Specifications:

• Light Source: 12 x 2W RGB+WW LEDs
• White Colour Temperature: 3000K
• Beam Angle: 10x60°
  • Optional 5°, 15°, 20. °25°, 30°, 60° or 120° with additional Lead Time
• Control: DMX (Requires ARCW for Programming) with 4 segment pixel control
• Power: External 24V Power Supply (Requires IP2PSU150 for Power)
• IP Rating: IP66
• Dimensions: 500 x 180 x 180 mm / 20" x 7" x 7"
• Weight: 2.85 kg / 6.3 lbs

ARCW Codes and Applications Information

Warranty: 3 Years
