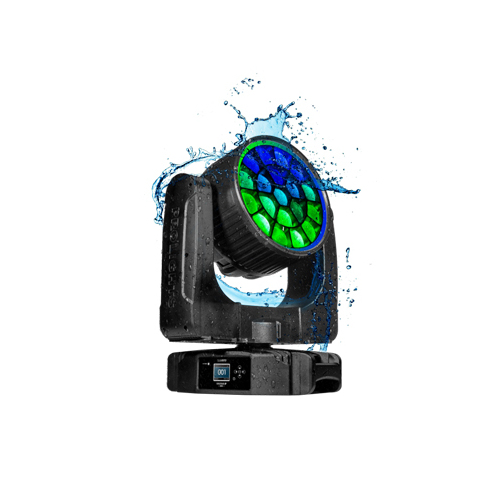

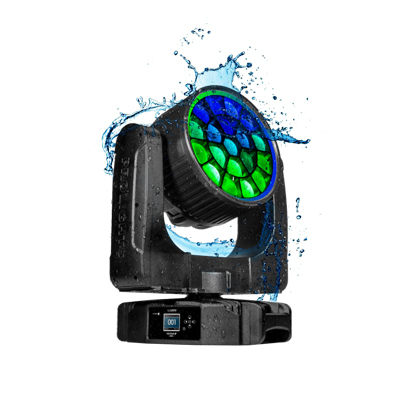

PROLIGHTS PANORAMA IP65 WASH

Features:

• IP rated wash light (IP65 for outdoor events)
• 19 LED RGBW/FC Osram 40W + outer RGB pixel ring
• Massive 3° to 45° linear zoom range from beam to wash
• Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects
• Heat-pipe cooling system for efficient cooling with virtually no noise.
• PANORAMA 2WAY FLIGHT CASE $2603inc.

LIGHT SOURCE

-Source: 19x40W RGBW Osram Ostar LEDs

-Lux: (3°) 60000 lux (45°) 5010lux @3m full

-Lux: (3°) 31500 lux (45°) 2000lux @5m full

-Source life expectancy: >50.000 h

-Other: Outer RGB Pixel ring with frost film

OPTICS

-Zoom: 3-45° motorised linear zoom

-Lens type: high-quality glass lens optics

-Additional optics: Diffuser on outer pixel ring

COLOUR SYSTEM

-Colour mixing: RGBW/FC

-CTC: CTC control through independent DMX channel

-White presets: 2000-10000K

-Colour wheel: virtual colour wheel with presets

-Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

-Pixel patterns: pre-programmed dynamic and static patterns

-FX generator: adjustable foreground/background colour, index, speed, direction

-Special features: Outer RGB pixel ring with several built in customizable FX macros

BODY

-Pan angle: 540/630°

-Tilt angle: 267°

-Pan/Tilt resolution: bit 16 bit

-Feedback: automatic repositioning after accidental movement

-Body: weatherproof IP65 construction

-Body colour: black

CONTROL

-Protocols: DMX512, RDM, Art-Net,W-DMX

-DMX channels: V1: 18 / 42 / 44 / 120, V2: 18 / 42 / 44 / 120channel

-Pixel control: Pixel2Pixel control

-W-DMX: included, wireless solution receiver

-RDM: RDM ready for fixture remote monitor and settings

-Display: LCD high resolution colour display with autoflip

-Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

-Hibernation: power safe mode when lost DMX

-Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

-Dimmer: linear 0~100% electronic dimmer

-Strobe / shutter: 1-30 Hz, electronic

-Battery backup: battery backup for user operation without connecting to the main power

-Operating temperature: -20° ~ +45°

-Flicker: flicker free operation

ELECTRICAL

-Power supply: 100-240V – 50/60Hz

-Power consumption (at 230V): 661W

-Power consumption (at 120V): 698W

PHYSICAL

-Cooling: combination of heat pipe cooling system and low noise fan

-Suspension and fixing: any position with quick-lock omega brackets

-Signal connection: Seetronic XLR 5p IN/OUT connectors

-Data connection: Art-Net RJ45 IN/OUT

-Power connection: Neutrik powerCON TRUE1 IN connector

-IP rating: 65 for outdoor events

-Dimensions (WxHxD): 529x676x312mm

-Weight: 35kg
