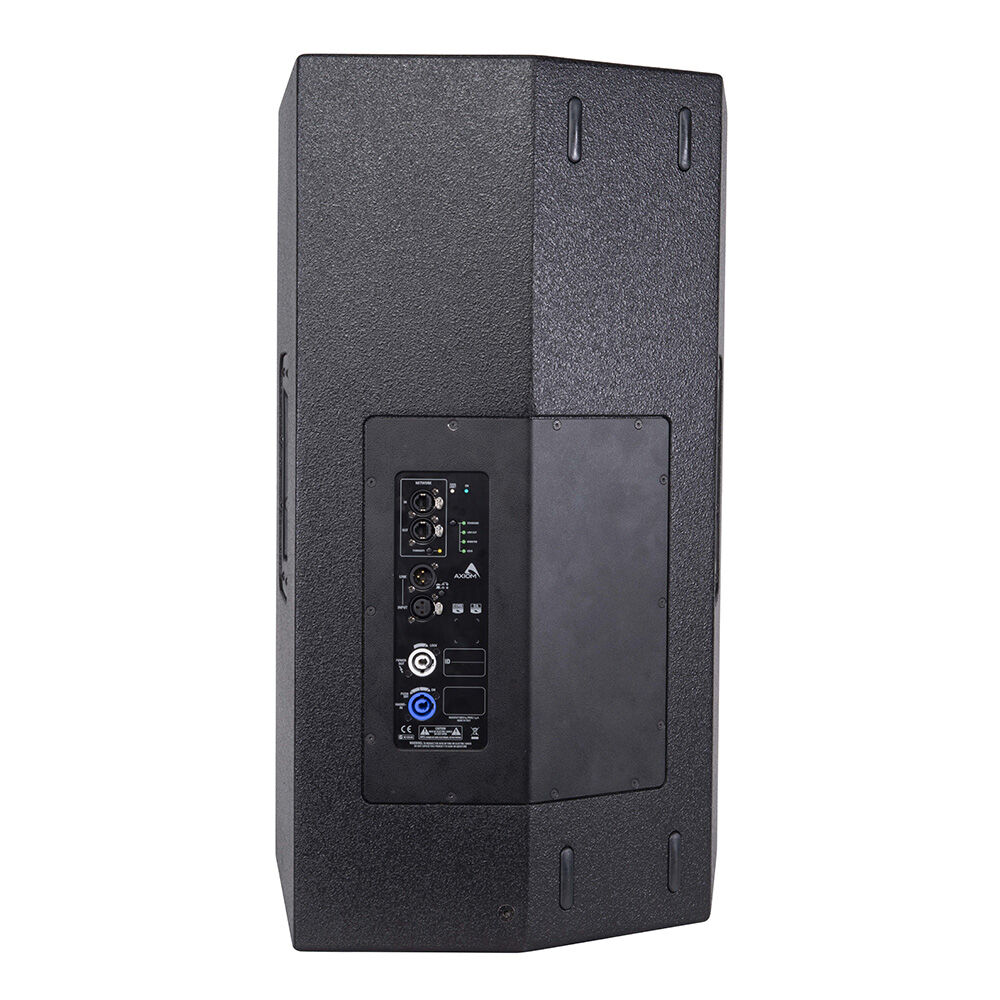

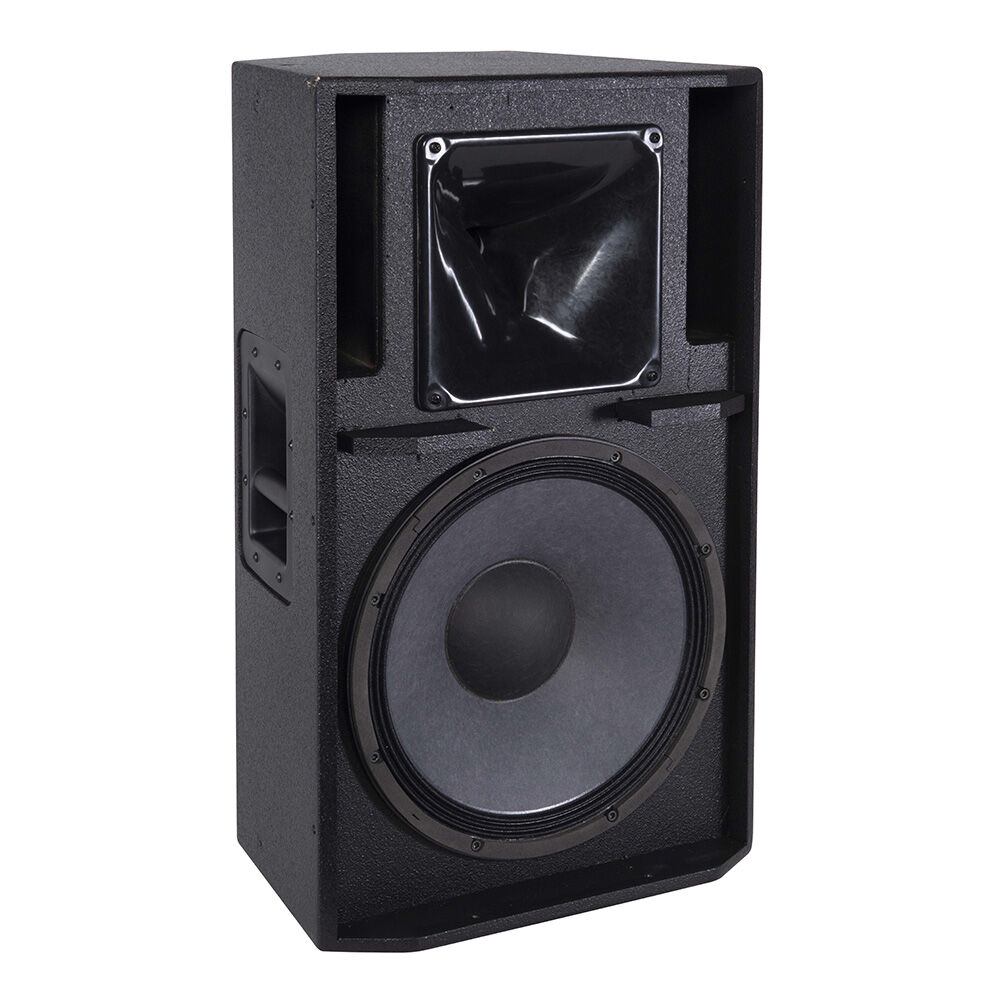

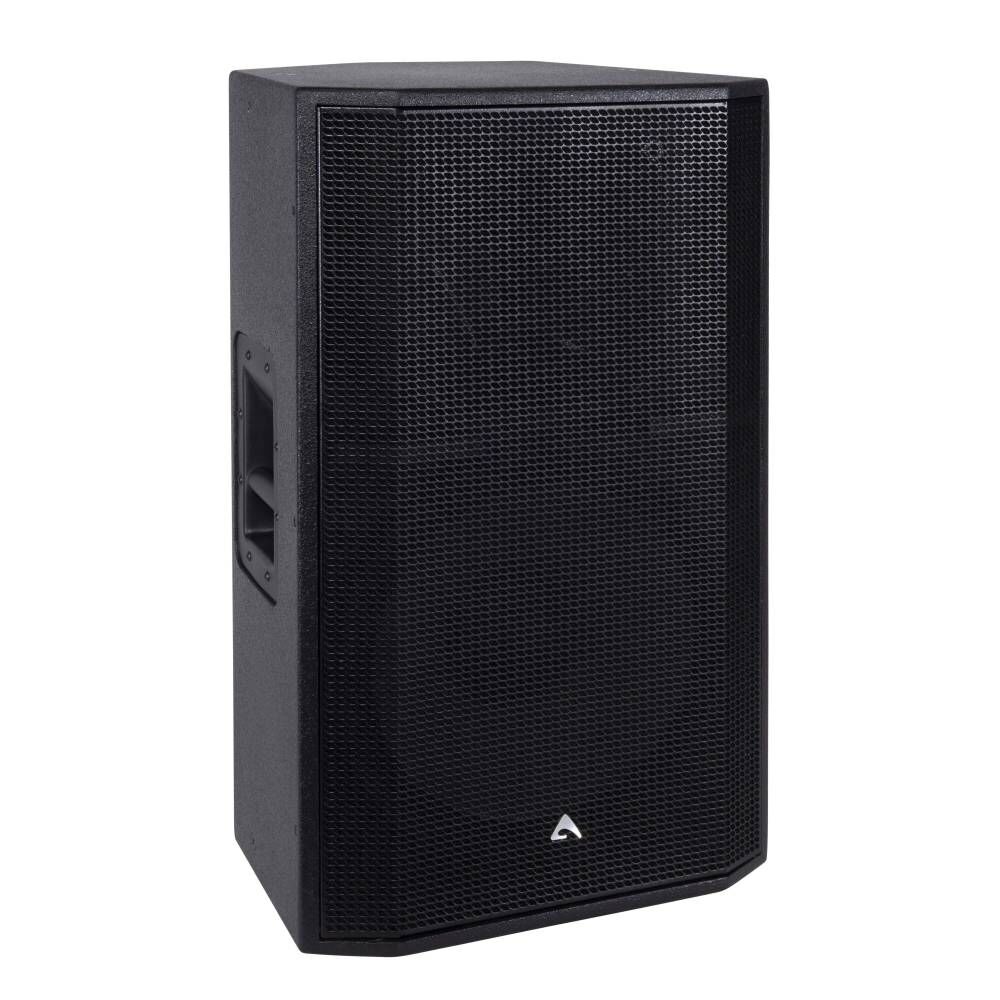

Axiom ED150A 15″ Powered PA Speaker
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$4,699.00
Sold Out - Backorder Available
Key Features:
- Powered two-way point source
- 15” woofer, 1.4” HF compression driver
- 96KHz / 40 bit floating point CORE processing with PRONET remote control
- Digitally controlled Class D amplifier module with SMPS
- Asymmetric HF coverage pattern
- Rotatable HF horn
- Non-symmetrical, multi-angled enclosure
- M10 and M6 rigging points
- Pole mount socket
- Black or White finish.
Technical Data
| System’s Acoustic Principle | 2-way vented enclosure, Asymmetric Dispersion |
|---|---|
| Frequency Response (-6dB) | 50 Hz – 17 kHz (Processed) |

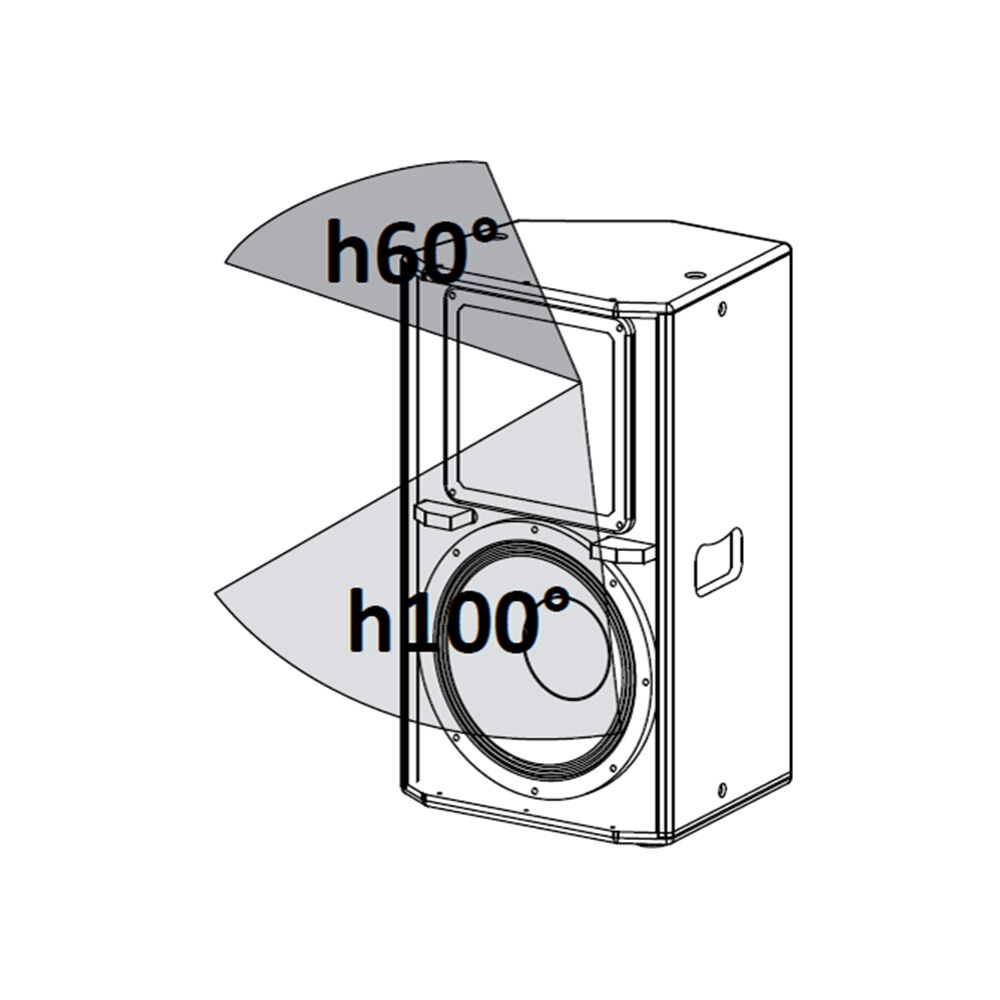

| Horizontal Coverage Angle | 60° to 100° asymetric, (-6dB) |
| Vertical Coverage Angle | 60° average, 1KHz to 17KHz (-6dB) |
| Maximum (peak) Output | 128 dB SPL @ 1m |
| HF | One 1.4″ (35,5mm) exit, neodymium magnet HF compression driver, 2.4″ (61mm) aluminium VC |
| LF | One 15″ (381mm) ferrite magnet low frequency woofer, 3″ (76mm) aluminium VC |
| Input Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Input Sensitivity | +4dBu / 1.25 V |
| Signal Processing | CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters |
| Direct access Controls | 4 Presets (STANDARD/LOW CUT/MONITOR/USER), Network Termination, GND Link |
| Remote Control | PRONET control software |
| Network protocol | CANBUS |
| Amplifier Type | Class D with SMPS |
| Output Power | 900W + 300W |
| Mains Voltage Range (Vac) | 230V ±15% – 115 ±15% 50/60Hz (internally selectable) |
| IN / OUT Connectors | Neutrik XLR-M / XLR-F |
| IN / OUT Network Connectors | ETHERCON®(NE8FAV) |
| Mains Input Connector | PowerCon® (NAC3MPA) |
| Mains Link Connector | PowerCon® (NAC3MPB) |
| Cooling Variable speed | DC fan |
| Width | 450 mm |
| Height | 765 mm |
| Depth | 400 mm |
| Monitor Taper | Stage Monitor: 35° – Frontfill: 7.5° |
| Enclosure Material | 15mm, reinforced phenolic birch |
| Paint | High resistance, water based paint |
| Flying system | M10/M6 flying points or dedicated metal bracket |
| Net Weight | 31kg (68.3 lb) |
(PROEL-ED150A)
| SKU | PROEL-ED150A |
| Brand | AXIOM |
