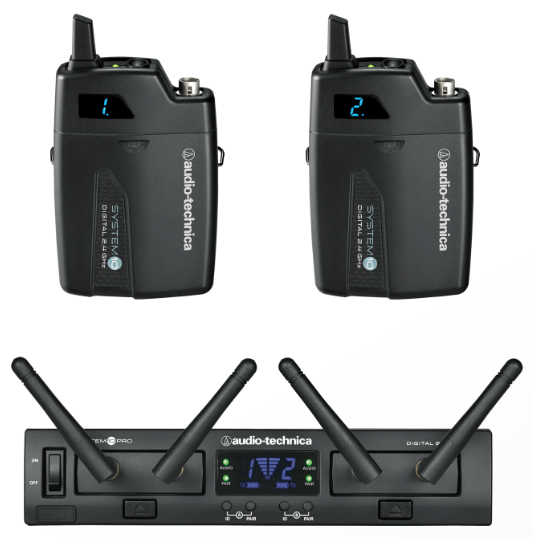

AUDIO TECHNICA ATW-1311 System 10 PRO Wireless Body-pack System

$1,299.00
In Stock


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Overall System
Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response 20 Hz to 20 kHz
Depending on microphone type
Operating Range 60 m (200') Open range env. with no interfering signals
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA
not included
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight 280 grams (9.9 oz)
without batteries
Accessories Included AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output 10 mW
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Battery Type Two 1.5V AA
not included
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight 100 grams (3.5 oz)
without batteries
Spurious Emissions Following federal and national regulations
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Dimensions 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Weight 940 grams (33.2 oz)
Accessories Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Output Connector Remote Receiver Connector: RJ45
Link Connector: RJ12

(ATW-1311)

SKU ATW-1311
Brand AUDIO TECHNICA
