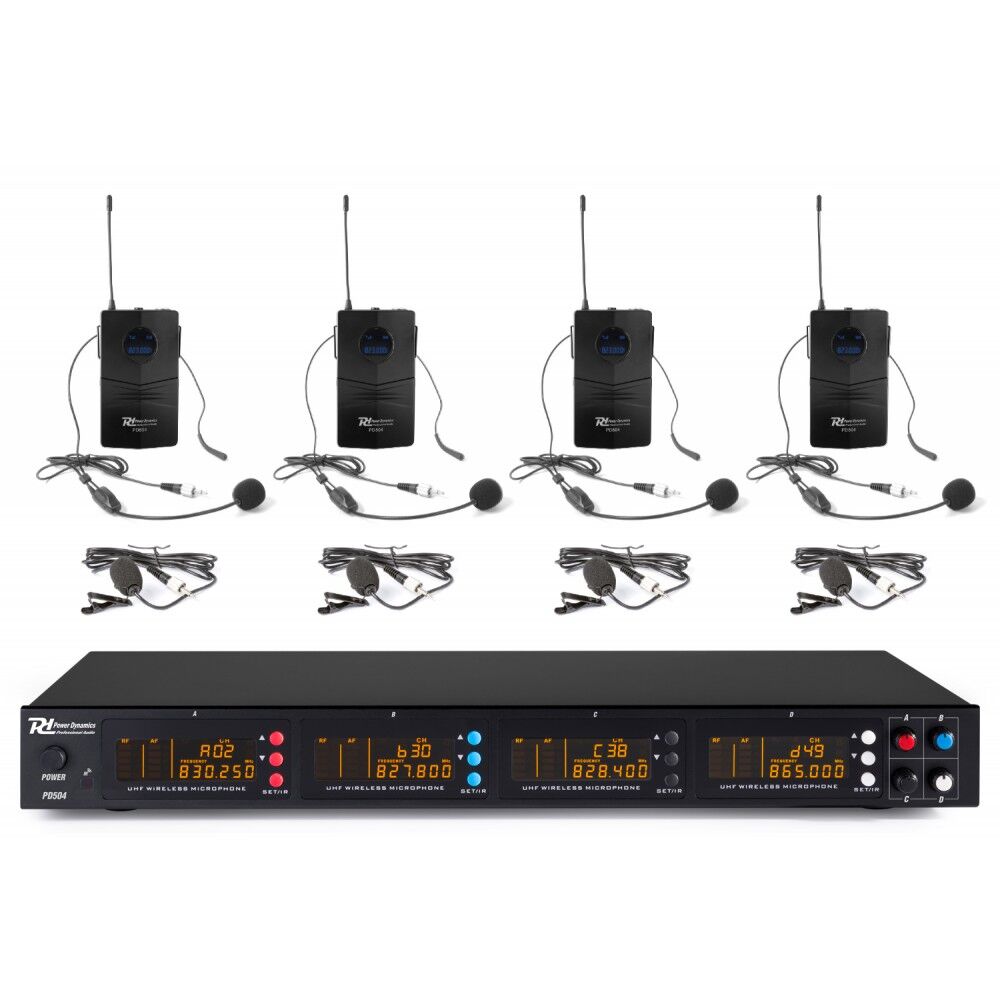

Power Dynamics PD504B Wireless Bodypack Microphone Set
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$599.00
Sold Out - Backorder Available
Key Features:

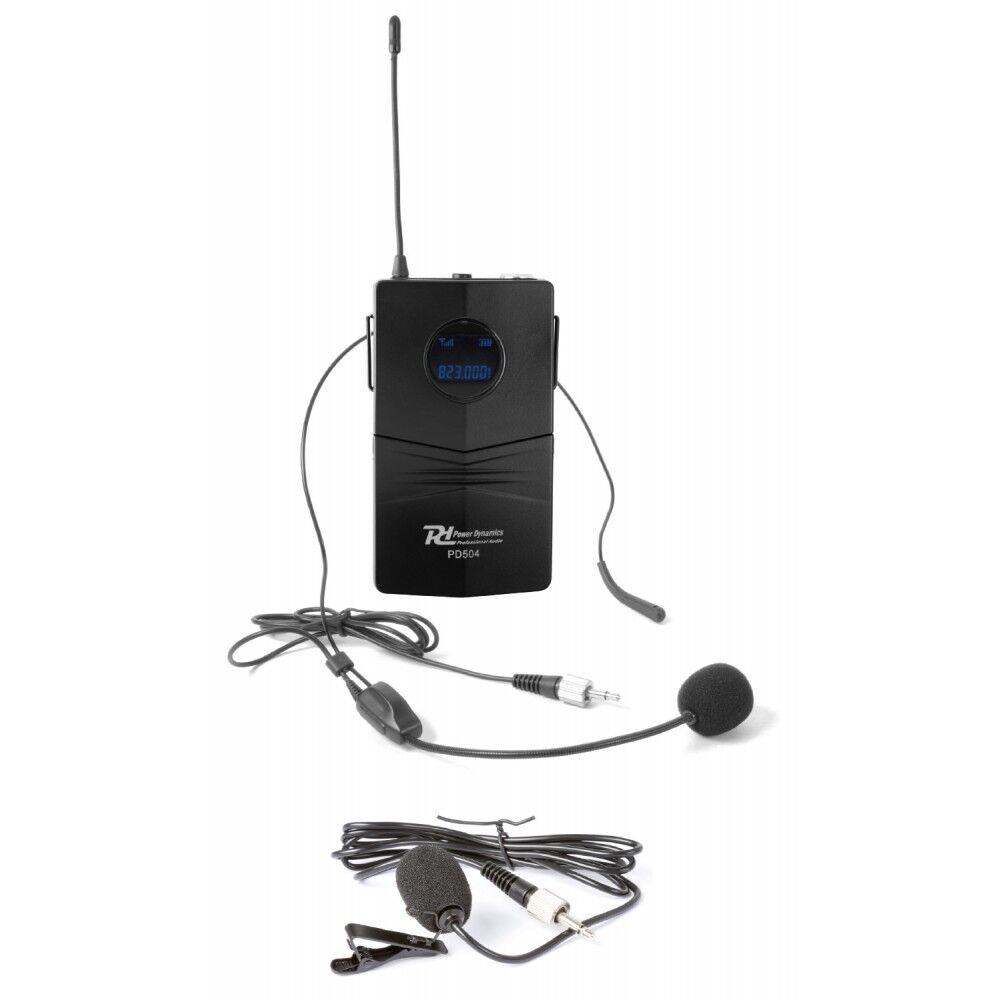

- 4x Bodypack with headset and tie-clip microphone and mute function
- 4x 50 Selectable non-interfered UHF channels
- IR data transmission for channel selection
- Microphone connection using 3.5mm jack

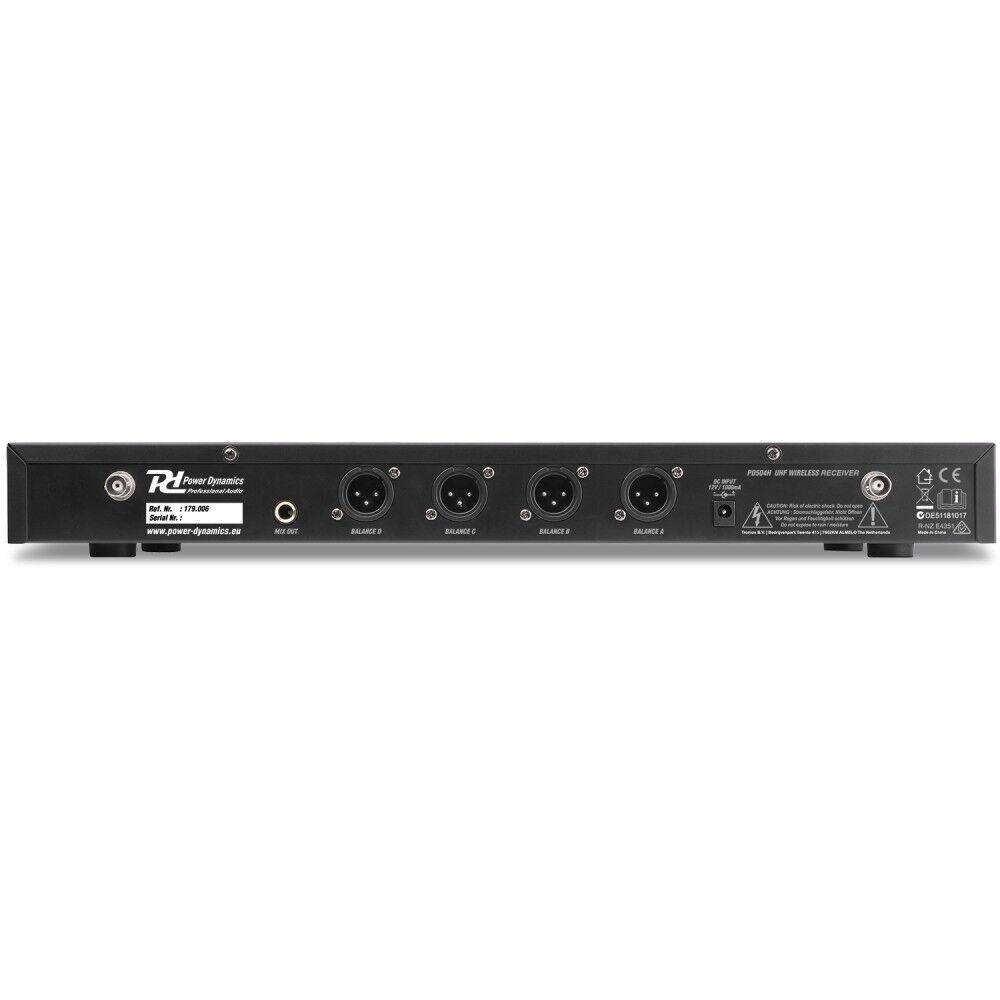

- 4x balanced XLR outputs
- CPU controlled
- PLL oscillator
- Transmitters with display showing the frequency and battery low indication
- Equipped with Dynamic LCD

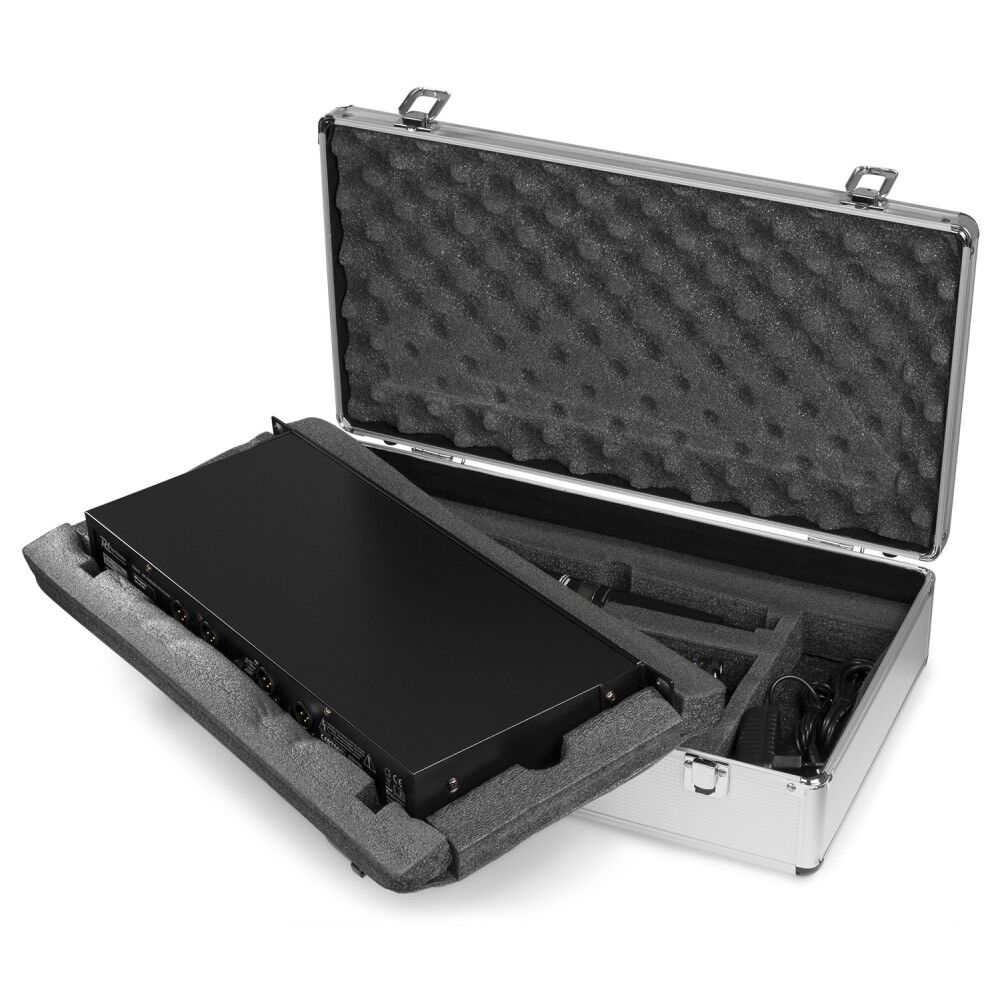

- Supplied in aluminum carrying case
- Including 19″ brackets.
Technical Data
| Input Connections: | 3.5mm Jack, XLR (3-pin) |
|---|---|
| Output connections: | 3.5mm Jack, XLR (3-pin) |
| Frequency range: | 826.300 – 831.200 MHz, 863.000 – 865.000 MHz |
| Frequency response: | 60 – 18.000 Hz |
| Frequency stability: | 0.0015% |
| RF output: | <10mW |
| Signal-to-noise ratio: | >97dB |
| THD: | <1% |
| Batteries: | 3V (2x AA) |
| Power supply: | 100-240VAC 50/60Hz (12V Adapter) |
| Dimensions – Receiver: | 235 x 420 x 44mm |
| Dimensions – Body pack: | 75 x 60 x 23mm |
| Weight: | 5.1 kg |
| Weight – Receiver: | 1.7 kg |
| Weight – Bodypack: | 0.2 kg |
(PD504B)
| SKU | PD504B |
| Brand | POWER DYNAMICS |
