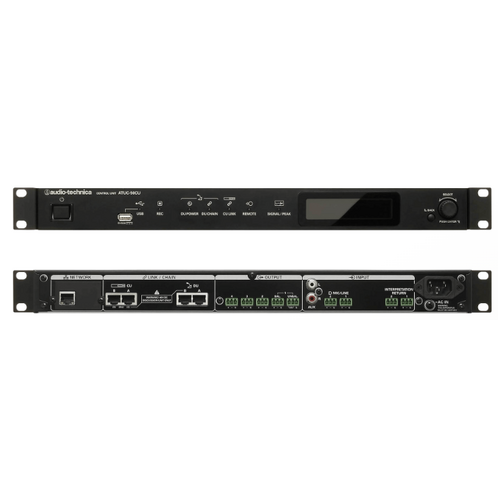

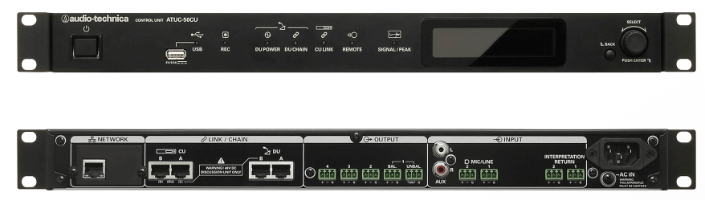

AUDIO TECHNICA ATUC-50CU CONTROL UNIT

$2,699.00
Sold Out - Backorder Available


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

ATUC-50CU Control Unit. Controls up to 100 discussion units, Cascade capability to handle up to 300 discussion units and control available via web remote interface. Conference mode: Free talk, request to talk and full remote. Built-in feedback suppressor

Control Unit
Dynamic range 110 dB A-weighted
Frequency response + 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz
Recording Via USB storage device:
1/2/3/4 track (WAV) (BWF standard)
1/2 track (MP3) (Original format)

MP3 bit rate:
64kbps/128kbps/192kbps/256kbps/320kbps
Connections Mic/Line ×2, AUX (ST) ×1, INTERPRETATION RETURN ×2
Outputs: Balanced ×4, Unbalanced ×1
LINK /CHAIN : DU A/B Terminals, CU A/B Terminals (DU C/D Terminals)
Signal-to-noise Ratio 90 dB, A-weighted
Signal delays MIC Input to Output: 1ms
DU to CU: 1.2ms
Headroom 20 dB
Equivalent Input Noise Mic/Line 1-2, less than -126dBu, Rs=150 ohm
Total harmonic distortion Less than 0.03% @1kHz unity
Crosstalk at 1 kHz Less than –80dB
Power Supply AC 100V~240V 50/60Hz
Phantom Power DC +48V
Power Consumption 20W ~ 175W (max.)
Operating Temperature Range 0-40° C
Operating Humidity 25-85%
Dimensions 482.6mm x 331.6mm x 44mm
Weight 3.4kg
OLED Display 20x2 Character type, Color: Yellow,
Operating life time: 100,000 hours
Accessories AC power cord, Quick Setup Guide x 2,
Euroblock connectors x 9, Warranty Sheet

(ATUC-50CU)

SKU ATUC-50CU
Brand AUDIO TECHNICA
