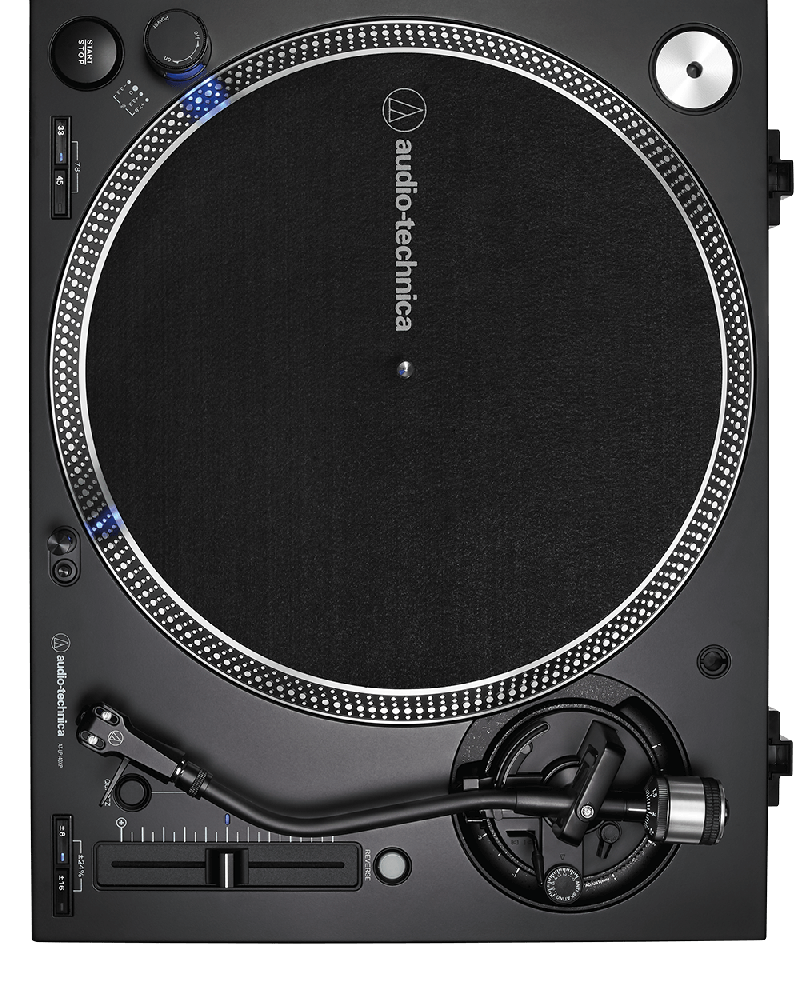

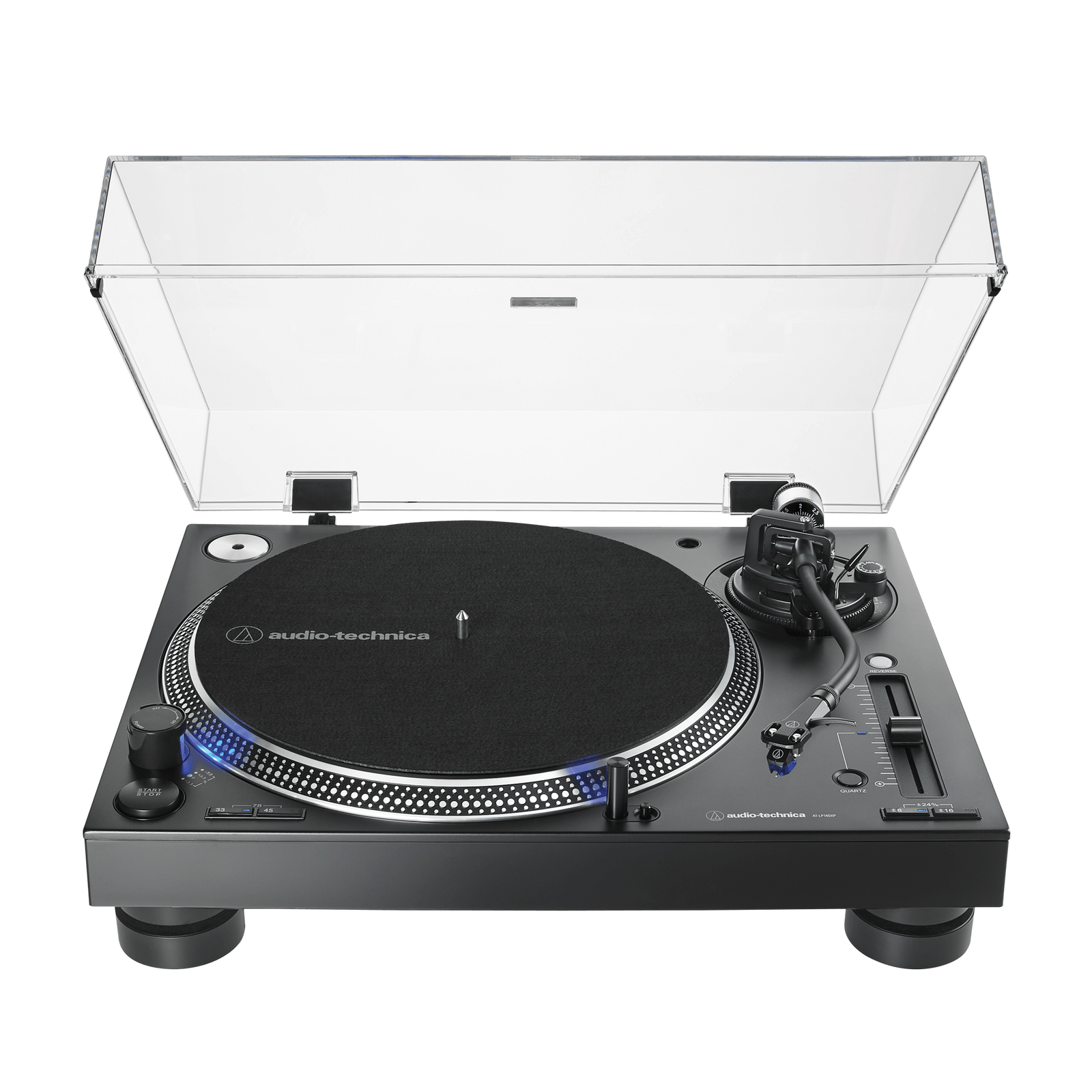

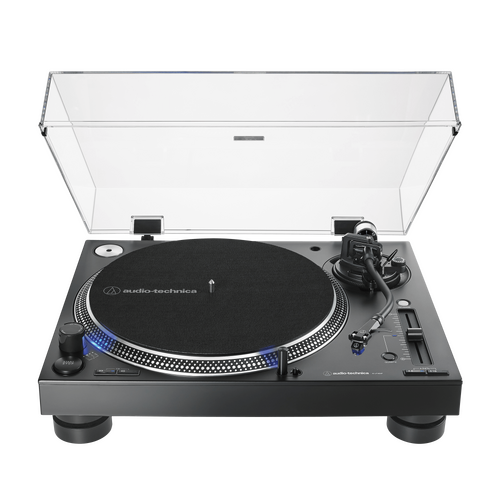

The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and mass-damped die-cast aluminum anti-resonance platter to ensure stable, on-axis rotation at 33-1/3, 45 and 78 RPM. It is equipped with a height-adjustable S-shaped arm, adjustable stylus pressure (counterweight) and adjustable dynamic anti-skid control.
Audio-Technica has been a leader in phonograph capsule design for over 50 years, and that expertise can be seen in the durable AT-XP3 high-power DJ capsule with 0.6mil conical soldered stylus included with the turntable. It comes pre-assembled to a universal head with a ½-in. AT-HS6.
Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and provides a powerful 5.5 mV output.
Other pro features include a start/stop button; forward and reverse playback; Quartz-controlled high-precision selectable pitch lock and pitch shift slider with adjustment ranges of +/-8%, +/-16%, and +/-24%; a strobe dish with speed indicator; a pop-up needle light and a removable hinged dust cover.
Available in black (AT-LP140XP-BK) and silver (AT-LP140XP-SV).
Turntable
Type
3-speed operation, fully manual
Motor
high torque dc motor
drive method
Direct
speeds
33-1/3 RPM, 45 RPM, 78 RPM
Vinyl disc
Die-cast aluminum
starting torque
>2.2 kgf.cm
wow and flutter
< 0.2% (WTD) at 3 kHz (JIS)
signal-to-noise ratio
>50 dB
output level
5.5 mV nominal at 1 kHz, 5 cm/s
Power supply requirements
115/230 V AC, 60/50 Hz
dimensions
452.0 mm W x 352.0 mm D x 158.6 mm H
Weight
10.0 kg, without dust cover
Accessories included
AT-XP3 phono cartridge; AT-HS6 head; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt; dust cover; 45 RPM adapter; plug type needle light
intensity variation
+/-8% or +/-16% or +/-24%
Grades
Arm Type: S-Shape Balanced Arm with Removable Head Arm Effective Arm Length: 230.5 mm Rebound: 16 mm Track-Following Error Angle: Less than 3 degrees Applicable Capsule Weight: 3.5 to 8.5 g Anti-skid range: 0 to 4 g Replacement needle: ATN-XP3
(AT-LP140XP)
SKU
AT-LP140XP
Brand
AUDIO TECHNICA
