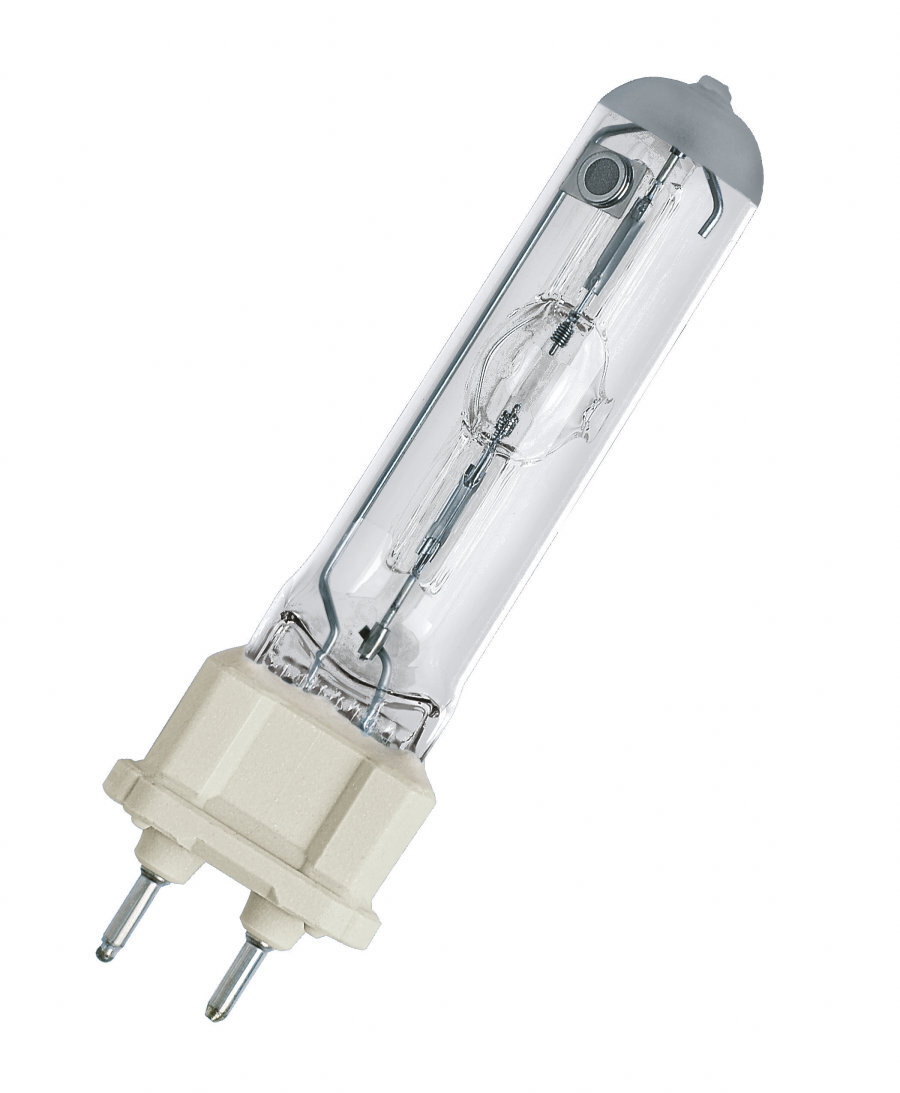

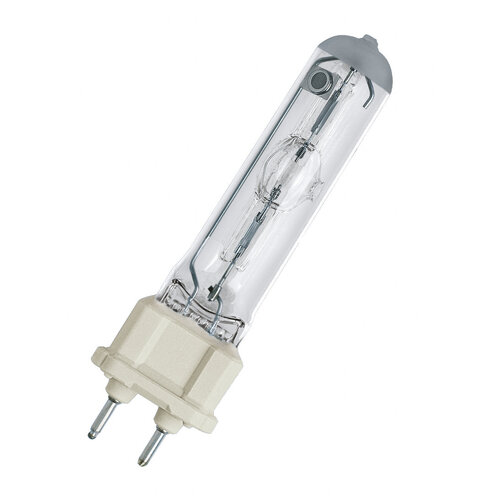

OSRAM 150WUl75 G12 Fhs1 4ARXS HSD

1 LEFT

$239.99
Sold Out - Backorder Available


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Product family benefits

  • Especially long lifespan

Areas of application

  • Entertainment
  • Architainment

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, 4ArXS HSD lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Technical Data

Electrical data

Nominal wattage

150.00 W

Nominal voltage

97.5 V

Lamp voltage

97 V

Nominal current

1.8 A

Lamp current

1.8 A

Photometrical data

Nominal luminous flux

11000 lm

Color temperature

7500 K

Dimensions & weight

Diameter

20.0 mm

Length

105.0 mm

Light center length (LCL)

56.0 mm

Lifespan

Lifespan

6000 h

Additional product data

Base (standard designation)

G12

Product remark

For ECG operation only

Capabilities

Burning position

Other

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

19-01-2022

Primary Article Identifier

4008321625861

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

No declarable substances contained

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4008321625861 FS  1 46mm x 46mm x 143mm 53.00g 0.30dm³
4008321625878 VS  10 245mm x 192mm x 113mm 738.00g 5.32dm³

(WOT4008321083548)

SKU WOT4008321083548
