- 24x 6W 6-in-1 LEDs
- RGBAW-UV colour mixing
- 8 separate controllable sections
- Pre-programmed shows
- 17 auto mode programs
- Sound activated
- 8, 11, 20, 36 or 74 DMX channels
- DMX and Stand-alone mode
- Master/slave function
- DMX in/output via 3-pin XLR
- Control panel with LED display.

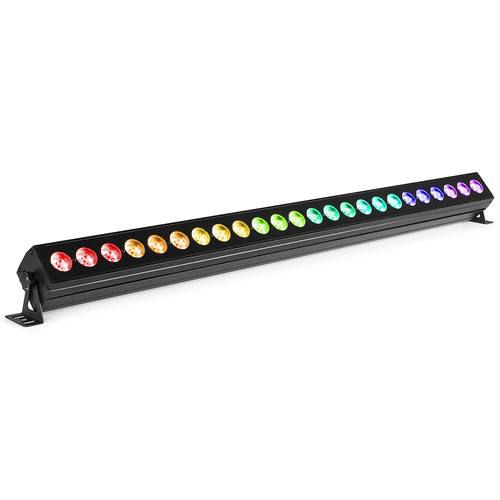

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.
Technical Data
Supplied features | Master/Slave mode |
---|---|
Light source | 6-in-1 LED |
LED colours | Red, Green, Blue, Amber, White, Ultra Violet |
LED power | 6W |
Quantity of LEDs | 24 |
Beam angle | 20 |
Field angle | 33 |
Illuminance | 5.675 lx @ 1m |
Flash rate per second | 1 – 20Hz |
DMX channels | 8, 11, 20, 36, 74 |
DMX connector | 3-pin XLR |
Modes | Automatic programs, DMX, Manual, Master/Slave |
Daisy chain | Yes (max. 8 bars) |
IP rating | IP20 |
Cooling | Temperature controlled fan |
Display | LED |
Power plug | Power-connector |
Power consumption | 1.70 – 0.90A |
Power supply | 100-240VAC 50/60Hz |
Dimensions (L x W x H) | 1010 x 75 x 76mm |
Weight | 3,65 |
Accessories | Mounting bracket, Power cable |
(BEAMZ-LCB246)
SKU | BEAMZ-LCB246 |
Brand | Beamz |
