SWAMP Smartphone to Dual RCA Cable - Extended 3.5mm Mini-Jack 1 METER

$18.99
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

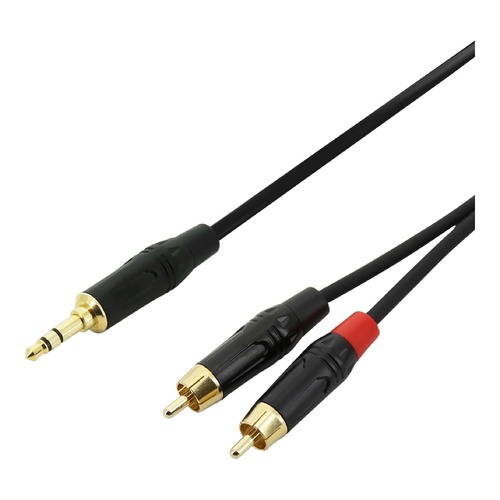

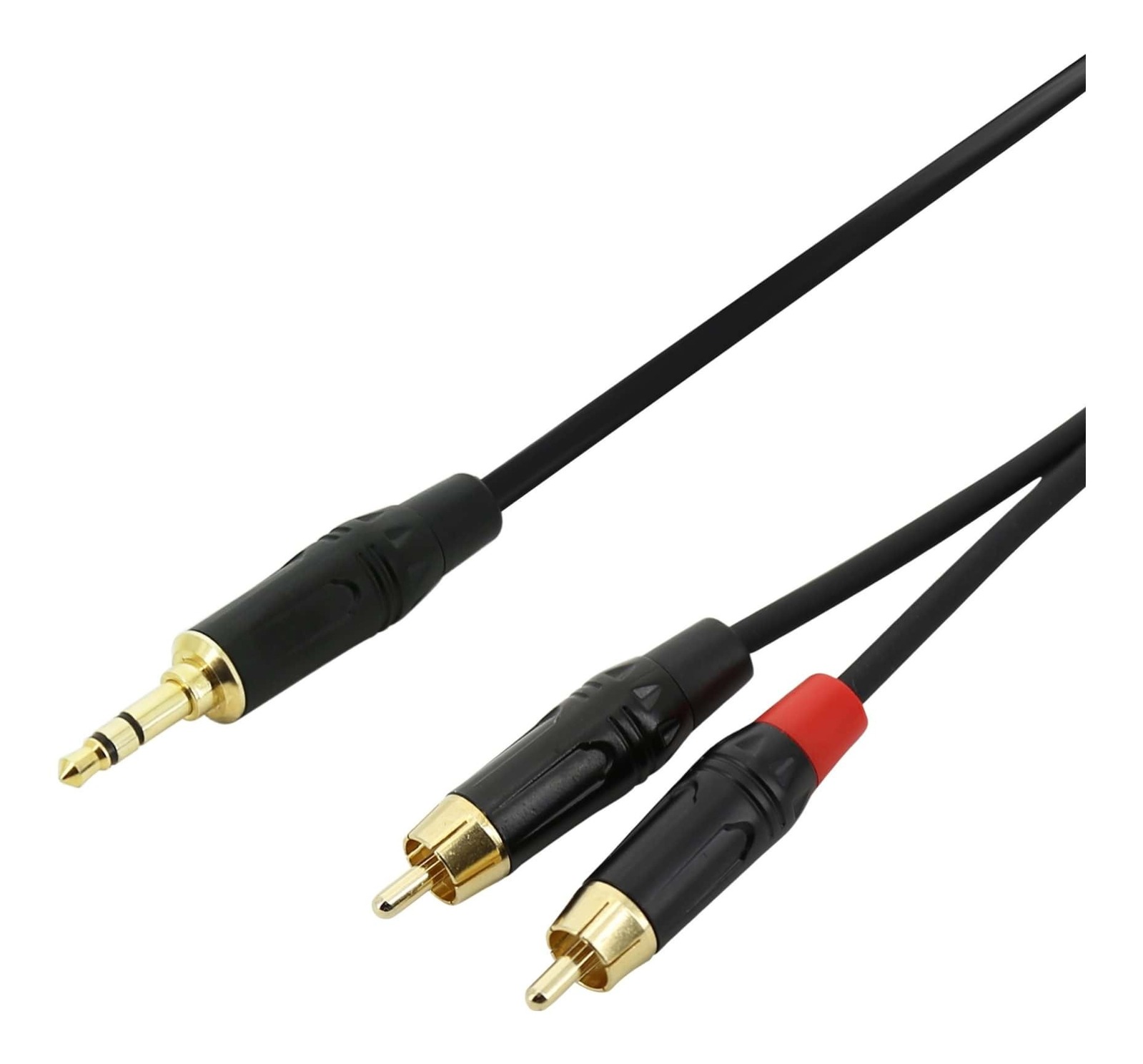

SWAMP 3.5mm Stereo to Dual RCA Audio Y Cable
​This ⅛” / 3.5mm TRS to 2x RCA Y cable can be used to transfer a stereo audio signal between devices with dual RCA and 3.5mm TRS sockets. Common uses include patching from a stereo TRS ⅛” jack output, such as headphone outputs on smartphones, tablets and laptops, directly to left and right RCA audio input sockets while maintaining true stereo sound.

Connect Any Device with ⅛” Headphone Outputs
The ⅛” or 3.5mm TRS minijack connector is most common analog audio jack found on consumer electronics including smartphones. Use this cable to connect any device with a ⅛” output such as an  MP3 player, iPod, iPhone, iPad, Android Smartphone, laptop or any device with a standard 3.5mm headphone output to anything with dual RCA inputs. This includes mixing consoles, CD players, DJ gear, TV's and home stereo amplifiers.

Extended Height 3.5mm Mini-Jack - Perfect for phones with cases!
The TP180 model 3.5mm connector has an extended length compared to standard 3.5mm connectors with an additional "height" piece at the top of the barrel. This allows an easy to connection to those smartphones with thick cases, which would otherwise had to have been removed.

True Stereo Sound
Wired for true stereo, meaning both the left and right channel signals are transferred along the cable as separate signals.

Quality Cable and Connectors
Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.

Specifications:

  • Cable Colour: Black
  • Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
  • Conductor Gauge: 23 AWG / 0.23mm2
  • Outer Diameter: 4.4mm
  • Connectors: 1/8" / 3.5mm TRS (male) to 2x RCA (male) - (SWAMP TP180, TR045)

Wiring:

1/8” (Stereo / TRS) RCA (red)  RCA (black)
Tip Tip
Ring   Tip
Sleeve Sleeve Sleeve
  • Length: 1m

(SWAMP-MINIJACK-TO-RCA-1M)

SKU SWAMP-MINIJACK-TO-RCA-1M
Brand SWAMP
