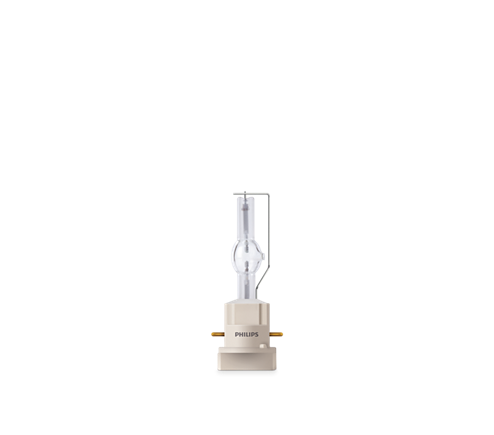

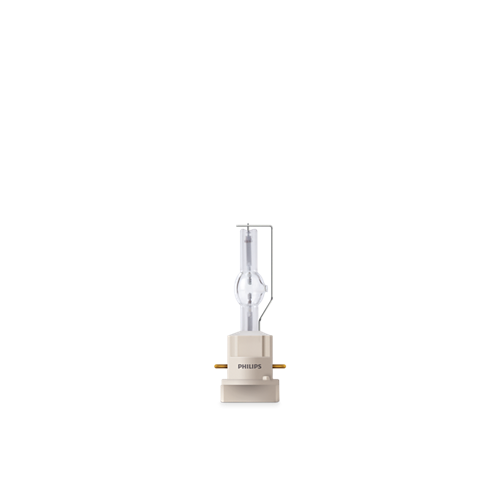

Philips MSR Gold 1000 MiniFastFit 1CT/4

Philips MSR Gold 1000 MiniFastFit 1CT/4

Thanks to the specially designed lamp base, the MSR GoldTM MiniFastFit takes just seconds to replace, to help ensure non-stop clubbing entertainment. In addition, the innovative gold plated pins ensure excellent current transfer to prolong lamp and lamp holder lifetimes and thereby reduce lamp replacement costs. Easy handling and small compact fixture designs are allowed by the lamps compact size, while the very short arc provides a high perceived brightness and high beam intensity.

Works with the MAC Viper

General Information

Cap-Base	PGJX36  [ PGJX36]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Main Application	Entertainment

Life to 50% Failures (Nom)	900 h
System Description	MiniFastFit



Light Technical

Color Code	–  [ Not Specified]
Luminous Flux (Min)	74000 lm
Luminous Flux (Nom)	82000 lm
Chromaticity Coordinate X (Nom)	0.321

Chromaticity Coordinate Y (Nom)	0.330
Correlated Color Temperature (Nom)	6000 K
Luminous Efficacy (rated) (Nom)	82 lm/W
Color Rendering Index (Nom)	80



Operating and Electrical

Power (Rated) (Nom)	1000.0 W
Lamp Current (Nom)	11.4 A

Ignition Supply Voltage (Min)

198 V



Controls and Dimming

Dimmable

Yes



Mechanical and Housing

Cap-Base Information

PGJX36



Luminaire Design Requirements

Bulb Temperature (Max)

950 °C

Pinch Temperature (Max)

500 °C
