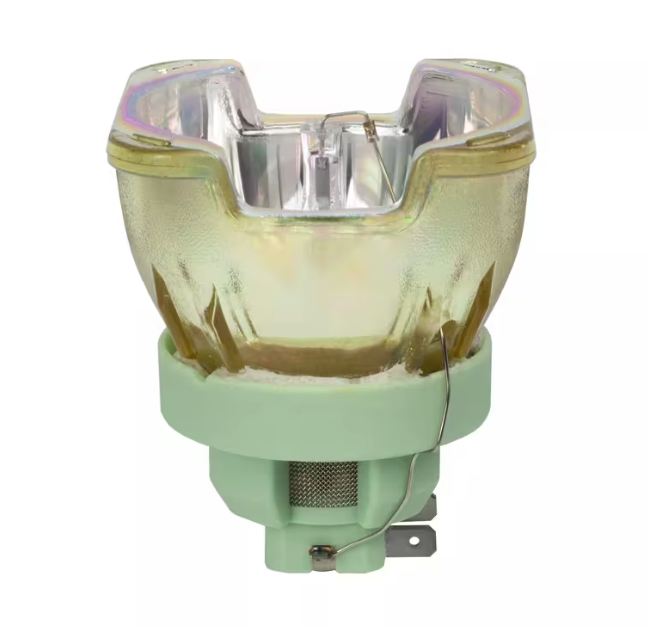

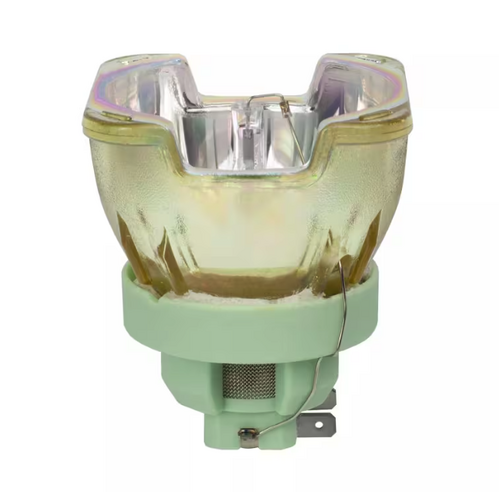

OSRAM SIRIUS HRI 440 W

Product features and benefits

•  Lightweight and compact reflector lamps with optimized ECG
•  High luminance through very short arc and high pressure
•  Optimized burner design allows any burning position
•  Stable light output over the entire lifetime
•  Easy lamp replacement

Areas of application

•  Concert Lighting
•  Club & Disco
•  Stage & Theatre
•  Studio, TV, & Film
•  Architecture & Architainment

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Technical Data

General Product Information

Category

CORE

Global order reference

SIRIUS HRI 440 W +

Electrical Data

Nominal wattage

440 W

Nominal voltage

83 V

Nominal current

5.3 A

Photometric Data

Nominal luminous flux

22800 lm

Color temperature

7000 K

Color rendering index Ra

80

Working distance

41 mm

Physical Attributes & Dimensions

Lamp base

-

Diameter

58.0 mm

Length

71.0 mm

Product weight

135.50 g

Lifetime Data

Nominal lifetime

1500 hr

Environmental & Regulatory Information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Primary article identifier

4062172348874 | 4062172047333

Declaration no. in SCIP database

No declarable substances contained

Candidate list substance 1

No declarable substances contained

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight	Volume
4062172348874	FS	1	87mm x 87mm x 103mm	184.00g	0.78dm³
4062172348881	VS	2	186mm x 96mm x 115mm	413.00g	2.05dm³
