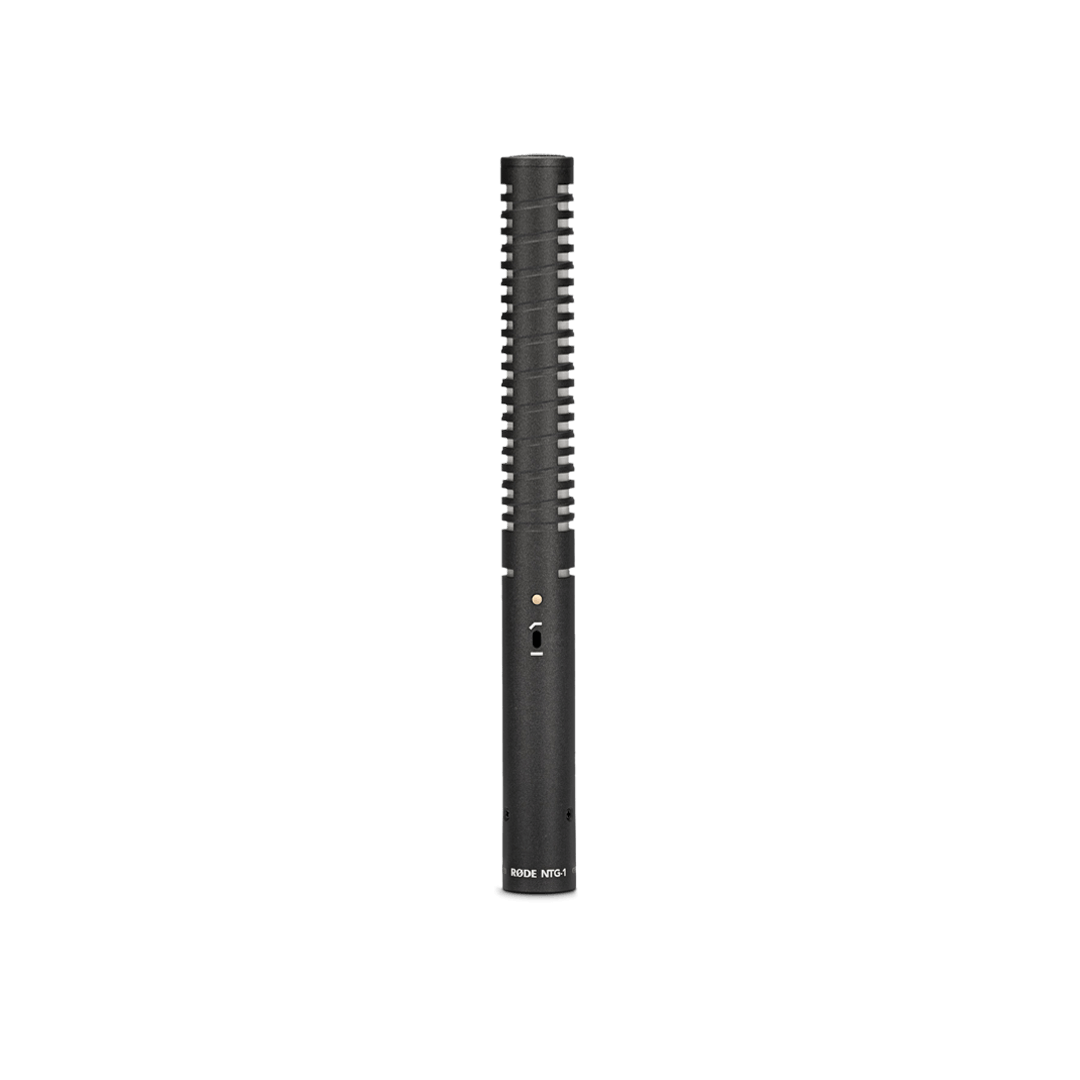

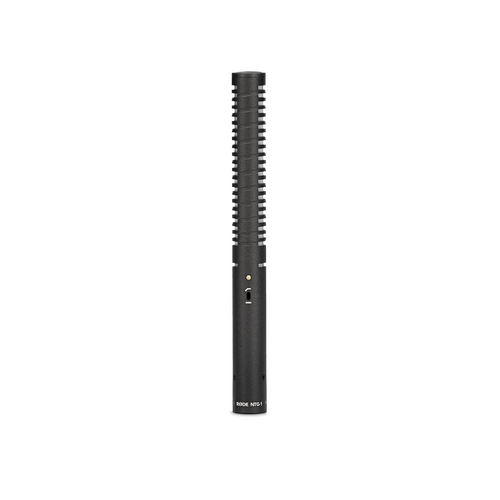

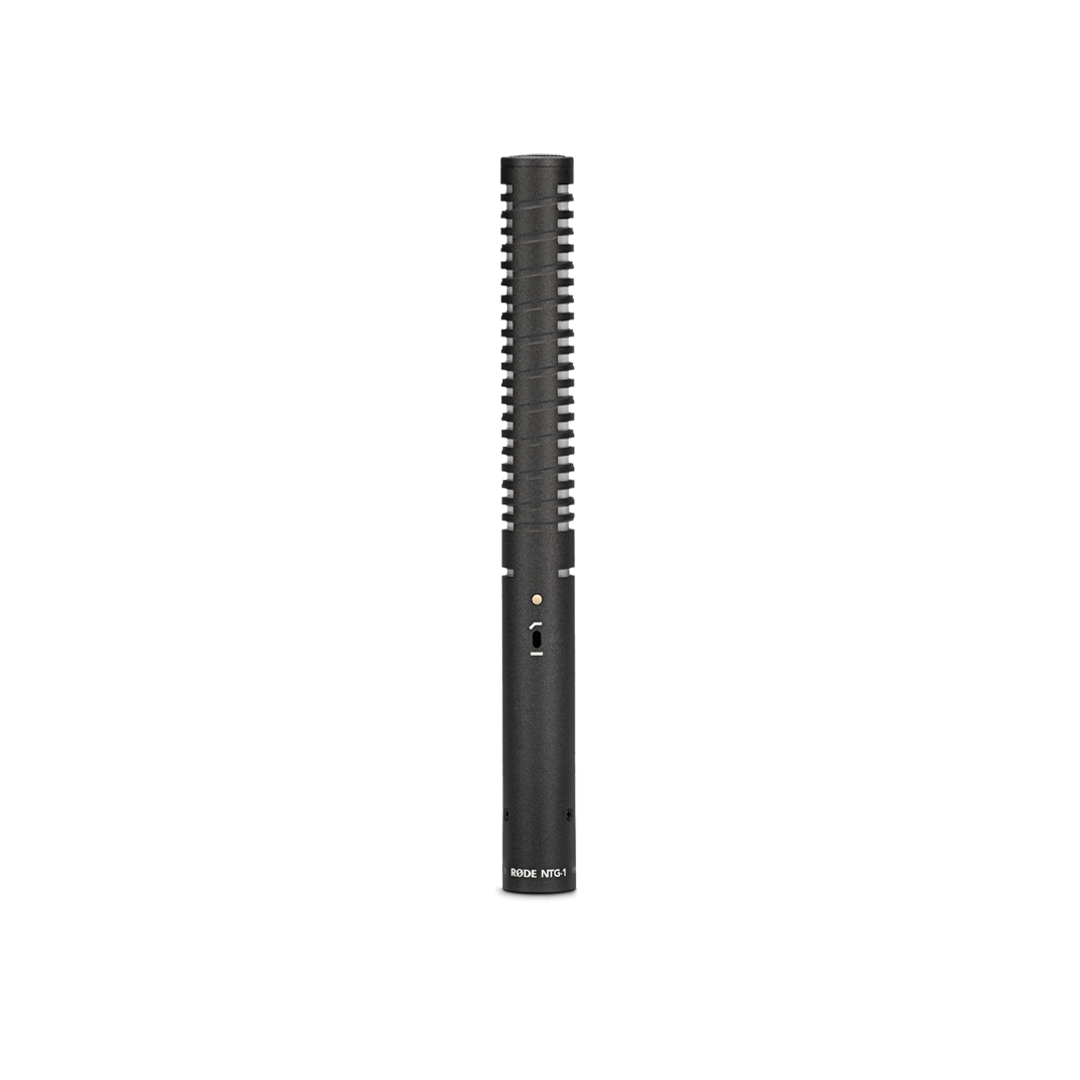

Next NTG1 Premium Shotgun Microphone

Acoustic Principle

Line Gradient

Active Electronics

JFET impedance convertor with bipolar output buffer

Capsule

0.50"

Polar Pattern

Supercardioid

Address Type

End

Frequency Range

20Hz - 20kHz

Output Impedance

50Ω

Maximum SPL

139dB SPL

Maximum Output Level

6.9mV (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity

-36.0dB re 1 Volt/Pascal (15.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Equivalent Noise Level (A-Weighted)

18dBA

Power Requirements

P24 and P48

Output Connection

XLR
