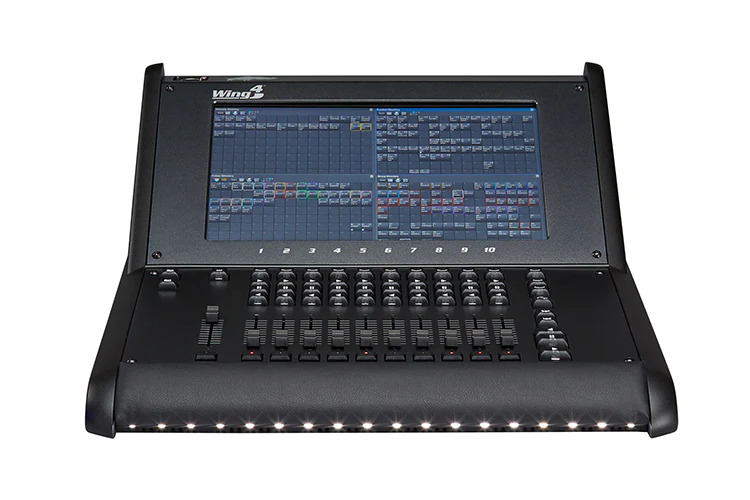

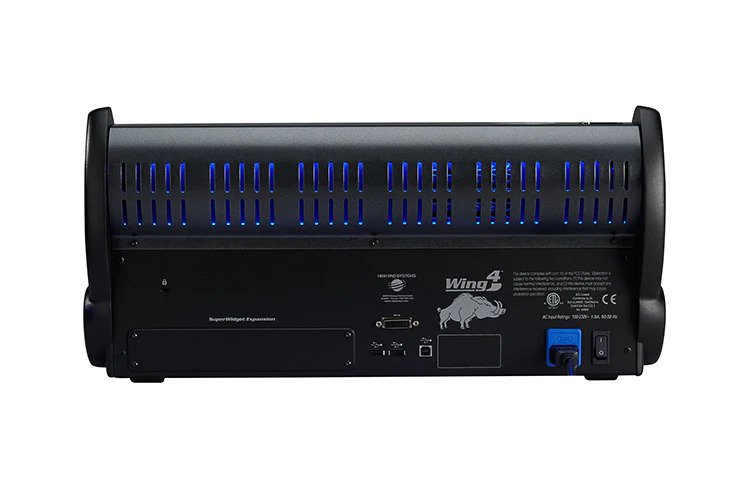

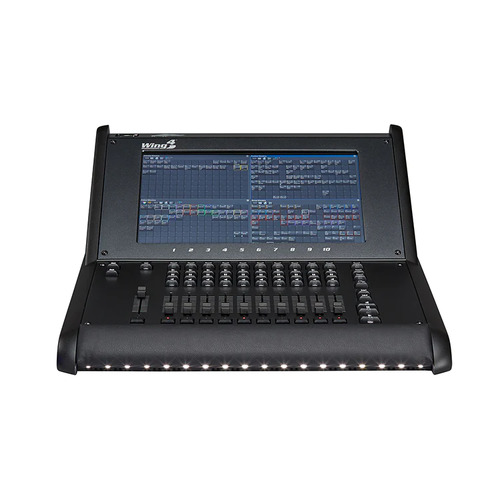

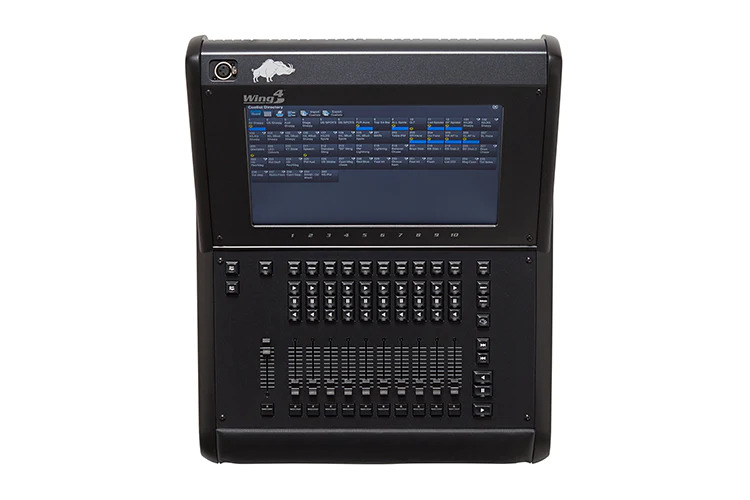

High End Systems PLAYBACK WING 4

Flying pigs deserve flying faders! The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. The Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC software all benefit from the additional playback hardware the Playback Wing 4 offers.

It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6-inch touchscreen is integrated in the wing allowing you to expand your console using one integrated unit.

FEATURES

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• Internal 15.6-inch 10-point touchscreen
• 10 motorized playback faders
• Motorized Grand Master
• Master Choose column and paging buttons
• Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
• Integrated dimmable white lap work light
• One dimmable white/blue desk light included
• USB 2.0 ports: 2 rear
• Dust cover included
• Custom road case available

ELECTRICAL

• Compliance: ETL, CETL, CE
• Mains power: 100-250VAC, 50/60Hz, max 100W
• Mains connector:  IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

WEIGHTS AND DIMENSIONS

• Width: 512mm / 20.2"
• Depth: 610mm / 24.0"
• Height: 244mm / 9.6"
• Weight: 12.5kg / 27.6lb

OPTIONAL ACCESSORIES

• WING4RC - Playback/Master Wing 4 road case
• WING4DC - Playback/Master Wing 4 dust cover (replacement)
