Description
Technical Data
| Power | 230V~, 50-60 Hz, 3100 W (PowerCON TRUE1) |
|---|---|
| Heating time | Approx. 8 min |
| Fluid consumption | Up to 300 ml/min (full power mode, wide jet nozzle) Up to 70 ml/min with continuous fog |
| Tank Capacity | 5 Liter |

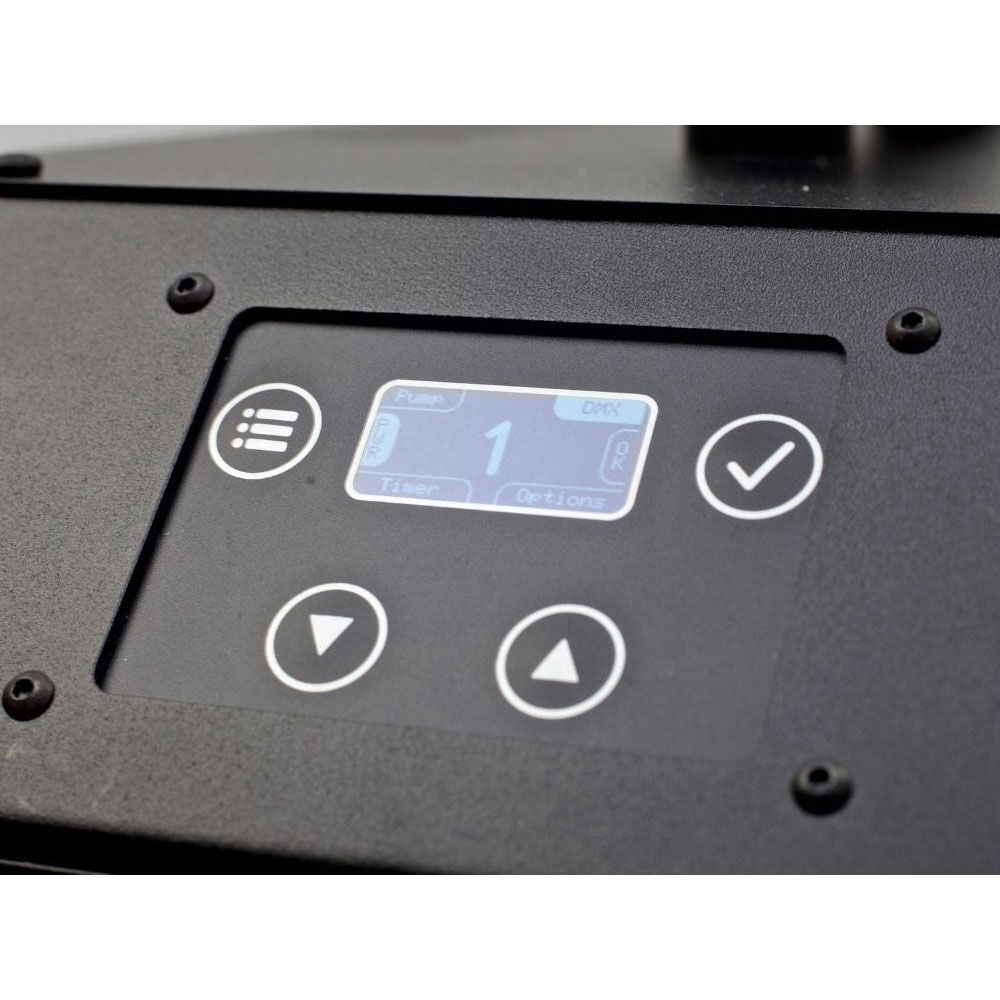

| Unit Operation | 1.3 “OLED display, membrane keyboard |
| Interfaces | 5-pin XLR In / Out |
| Fog nozzles (exchangeable) | Wide-jet nozzle Noise reduction nozzle |
| Fog output | Adjustable 1-100% in 1% increments |
| M3 (Cubic Metre’s per Minute) | 1982.18 m3/Minute |
| Output distance | Up to 20 m at Wide beam nozzle Up to 15 m with noise reduction nozzle |
| Supported protocols | DMX512, RDM, Modbus RTU, JT remote |
| Control | DMX / RDM, Cable remote control, radio remote control, integrated timer, stand-alone |
| Fog time | Up to 20 sec. In full power mode Up to 50 seconds. In full-time mode Continuous fog in non-stop mode |
| Compatible Fluid | Base * X (extremely long-lasting) Base * L (long-lasting) Base * M (normal lasting) Base * Q (quick dissipating) |
| Dimensions (LxWxH) | 480 x 212 x 240 mm (Height with tank holder 388 mm) |
| Weight | 14.0 kg |
| Ambient temperature | + 5 °C to 45 °C |
| Accessories (optional) | Radio remote control, cable remote control |
