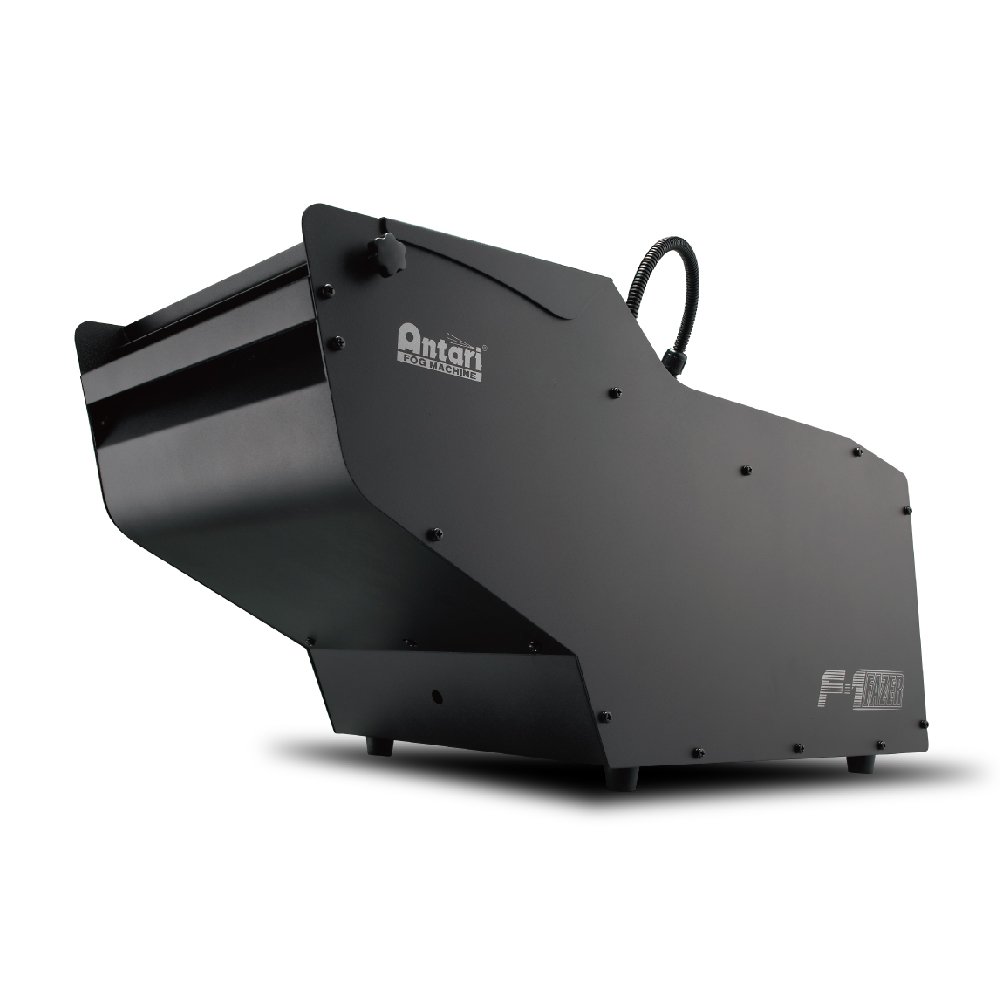

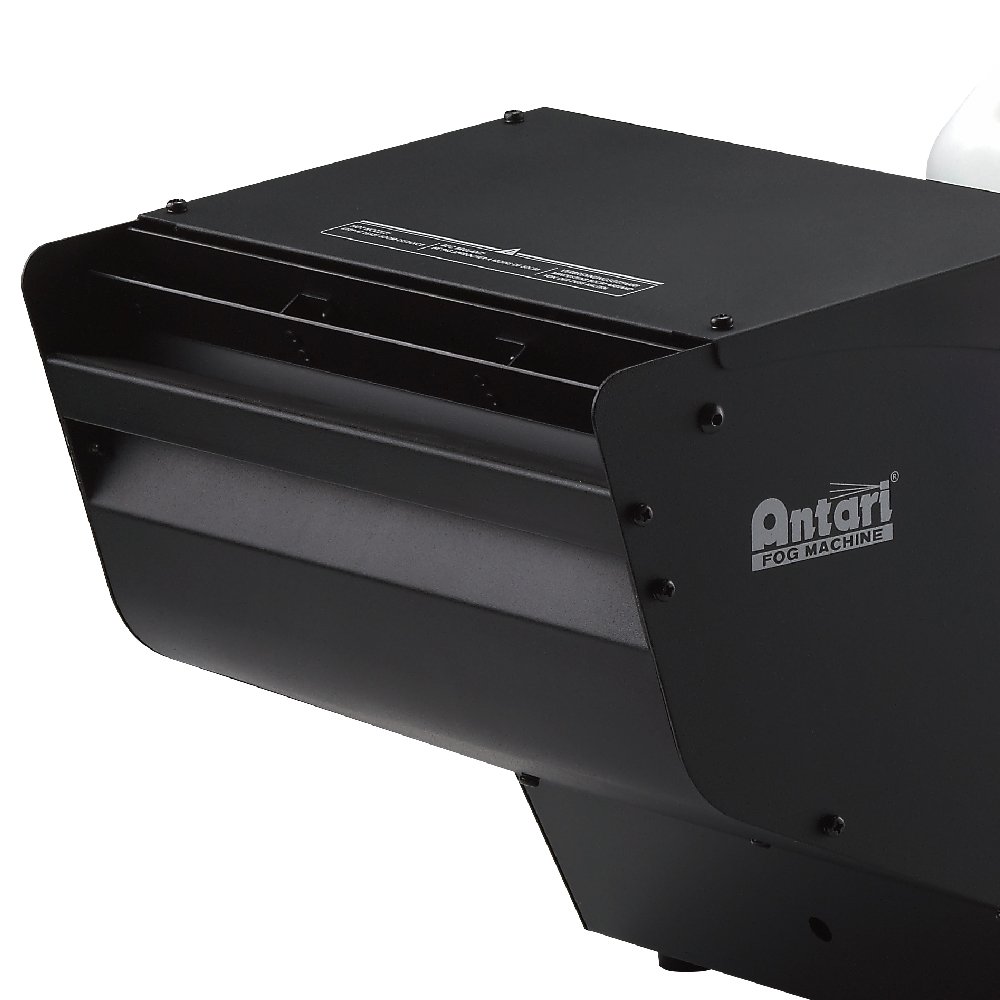

Antari F1 800W Fazer with DMX

The Antari F1 800W Fazer with DMX is a professional haze machine designed to create a fine, dry fog effect for stages, events, entertainment venues, theatres and lighting productions. Developed as an updated successor to the X-310, the F1 incorporates technology from Antari’s F-Series to improve haze quality, fluid efficiency and machine operation.

Its integrated air pump system combines haze fluid with air to produce a fine and smooth fog effect while helping reduce fluid consumption. The system also includes a self-cleaning function designed to help maintain the heater elements and support longer operating life.

The F1 also features an automatic frequency-sensing system, allowing the machine to detect and adjust to the local power frequency without requiring manual frequency changes.

Key Features

• Professional 800W fazer/haze machine
• Designed to produce fine, dry fog
• Air pump system for improved fluid and air mixing
• Efficient fluid consumption
• Self-cleaning function helps maintain heater elements
• Automatic frequency sensing
• DMX512 control
• Manual and timer operation
• Optional wireless remote control
• Optional Wireless DMX control
• 2-channel DMX operation
• 2.4-litre fluid tank
• DMX 3-pin and 5-pin XLR connections
• Neutrik PowerCON power connection
• Compatible with Antari FLG Liquid
• Optional wireless control accessories
• 1-year warranty

Antari F1 Technical Specifications

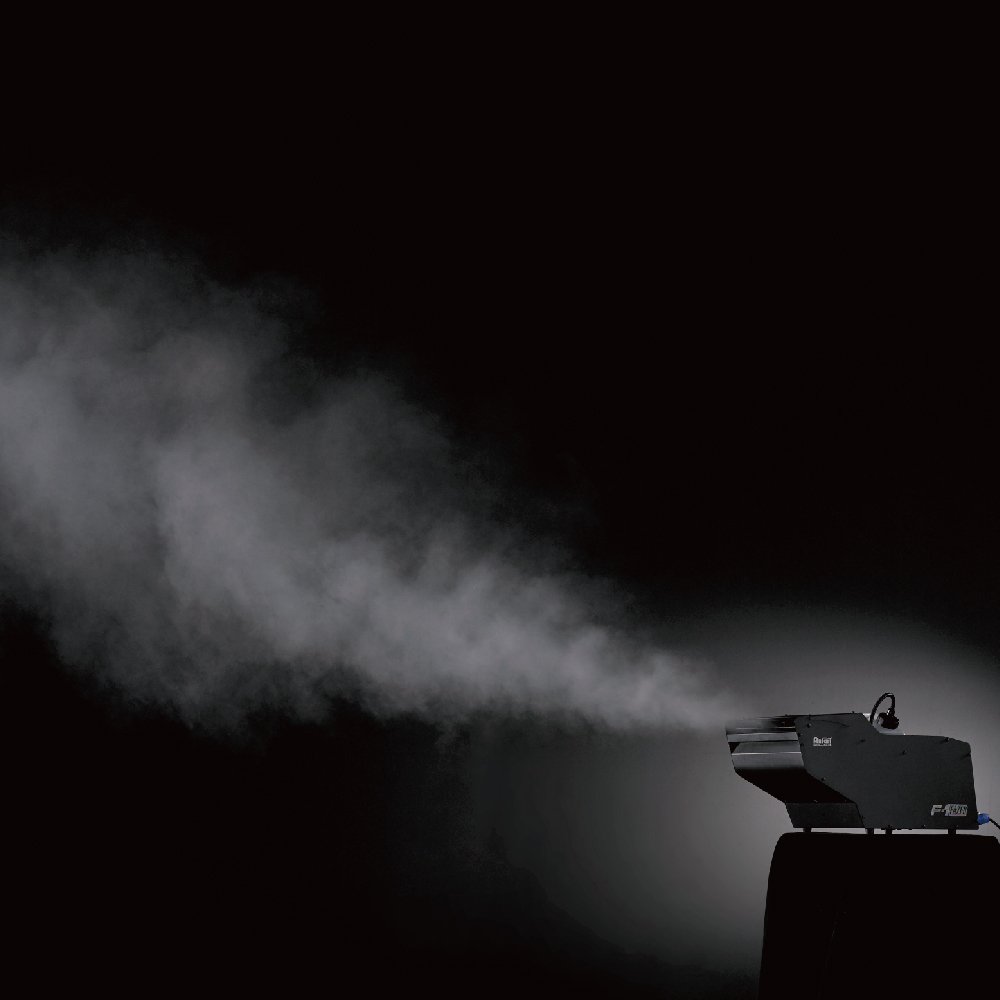

Fine and Dry Fog Output

The Antari F1 uses an air pump system to improve the combination of haze fluid and air. This helps the machine produce a fine, dry fog effect suitable for enhancing stage lighting and creating atmospheric depth.

The system is also designed to operate with controlled fluid usage, with a specified consumption rate of 8.5 ml/min at 100% output.

Air Pump and Self-Cleaning Technology

The integrated air pump does more than assist with haze production. The F1 also uses this technology as part of its self-cleaning function, helping maintain the heater elements during operation.

This design is intended to support reliable performance and help extend the service life of the heater components.

Smart Frequency Sensing

Setting the correct operating frequency can be an additional step when configuring professional effects equipment. The Antari F1 addresses this with a smart automatic frequency-sensing feature.

The machine can detect the local power frequency and adjust itself accordingly, reducing the need for manual frequency settings.

Flexible Control Options

The F1 offers several control methods for different production environments:

• DMX512 for integration with professional lighting systems
• Timer for timed operation
• Manual control from the machine
• Wireless Remote using optional accessories
• Wireless DMX using compatible optional equipment

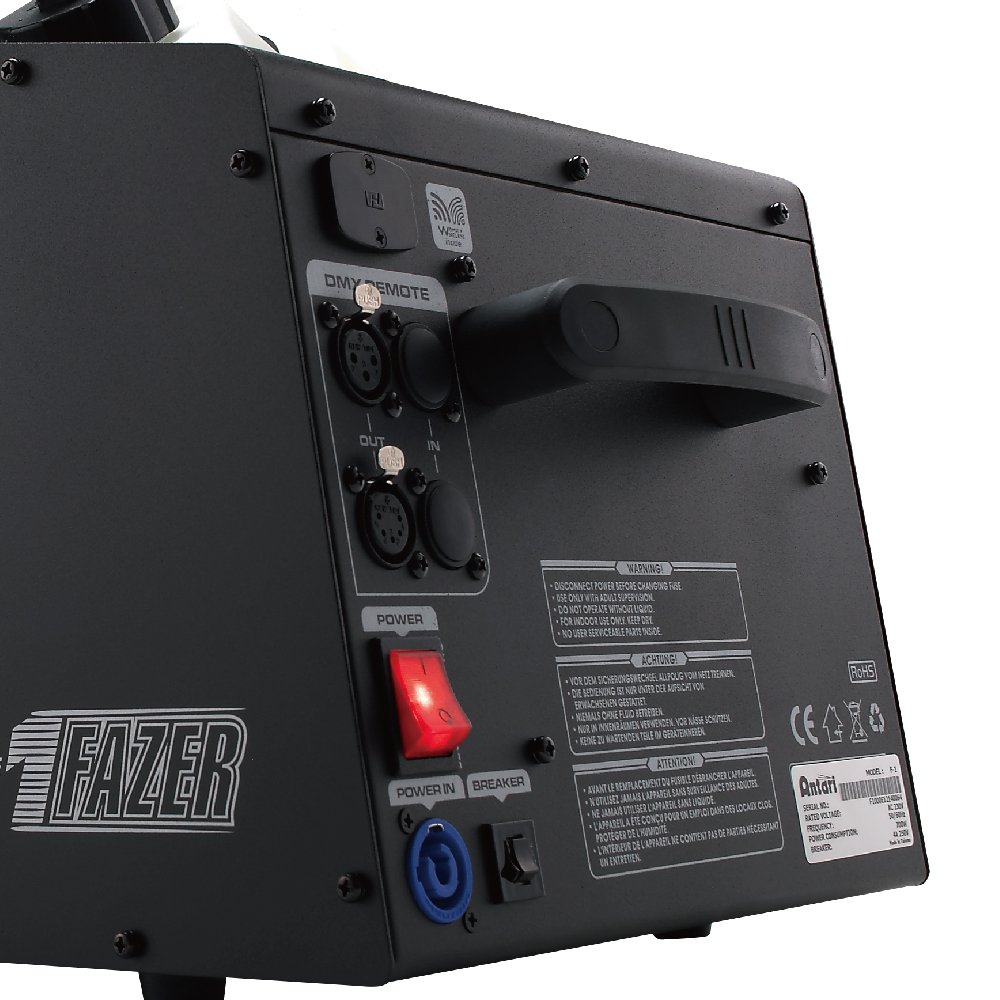

With 2 DMX channels and both 3-pin and 5-pin XLR connections, the F1 can be integrated into a variety of professional DMX setups.

Optional Wireless Accessories

The Antari F1 can be expanded with optional wireless control accessories, including:

• WDMXPCBR Wireless DMX
• WTR10 Wireless Remote Set
• WTR40 Wireless DMX and Wireless Remote Set

These options provide additional flexibility when wireless operation is preferred.

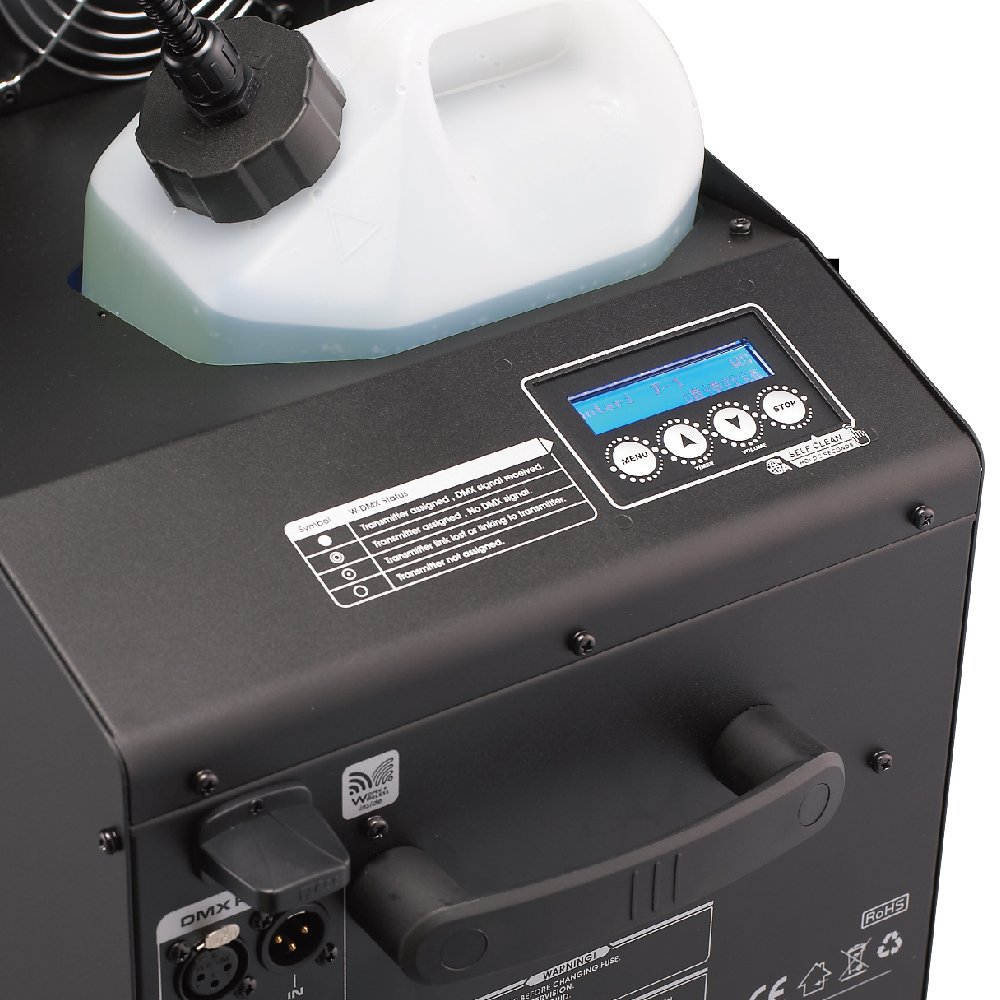

2.4-Litre Fluid Tank

The F1 features a 2.4-litre tank and is designed for use with Antari FLG Liquid. At 100% output, the specified fluid consumption is 8.5 ml per minute.

Applications of the Antari F1

The F1 800W Fazer can be used in a variety of professional environments, including:

• Theatre productions
• Live stage performances
• Concerts and live shows
• Nightclubs and entertainment venues
• DJ and lighting setups
• Event productions
• Professional AV installations
• Film and production environments
• Stage lighting applications
• Special-effects productions

Frequently Asked Questions

What is the Antari F1 Fazer used for?

• The Antari F1 is a professional 800W fazer machine used to create fine, dry fog for stages, events, theatres, entertainment venues and lighting productions.

What is the power consumption of the Antari F1?

• The F1 has a power consumption of 800W and operates at 240V.

How long does the F1 take to warm up?

• The specified warm-up time is approximately 4.5 minutes.

How much fluid does the Antari F1 use?

• At 100% output, the F1 has a specified fluid consumption rate of 8.5 ml/min.

What liquid does the Antari F1 use?

• The machine is designed for use with Antari FLG Liquid.

Does the Antari F1 support DMX?

• Yes. The F1 supports DMX512 and provides 2 DMX channels, with 3-pin and 5-pin XLR connections.

Can the Antari F1 be controlled wirelessly?

• Yes. Wireless remote and Wireless DMX control are available through optional compatible accessories.

What is the tank capacity of the F1?

• The Antari F1 has a 2.4-litre fluid tank.

What are the dimensions of the Antari F1?

• The F1 measures 608 × 275 × 286 mm (L × W × H).

How much does the Antari F1 weigh?

• The machine weighs approximately 14.1 kg.

What is the warranty on the Antari F1?

• The Antari F1 comes with a 1-year warranty.

Buy Antari F1 from The Production Shop

The Antari F1 800W Fazer with DMX is available from The Production Shop for professional stage, event, entertainment and lighting applications. Check the product page for current availability and purchasing options.
