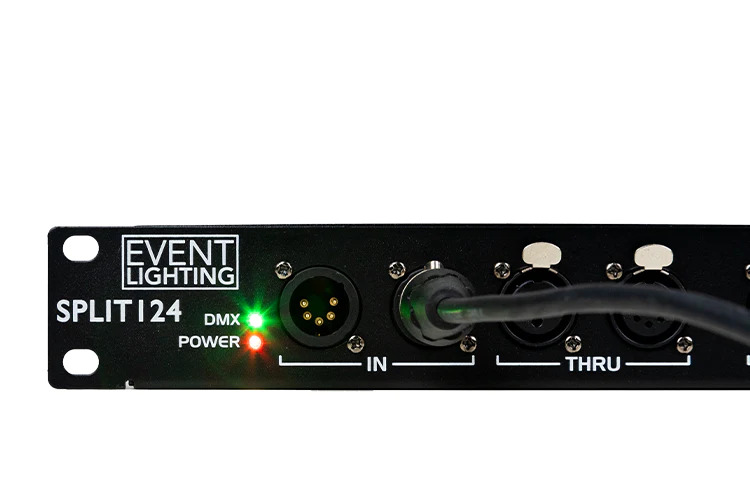

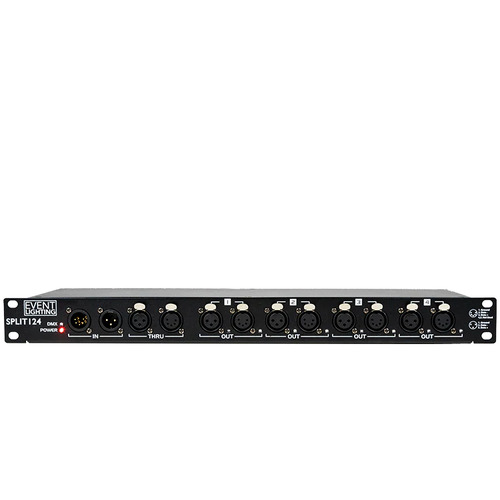

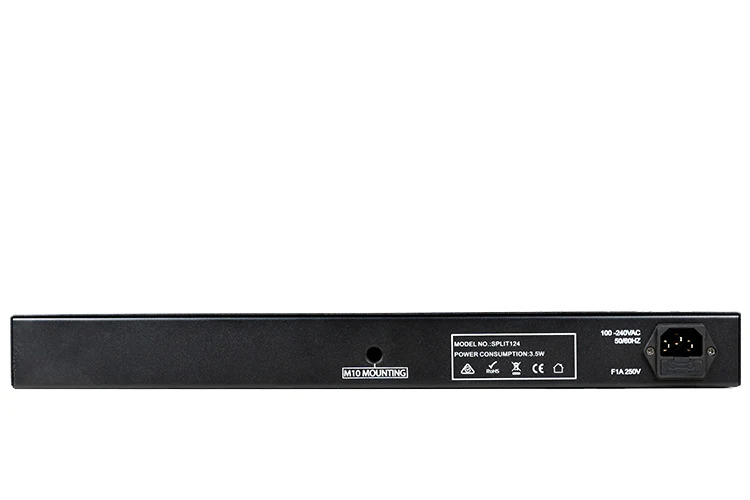

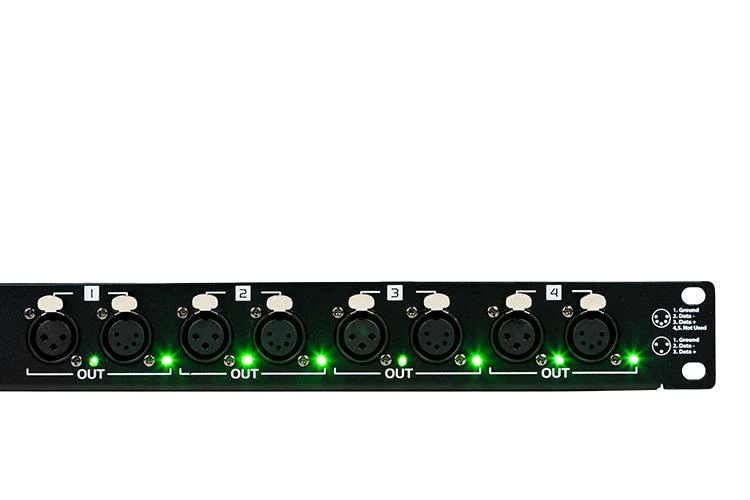

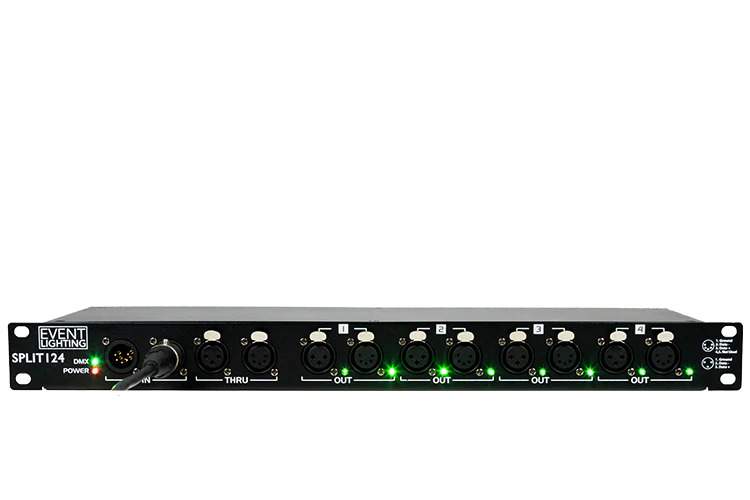

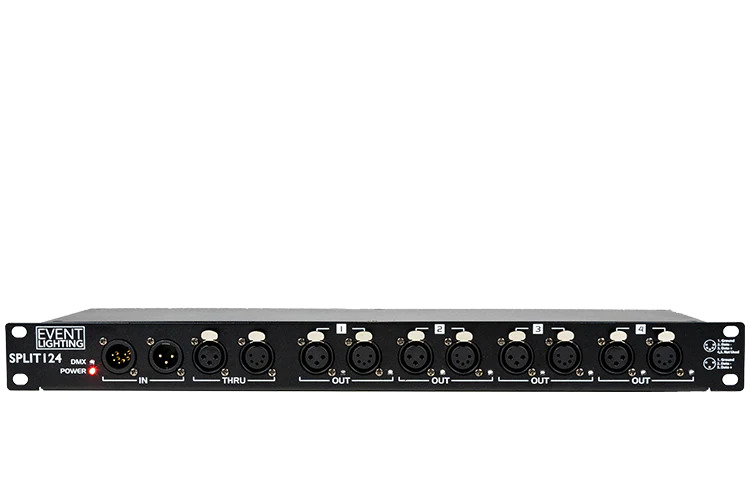

Event Lighting SPLIT124 - 1 In and 4 Out and 1 Through - Optical DMX splitter, both 5 and 3 pin XLR on all I/O, rack mountable

The SPLIT124 is a rack or truss mountable DMX splitter designed to re transmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.

• DMX512 Protocol
• 4x Optically Isolated Outputs
• Power: 100-240V AC, 50/60Hz
• Power Consumption: 5W
• Power Connections: IEC input
• Connections: 1 input, 4 outputs, 1 through, 3 and 5 pin XLR
• Dimensions: 483 x 131 x 45mm (1U)
• Weight: 2.6kg
