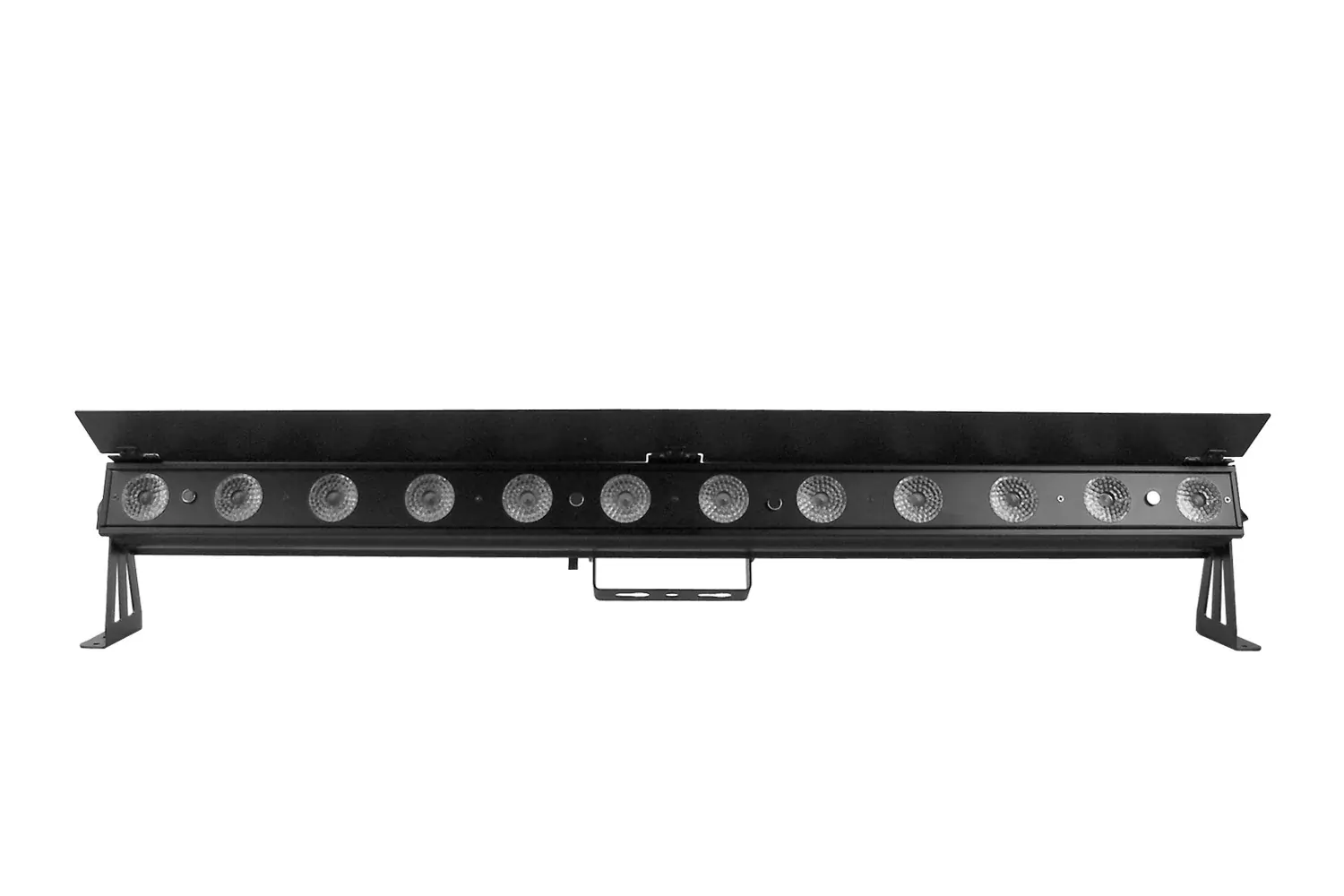

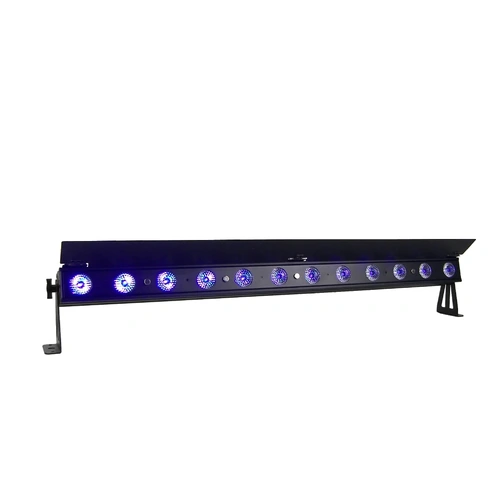

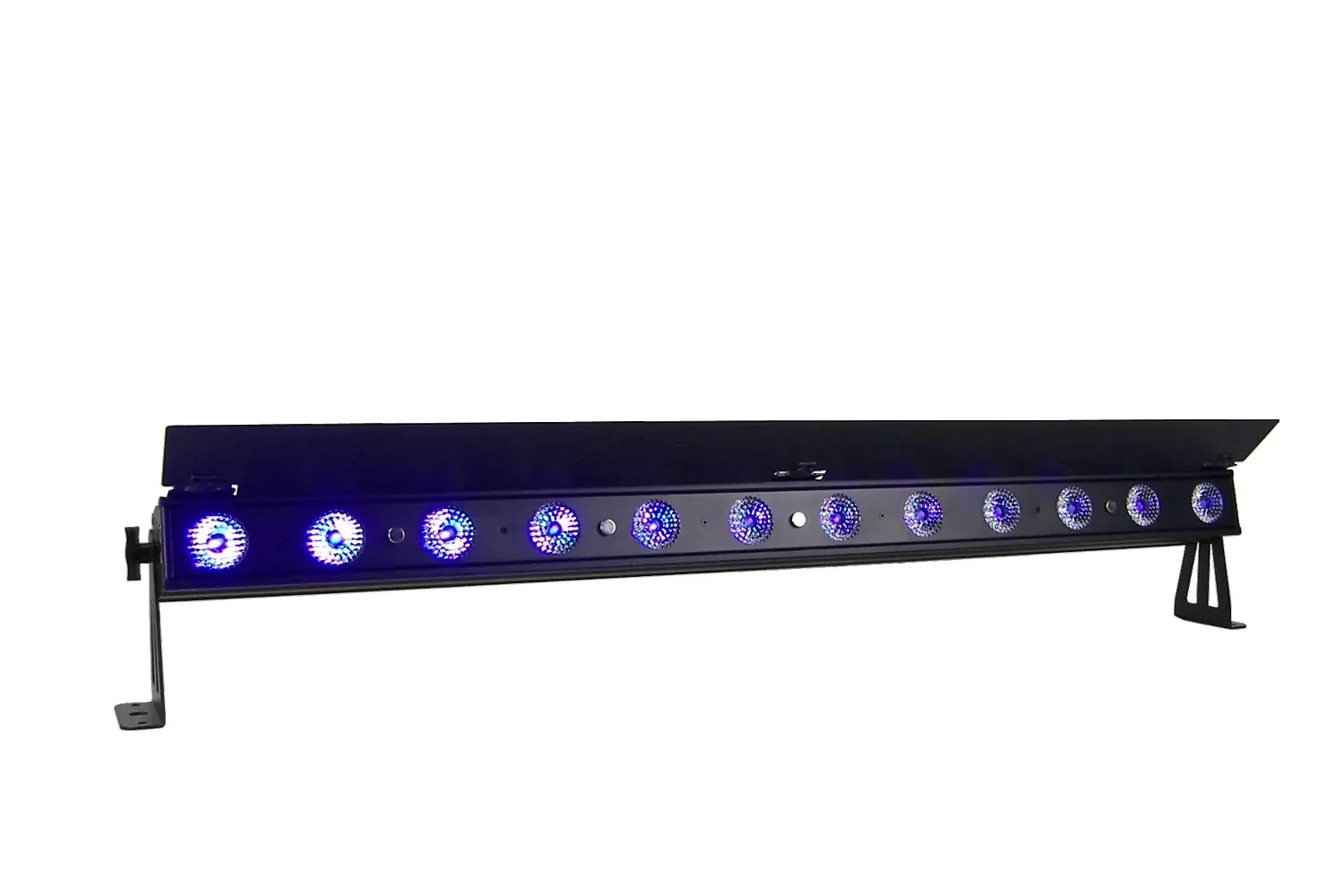

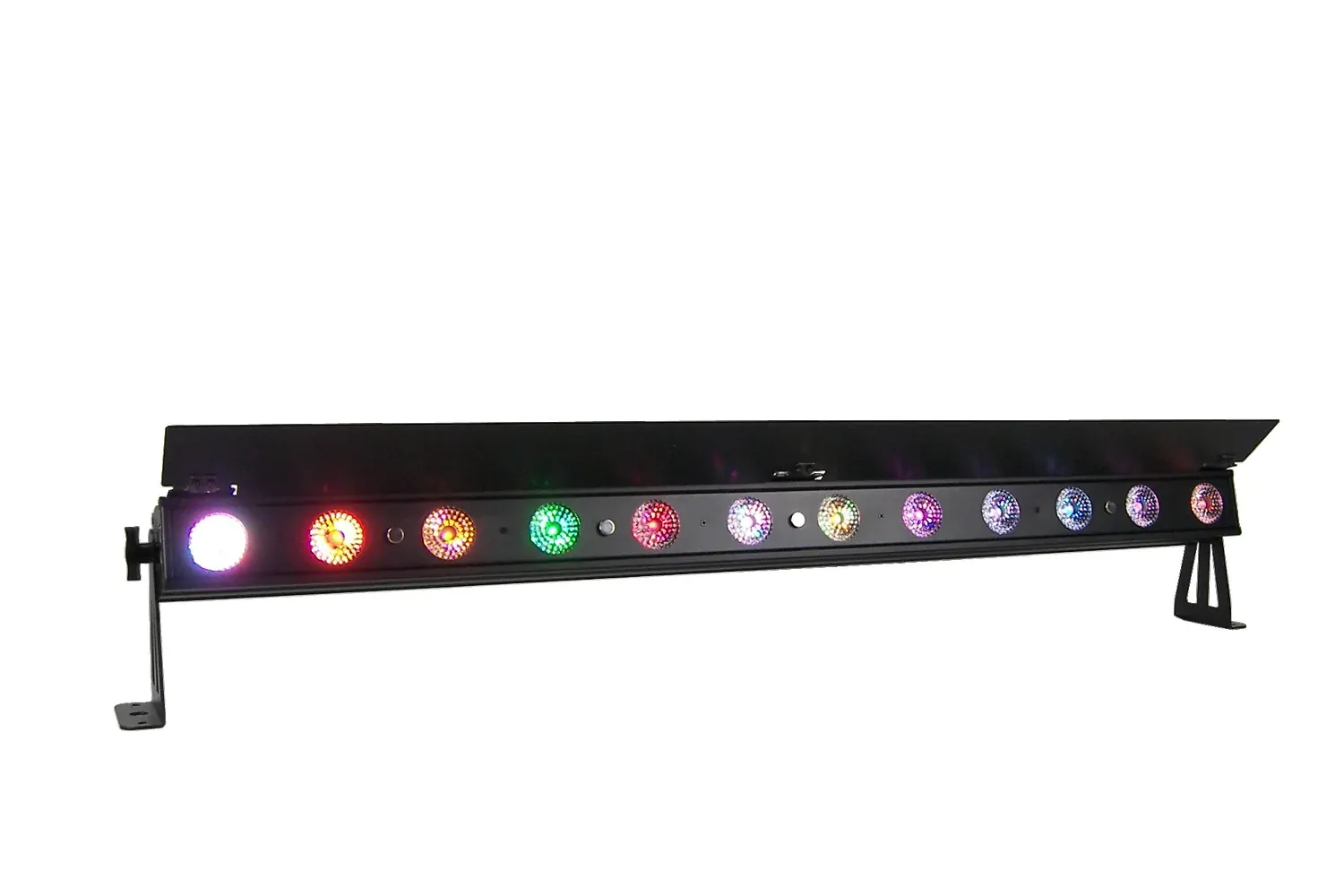

Event Lighting PIXBAR12H - 12 x 12W RGBWAU Pixel Control Bar with barndoor
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY

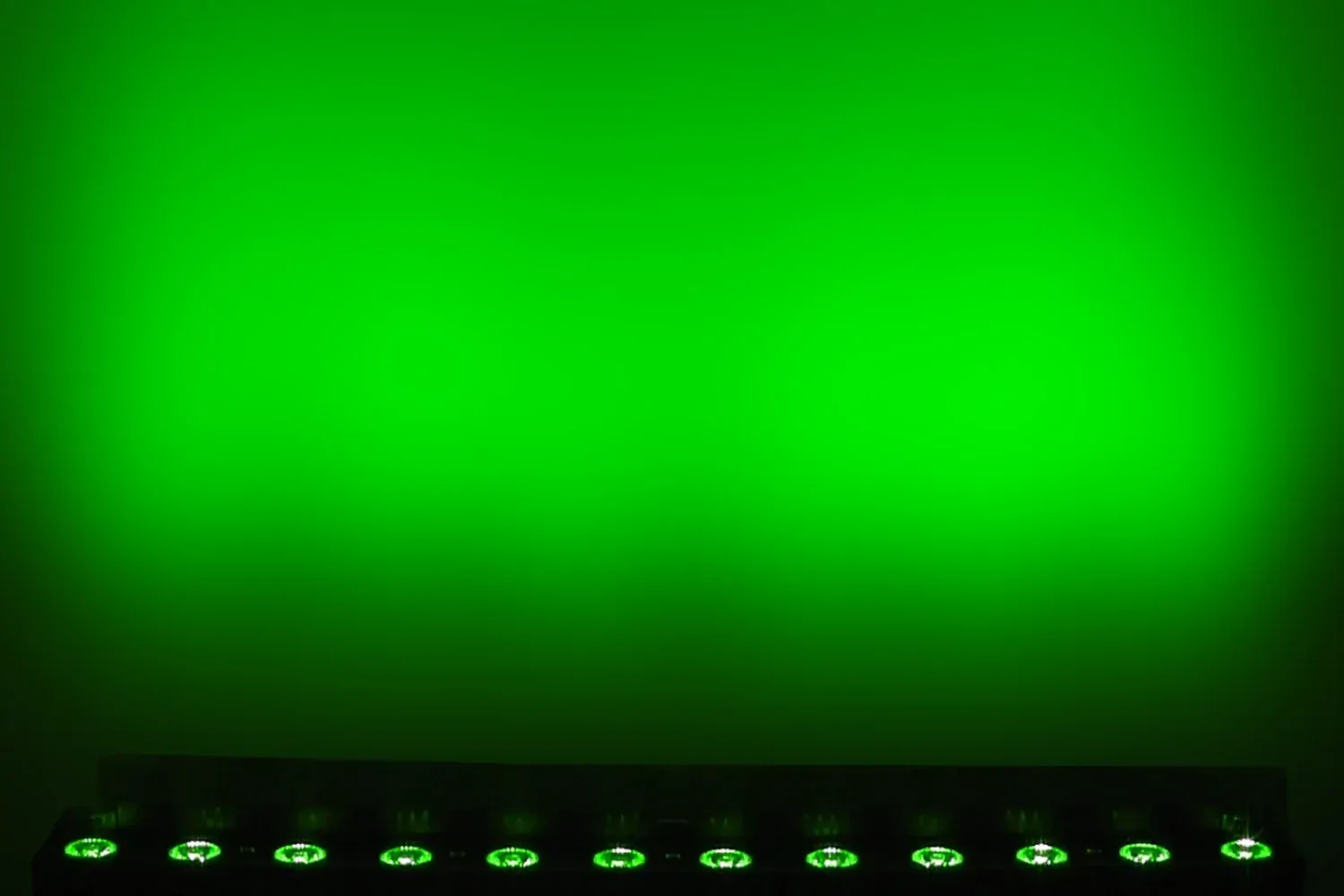

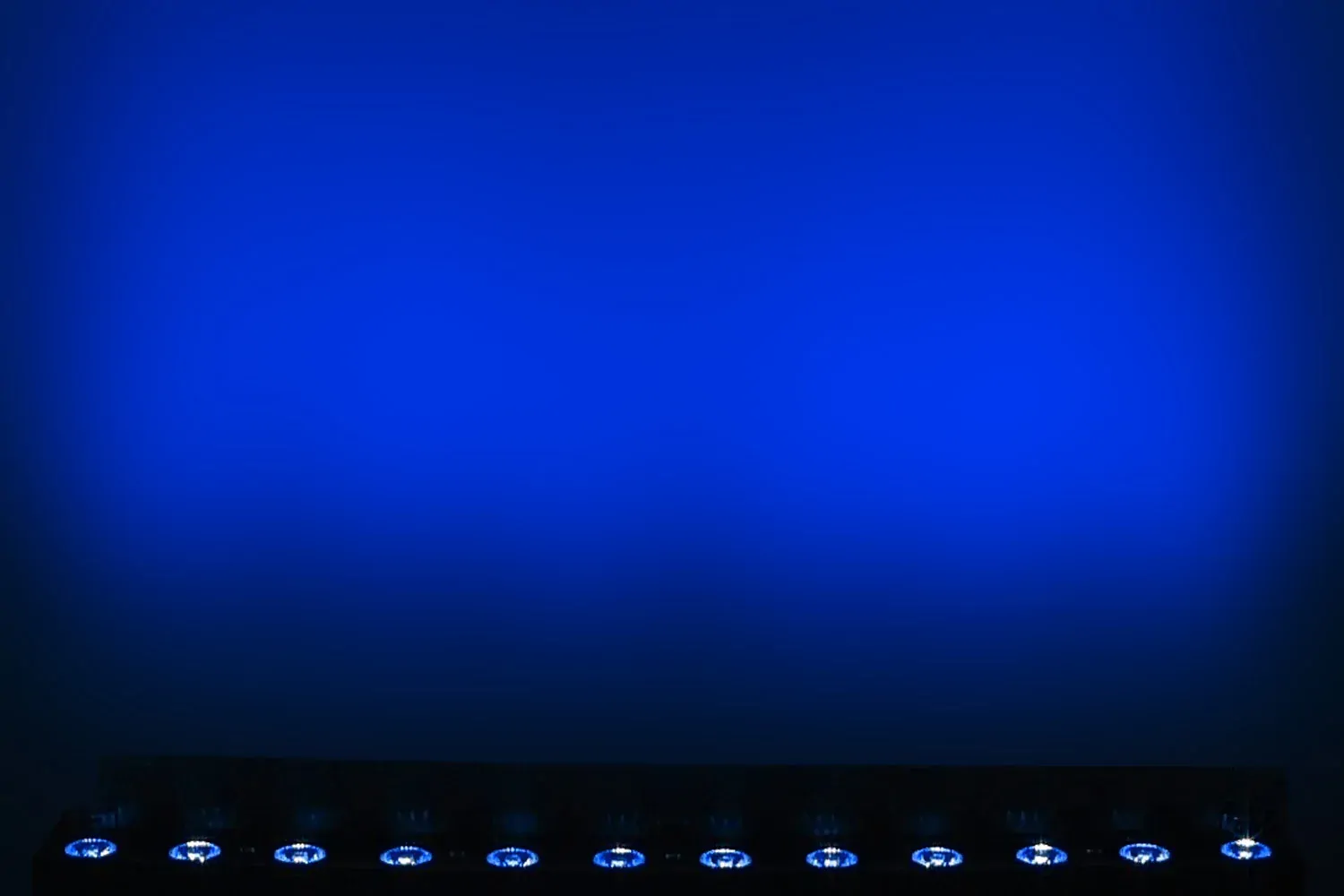

The Event Lighting PIXBAR12H is a brilliant lighting companion for any event or production. Featuring 12 x 12W RGBWAU LEDs, this pixel bar delivers a stunning array of vibrant colours and dynamic effects. With a beam angle of 30° (optional 55°), you can precisely tailor the coverage to suit any venue or stage.
Experience dazzling illumination with an output of 2,050 lux at 2 meters when RGBWAU is in full swing. With 4 x 16-bit Dimming Curves and adjustable strobe settings from 1 to 30Hz, you have complete control over your lighting effects. Seamlessly switch between operational modes including DMX, manual, auto, and sound active, all accessible through the intuitive 4-button LCD control panel.
Crafted with durability in mind, the PIXBAR12H features a sturdy aluminium housing with a sleek matte black finish. The included barndoor and frost filter enhance versatility, allowing for precise light shaping and diffusion. With True1 in/out and 3/5 Pin DMX in/out, installation is quick and hassle-free. Equipped with fanless cooling and a compact design, this pixel bar ensures reliability and consistent performance in any environment.
Specifications:
Photometrics
- Light Source: 12 x 12W RGBWAU LEDs

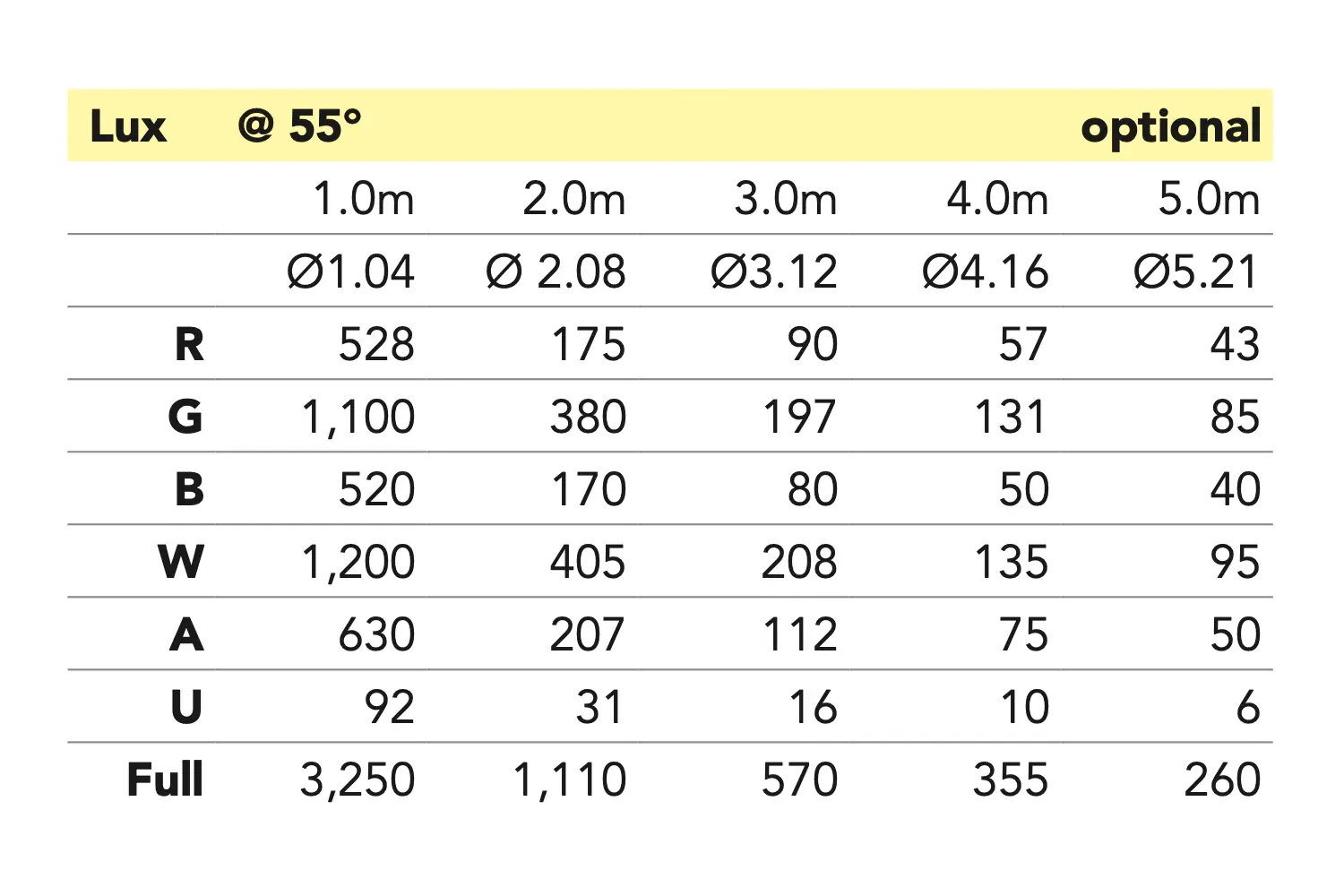

- Beam Angle: 30° (optional: 55°)

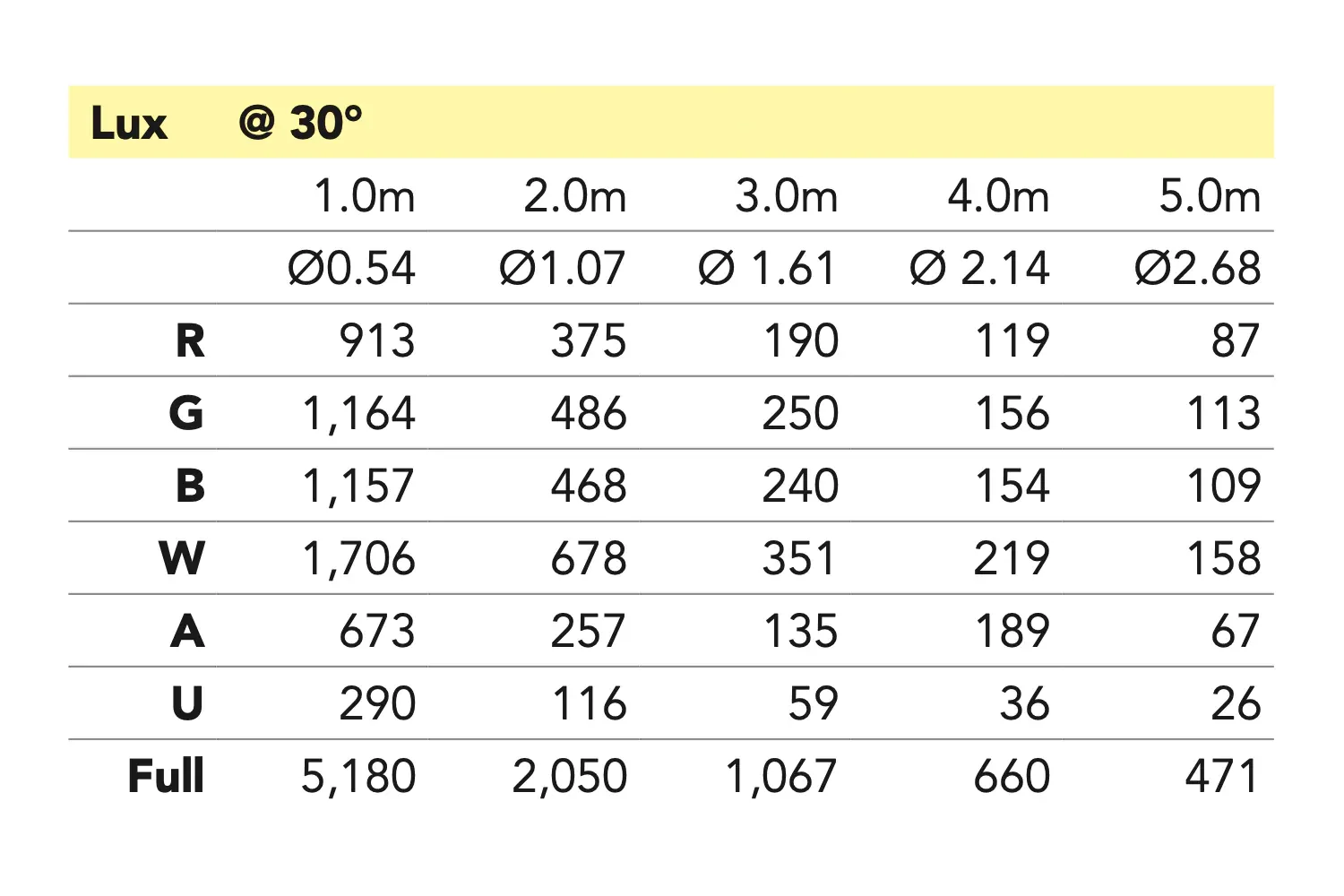

- Output: 2,050 lux @ 2m RGBWAU full on
- PWM: 12,000Hz
- LED Life: 50,000 hours
Effects
- Dimming: 4 x 16-bit Dimming Curves
- Strobe: 1~30Hz
Power
- Input Voltages: 100~240V AC, 50/60Hz, 150W
- Power Connection: True1 in/out
Control
- Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, RDM*

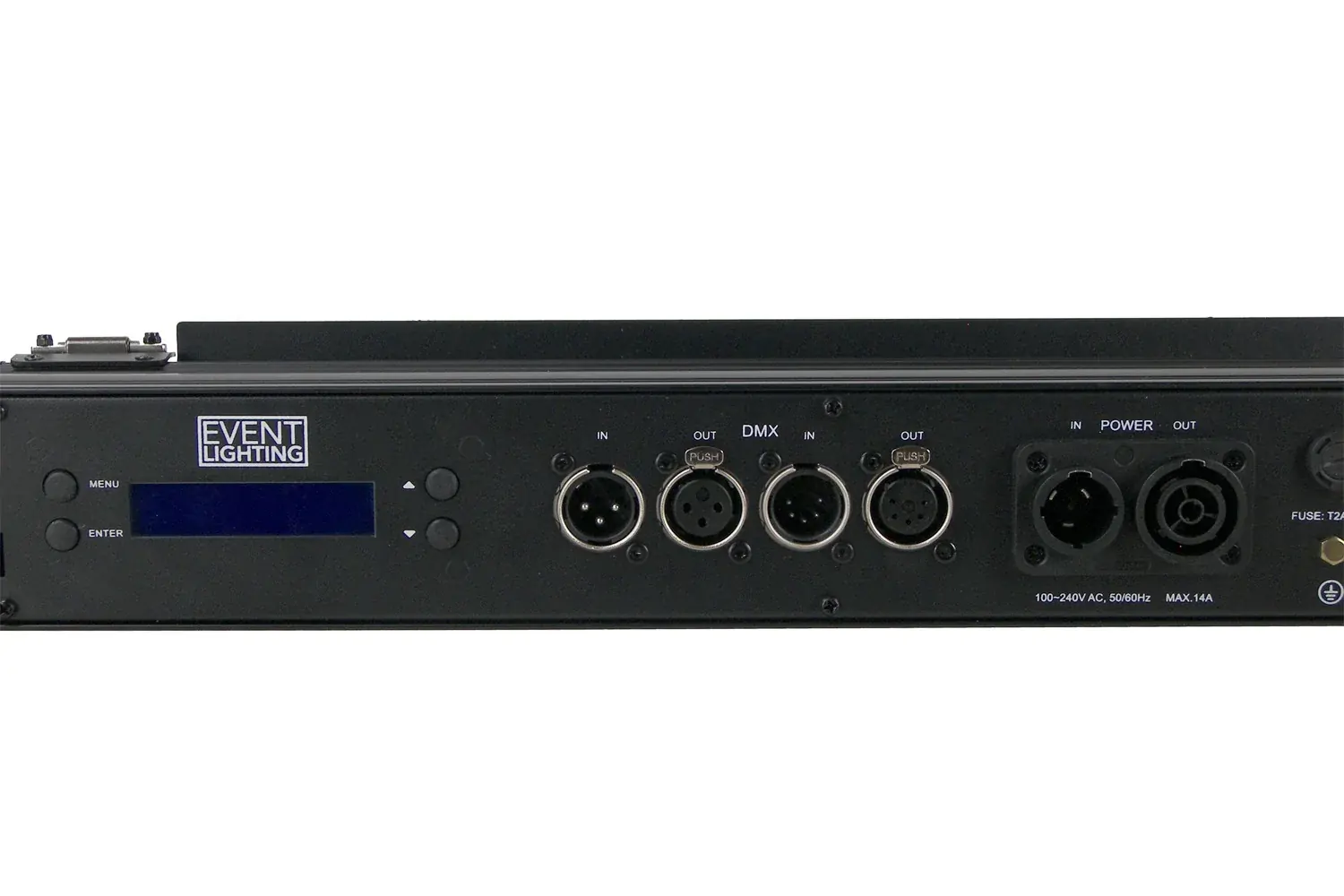

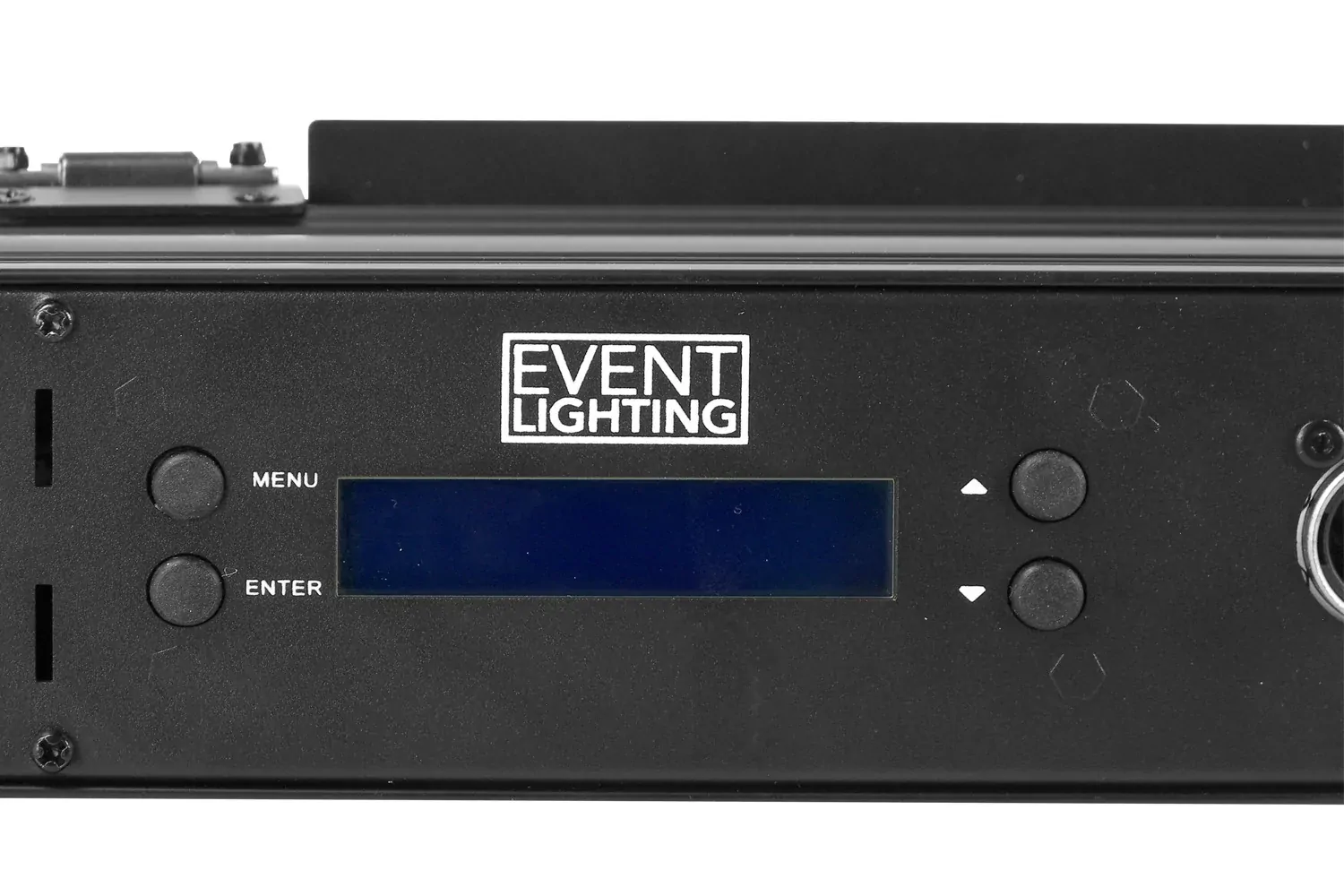

- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 3 / 4 / 4A / 8 / 12 / 14* / 24 / 72 / 74

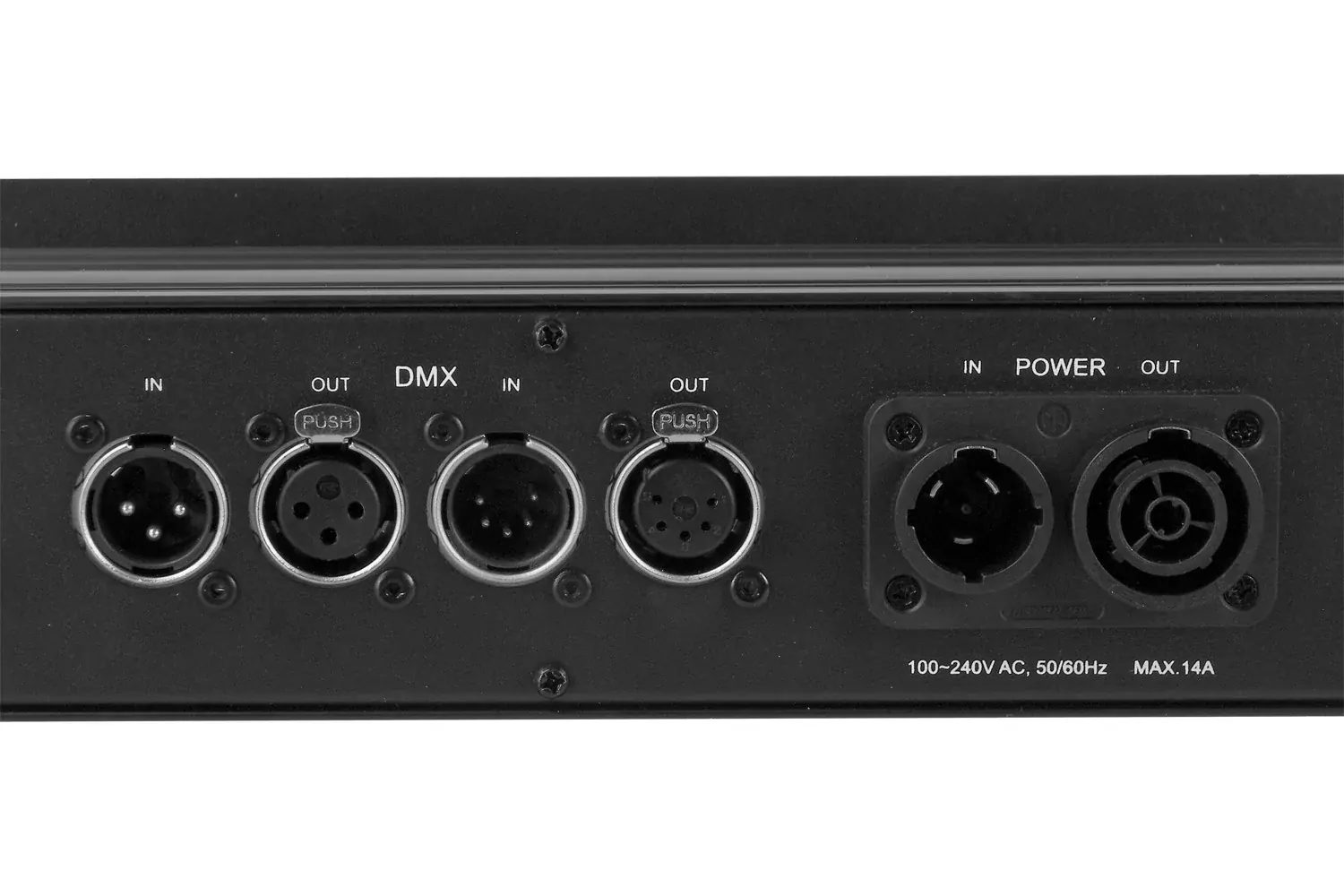

- Control Interface: 3-pin and 5-pin XLR in/out
- Software Upgrade via DMX: Yes
Housing
- Housing Materials: Aluminium, matte black finish
- Barndoor: included
- Frost filter: included
- Cooling: Fanless Cooling
- Dimension: 1050 x 165 x 80mm
- Net Weight: 4.5kg
MISC
- Road case: PIXBAR12CASE6WC
*14 channel mode and RDM capabilities were added in a software update in October 2025. If you are interested in these features, please contact your supplier and request the software update.
