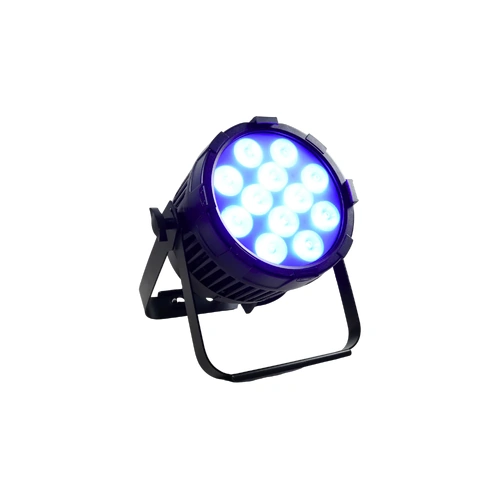

Event lighting PARF12X20H-IP - IP65 Parcan with 12 x 20 RGBWAU LEDs with Electronic Frost

The Event Lighting PAR12H is a durable and versatile LED Pro Parcan. With 12 x 12W RGBWA+UV LEDs, it delivers stunning colour combinations to suit any space. Enjoy customisable beam angles with options for 30˚, 40˚, 25˚ and 15˚, providing the perfect spread for any application. Experience 3,150 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

The PAR12H comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.

Specifications:

Photometrics

• Light Source: 12 x 20W RGBWAU LEDs
• Beam Angle: 10° (Electronic Frost Included)

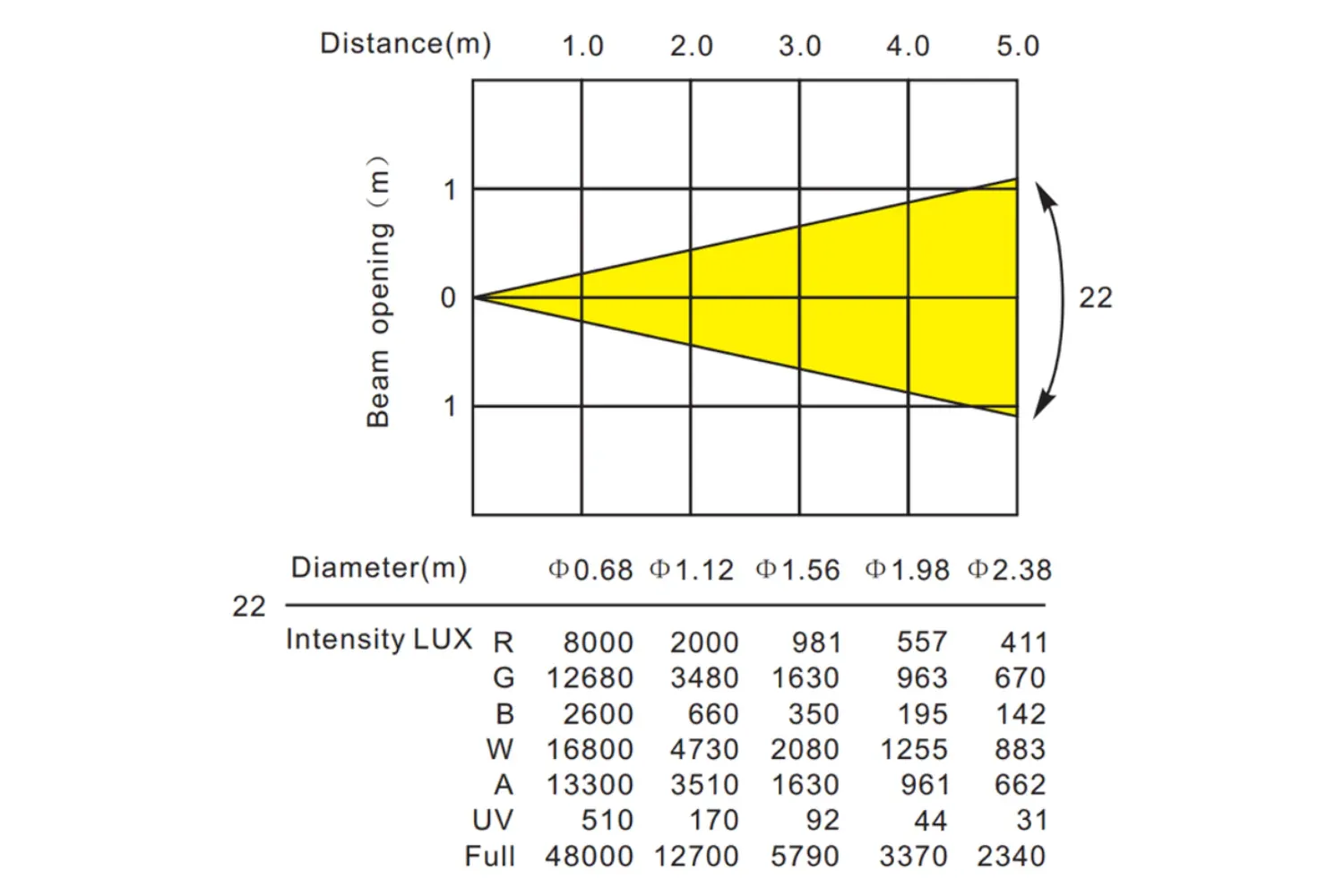

• Output: 12,700 lux @ 2.0m / 6’6” full on
• Refresh Rate: 1,200 Hz

Effects

• Electronic Frost: Yes
• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltage: 100~240V AC, 50/60 Hz
• Power Consumption: 250W
• Fuse: T 2 A, 250V
• Power Connections: TrueOne Input/Output

Control

• Operational Modes: DMX, WDMX, auto run, sound active, master/slave, manual, static, RDM

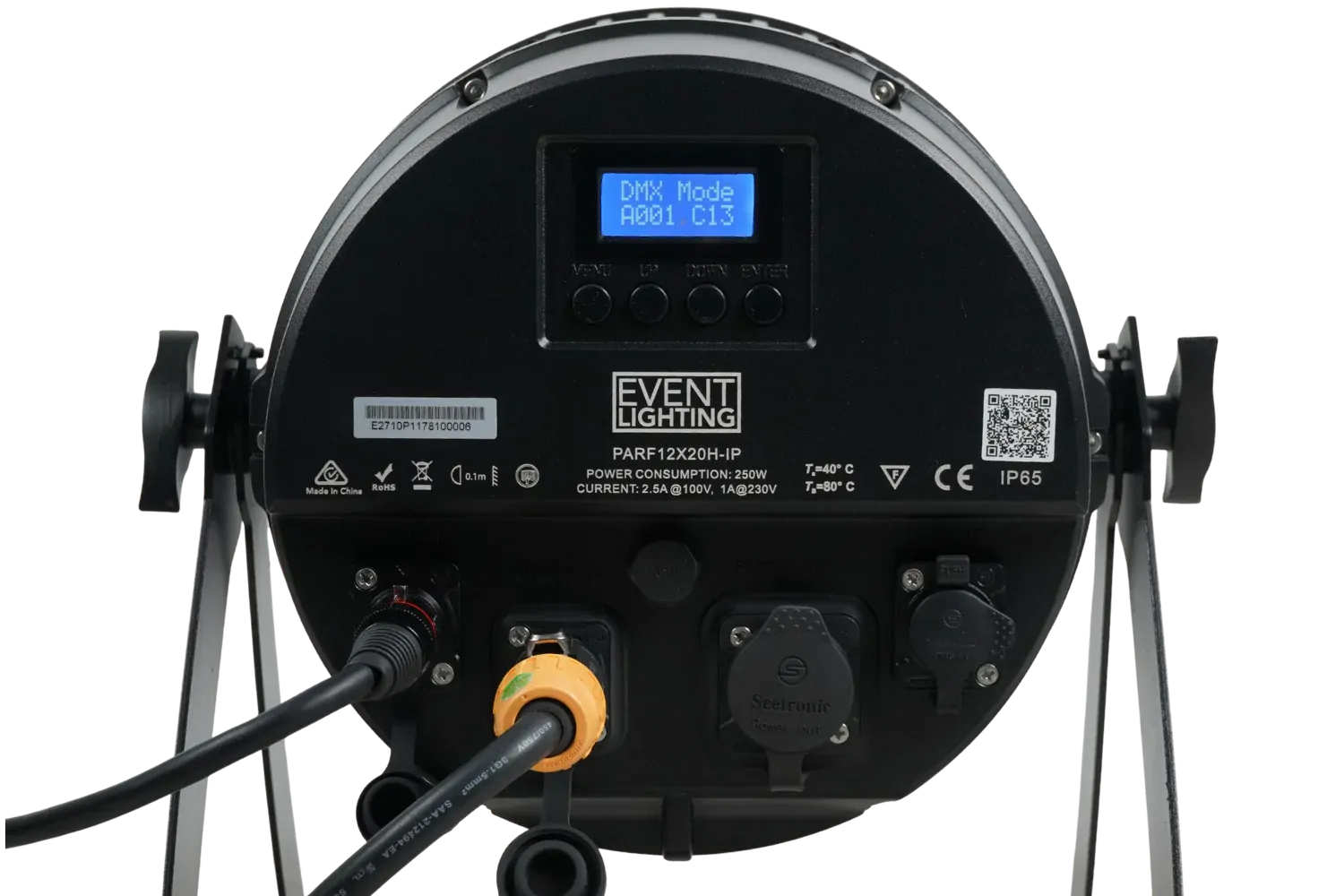

• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 8 / 13 / 14
• DMX Connections: 5-Pin XLR Input/Output

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling

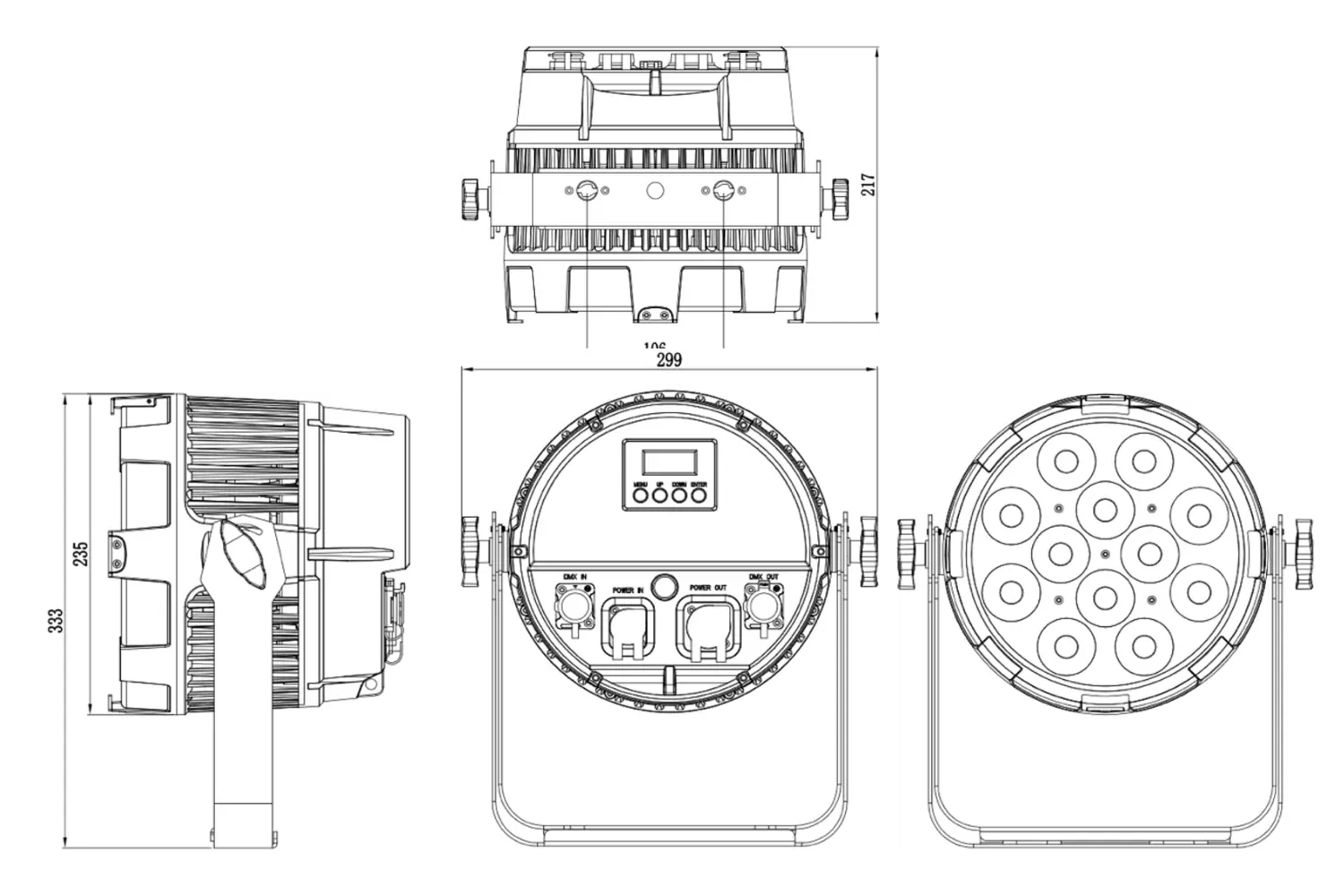

• Dimensions: 299 x 217 x 333mm / 11.77” x 8.54” x 13.11”
• Weight: 6.5 kg / 14 lbs 5.28 oz
• Rigging: 1 x Omega Bracket with ¼ Turn Quick Locks

Download user manual

Warranty: 3 years
