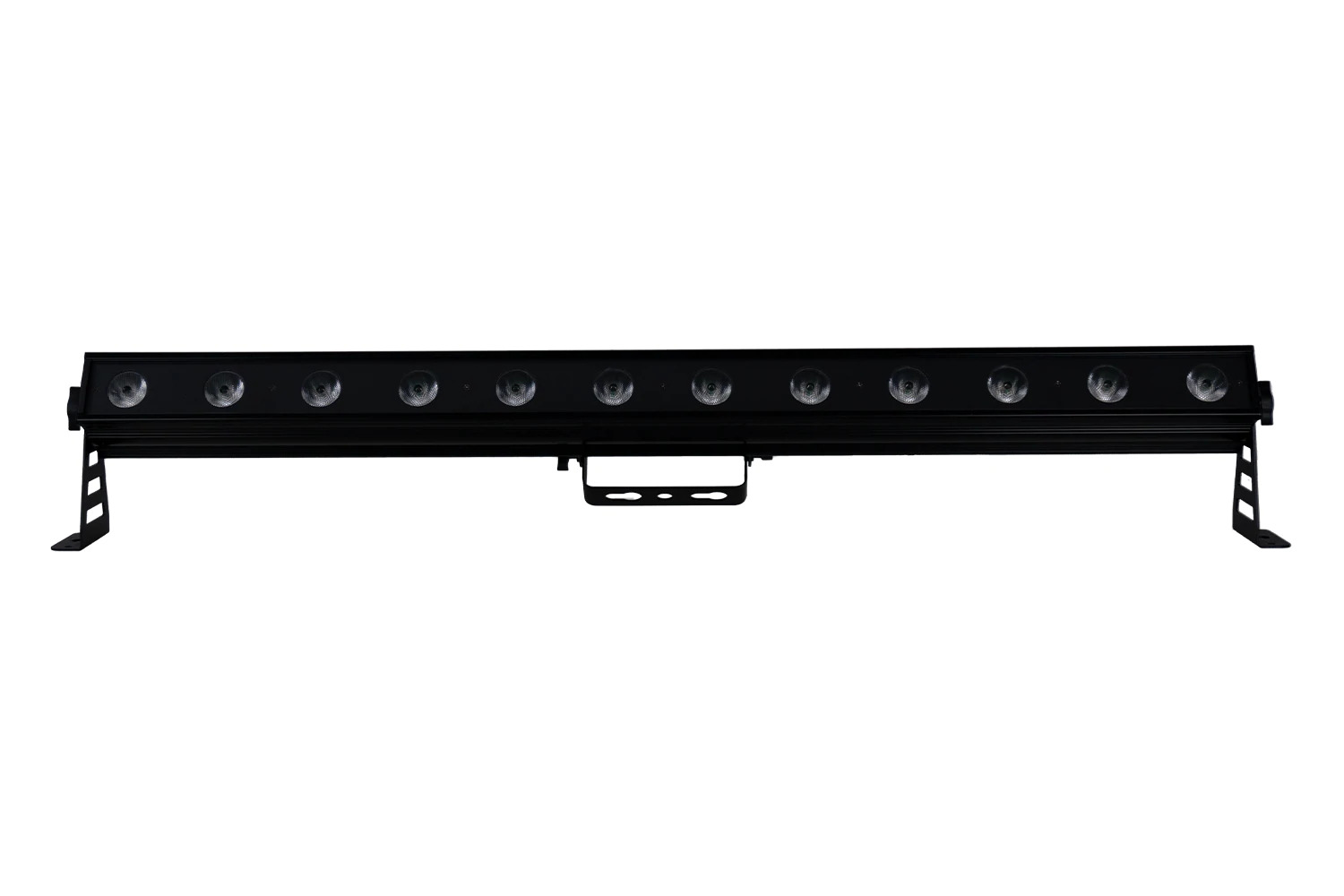

Event Lighting PIXBAR12X8 - LED Pixel Bar 12 x 8W RGBW , IEC In and Out, 3 Pin DMX.

$609.00
In Stock


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Photometrics

  • Light Source: 12x 8 W RGBW LEDs
  • Beam Angle: 22° (optional 55°)
  • Output: 2,550 lux @ 2 m RGBW full on
  • PWM: 2,940 Hz
  • LED Life: 50,000 hours

Effects

  • Dimming: 8-bit + 4x 16-bit Dimming Curves
  • Strobe: 1~30 Hz

 Power

  • Input Voltages: 100~240 V AC,50/60 Hz, 120 W
  • Power Connection: IEC in/out

Control

  • Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
  • Display: 4-button LCD control panel
  • Control Protocol: DMX512
  • DMX Channels: 4 / 6 / 8 / 9 / 12 / 16 / 24 / 48 / 50
  • Control Interface: 3-pin XLR (optional 5-pin XLR)
  • Software Upgrade via DMX: Yes

Housing

  • Housing Materials: Aluminium, matte black finish
  • Cooling: Fanless Cooling

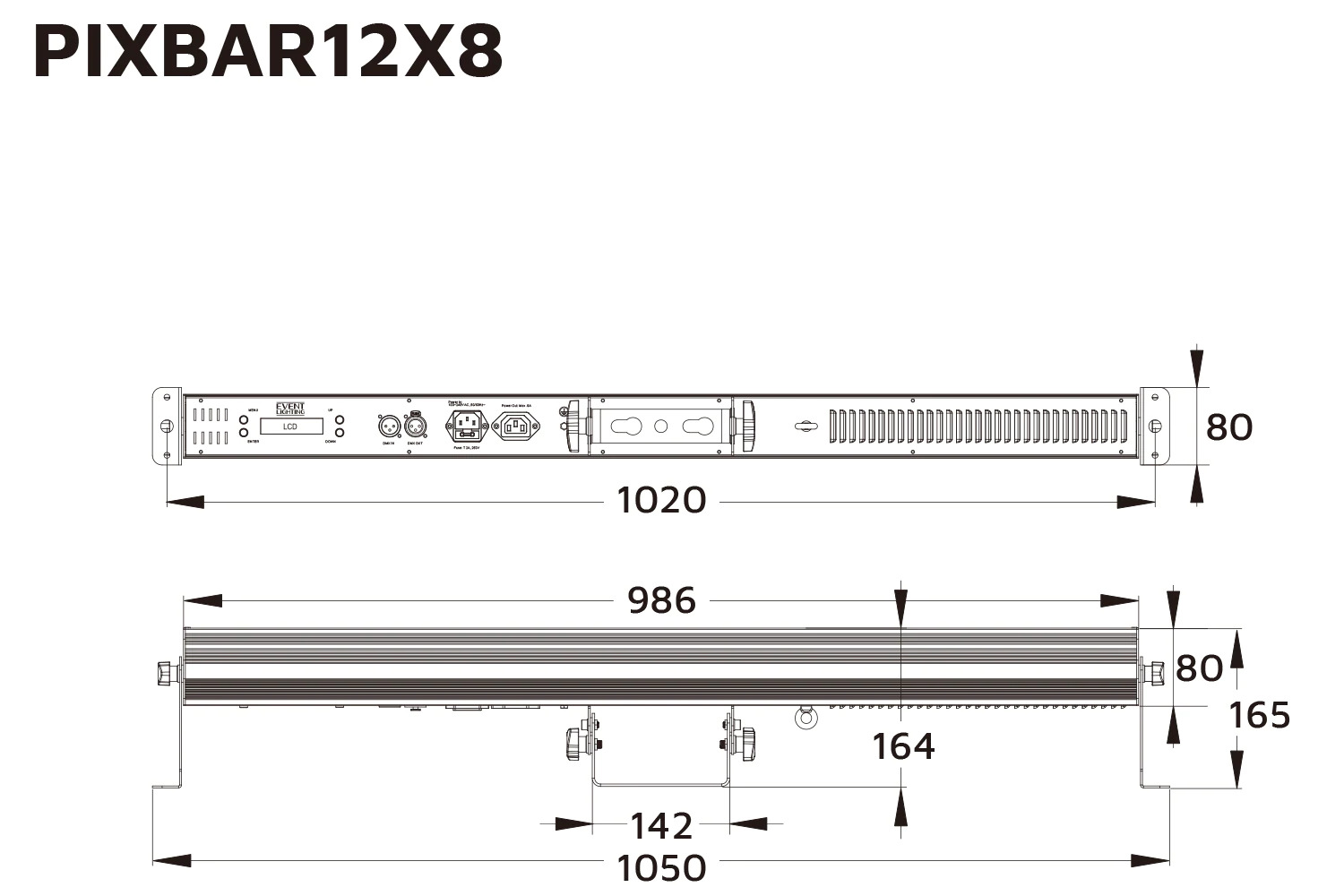

  • Dimension: 1050 x 165 x 80 mm
  • Net Weight: 4.5 kg

(EVEPIXBAR12X8)

SKU EVEPIXBAR12X8
Brand Event Lighting
Shipping Weight 5.0000kg
Shipping Width 1.100m
Shipping Height 0.110m
Shipping Length 0.200m
Shipping Cubic 0.024200000m3
