Chromateq LPSA-WiFi Stand Alone WiFi DMX Interface

Chromateq LPSA-WiFi

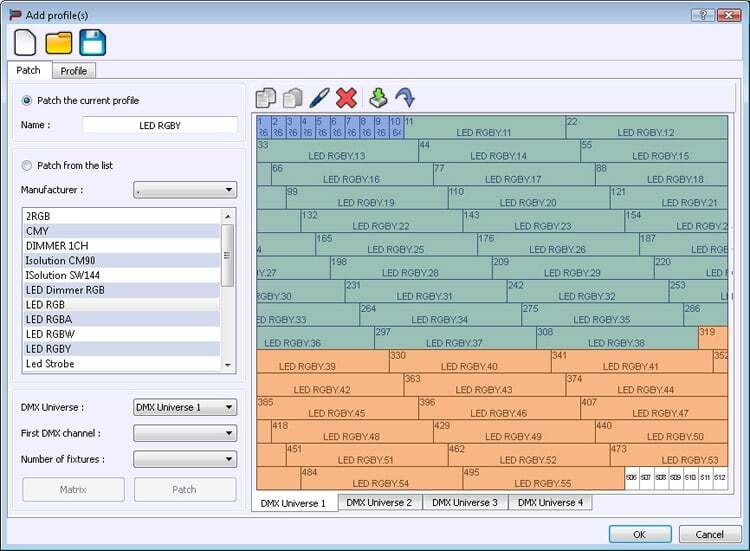

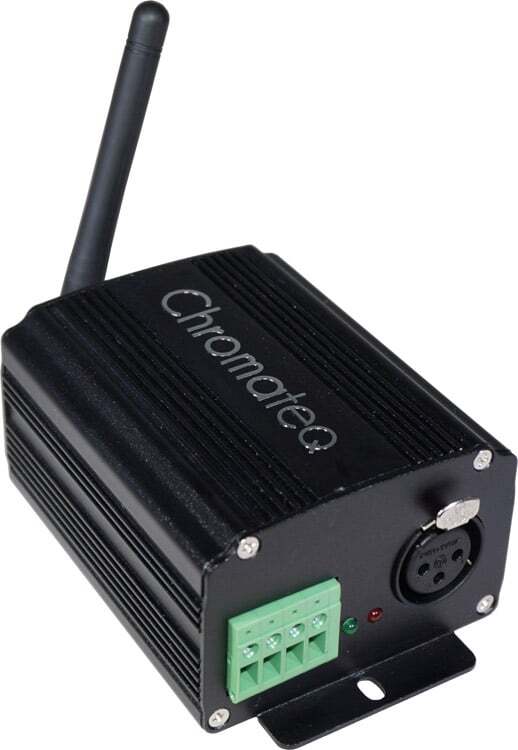

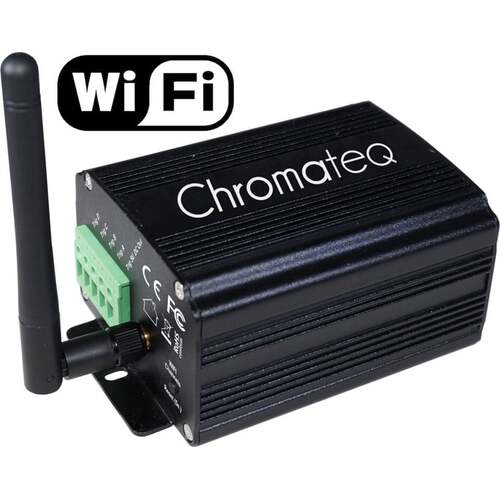

The Chromateq LPSA-WiFi is a compact and versatile DMX interface for the LED Player and DMX Pro DMX software. Featuring a completely wireless connection to your PC or Mac by generating its own WiFi network. It is the ideal controller for fixed installation and architectural projects.

A unique feature of the LPSA-WiFi is the ability to save and recall up to 15 scenes totalling 4,000 steps with 512 channels of DMX (1 universe), allowing you to trigger your lighting shows without needing to connect your computer. To trigger the scenes in standalone mode you can use the external trigger terminals, or connect your preferred device using the Wi-Light app. The app will allow you to play the scenes, manually mix and control colour, control playback speed, and more! The LPSA-WiFi also supports up to 3 zone playback, allowing you to trigger 3 scenes simultaneously, great for architectural applications or lighting shows with 2 / 3 setups that need to be controlled independently.

This is the perfect DMX interface for any lighting designer wanting intuitive control of their lights without the need to carry around and connect a laptop to every show or display the create.

Supported DMX Channels: 512 (connected and stand alone)

DMX Connector: 3-Pin XLR

Stand Alone Function: Yes

Memory Capacity: 4000 steps with 512 channels, 100 000 steps with 16 channels

External triggers: x4 5V contacts, multiplexed to 15 contacts max

Master/Slave connection: 3 wires for 16 connected interfaces max

WiFi Frequency: 2.4 – 2.497 GHz

Power Requirements: 5V DC (via the terminal contacts)

Dimensions: 48 x 70 x 127mm

Weight: 0.25 kg

Certifications: CE ; RoHS

For full product details see the online datasheet.
