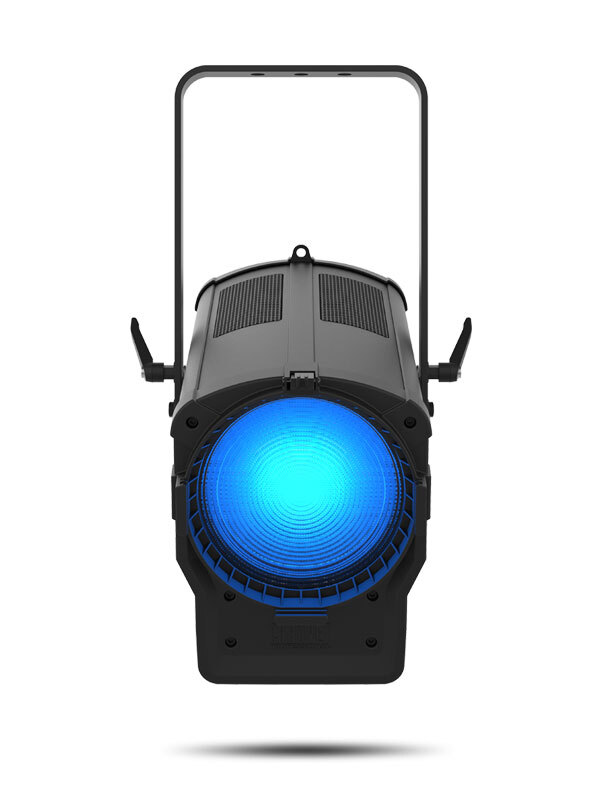

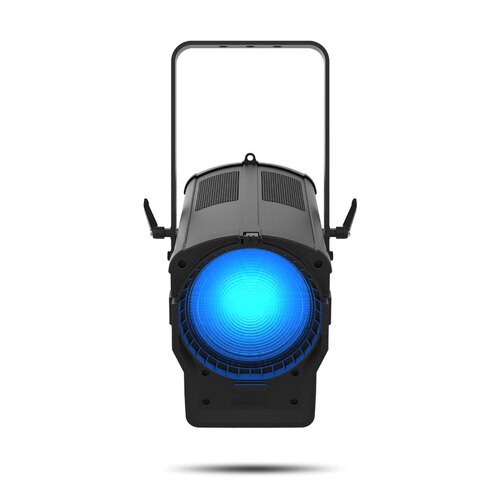

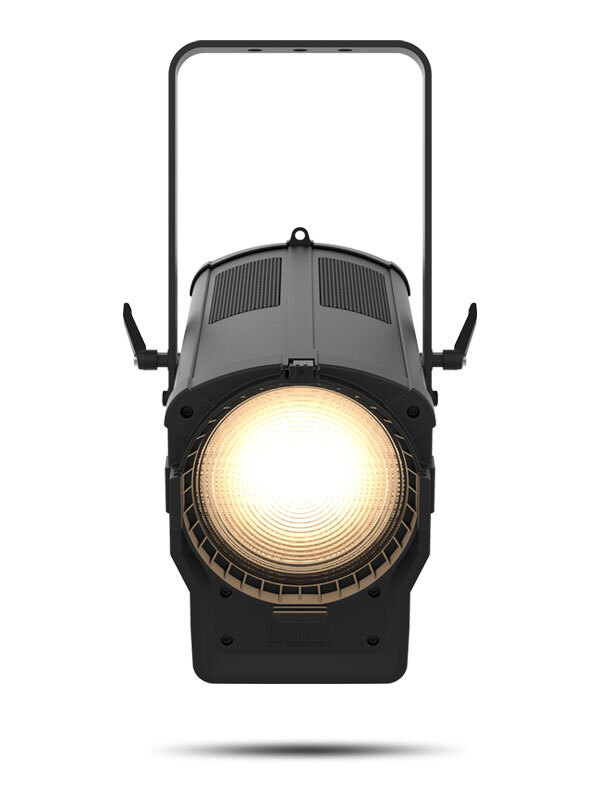

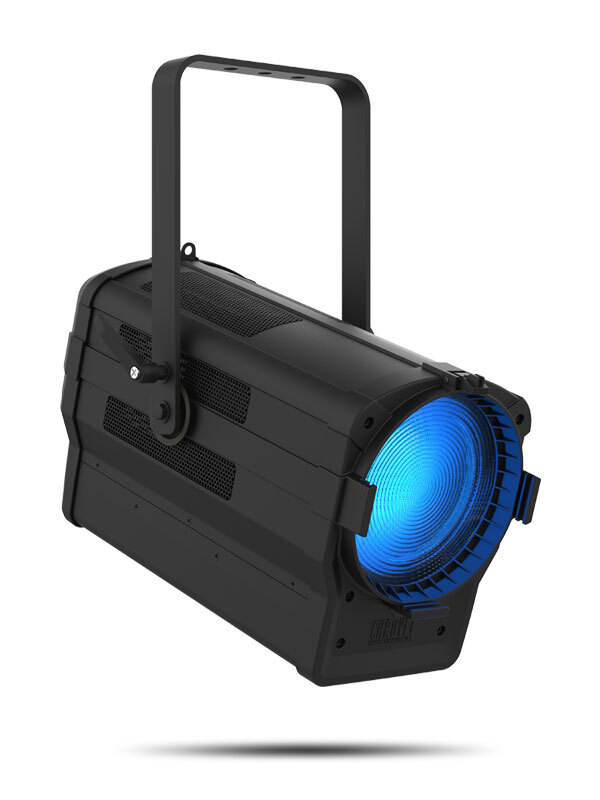

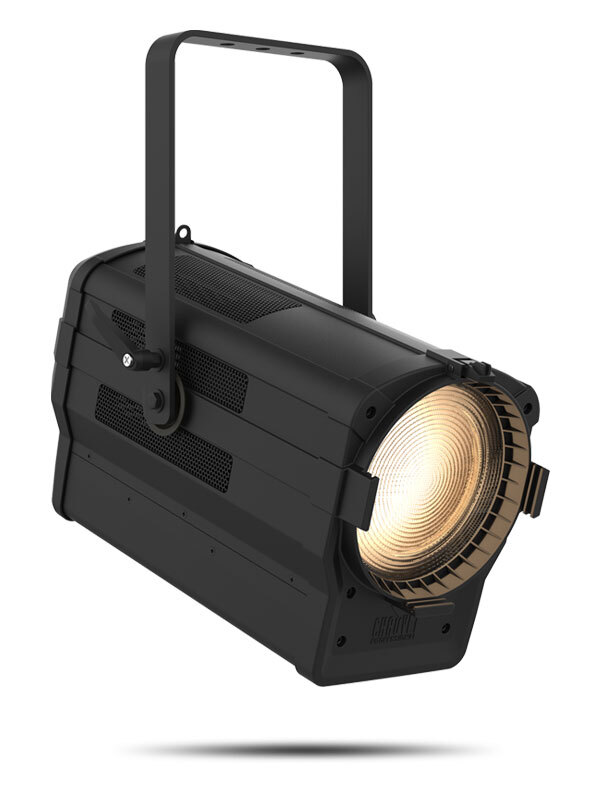

CHAUVET PROFESSIONAL Ovation F-915FC

SPECIFICATIONS

OPTICAL

• Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
• Color Temperature (range): 2800 to 6500 K
• CRI (3200 K): 90
• Beam Angle: 17° to 54°
• Field Angle: 30° to 85°
• Zoom Range: 17° to 85°
• Lumens (30°): 4,294
• Lumens (73°): 6,661
• Illuminance (30°): 1,980 lux @ 5 m
• Illuminance (85°): 433 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
• Weight: 19 lb (8.6kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast

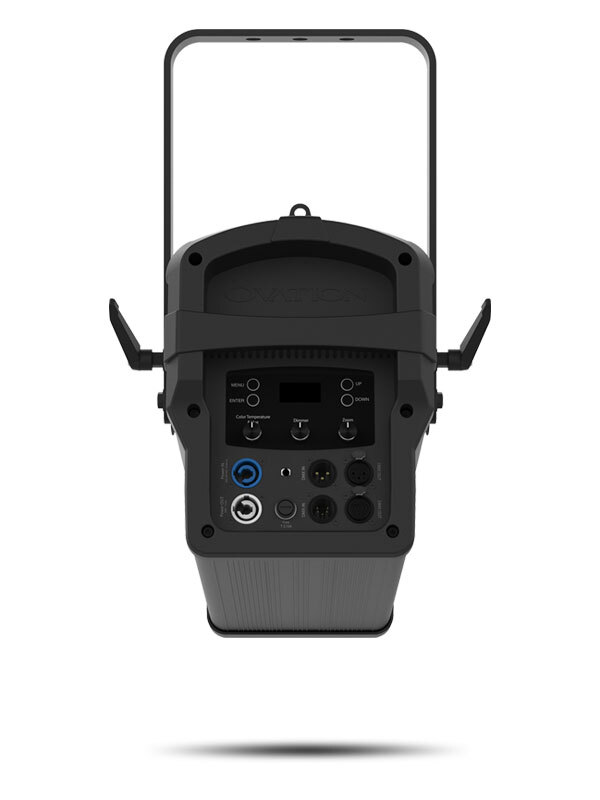

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
• Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
• Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
• Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
• Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Ovation F-915FC
• Neutrik® powerCON® power cord
• Gel frame (7.5 in/191 mm accessories)

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5” Barndoor V2
