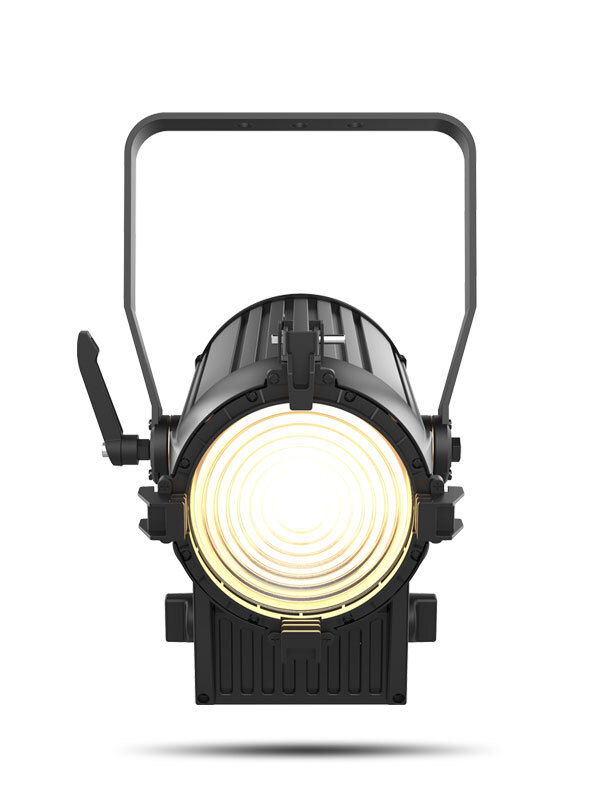

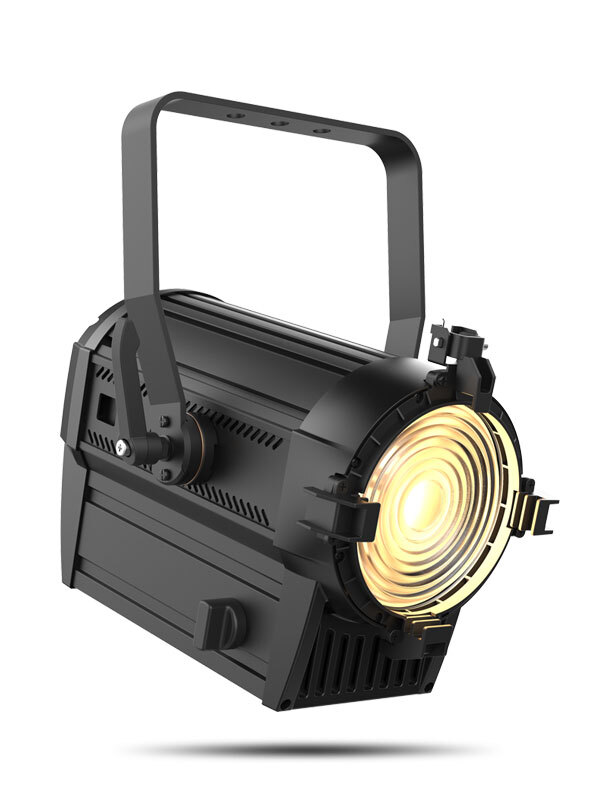

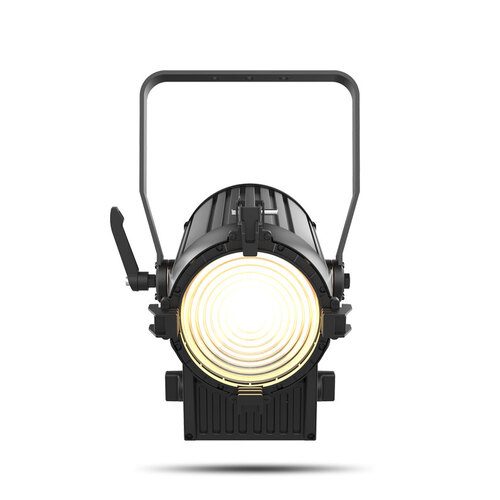

CHAUVET PROFESSIONAL Ovation FD-105WW

SPECIFICATIONS

OPTICAL

• Light Source: 1 LEDs (WW) 80 W, (2 A), 50,000 hours life expectancy
• Color Temperature (at full): 3,197K
• CRI: 91
• Beam Angle: 8° to 51°
• Field Angle: 14° to 63°
• Zoom Range: 8° to 63°
• Illuminance (14°): 6,609 lux @ 5 m
• Illuminance (63°): 340 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to25 Hz
• Dim Modes: 5
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 12.8 x 11 x 16.5 in (325 x 279 x 420 mm)
• Weight: 13 lb (5.9 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 6.25 in/159 mm

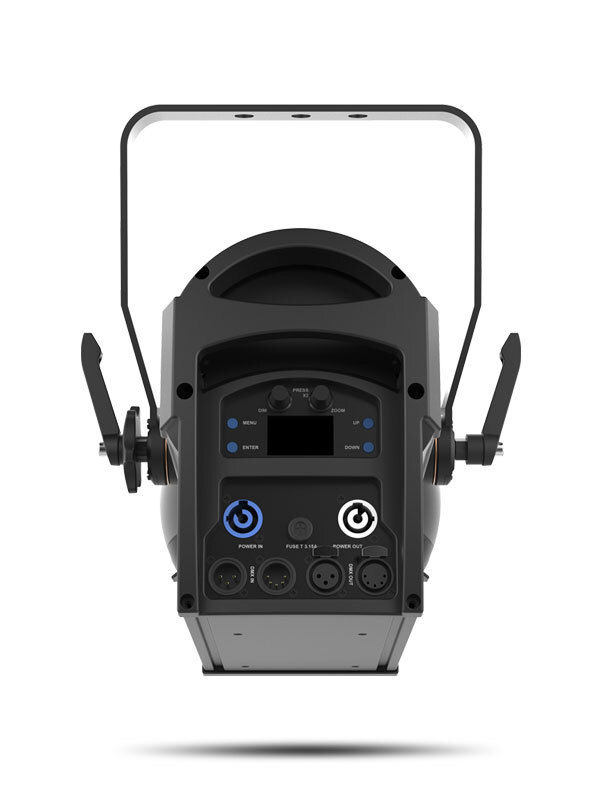

CONNECTIONS

• Power Connection: Local plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM, Dimmer
• DMX Channels: 1, 2 or 3
• Modes/Personalities: 3 personalities (UNO, DOS, STD-P)

ELECTRICAL

• Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
• Power Linking: 14 units @ 120 V; 25 units @ 230 V
• Power and Current: 115 W, 0.951 A @ 120 V, 60 Hz
• Power and Current: 125 W, 0.541 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Ovation FD-105WW
• Neutrik® powerCON® power cord
• Gel frame (6.25 in/159 mm accessories)

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F6.25” Barndoor
