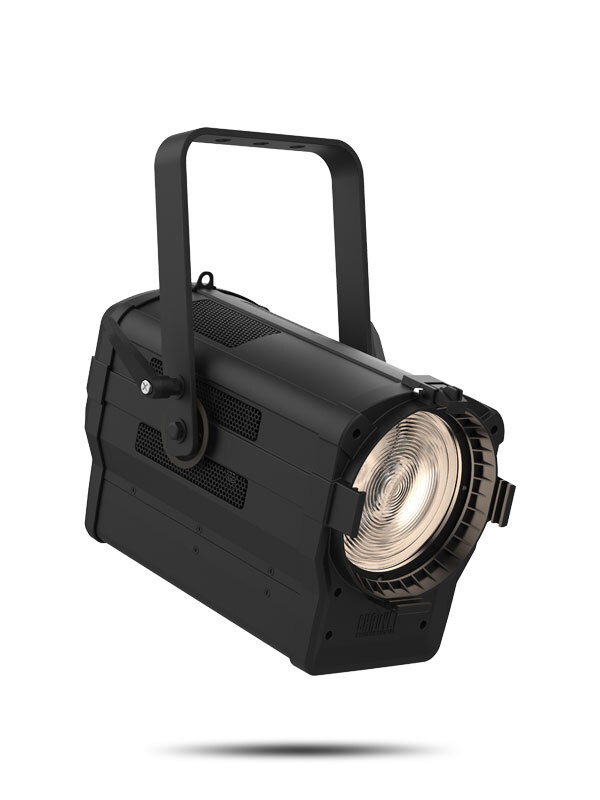

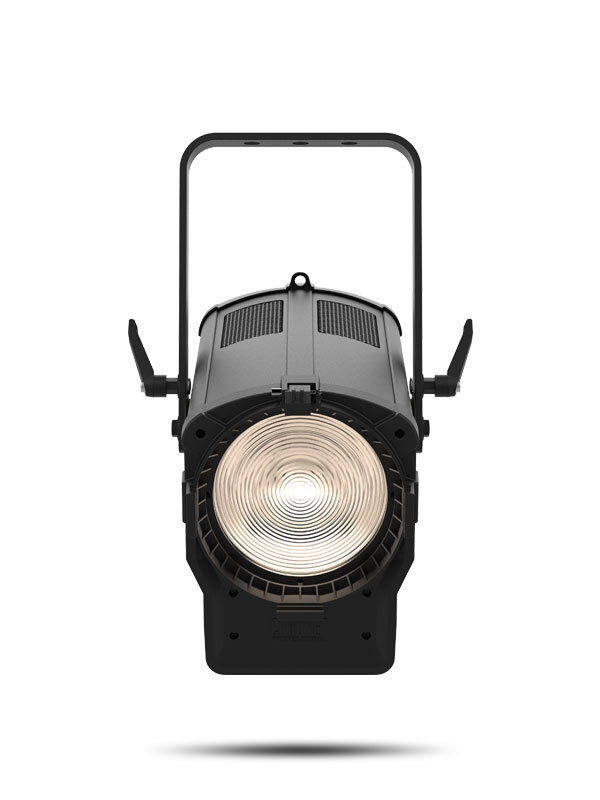

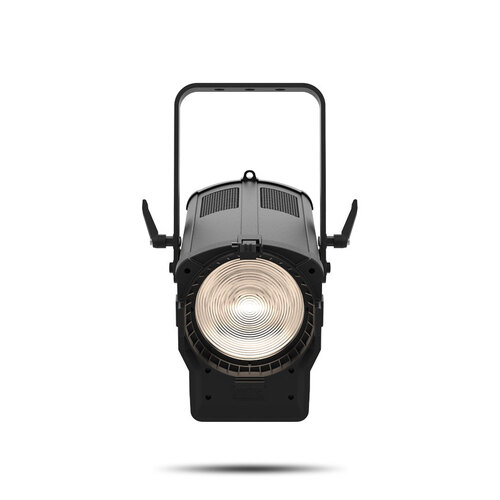

CHAUVET PROFESSIONAL Ovation F-415VW

SPECIFICATIONS

OPTICAL

• Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 89 to 93
• Beam Angle: 14° to 43°
• Field Angle: 27° to 68°
• Zoom Range: 14° to 68°
• Lumens (27°) : 1,631
  (68°) : 2,408
• Illuminance (27°) : 800 lux @ 5 m
  (68°): 152 lux @ 5 m
• Illuminance drop percentage (fan silent) : 23%
  (fan off) : 59%
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: No

CONSTRUCTION / PHYSICAL

• Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
• Weight: 12.79 lb (5.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

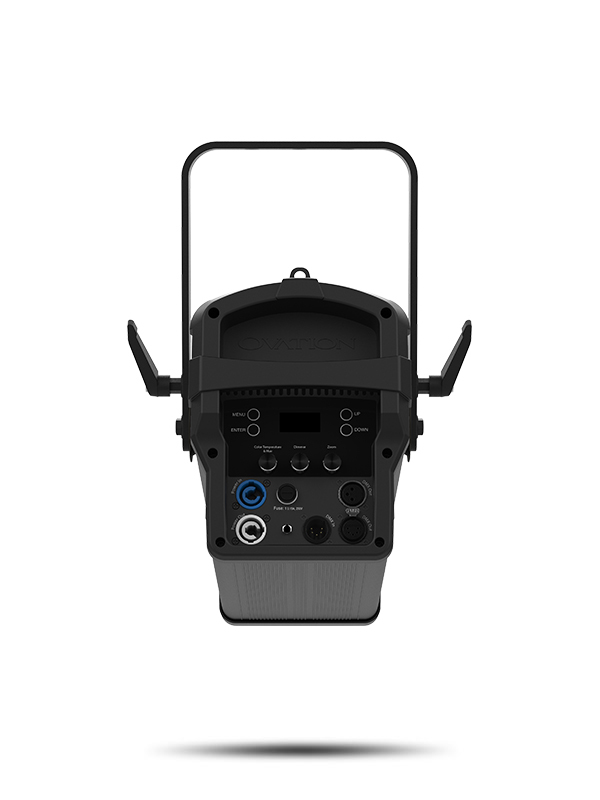

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON,
  3-pin XLR
• Power Input: Neutrik powerCON
  28 VDC, 3-pin XLR
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 2, 5, 7, 10, 14, 17 or 19
• Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Input Voltage: 28 VDC
• Power Linking: 14 units @ 120 V; 24 units @ 208 V; 27 units @ 230 V
• Power and Current: 114 W, .93 A @ 120 V, 60 Hz
  115 W, .56 A @ 208 V, 60 Hz
  117 W, .50 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation F-415VW
• Neutrik powerCON power cord
• Gel frame holder (6.25 in/158.75 mm accessories)

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 6.25″ Barndoor V1
