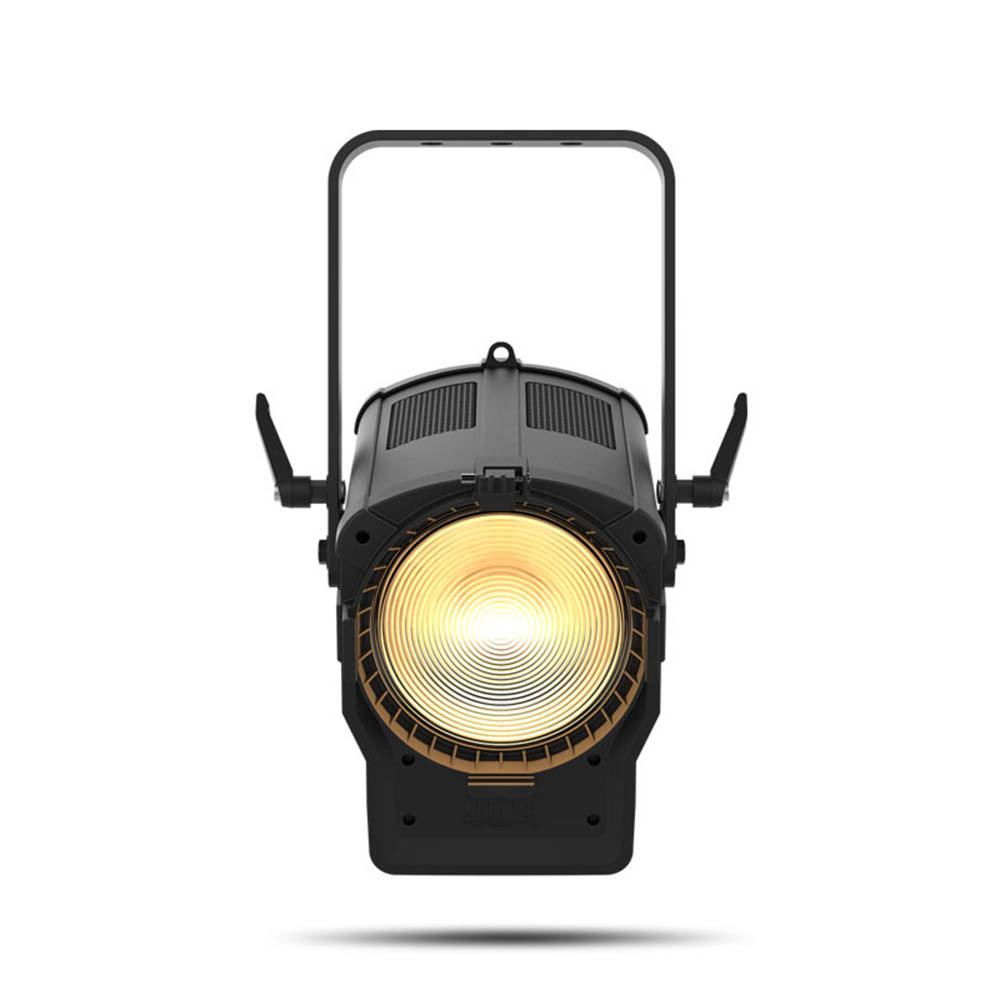

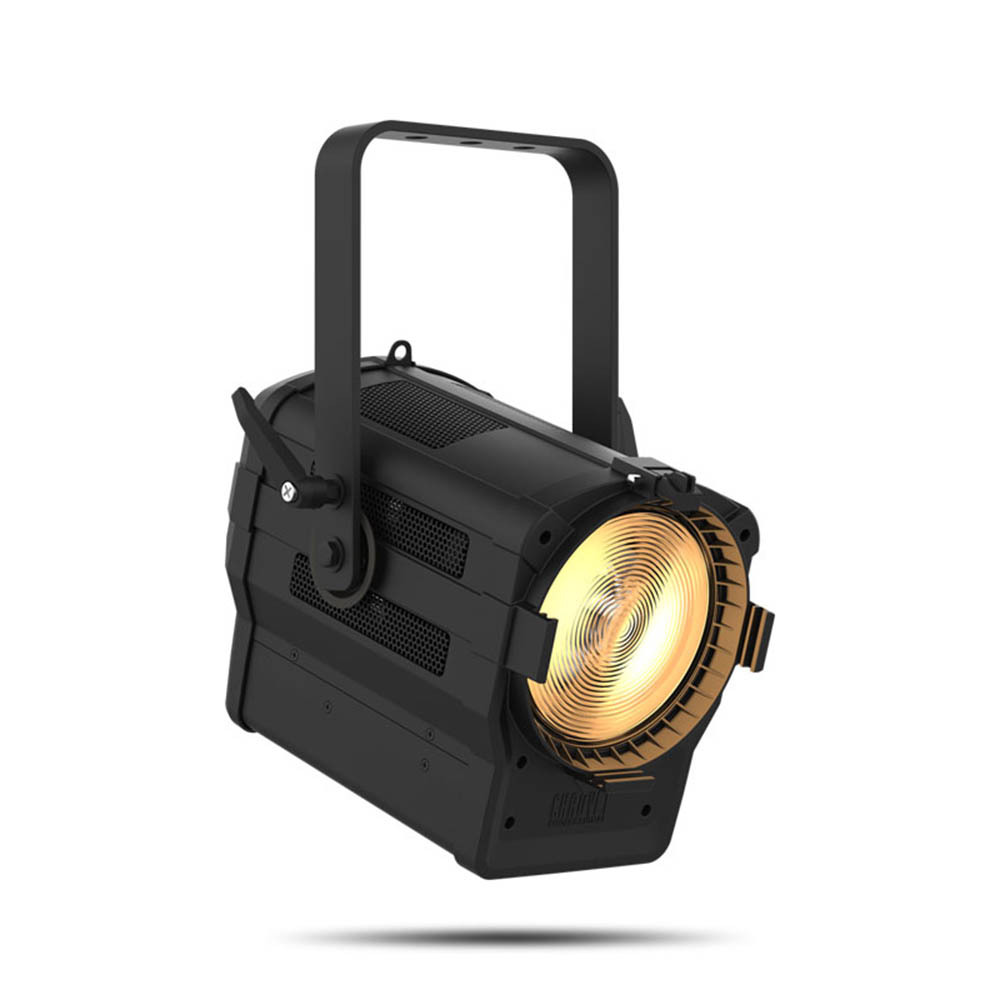

CHAUVET PROFESSIONAL Ovation F-145WW

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
• Color Temperature (at full): 3096 K
• CRI: 97
• Beam Angle: 16° to 48°
• Field Angle: 25° to 65°
• Zoom Range: 16° to 65°
• Lumens (25°): 2,787
• Lumens (65°): 4,266
• Illuminance (25°): 1,290 lux @ 5 m
• Illuminance (65°): 252 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
• Weight: 11 lb (5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

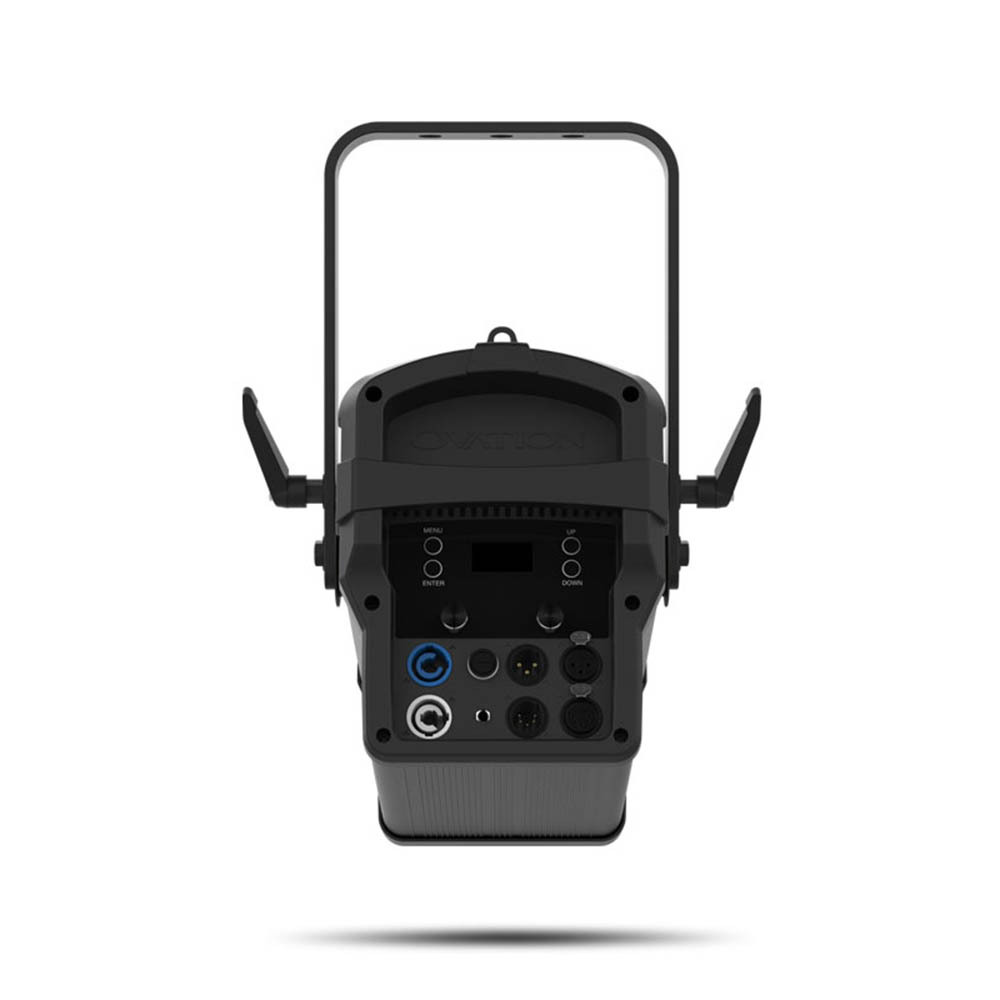

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Protocol(s): DMX, RDM
• DMX Channels: 1, 2, 2 or 5
• Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 19 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
• Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
• Power and Current: 81 W, 0.40 A @ 208 V, 60 Hz
• Power and Current: 81 W, 0.36 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation F-145WW
• Neutrik powerCON power cord
• Gel Frame

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F6.25” Barndoor
