CHAUVET GigBAR Move

DMX Channels: 3, 17 or 35

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/180°

Colors: (moving head): 7 + white
(moving head): 7 + open

Light Source:
(pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (dual-color white + UV) 5 W (1.5 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
(moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
(laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

Strobe Rate: (all effects): 0 to 20 Hz

Beam Angle:
(moving head): 11°
(pars): 19°
(strobe): 8°

Field Angle:
(pars): 30°
(strobe): 18°

Coverage Angle:
(derby): 131°
(laser): 93°

Fits Tripod Size: 1.5 in (37.4 mm)

Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 1056 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone)

Power Linking: 7 units @ 120 V; 12 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:
81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz

Weight: 10.7 kg

Size: 1100 x 144 x 449 mm

Approvals: CE, FDA, FCC

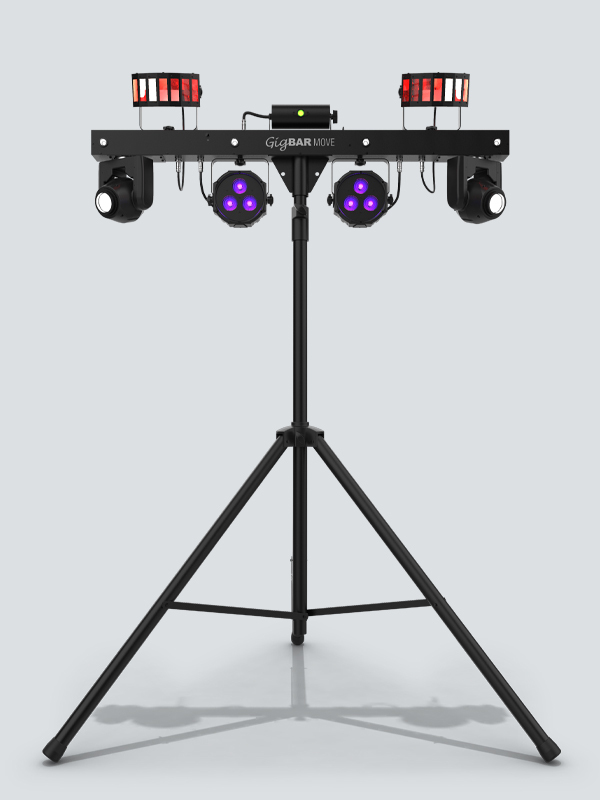

Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)

Footswitch Operating Frequency: 433 MHz

Footswitch Max Unobstructed Distance: 30.5 m

Footswitch Battery: 9 V alkaline

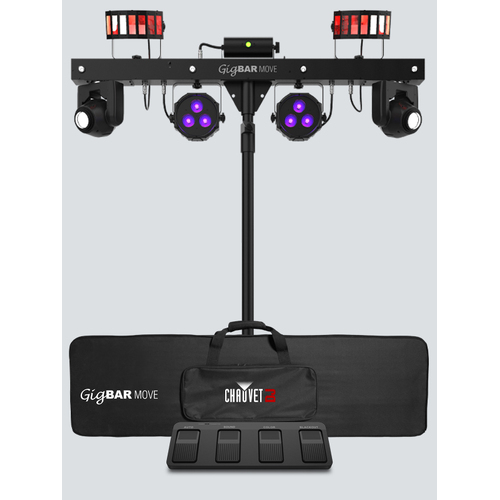

Included Controllers: IRC-6, wireless footswitch
