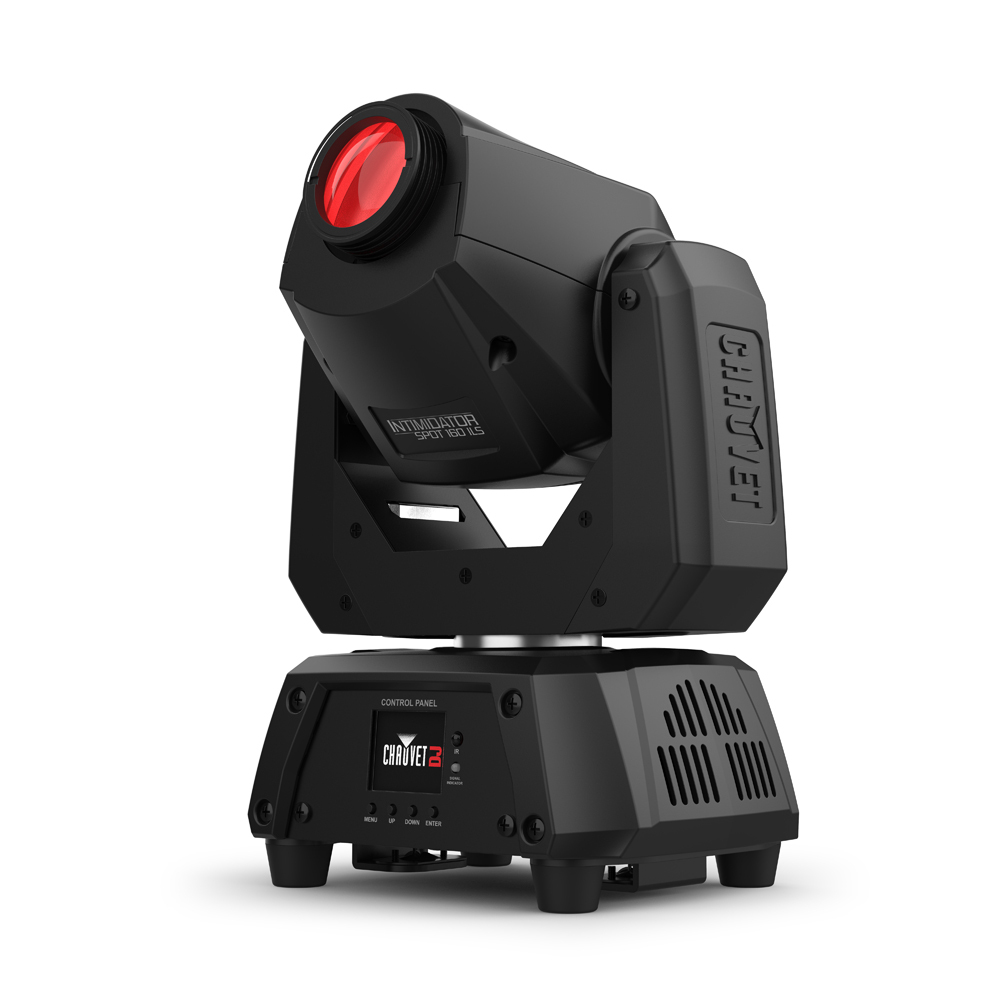

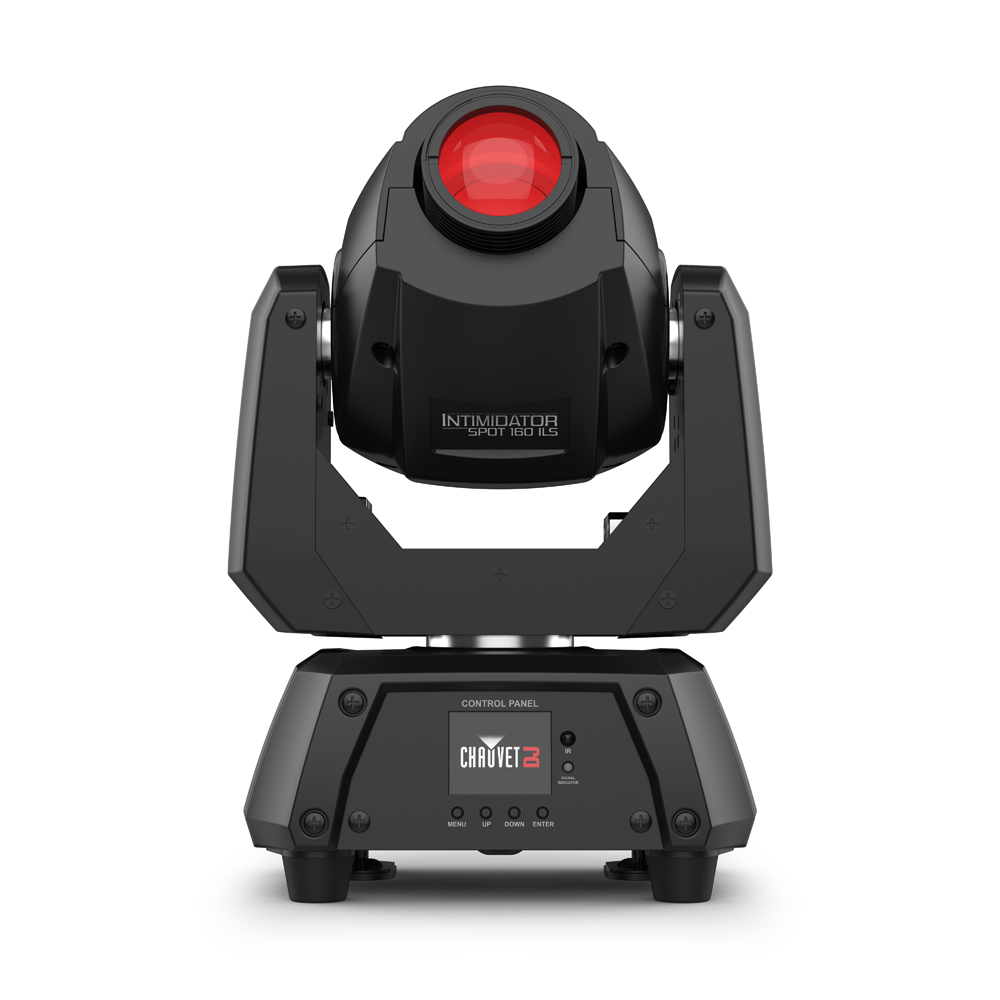

- Feature-packed moving head designed for mobile performances
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control
- Integrated Lighting System (ILS) compatible with wireless connection via D-Fi USB
- ¼-turn hanging bracket allows for quick removal when needed
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall 1 scene manually, directly from the full- color LCD display
- Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
- Convenient, wireless non-DMX control using the optional IRC-6 remote
- Fits best in the CHS-1XX VIP Gear Bag.
Technical Data
| DMX Channels: | 5 or 11 |
|---|---|
| DMX Connectors: | 3-pin XLR |
| Pan and Tilt: | 540°/229° |
| Pan and Tilt Ranges: | 180°, 360°, 540° pan/90°, 180°, 229° tilt |
| Colors: | 9 + open, split colors, continuous scroll at variable speeds |
| Gobos: | 9 + open (9 aluminum), continuous scroll at variable speeds |
| Light Source: | 1 LED (11,000 K) 32 W, (2.3 A), 50,000 hours life expectancy |
| Strobe Rate: | 0 to 20 Hz |
| Beam Angle: | 15° |
| Illuminance: | 5,000 lux @ 2 m |
| Power Linking: | 12 units @ 230 V |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current: | 77 W, 0.624 A @ 230 V, 50 Hz |
| Bracket Mounting Hole: | M12 |
| Weight: | 3.8 kg |
| Size: | 207 x 149 x 308 mm |
| Optional Controllers: | IRC-6 |
| Approvals: | CE |
(CHA-INTIMSPOT160ILS)
| SKU | CHA-INTIMSPOT160ILS |
| Brand | CHAUVET |
