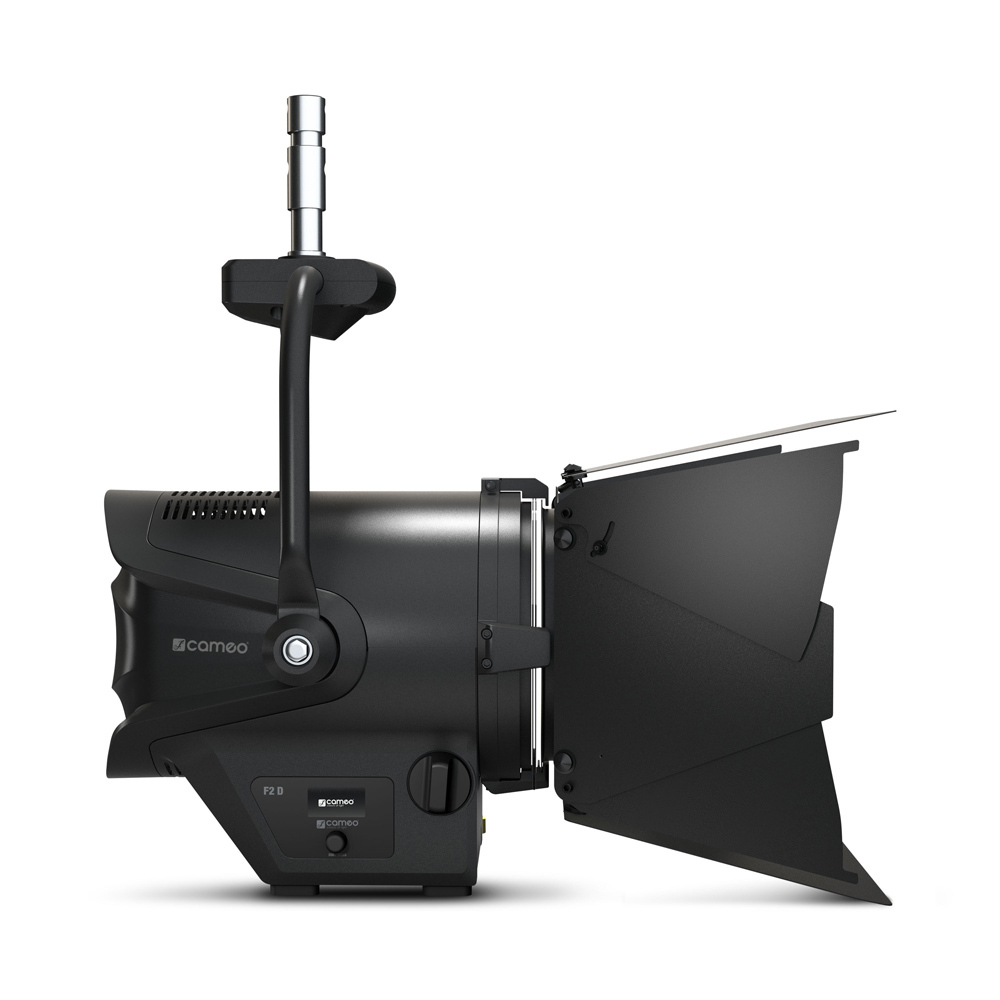

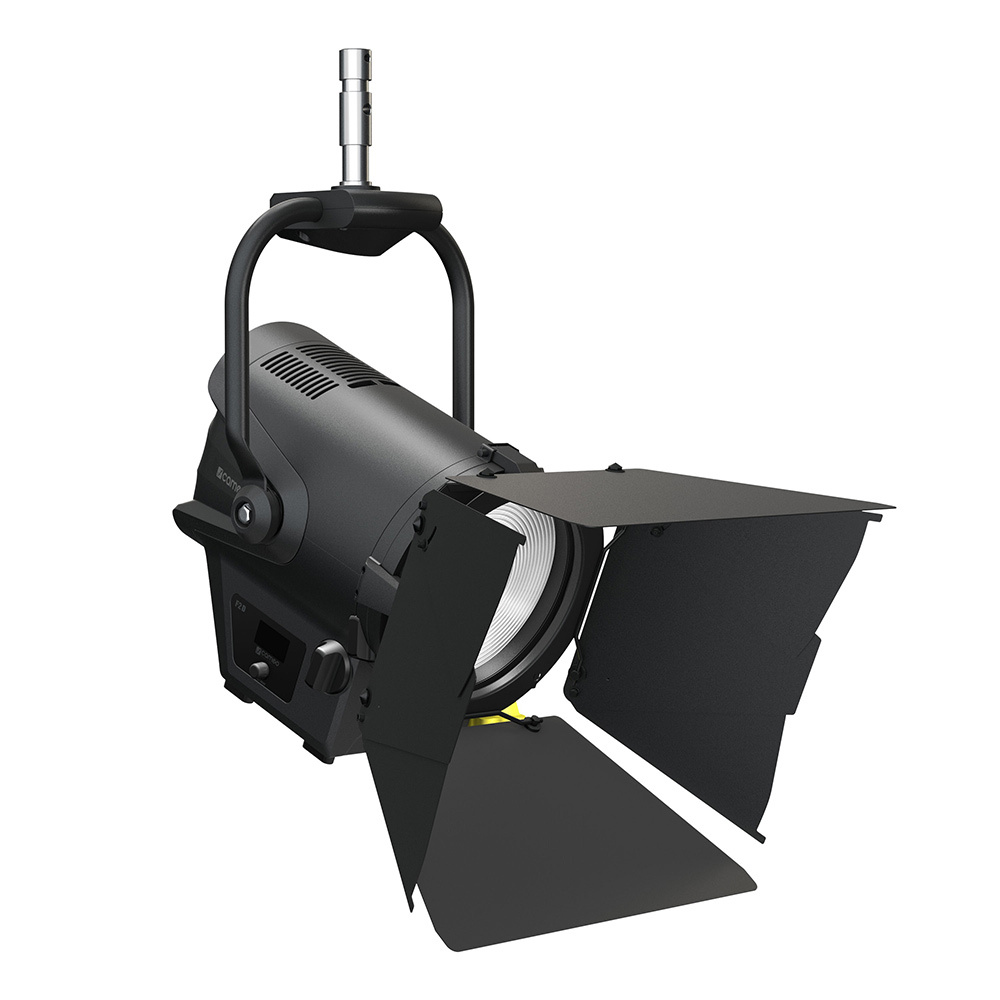

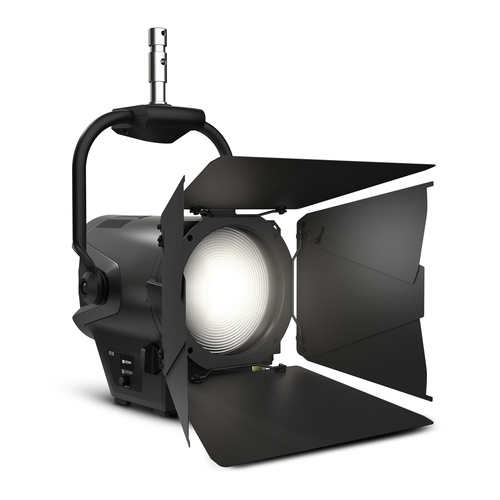

Cameo F2 T PO Pole Operated Fresnel Spotlight with Tungsten LED

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Tungsten LED Fresnel with 3,200 K colour temperature and 12,500 lm output

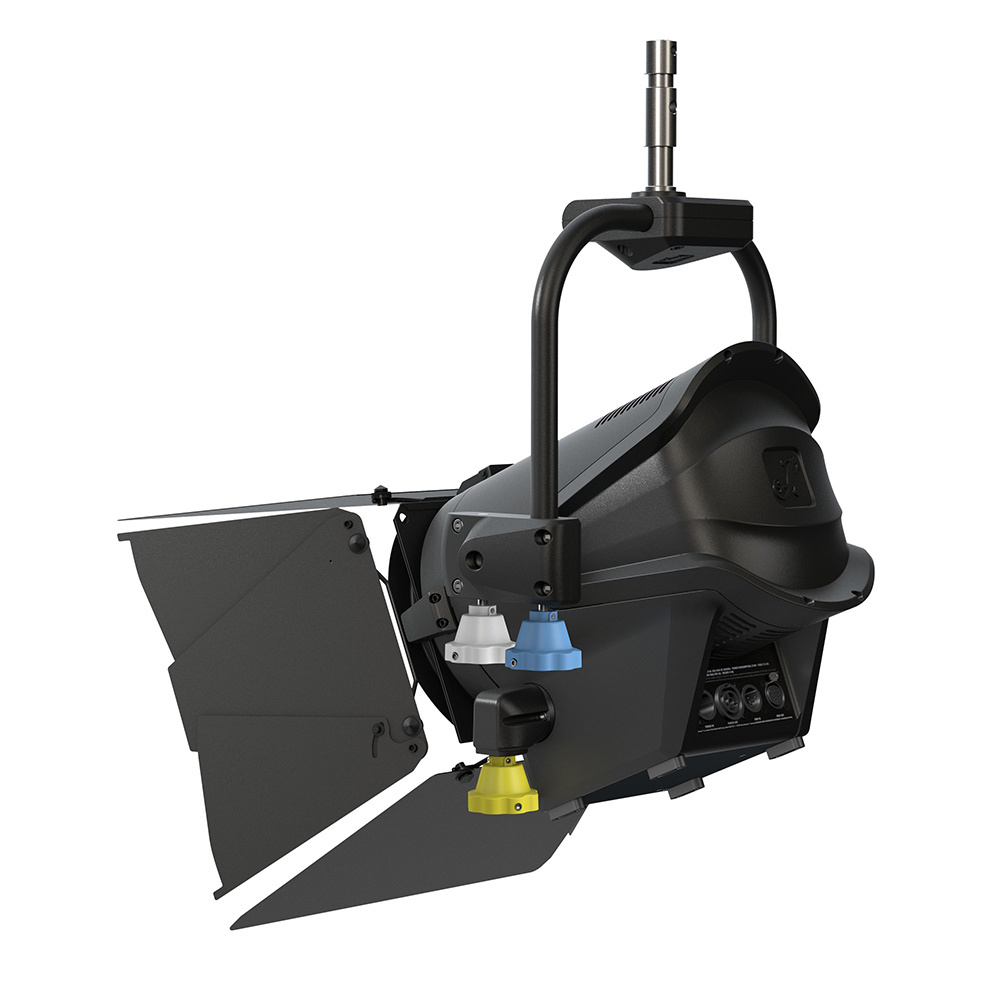

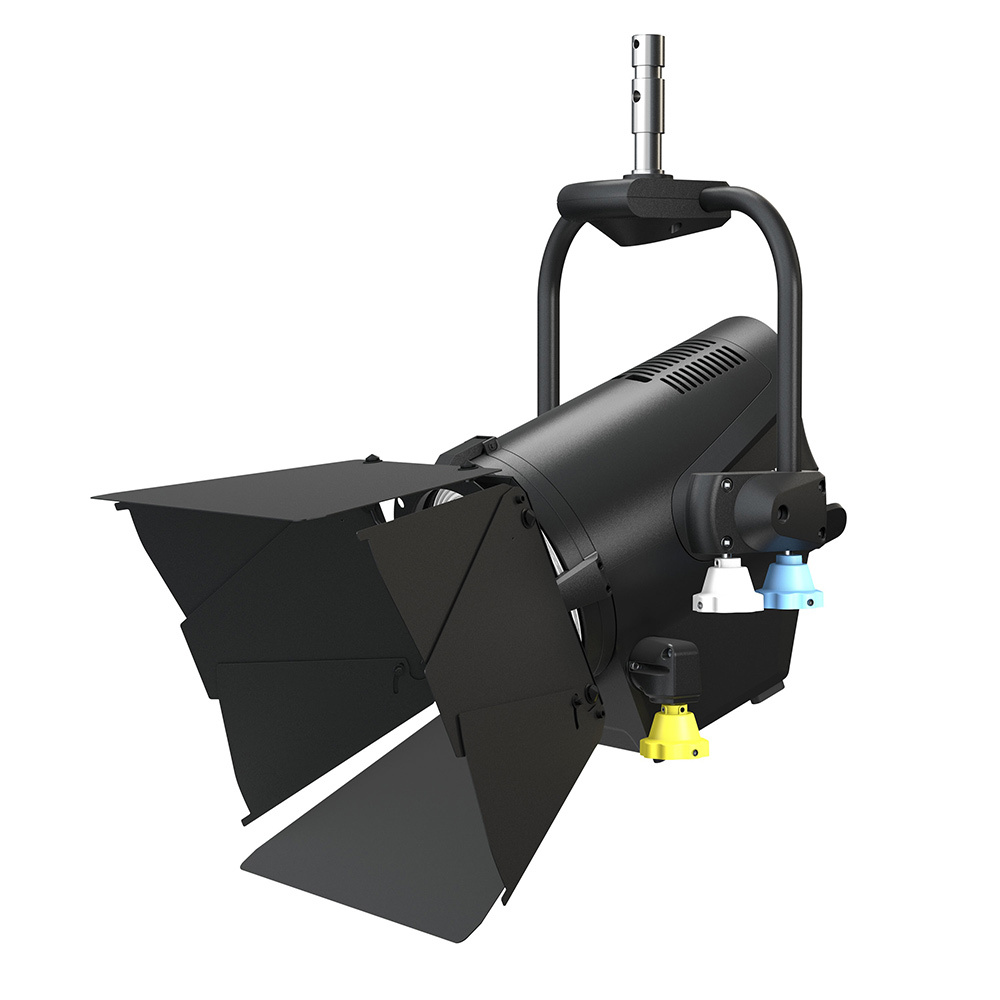

Easy control from the base by using a bar for pan, tilt and zoom
Perfect replacement for conventional 1 kW Fresnels
Faithful colour reproduction, CRI rating of 96, TLCI of 97
Continuously variable zoom for 15° to 40° beam spread
16-bit dimming with 4 selectable curves and adjustable response
Super efficient heat pipe cooling and temperature controlled fan for optimum operation
RDM enabled
Selectable PWM frequencies up to 25 kHz
Flicker-free and silent operation, ideal for TV, film and theatre applications

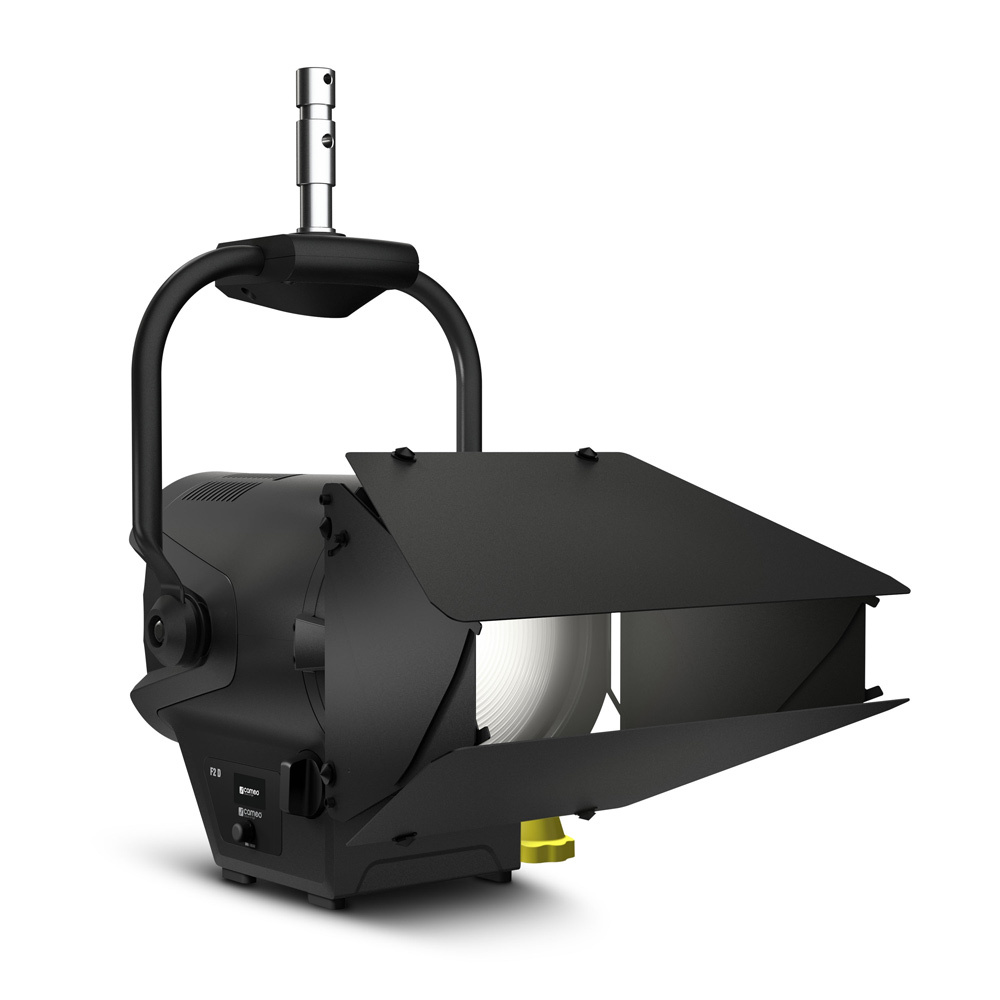

Includes 8-way barn door and gel frame.

Technical Data

Product type	LED Fresnel Spotlight
Type	Theatre Fresnel
Colour spectrum	Tungsten, warm white
Number of LEDs	1
LED type	240 W (ca. 50,000 Operating Hours)
LED PWM Frequency	Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000
Dispersion	Beam Angle: 15 ° – 40 °, Field Angle: 28 ° – 60 °
Lens	200 mm Fresnel

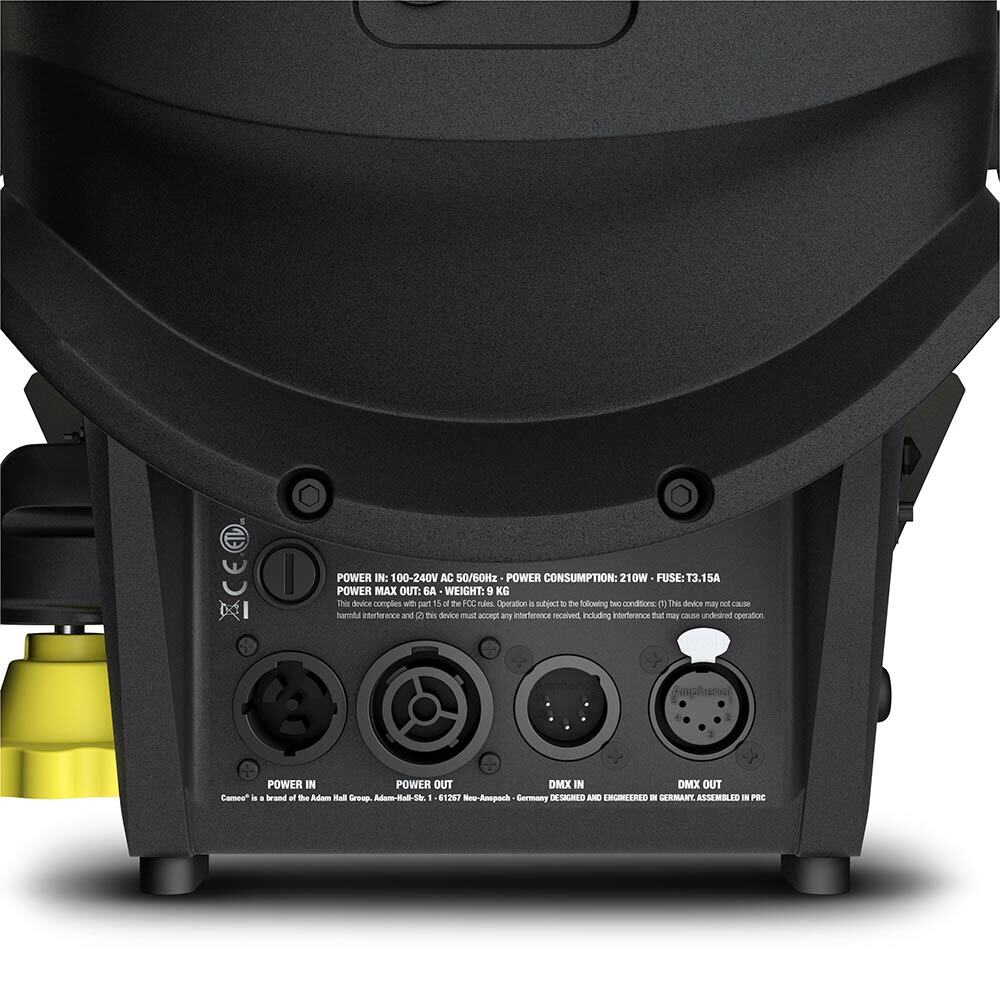

DMX input	5-Pol
DMX output	5-Pol
DMX mode	1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel
DMX Functions	Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, strobe
Standalone modes	Master / Slave mode, Static
Controls	Master / Slave mode, Static
Indicators	OLED Display
Operating voltage	100 V AC – 240 V AC, 50 – 60 Hz
Power consumption	210 W
Power Factor	0.94 / 240 V, 0.99 / 120 V
Power connector	TRUE1 Compatible Power I/O Socket
Housing material	Die-cast aluminium
Cabinet colour	Black
Protection class IP	IP20
Cooling	Combination of heat pipe and temperature controlled fan
Luminous flux	12500 lm
Efficiency	57 lm/W
Colour temperature	3200 K
Operating Temperature	-15 – 45 °C
