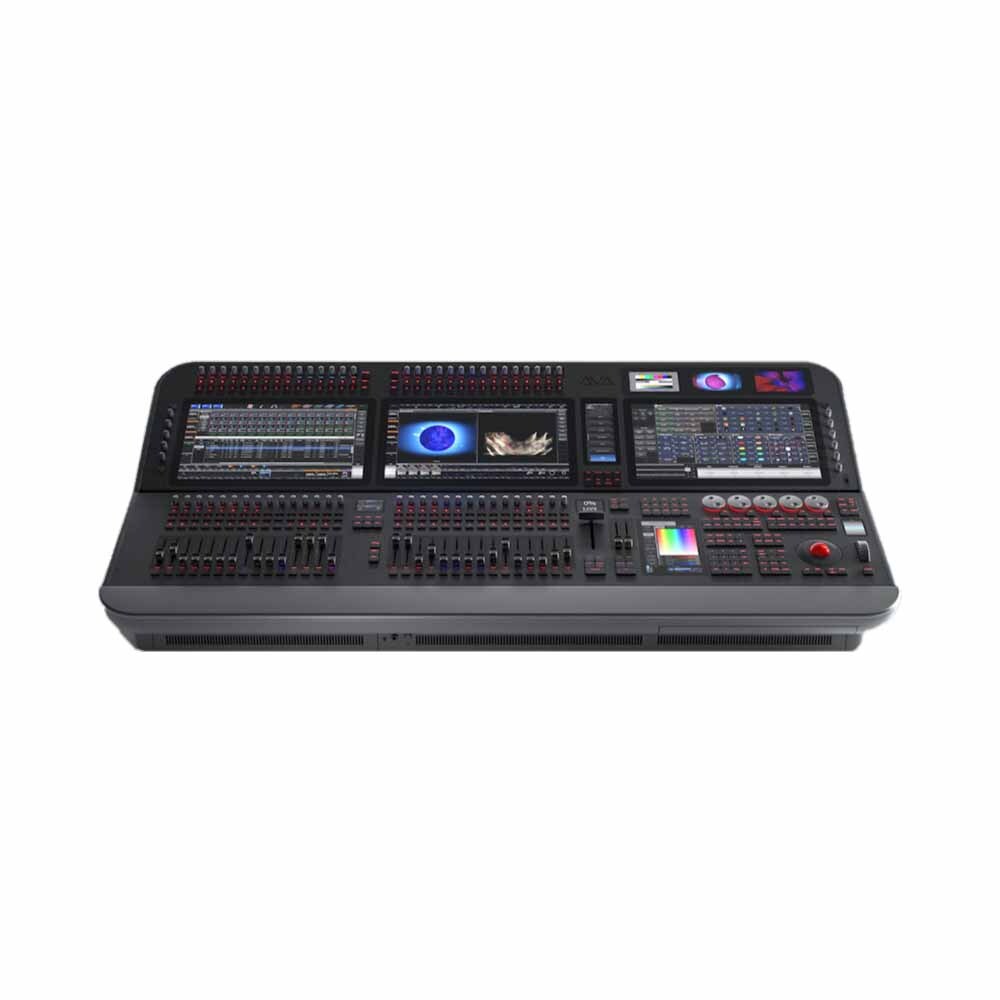

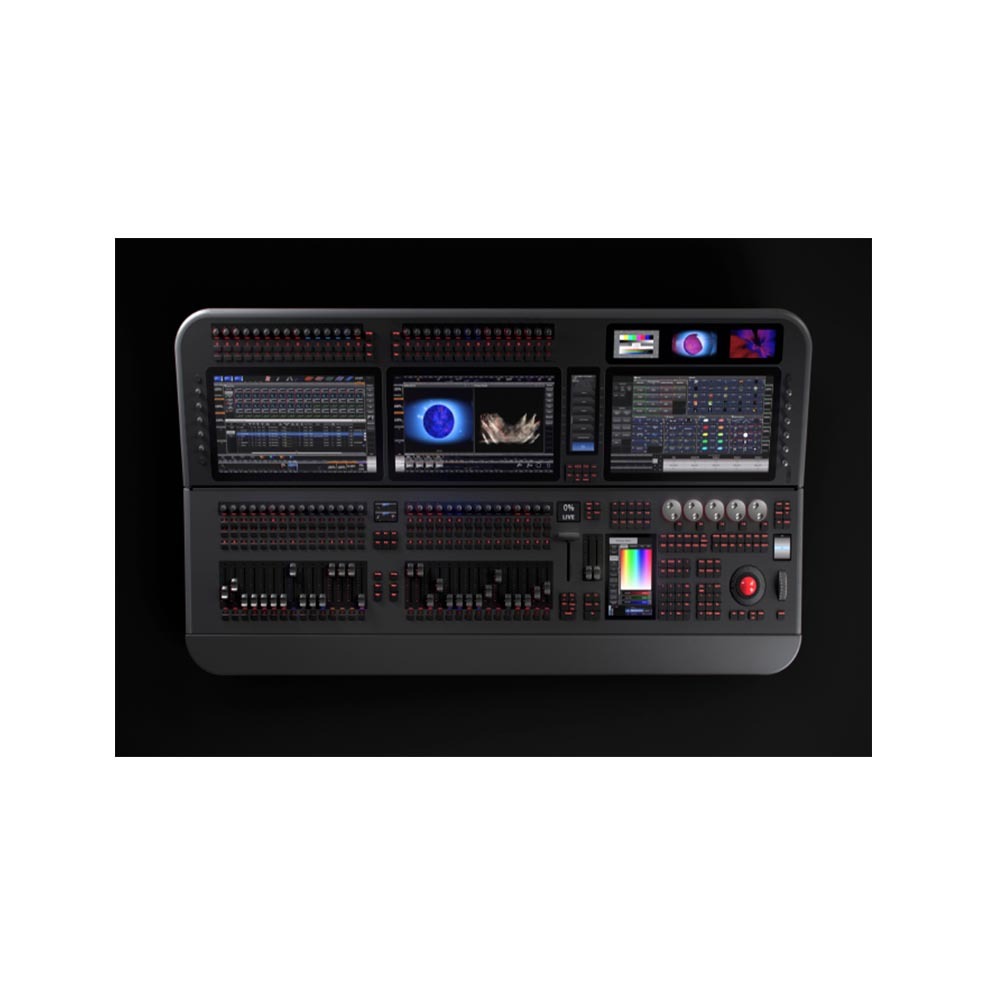

Avolites Diamond 9 (D9-330) Console

Created in consultation with leading visual designers, and alongside expert industrial designers, D9 is ready for the next generation of ultimate shows and beyond. With vast screen real-estate, all-new controls, and unique media integration it intuitively combines control of all visual aspects of the show. Hand-crafted in London, built upon Avolites’ heritage of quality and reliability.

D9-330

Control Surface 3-screen

30 motorised touch-sensitive Penny & Giles faders – designer fader cap

11-segment RGB LED level indicator alongside each fader

Halo RGB for each playback

70 optical rotary touch sensitive playback encoders with push function – designer knob

11-segment RGB LED level indicator alongside each encoder

RGB halo for each encoder

180 C&K playback function buttons with positive haptics for timing – designer button cap

70 optical rotary assignable encoders with push function – designer knob

3 x 15.6″ 1000nits 1920*1080 capacitive touchscreens with adjustable brightness

3 x 4.3″ 1000nits 800×480 preview touchscreens for media or workspaces

Softkey menu touchscreen

Independent paging for each playback section

Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches

5 custom RGB backlit optical attribute encoders

Dedicated level wheel, machined aluminium with colour LCD status screen

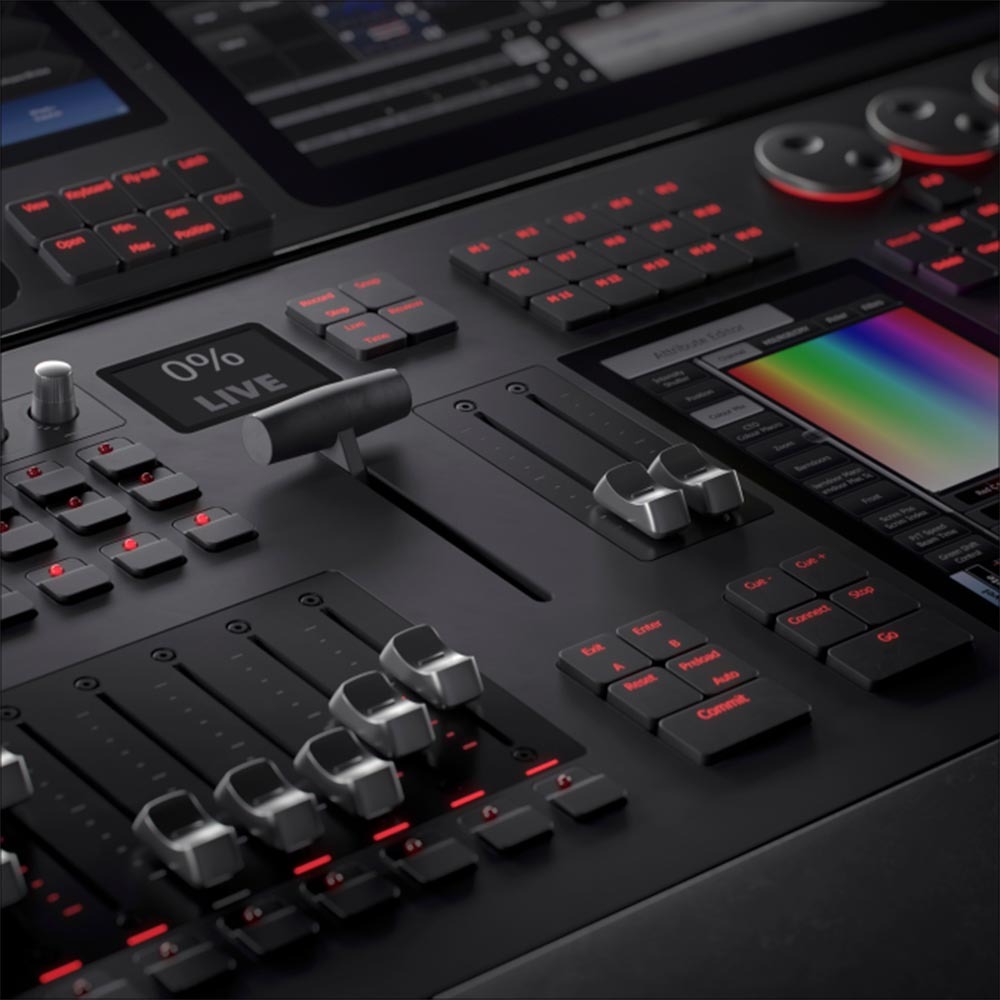

T-Bar with 5 control buttons and a colour LCD status screen

Dual, motorised, touch-sensitive, master cue list fader control with 9 buttons

7″ dual-touch high-brightness 800*1280 programming screen

Full custom backlit QWERTY keyboard in drawer, keys identical to program panel

X, Y, Z, optical trackball

21 backlit Macro / Executor keys, all screen-labelled

Supports two additional HDMI 1920*1080 touchscreens

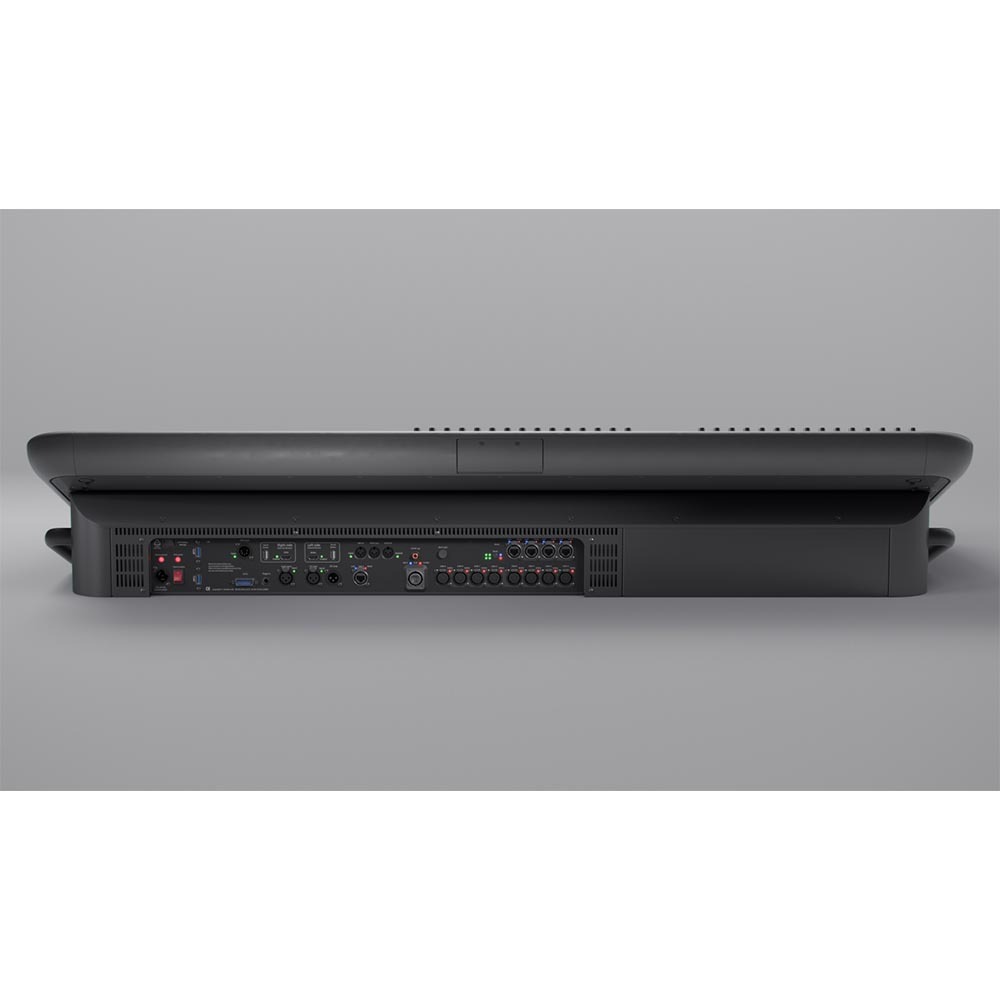

DMX 512

8 X NEUTRIK 5-PIN XLR,
OPTICALLY AND GALVANICALLY ISOLATED WITH HALO ASSIGNMENT INDICATORS

NETWORK

4 X 1GBE NEUTRIK ETHERCON, INTERNALLY SWITCHED & MANAGED

1 X QUAD OPTICALCON 1GBE LC CONNECTION

1 X 1GB ETHERCON, NETWORK 2

OPTIONAL UPGRADE TO ADD:

1 X 10GBE CONNECTION TO OPTICALCON

1 X 10GBE NEUTRIK ETHERCON

DATA / PERIPHERALS

1 X USB 3.1 UNDER ARMREST

1 X USB 3.1 ON FRONT PANEL

2 X USB 3.1 BACK PANEL

2 X USB 2.0 ASSIGNED FOR EXTERNAL TOUCHSCREENS

EXTERNAL DISPLAY

2 X HDMI UP TO 1920*1080

SMPTE

1 X 3-PIN NEUTRIK XLR TRANSFORMER ISOLATED INPUT WITH SIGNAL INDICATOR PLUS 3-PIN
XLR LOOP OUT.

TRIGGER INPUTS

GPIO 4 IN/4 OUT, ISOLATED, AND DRY CONTACTS

¼” JACK FOR FOOT SWITCH.

DMX512 DEDICATED INPUT WITH INDICATOR

AUDIO INPUT 3-PIN XLR WITH INDICATOR

MIDI

IN, THRU, OUT ON 5-PIN DIN WITH SIGNAL AND ENABLED INDICATORS
USB MIDI SUPPORTED

AUDIO OUT

DIGITAL S/PDIF RCA

MAINS POWER

NEUTRIK TRUE1®

POWER

WORK LIGHT SWITCH CONTROLLING CONNECTOR PANEL ILLUMINATION
NEON INDICATOR FOR MAINS SUPPLY AND PSU ENERGIZED
INTERNAL UPS FOR CONSOLE AND INTERNAL DATA SWITCH
110-240VAC MAINS SUPPLY MAX DRAW OF 650W

COMPUTER

2I7-9700K PROCESSOR
16GB RAM
AMD WX5100 GPU
