Antari F7 1620W Fog / Faze Machine with Road Case

This product has been discontinued.

The Antari F7 Fog / Faze Machine is a professional atmospheric effects system designed for large venues and demanding entertainment applications. Combining powerful fog production and controlled haze output in a single unit, the F7 gives production teams the flexibility to create different atmospheric effects according to the needs of each event.

The machine features Fog and Faze modes, allowing users to switch between dense, high-volume fog and a lighter haze effect. Its advanced air pump technology helps produce fine, dry fog while also supporting a self-cleaning function for convenient operation and maintenance.

A built-in adjustable fan provides additional control over the direction of the output, while DMX512 and W-DMX offer flexible integration with professional lighting and show-control systems. The road-case design also makes the F7 suitable for touring and mobile production setups.

Key Features

• Professional fog and faze machine
• Combines Fog and Faze modes in one unit
• Designed for large venues and professional productions
• High-output Fog Mode
• Controlled haze production in Faze Mode
• Advanced air pump technology
• Fine, dry fog output
• Self-cleaning function
• Built-in adjustable fan
• DMX512 control
• W-DMX control
• Volume and Timer Mode
• 3-channel DMX operation
• 5-litre fluid tank
• Professional road case design
• Suitable for touring and mobile production applications

Antari F7 Technical Specifications

Powerful Fog and Faze Performance

The F7 provides two atmospheric effects within a single machine. Fog Mode is designed to generate a powerful, dense output for rapidly creating atmospheric coverage across large spaces.

For applications that require a more subtle effect, Faze Mode produces a thinner haze layer that can enhance stage lighting, beams and other visual effects without creating the density of traditional fog.

High-Output Fog Mode

In Fog Mode, the F7 delivers an output of up to 23,000 cu.ft/min with a fluid consumption rate of 140 ml/min at 100% output.

This high-output capability makes the machine suitable for large stages, entertainment venues and productions where rapid atmospheric coverage is required.

Controlled Haze with Faze Mode

Faze Mode provides a more controlled atmospheric effect, with an output of up to 6,000 cu.ft/min.

At maximum output, the specified fluid consumption is 28 ml/min, allowing the F7 to provide a lighter haze effect for longer periods compared with its high-output Fog Mode.

Air Pump Technology and Self-Cleaning

The F7 uses advanced air pump technology to help produce a fine, dry fog effect. The system also incorporates a self-cleaning function, helping make regular operation more convenient.

This technology is particularly useful for professional users who need consistent atmospheric effects while keeping machine maintenance manageable.

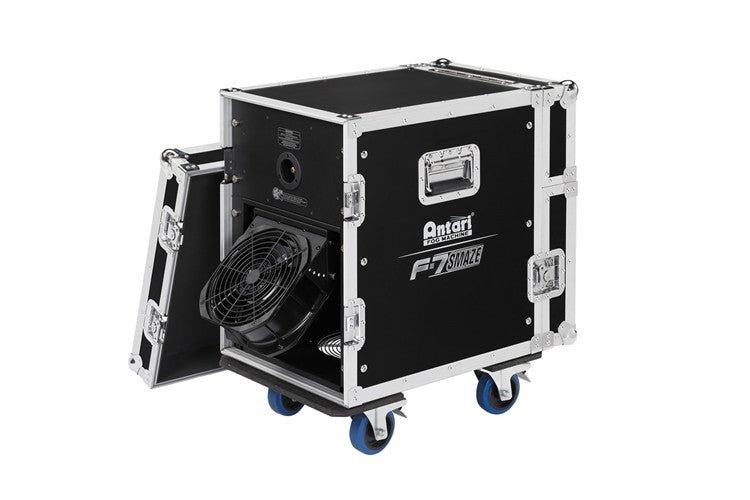

Adjustable Fan for Directional Output

A built-in adjustable fan allows operators to control the direction of the fog and haze output.

This provides greater flexibility when positioning the machine for different stage layouts, venue configurations and production requirements.

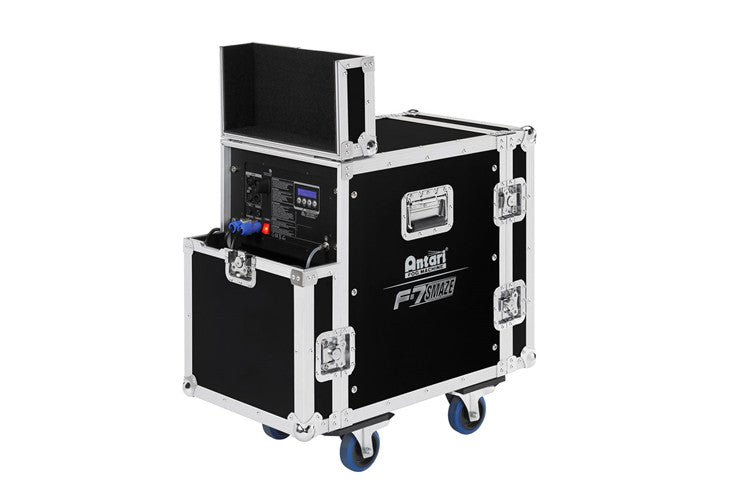

Flexible Control Options

The F7 offers several control methods for professional applications:

• Volume and Timer Mode
• DMX512
• W-DMX

With 3 DMX channels, the machine can be integrated into compatible lighting and show-control systems for coordinated atmospheric effects.

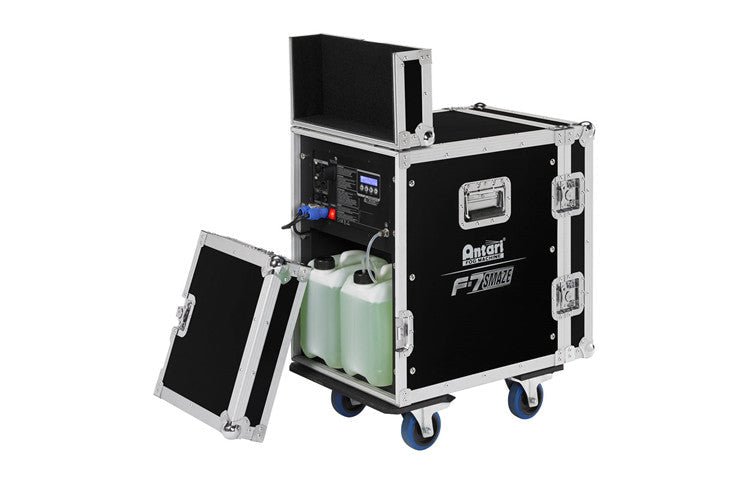

5-Litre Fluid Tank

The F7 features a 5-litre fluid tank and is designed for use with Antari FLG Liquid.

The specified operating time is approximately 35 minutes in Fog Mode and up to 2.8 hours in Faze Mode at maximum output.

Actual operating time can vary depending on output levels and operating conditions.

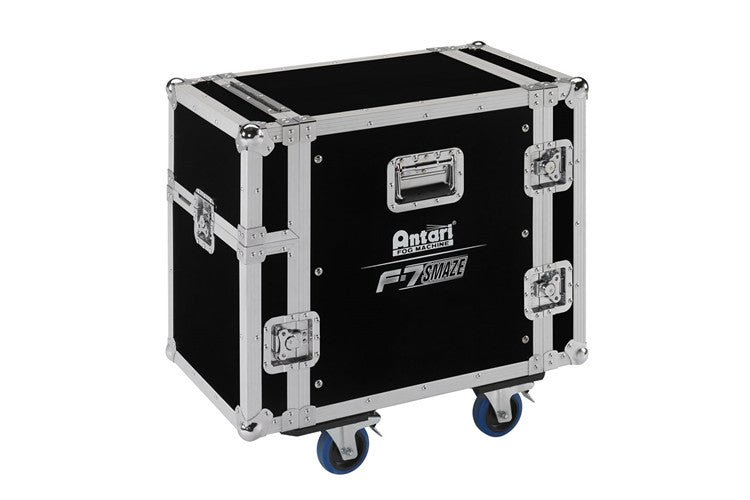

Road Case Design for Touring

The F7 is housed in a professional road case, making it suitable for touring productions, event companies and mobile entertainment setups.

With a weight of approximately 52.5 kg and dimensions of 728 × 428 × 719 mm, the road-case configuration provides a practical solution for transporting and protecting the equipment between venues.

Applications of the Antari F7

The Antari F7 can be used for a wide range of professional applications, including:

• Large concerts
• Theatre productions
• Live stage performances
• Entertainment venues
• Large event productions
• Touring shows
• Nightclubs
• Professional lighting setups
• DJ and entertainment productions
• Special-effects applications
• Large indoor venues

Frequently Asked Questions

What is the Antari F7?

• The Antari F7 is a professional Fog and Faze machine designed to provide both high-output fog and controlled haze effects from one unit.

What is the Fog Mode output of the F7?

• The Fog Mode provides an output of up to 23,000 cu.ft/min.

What is the Faze Mode output?

• The Faze Mode provides an output of up to 6,000 cu.ft/min.

What is the fluid capacity of the F7?

• The machine has a 5-litre fluid tank.

How much fluid does the F7 use?

• In Fog Mode, consumption is approximately 140 ml/min at 100% output. In Faze Mode, consumption is approximately 28 ml/min at 100% output.

How long can the F7 operate?

• At maximum output, the specified operating time is approximately 35 minutes in Fog Mode and 2.8 hours in Faze Mode.

Does the Antari F7 support DMX?

• Yes. The F7 supports DMX512 with 3 DMX channels and also supports W-DMX.

Does the F7 have a built-in fan?

• Yes. The machine features an adjustable built-in fan that allows users to direct the atmospheric output.

What fluid does the Antari F7 use?

• The F7 is designed for use with Antari FLG Liquid.

What is the warm-up time?

• The approximate warm-up time is 8 minutes.

Is the F7 suitable for touring?

• Yes. Its road case design makes it suitable for touring productions, event companies and mobile professional setups.

How much does the Antari F7 weigh?

• The F7 weighs approximately 52.5 kg.
