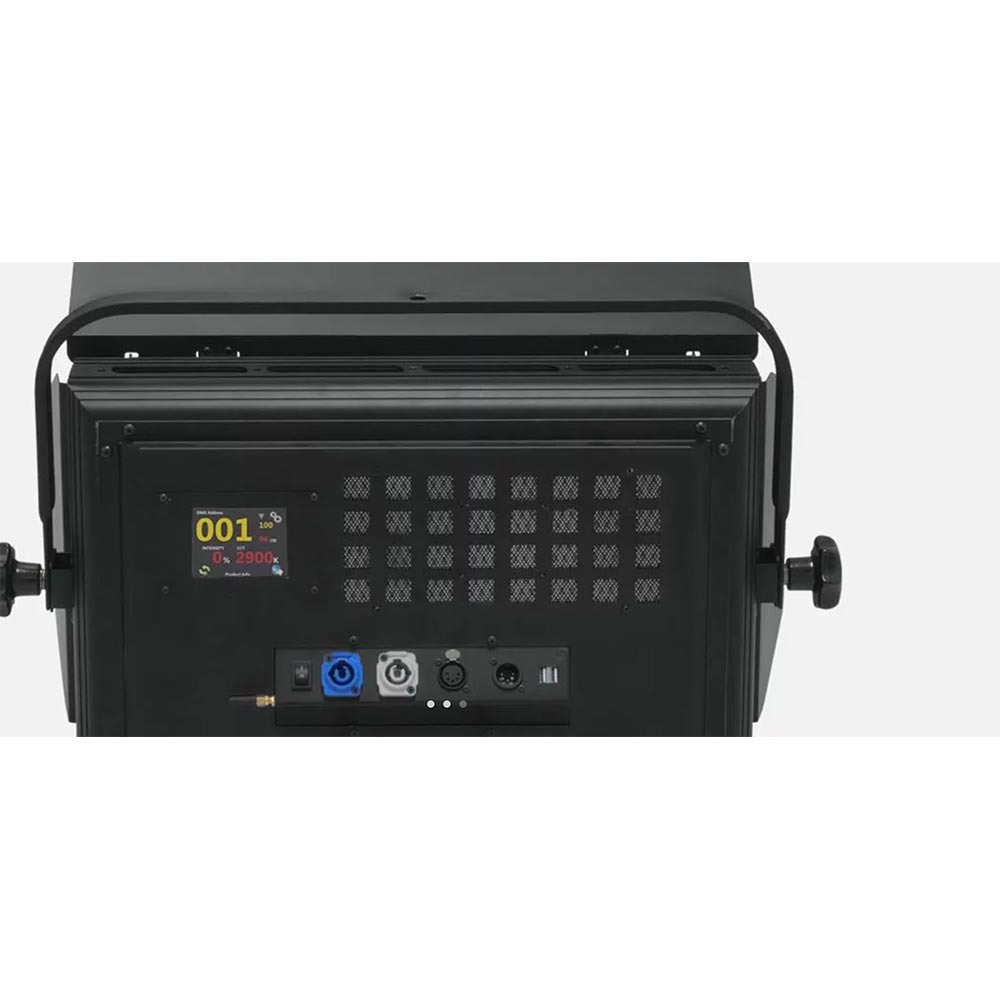

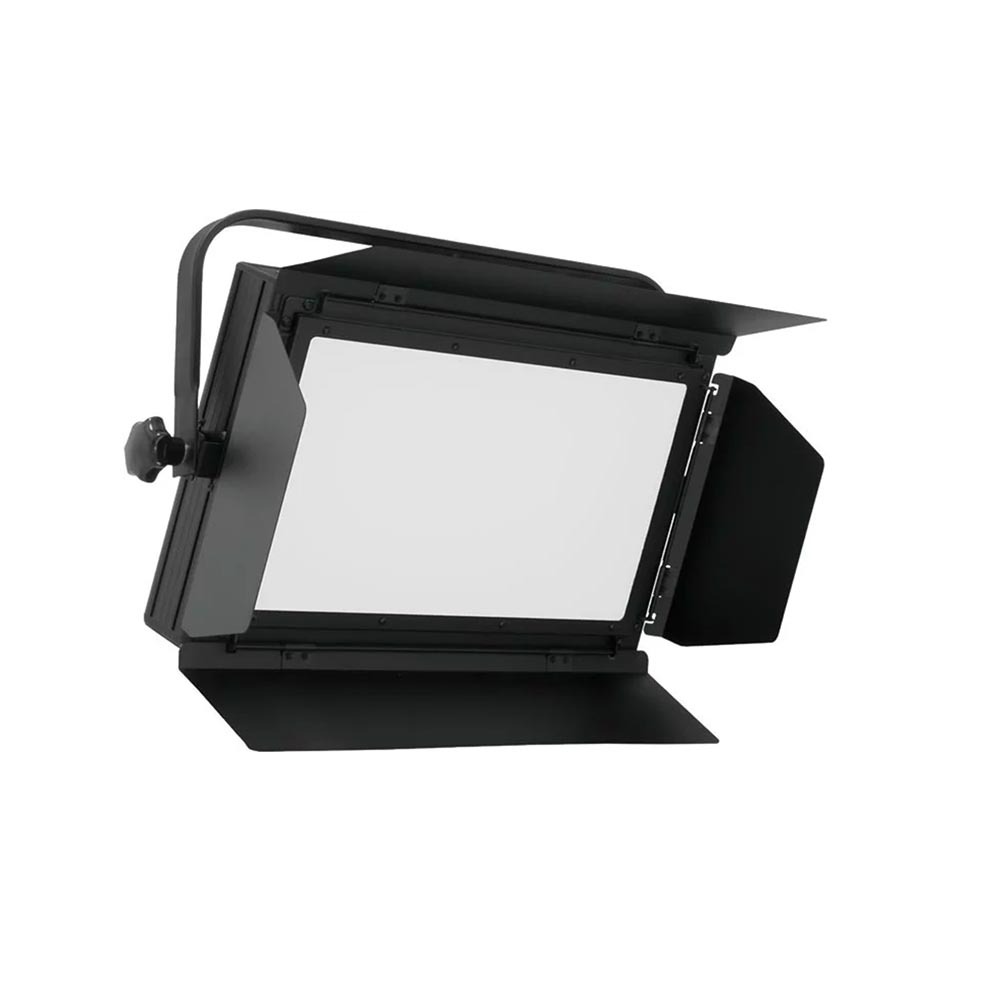

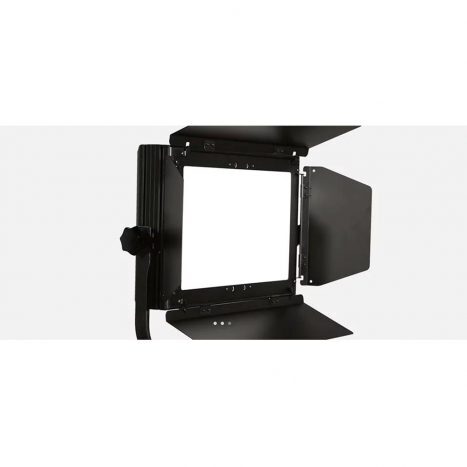

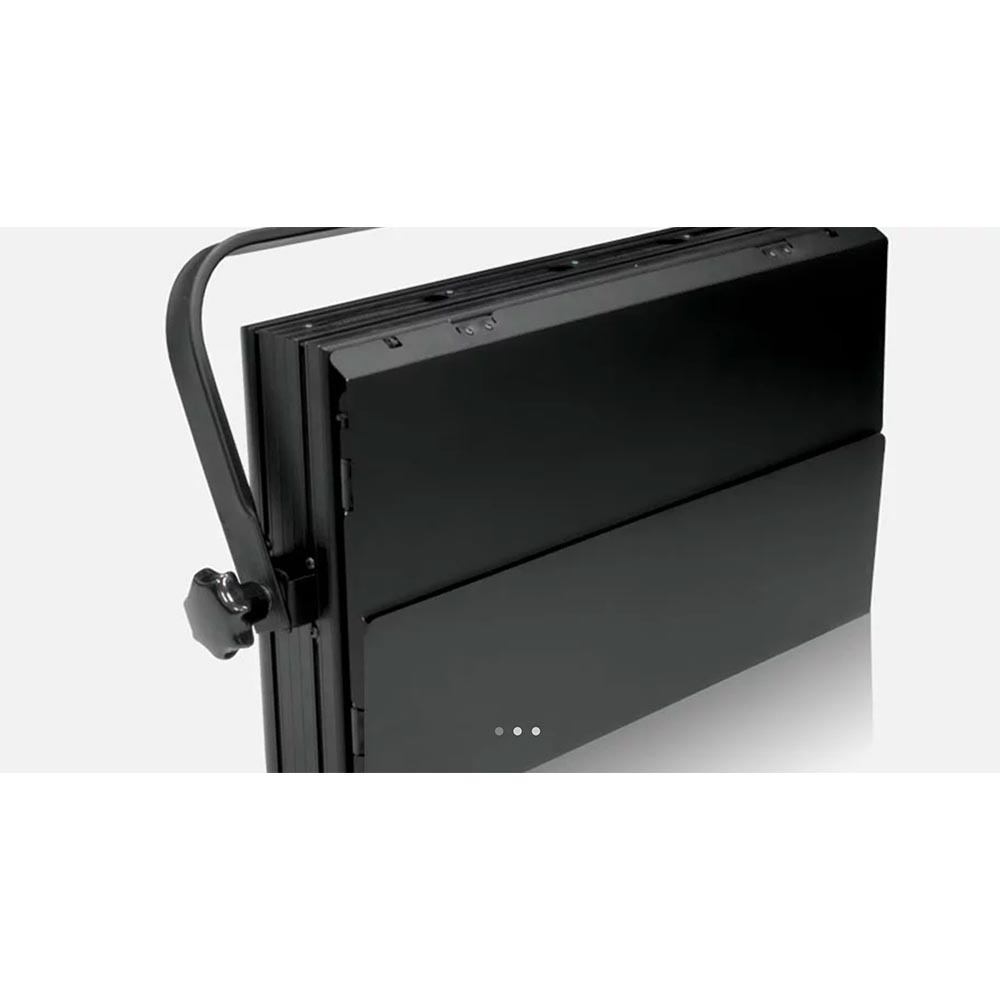

Alpha Lite A2440(A6) Soft LED Panel Light

Sold Out - Backorder Available

Calculate Shipping

This series is equipped with RGB LED chips which are larger than the lighting emitting LED light, so that is possible to control the lighting of flat brightness in the whole lighting area desired and the brightness and colour temperature deviation value is low. The A series has a special light diffusion structure to make a smooth surface light source and it provides three types of diffusion plates according to brightness and diffusibility.


Specifications       A2440(A6)
Power Input Voltage       AC 100 ~ 240V / 50 ~ 60Hz
Power Consumption (Max)       200W
LED Chip       0.5W / (Option)Full RGB LED
Beam Angle       135°
Color Temperature       2,900~6,000K (VCT)
Colored Light       (Option)Full RGB + W (4 Color Gamut with Hue and Saturation Control)
Supported Protocols       DMX512 / DMX512 RDM
(Option) Supported Protocols       Wireless DMX512 / Wireless RDM
Dimming       0~100% 16-bit
Dimension (mm)       540 x 351 x 155 (WHD)
Dimension (inch)       21.3 x 13.8 x 6.1 (WHD)
Weight (kg/lbs)       7.9 / 17.4
CRI       95 ~ 98
Protection Class       IP20
Estimated LED Lifetime       Over 50,000 hours
Photometric Data (5600K)       A2440 (lux)
3m       429
5m       178
7m       95
9m       60


Brand Alpha Lite
Shipping Weight 9.0000kg
Shipping Width 0.570m
Shipping Height 0.180m
Shipping Length 0.400m
Shipping Cubic 0.041040000m3
