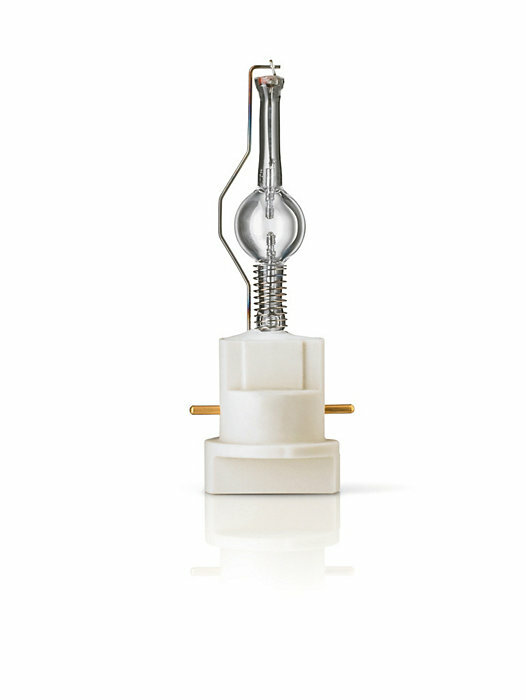

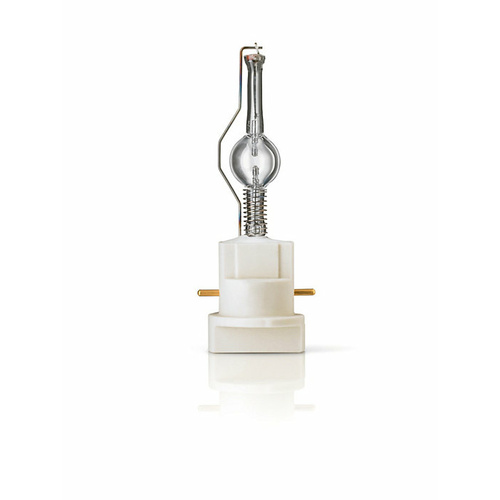

Philips MSR Platinum 35 1CT

MINIMUM BY 16 UNITS. 5-6 WEEKS LEAD TIME

$795.75
Sold Out - Backorder Available


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

General Information

Cap base

PGJX36  [ PGJX36]

Burning Position

UNIVERSAL  [ Any/Universal]

Main application

Studio/Theatre/TV

Life to 50% failures (nom.)

1000 h

System description

na  [ -]

Light Technical

Colour Code

2

Lamp Luminous Flux 25°C EL (Min)

50760 lm

Lamp Luminous Flux 25°C EL (Nom)

56400 lm

Chromaticity coordinate X (nom.)

0.295

Chromaticity coordinate Y (nom.)

0.313

Colour Temperature, horizontal (Nom)

7750 K

Chromaticity coordinate X (SO) (max.)

0.3084

Chromaticity coordinate X (SO) (min.)

0.2913

Chromaticity coordinate X (SO) (nom.)

0.2998

Chromaticity coordinate Y (SO) (max.)

0.3345

Chromaticity coordinate Y (SO) (min.)

0.3063

Chromaticity coordinate Y (SO) (nom.)

0.3204

Colour Rendering Index (SO) (Min)

60.5

Colour Rendering Index (SO) (Nom)

64.5

Colour Temperature (SO) (Max)

8050 K

Colour Temperature (SO) (Min)

6650 K

Colour Temperature (SO) (Nom)

7350 K

Luminous efficacy (SO) (min.)

38 lm/W

Luminous efficacy (SO) (nom.)

42.5 lm/W

Luminous flux (SO) (min.)

31500 lm

Luminous flux (SO) (nom.)

36500 lm

Lamp Luminous Efficacy EM (Nom)

70.2 lm/W

Colour Rendering Index,horiz (Nom)

73

Operating and Electrical

Power (Rated) (Nom)

800 W

Lamp current (nom.)

12.0 A

Ignition supply voltage (min.)

220 V

Ignition time (nom.)

10 s

Controls and Dimming

Dimmable

yes



Mechanical and Housing

Cap base information

PGJX36



Luminaire Design Requirements

Bulb temperature (max.)

950 °C

Pinch temperature (max.)

450 °C



Product Data

Full product code

871829112006300

Order product name

MSR Platinum 35 1CT

EAN/UPC – product

8718291120063

Order code

928190905114

Local Code

MSRPLAT35

Numerator – quantity per pack

1

Numerator – packs per outer box

16

Material no. (12NC)

928190905114

Net weight (piece)

0.053 kg



(PHI928190905114)

SKU PHI928190905114
Brand Philips
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.002000000m3
