MARTIN MAC AURA XB

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

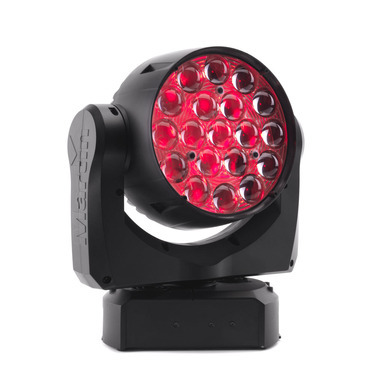

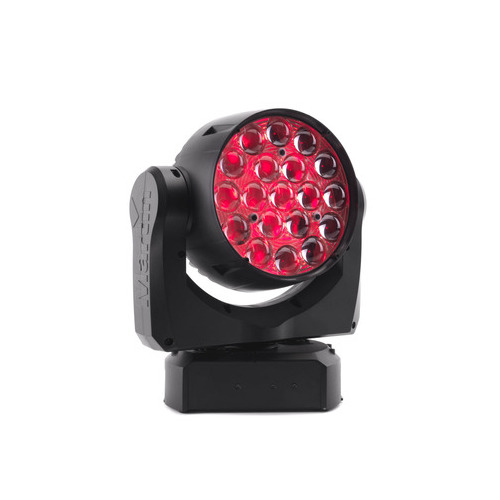

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

Super bright single lens wash with fully premixed color
Compact design and low weight
High efficiency, low power consumption, long service life.

FEATURES

LIGHT SOURCE

6,000 lumens RGBW light output
High narrow intensity: 220,000 cd
Beam: 19x 15W RGBW LEDs
Aura: 30x 0.3W RGB LEDs
Fully calibrated using Martin's Full Gamut Color Calibration
Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications

OPTICS

Tight beam and beautiful wash field
9.0 – 59.1˚ zoom – Precise, silent and fast zoom
Even wash field with zero hotspot
High intensity mid-air beams
Minor color temperature shift from center to edge

SOFTLENS ACCESSORY

Creates a softer edge wash field
Reduces glare from fixture lens
Attaches to front of fixture
Can remain attached to fixture inside flightcase SiP

COLOR PALETTE

RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
Calibrated, Extended & Raw Color Modes
Calibrated CTC control: 2,500 – 10,000 K
Virtual Color Wheel

DYNAMIC EFFECTS

Built-in FX macros
High-speed pan, tilt and zoom

COOLING AND NOISE

Ultra-quiet cooling system
Low noise pan/tilt and effects operation

CONSTRUCTION

Weight 6.5 kg (14.4 lbs.)
Dimensions: 302 x 332 x 163 mm

CONTROL

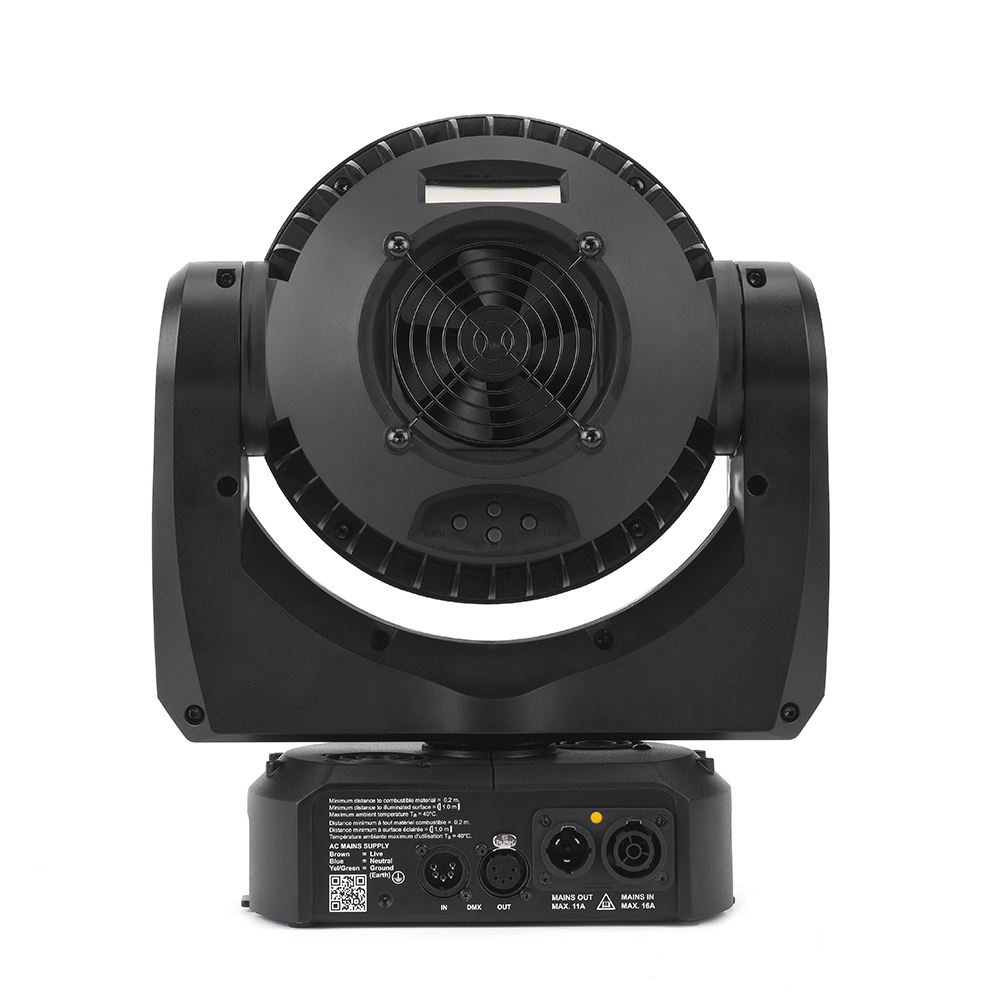

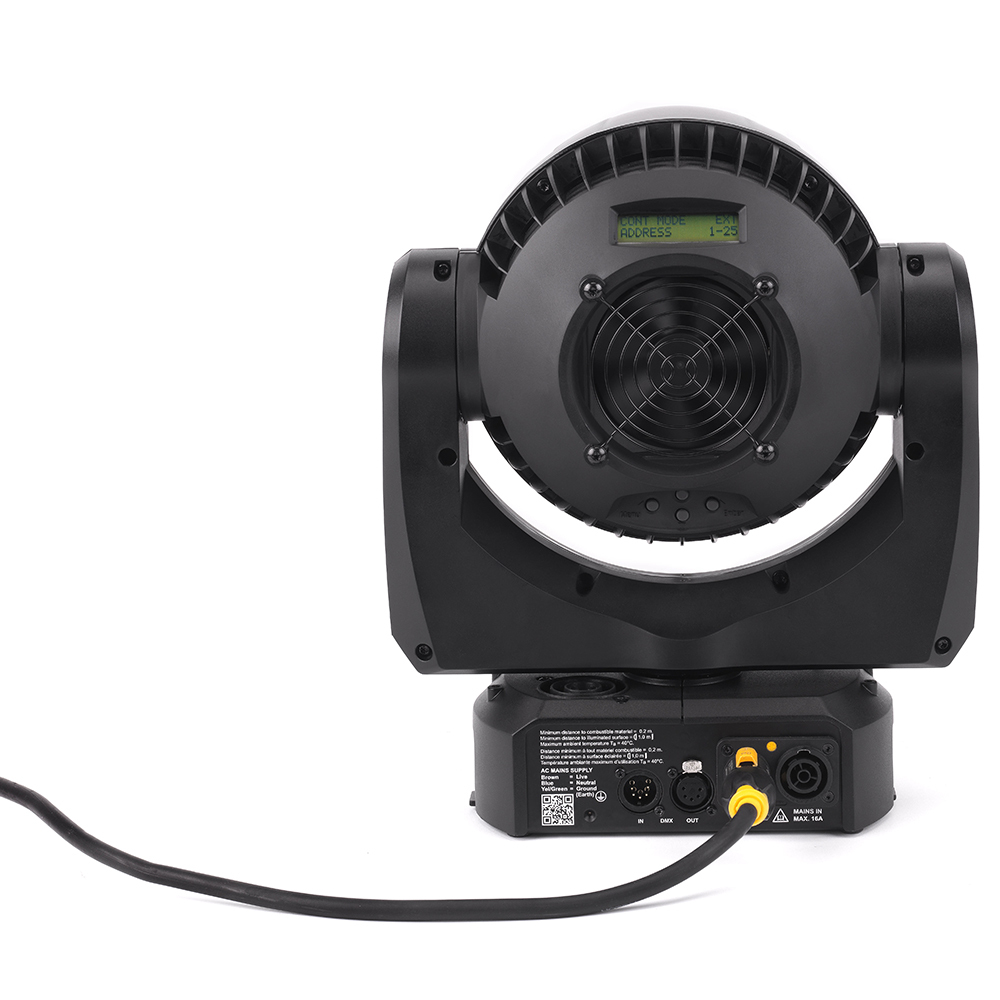

Control panel on the back of the head
DMX in & thru
RDM over DMX

SPECIFICATIONS

PHYSICAL
Width (across yoke): 302 mm (11.89 in.)
Width (base): 222 mm (8.74 in.)
Height (head straight up): 332 mm (13.07 in.)
Height (maximum): 390 mm (15.35 in.)
Depth (head): 163 mm (6.42 in.)
Depth (base): 138 mm (5.43 in.)
Minimum center-to-center distance in side-by-side installation: 330 mm (12.99 in.)
Weight: 6.5 kg (14.4 lbs)
DYNAMIC EFFECTS
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe/pulse/burst, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB (RGBW in Raw Mode), independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,500 – 10,000 K
Beam Virtual Color wheel: 33 color presets, continuous rotation & random color
Zoom: Motorized with 1:6 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 232°
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe/pulse/burst effects, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Virtual Color wheel: 33 color presets, continuous rotation & random color
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
CONTROL AND PROGRAMMING
Control Protocols: DMX and RDM
DMX Modes: Standard & Extended
DMX Channels: 14 & 25
16-bit Controllable Parameters: Pan and Tilt
Setting and Addressing: Display Menu or RDM
Local User Interface: Backlit LCD Display
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
Firmware Update: via DMX using Martin Companion
OPTICS
Front Lens Diameter: 200 mm (7.87 in.)
Zoom Range: 1:6
Full Zoom Range at Half Peak (Beam Angle): 9.0° - 41.7°
Full Zoom Range at Tenth Peak (Field Angle): 10.3° - 59.1°
Beam Light Source: 19 x 15 W RGBW LED
Aura Light Source: 30 x 0.3 W RGB LED
Max. Total Beam LED Engine Power: 285 W
Max. Total Aura LED Engine Power: 9 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
Light Engine Luminous Output: 10,000 lumens
Fixture Luminous Output Wide: 6,000 lumens
Fixture Luminous Output Narrow: 4,300 lumens
Peak Luminous Intensity Narrow: 220,000 cd
CCT: Variable 2,500 K – 10,000 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 67
CQS (Color Quality Scale): ≥ 82
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 76
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 119
TLCI (Television Lighting Consistency Index): ≥ 48
Beam LED Refresh Rate: 1,200 Hz
Aura LED Refresh Rate: 4,395 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Extended Color Mode, Calibrated Color Mode and Raw Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

CONSTRUCTIONHousing: High-impact thermoplastic, flame-retardant to UL 94 5VAColor: BlackProtection rating: IP20

INSTALLATIONMounting points: M12 threaded hole for rigging clamp and attachment points for surface-mounting bracketLocation: IndoorOrientation: AnyMinimum distance to combustible materials: 0.2 m (7.87 in.)Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)

CONNECTIONSAC mains power in/thru: Neutrik powerCON TRUE1DMX and RDM data in/thru: Neutrik 5-pin locking XLR
ELECTRICAL
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.7 A
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.95 @ 230 V / 240 V
Max current draw: 3.8 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 V
Typical current draw: 3.8 A @ 100 V , 3.2 A @ 120 V , 1.8 A @ 208 V , 1.7 A @ 230 V , 1.6 A @ 240 V *
Power Consumption
Maximum: 400 W
Typical: 359 W *
Idle: 25 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

THERMALCooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.

ACOUSTIC DATASound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 28.9 dB(A)
ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 26.7 lm/WLWR*: 923 lm/kg (417 lm/lb)
LWR = Lumen-to-Weight Ratio

APPROVALSEU safety: EN 60598-2-17 (EN 60598-1), EN 62471EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241United Kingdom: UKCA
INCLUDED ITEMS
M12 bolt suitable for use with Martin rigging clamps
User Manual in Eng/Fre/Ger

RELATED ITEMSMartin Companion Cable (for firmware update over DMX): P/N 91616091Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
ACCESSORIES
Optical
MAC Aura XB SoftLens: P/N 91611730HU

Transport and Storage
Flightcase for 6 x MAC Aura XB: P/N 91515020

Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

Installation Hardware
Quick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
