EVENT LIGHTING ZP200LE - 200W LED Fresnel / Profile Spot - Light Engine

STOCK SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER

$509.00
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

The versatile ZOOMPRO system is comprised of a 200 W Warm White LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens.

Photometrics

  • Light Source: 3200 K 200 W COB LED
  • CRI: 95
  • PWM: 16,000 Hz
  • LED Lifespan: 50,000 hours

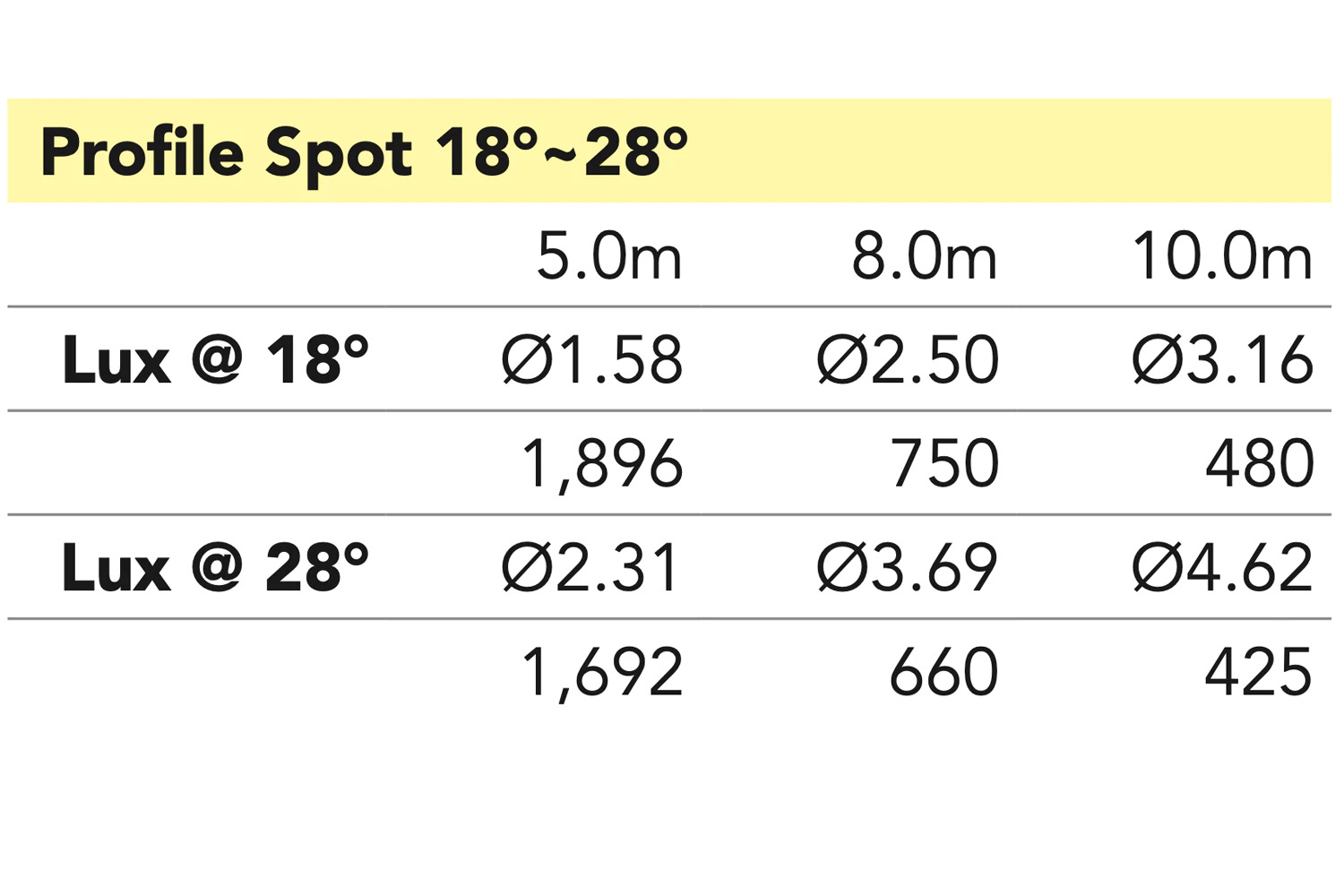

  • PROFILE Lens: ZPLP1828
    • Output: 1896 lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
    • Beam Angle: 18°- 28°
  • PROFILE Lens: ZPLP2636
    • Output: 1896 lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
    • Beam Angle: 26°- 36°

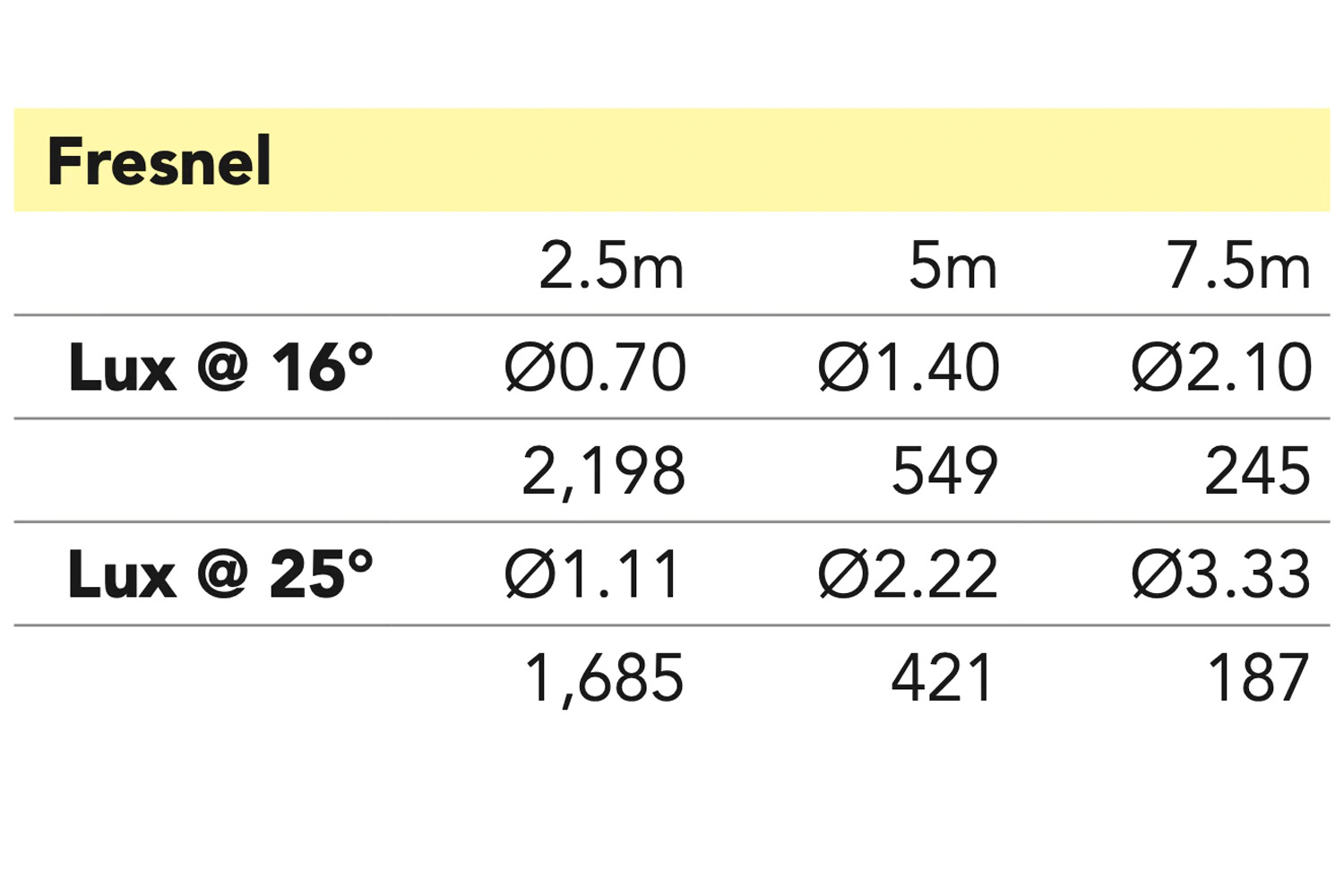

  • FRESNEL Lens: ZPLF 80mm Fresnel
    • Beam Angle: 16°- 25°
    • Field Angle: 30°- 55°
    • Output: 2198 lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°
  • CYC Lens: ZPLCYC
    • Output: 210 lux @ 2.5 m at 120°
    • Beam Angle: 120°

Effects

  • Dimming: 0~100%, 8-bit / 16-bit
  • Strobe: 1~25 Hz
  • Zoom: Manual

Power

  • Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
  • Power Connection: Fixed

Control

  • Operational Modes: DMX, Manual & Master / Slave
  • Display: 4-Button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 1 / 2 / 3
  • DMX Interface: 3-pin XLR

Housing

  • Housing Materials: Aluminium, matte black finish
  • Cooling: Sensor Thermostat Controlled Variable Speed Fan

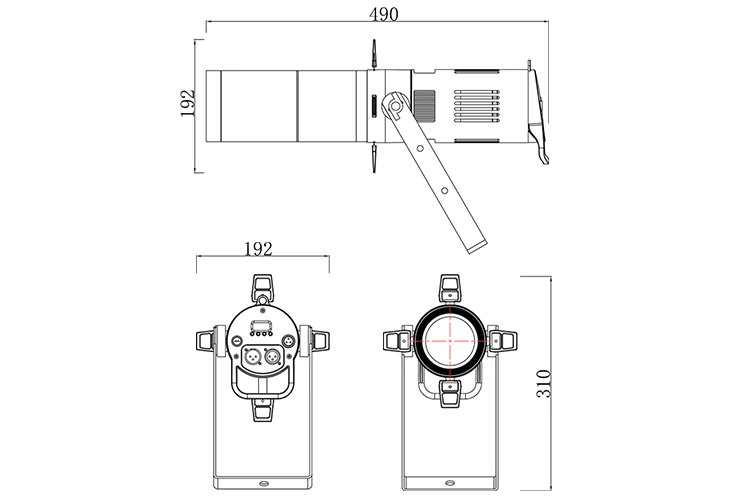

  • Dimension: LED Engine: 241 X 105 X 310 mm
    • Profile Lens: 262 X 192 X 192 mm
    • Fresnel Lens: 105 X 105 X 151 mm
  • Net Weight: LED Engine 9kg
    • Profile Lens: 1.9 kg
    • Fresnel Lens: 0.9 kg
    • Cyc Lens: 0.4 kg

(ZP200LE)

SKU ZP200LE
