EVENT LIGHTING T3F3BK - 290mm Spigot Flat Truss (3m, Black)
$329.00
In Stock

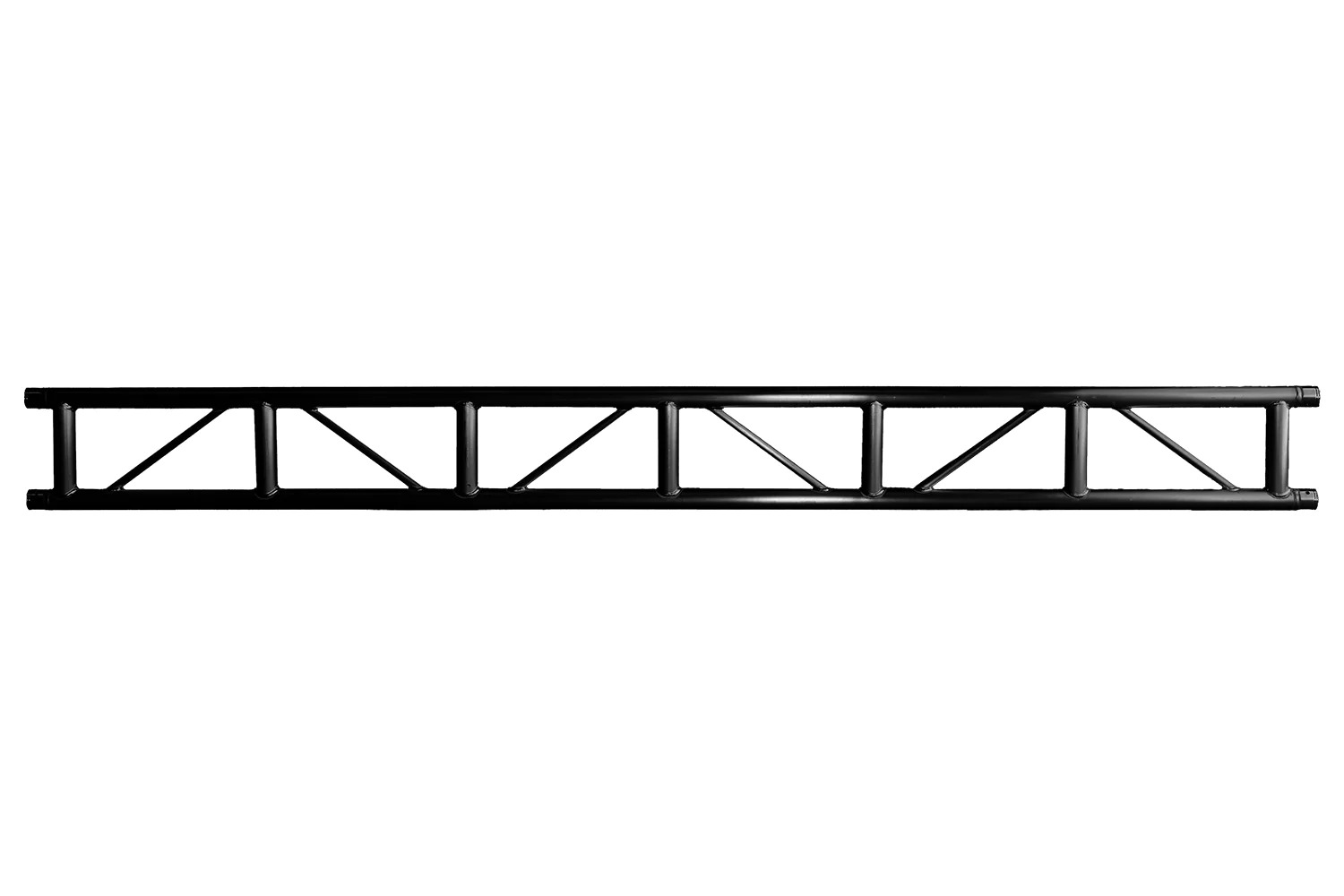

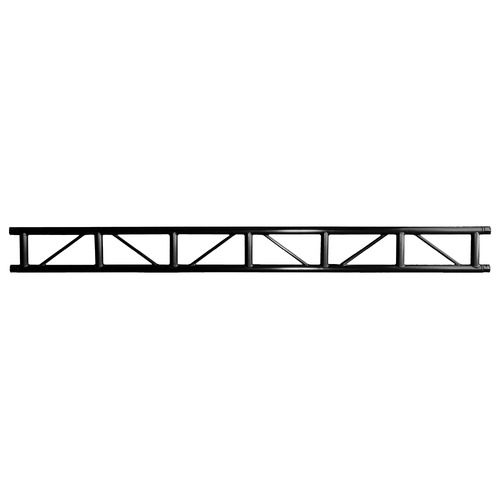

290mm Aluminium Lighting Spigot Flat Truss - 3m length, 2mm wall thickness
- Tube: 50mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black, powder coated
- Rating: TUV
- Dimensions: 290 x 3000mm
|
Span (m) |
Centre Point Load (kg) |
Deflection (mm) |
Uniform Load (kg) |
Deflection (mm) |
| 2 | 278 | 8 | 388 | 11 |
| 3 | 117 | 9 | 198 | 11 |
| 4 | 86 | 12 | 137 | 13 |
| 5 | 40 | 13 | 55 | 14 |
| 6 | 21 | 13 | 33 | 14 |
(EVE-T3F3BK)
| SKU | EVE-T3F3BK |
