EVENT LIGHTING T3F1BK - 290mm Spigot Flat Truss (1m, Black)
SHIPS DIRECTLY FROM SUPPLIER TO CUSTOMER
$139.00
In Stock

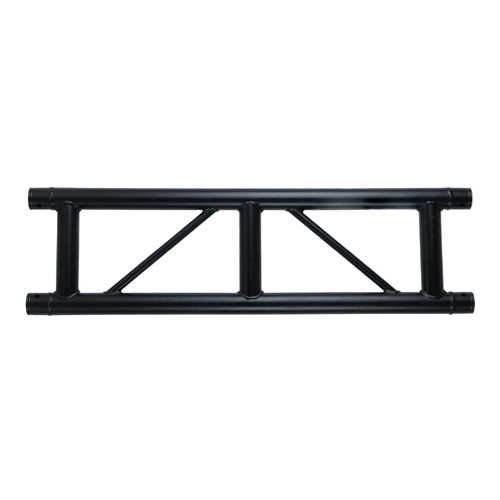

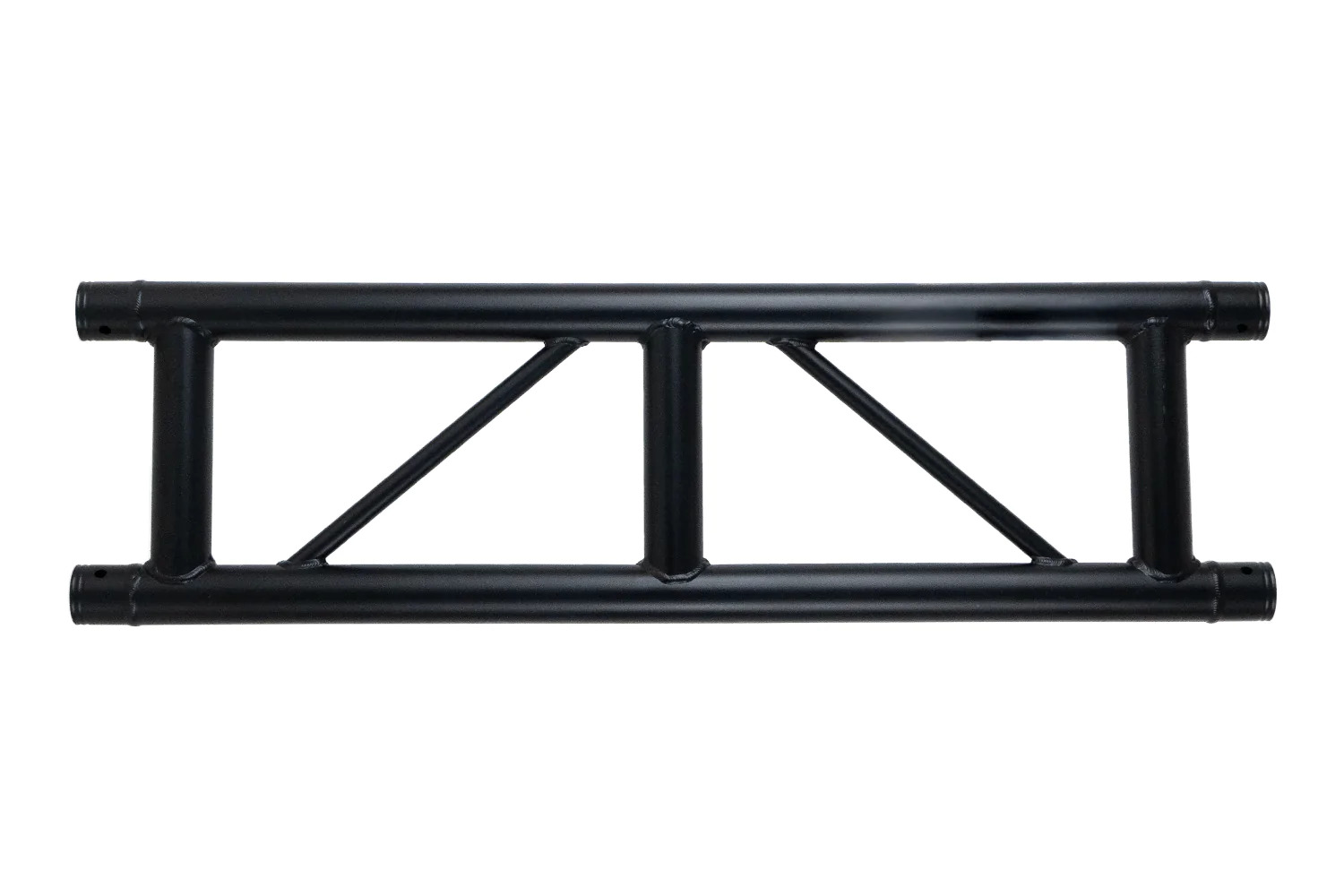

290mm Aluminium Lighting Spigot Flat Truss - 1m length, 2mm wall thickness
- Tube: 50mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black, powder coated
- Rating: TUV
- Dimensions: 290 x 1000mm
|
Span (m) |
Centre Point Load (kg) |
Deflection (mm) |
Uniform Load (kg) |
Deflection (mm) |
| 2 | 278 | 8 | 388 | 11 |
| 3 | 117 | 9 | 198 | 11 |
| 4 | 86 | 12 | 137 | 13 |
| 5 | 40 | 13 | 55 | 14 |
| 6 | 21 | 13 | 33 | 14 |
(EVE-T3F1BK)
| SKU | EVE-T3F1BK |
| Brand | Event Lighting |
| Shipping Weight | 8.0000kg |
| Shipping Width | 0.290m |
| Shipping Height | 0.290m |
| Shipping Length | 1.000m |
| Shipping Cubic | 0.084100000m3 |
