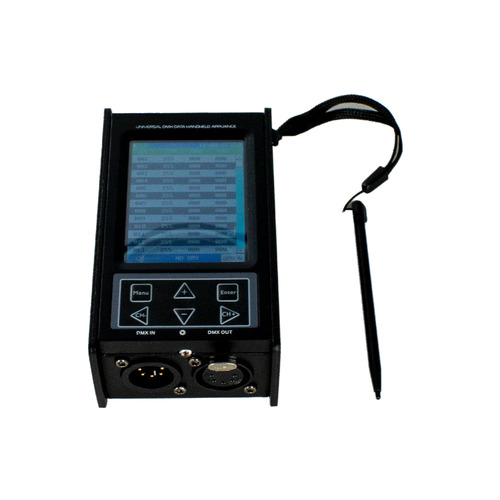

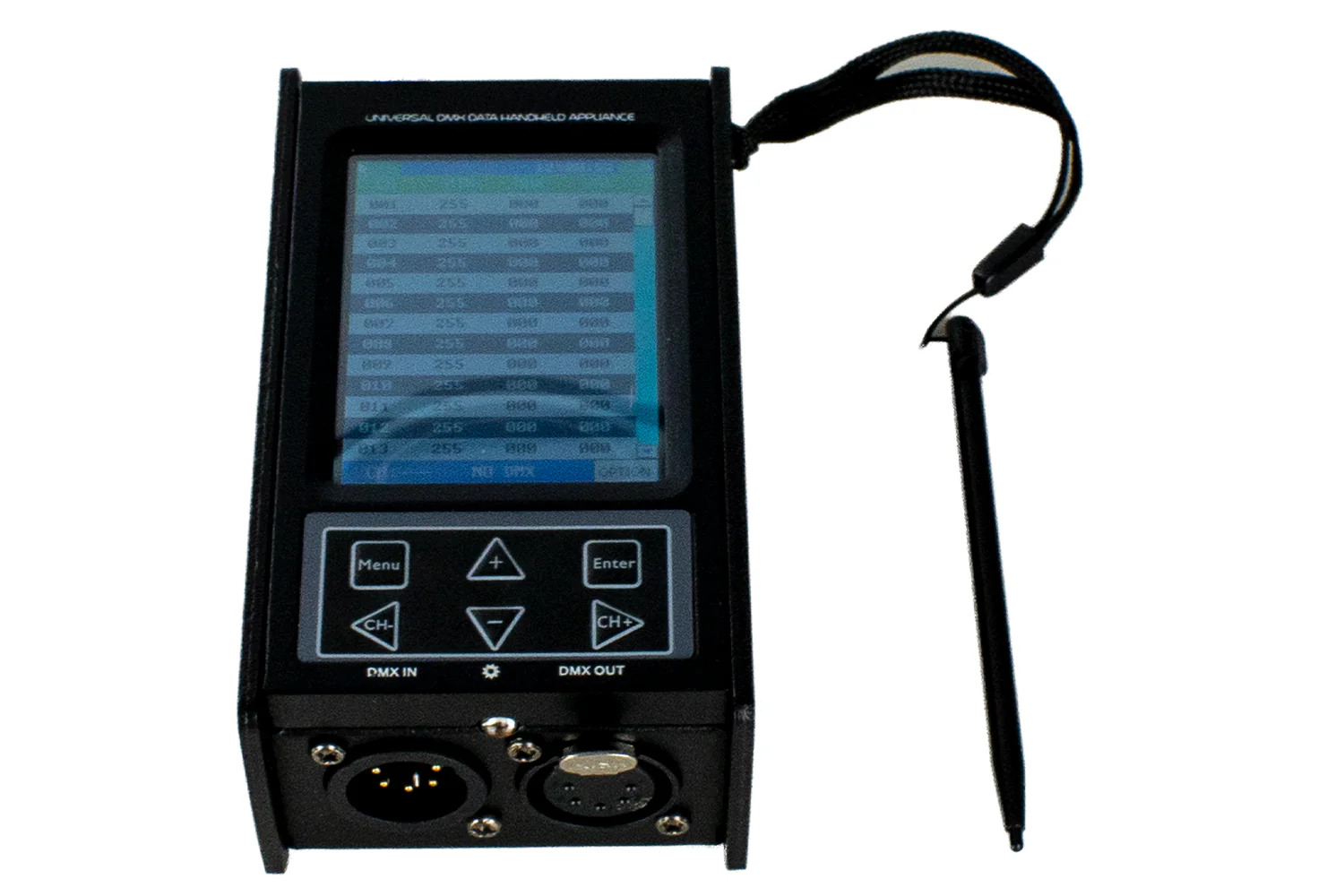

EVENT LIGHTING RDMTESTER - RDM Compatible DMX Tester

SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER - 1 LEFT

$809.00
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Test Functions

  • Receive DMX
  • Send DMX
  • Cable Test
  • Channel Tracer
  • DMX Timings Test
  • Flicker Finder
  • Sequence
  • Light Sensor/PWM checker
  • MIDI Test

Hardware

  • Display type: full colour LCD
  • Display resolution: 240x320
  • Memory: SD card
  • DMX in port: 5-pin male
  • DMX out port: 5-pin female
  • DMX port electrical standard: ANSI E1.11/ANSI E1.20
  • USB port: Micro USB type B
  • Battery: 9V block battery
  • USB power consumption: 300mA max
  • Cable tester: 5-pin, open circuit, short circuit, wrong wiring
  • Operating temperature: 0°C-45°C
  • Dimensions: 67x115x45 mm
  • Weight: 343g (without battery)

Firmware

  • Received DMX channels: 512
  • Transmitted DMX channels: 512
  • Refresh rate: 10,15,20,25,30,35,40 frames per second
  • Transmitter break length: 160-180 microseconds (not configurable)
  • Transmitter MAB length: 28-32 microseconds (not configurable)
  • Timing measurement: Frames per second/break/MAB
  • Display format: Percentage, decimal, hexadecimal
  • DMX scene storage: SD card, 512 channels each
  • Number of sequences: varies based on SD card capacity
  • Steps in each sequence: 99

Download the User Manual

Warranty: 1 year

(RDMTESTER)

SKU RDMTESTER
Brand Event Lighting
