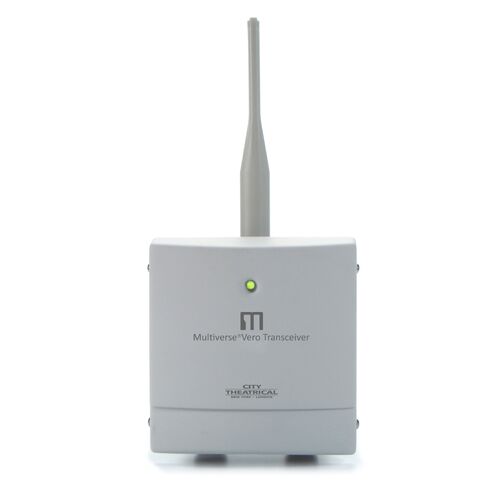

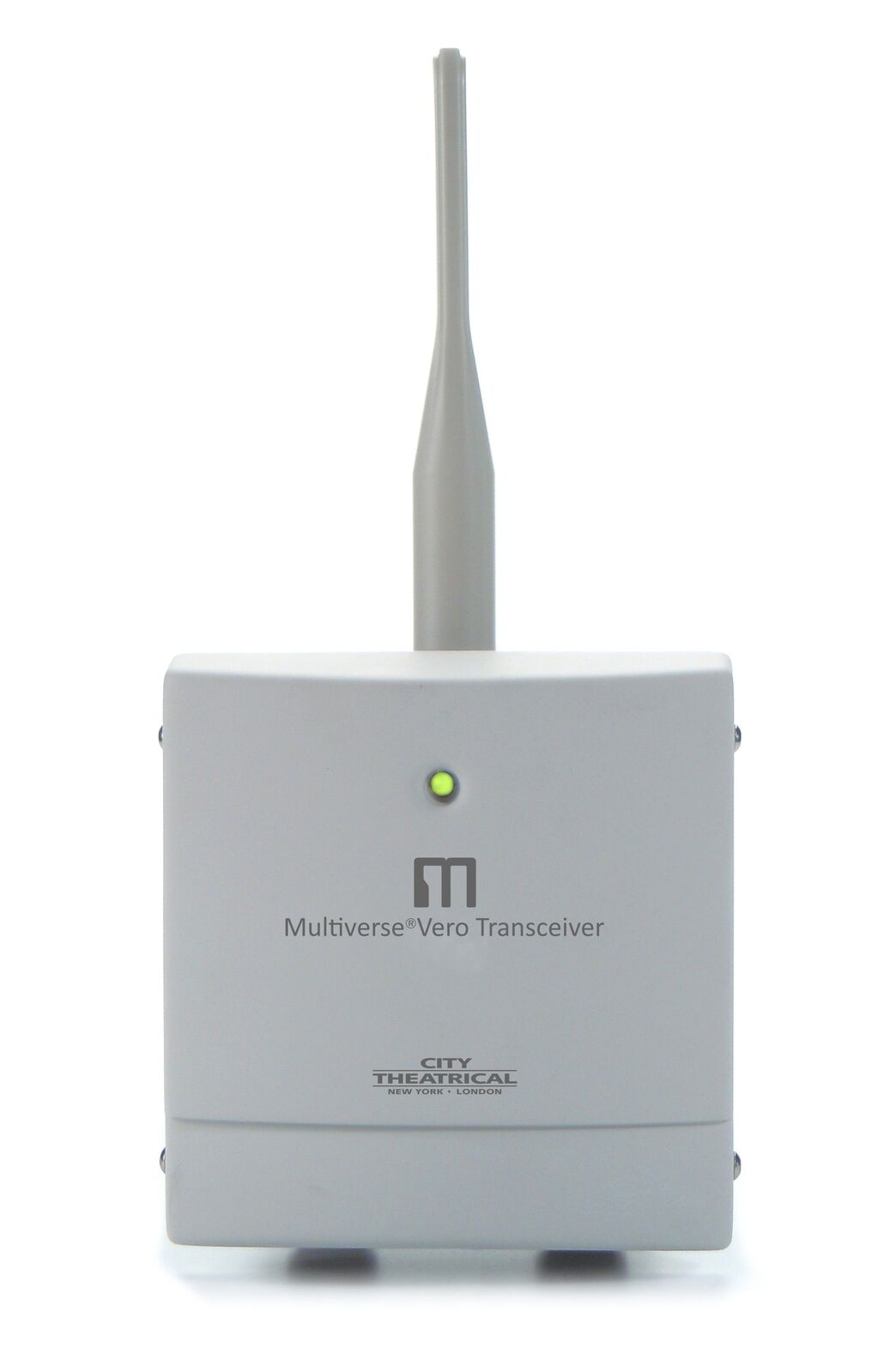

CITY THEATRICAL Multiverse® Vero Transceiver

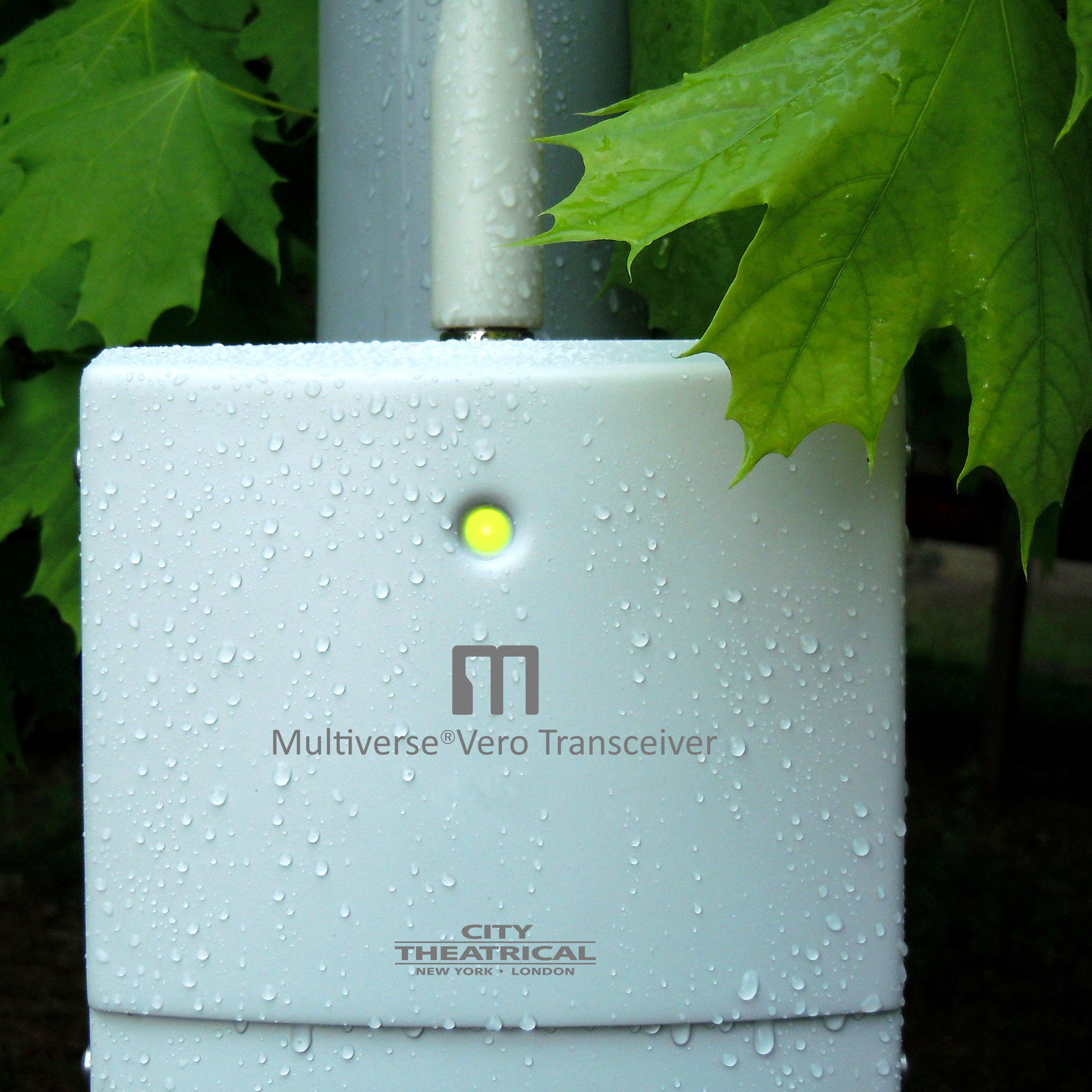

City Theatrical's Multiverse® Vero Transceiver brings the advanced features of the Multiverse wireless DMX/RDM system to outdoor installations for architecture and entertainment. The Multiverse Vero Transceiver is housed in a NEMA 4 / IP66 package that provides protection from the outdoor elements. Its internal backlit LCD display simplifies setup and gives feedback on system performance. Each unit comes with a dual band 2.5dBi Outdoor Omni-directional Antenna.

Multiverse Vero Transceiver is available in two types:

The Multiverse Vero Transceiver 900MHz/2.4GHz (P/N 7400-5902) contains two radios, 2.4GHz (for worldwide use) and 900MHz (for use in the Americas only), which allows the user to select which radio band to use via the Multiverse SHoW ID.

The Multiverse Vero Transceiver 2.4GHz (P/N 7400-5903) contains a 2.4GHz radio for use worldwide.

Multiverse Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
900MHz band is licensed for use in North America only.

• Choice Of Broadcast Radio
Transmit and receive on the 2.4GHz or the 900MHz band (P/N 7400-5902).

• mDMX (Multiverse SHoW IDs only)
mDMX is a form of DMX optimized for wireless broadcast that dramatically reduces data being broadcast, thereby reducing unneeded radio energy.

• mRDM (Multiverse SHoW IDs only)
Multiverse is able to broadcast RDM information without disrupting the DMX broadcast. This feature is not available even in wired RDM systems. (Not available on SHoW DMX Neo SHoW IDs.)

• SHoW Key Security (Multiverse SHoW IDs only)
SHoW Key is an additional three-digit code that can be added to the Multiverse SHoW ID that will prevent any other system set on the same SHoW ID from interfering with your system.

• Forward Error Correction (Multiverse SHoW IDs only)
Allows the Receiver to detect and correct errors that may occur in the wireless transmission of data.

• Ultra Low Latency
Total average system latency of 4ms.

• Adaptive Spread Spectrum Frequency Hopping
Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.

• Adjustable Output Power
Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.

• User Selectable SHoW IDs
City Theatrical has always produced wireless DMX products that allowed the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.

• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM

• Built-in Multiverse 2.4GHz (for worldwide use) and 900MHz (for use in the Americas only) Frequency Hopping Spread Spectrum radio

• Compatible with all Multiverse and legacy SHoW DMX Neo products

• User can select a single universe to receive

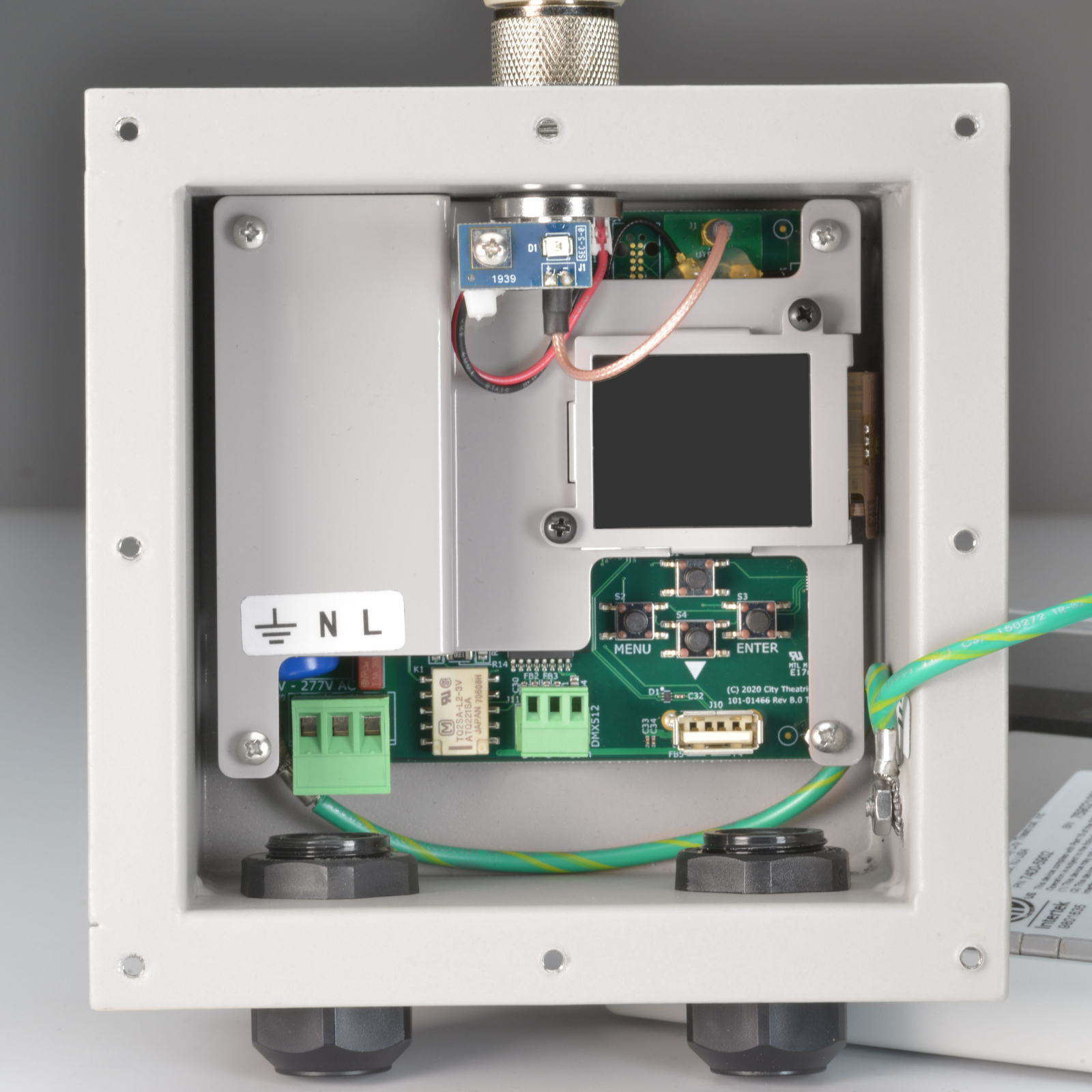

• Four button user interface screen to set SHoW ID, universe, and other functions

• RDM proxy and responder functions

• DMX In (when used as transmitter) and Out (when used as receiver) via 3 pin Screw Terminal

• Rugged weatherproof aluminum enclosure

• Antenna: Omni Broadband, 900MHz/2.4GHz, 2.5dBi/2.5dBi

• User selectable transmit or receive mode

• Firmware updateable via USB port

• Power input 90-277VAC input, 1A max, on 3 pin screw terminals

• User interface selection of DMX512 termination

• Selectable display timeout and brightness level

• A bracket for surface mounting or mounting from a pipe
