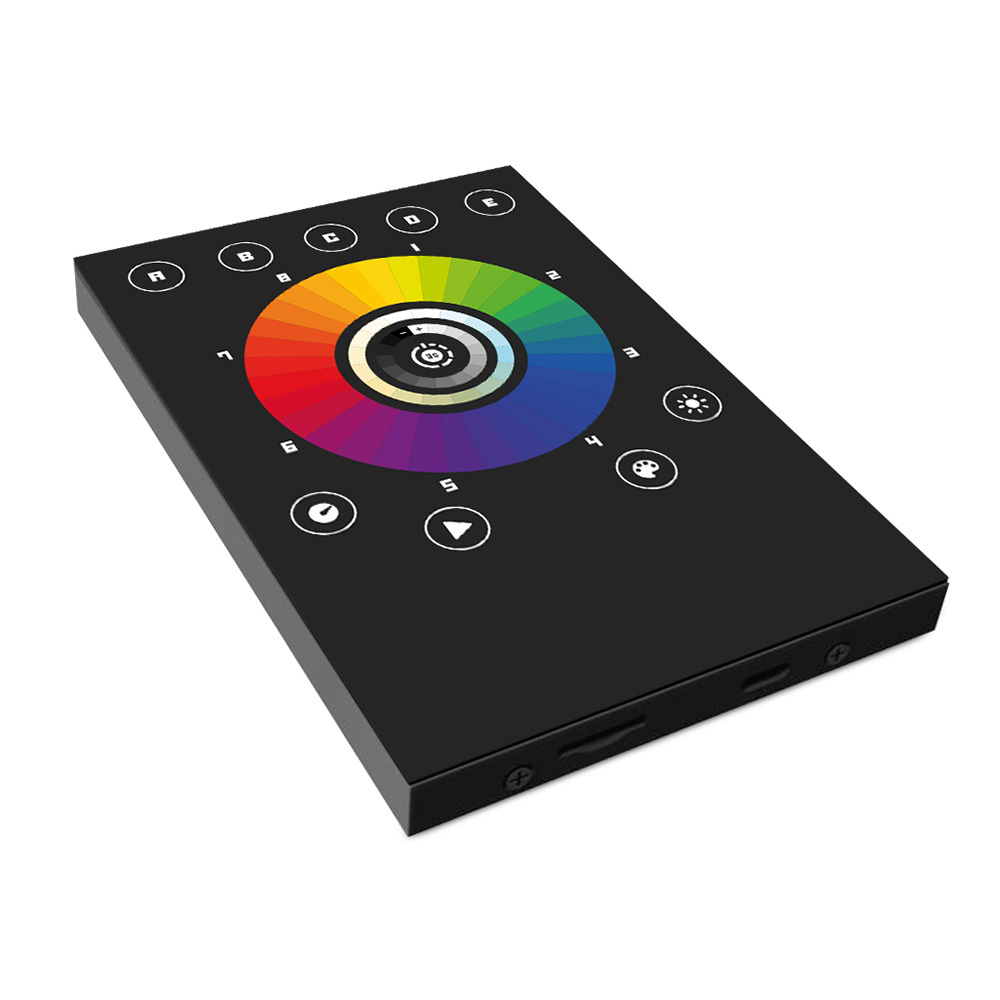

Chromateq Touch 1024 Wall Mounted DMX Controller
The new TOUCH 1024 DMX Lighting control interface comes with a sleek design and visually intuitive multifunction touch-sensitive surface for all your indoor installations. The ideal lighting controller for modern venues, places of worship, and residential projects with 1024 DMX channels at a touch.

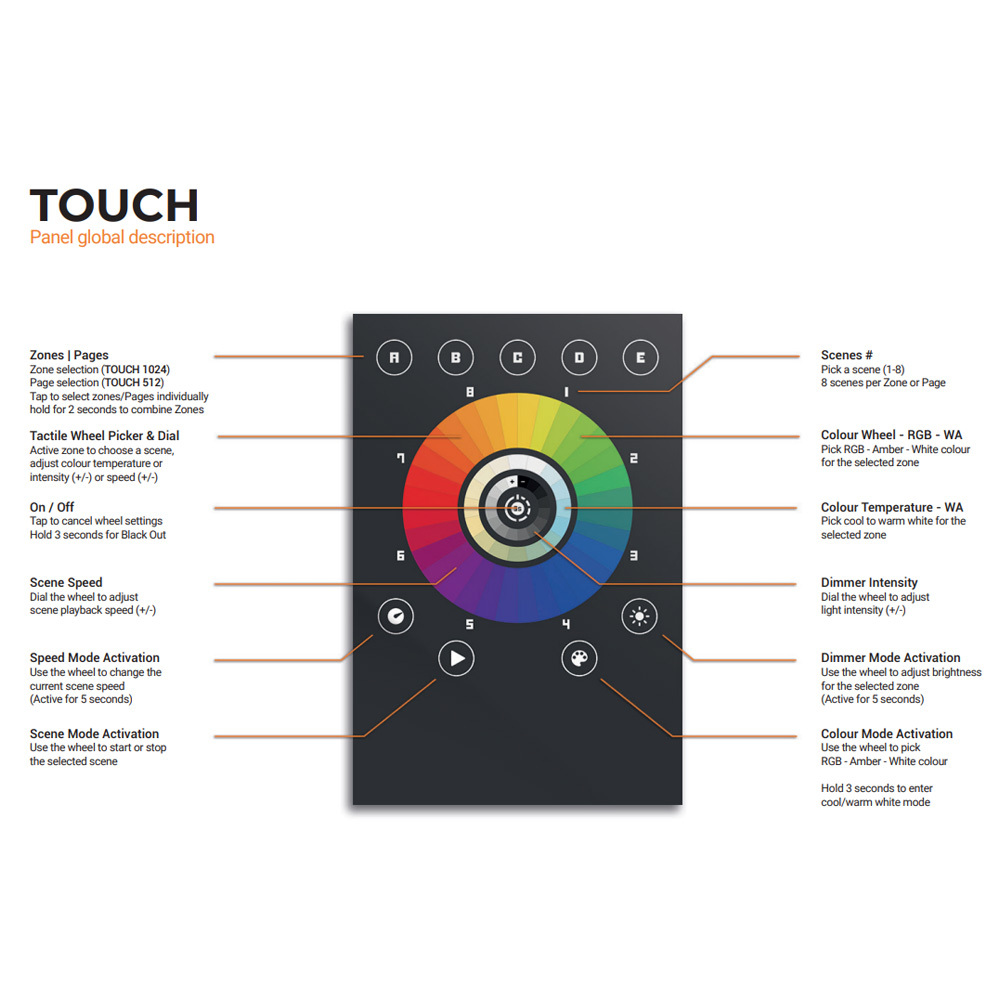

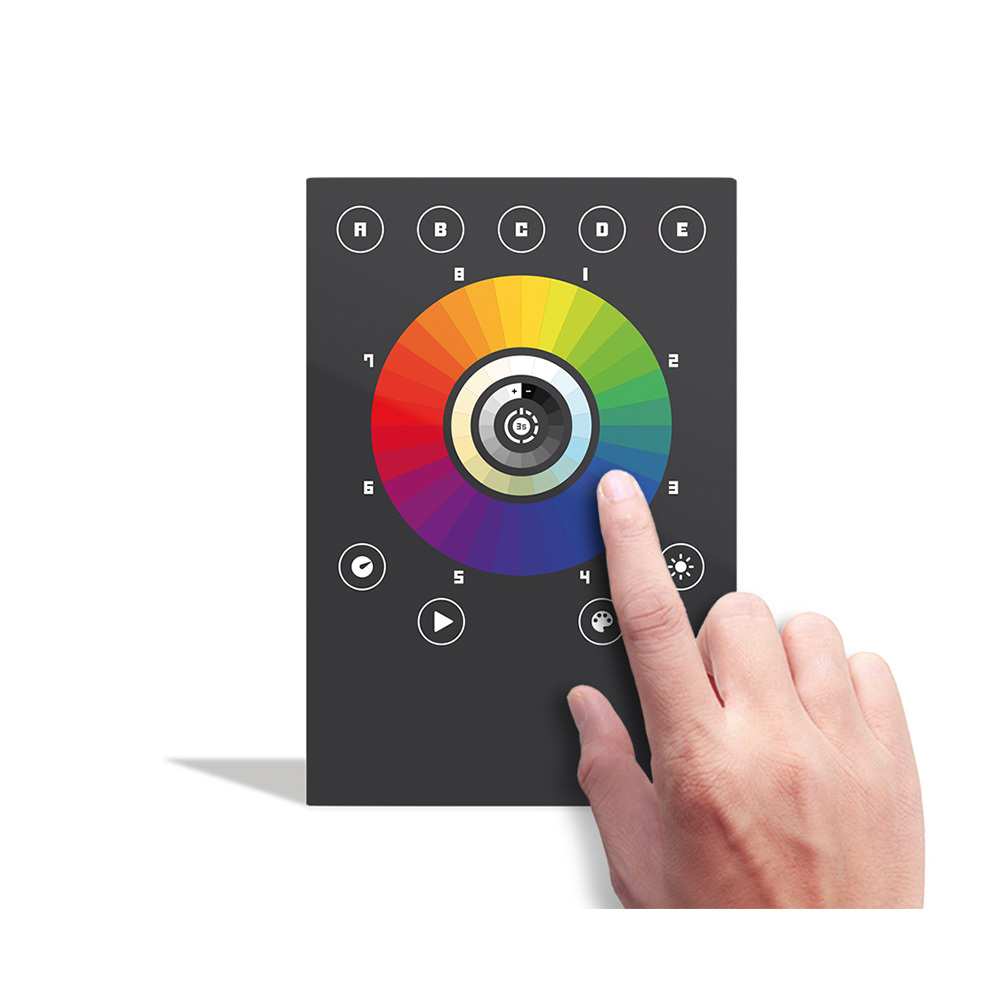

The Touch 1024’s ultra thin 10mm design allows it to blend in perfectly, while the tactile touch control allows easy access to all the functions. Easily control colour, intensity/brightness, scene selection, and white balance via the large touch wheel. Navigate and trigger up to 40 scenes from the 5 pages of scenes, 8 scenes per page. Also supporting 5 Zones, allowing you play up to 5 different scenes/sequences at the same time.
Easy to install with standard terminal block conntections for DMX and power, RJ45 connector for master-slave function, infrared, light sensor, and smart contact control. Smart contact control allows you to select the speed, scene, dimmer, zone, black out, or even pause the current scene/event. For users looking for at live applications the TOUCH 512 can also be powered via the USB-C connector located at the base of the unit.
- Professional wall mounted DMX controller
- Live and Stand-alone functionality with 40 scene memory
- 5 Zones, play up to 5 different scenes/sequences (zone combinations available)

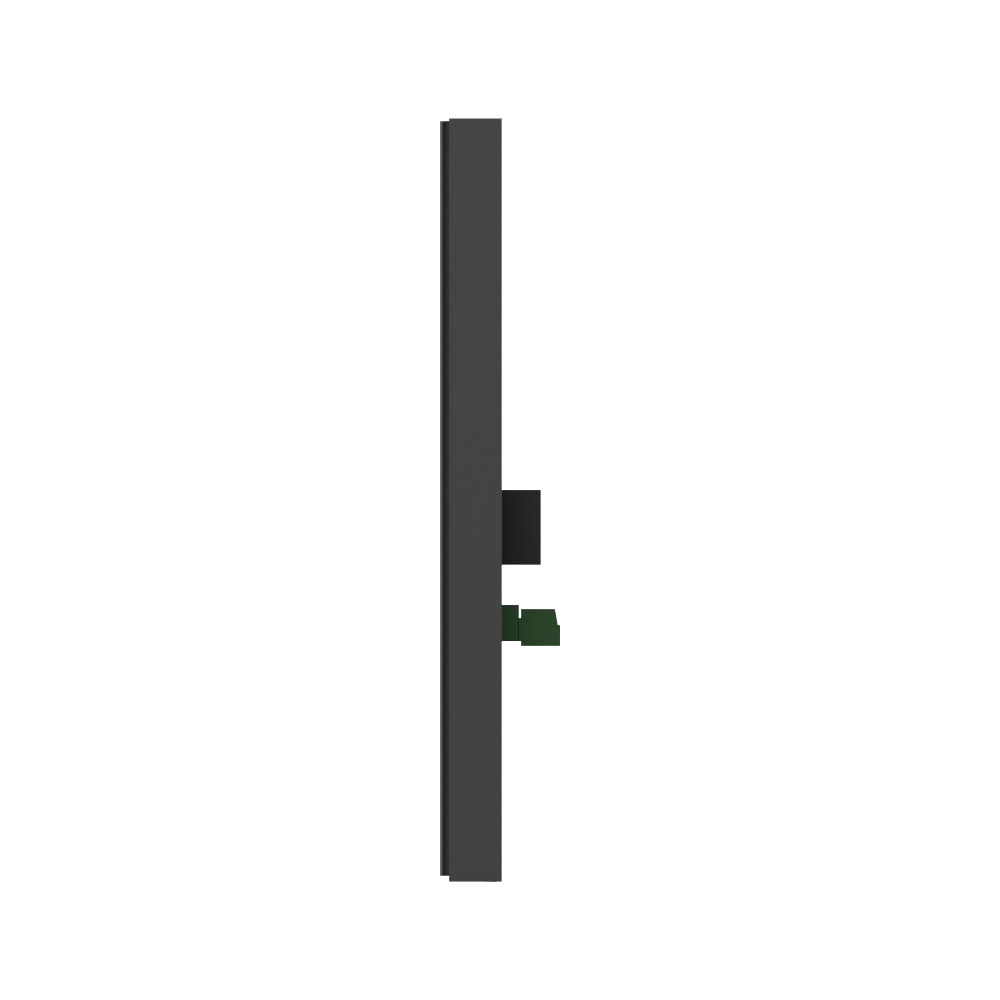

- Ultra thin 10mm panel depth
- Universal form factor comptible with EU, US, and Asian wall configurations
- Backlit LED touch panel with smooth glass panel
- Intuiative colour controls including CTO, and brightness
- Store and playback up to 40 scenes from the internal memory
- Easy to navigate design for fast effecient use
- Rear terminal block connection DMX and power
- Smart contact support via RJ45 connector.
Technical Data
| DMX Output Channels: | 2×512 |
|---|---|
| Zone: | 5 Zones |
| Memory: | Micro SD Card (all FAT format, up to 256 GB) + 4Mb Internal memory (No SD card required) |
| DMX Modes: | DMX In/Out, DMX Splitter, DMX Record, DMX Trigger |
| Stand Alone Options: | Time Clock setting adjustable in Stand Alone Play Scene, Color, Speed, Dimmer, Zones or pages Master/Slave mode with Up to 32 devices combined and synchronized (64 universes) |
| Triggers: | Real Time Clock and calendar for each scene (Hour, Day, Week, Month, Year) 4 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority, 16 contacts max) 7 Pin Terminal Block (DMX1, DMX2, DC Power) |
| I/O Connectors: | USB-C (5V. DC, 0.1A), RJ45 (Contacts, Master/Slave) |
| Power: | Input:5~36V DC, 0.1A Output: 5V DC |
| Dimensions: | 144 x 97 x 10 mm |
| Weight: | 0.21 kg |
| Certifications: | CE, LVD, RoHS |
(CHRO-TOUCH1024)
| SKU | CHRO-TOUCH1024 |
| Brand | CHROMATEQ |
