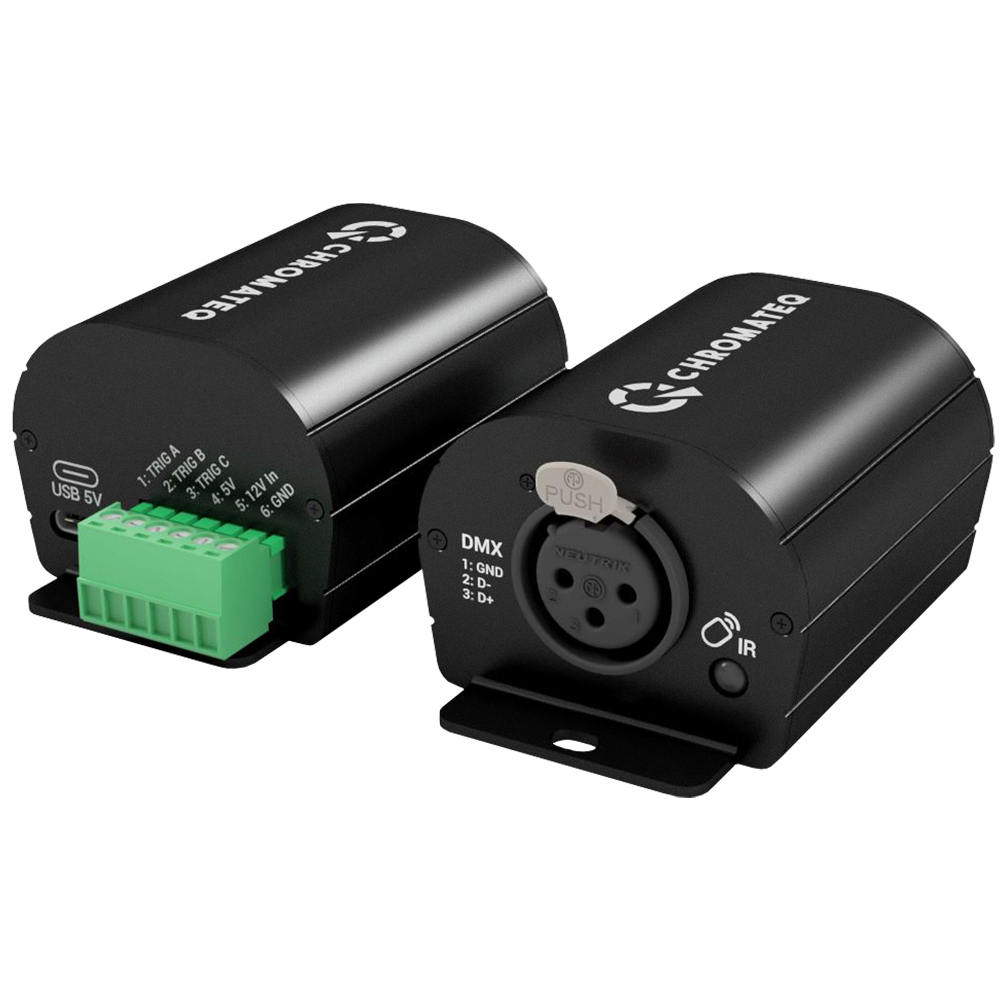

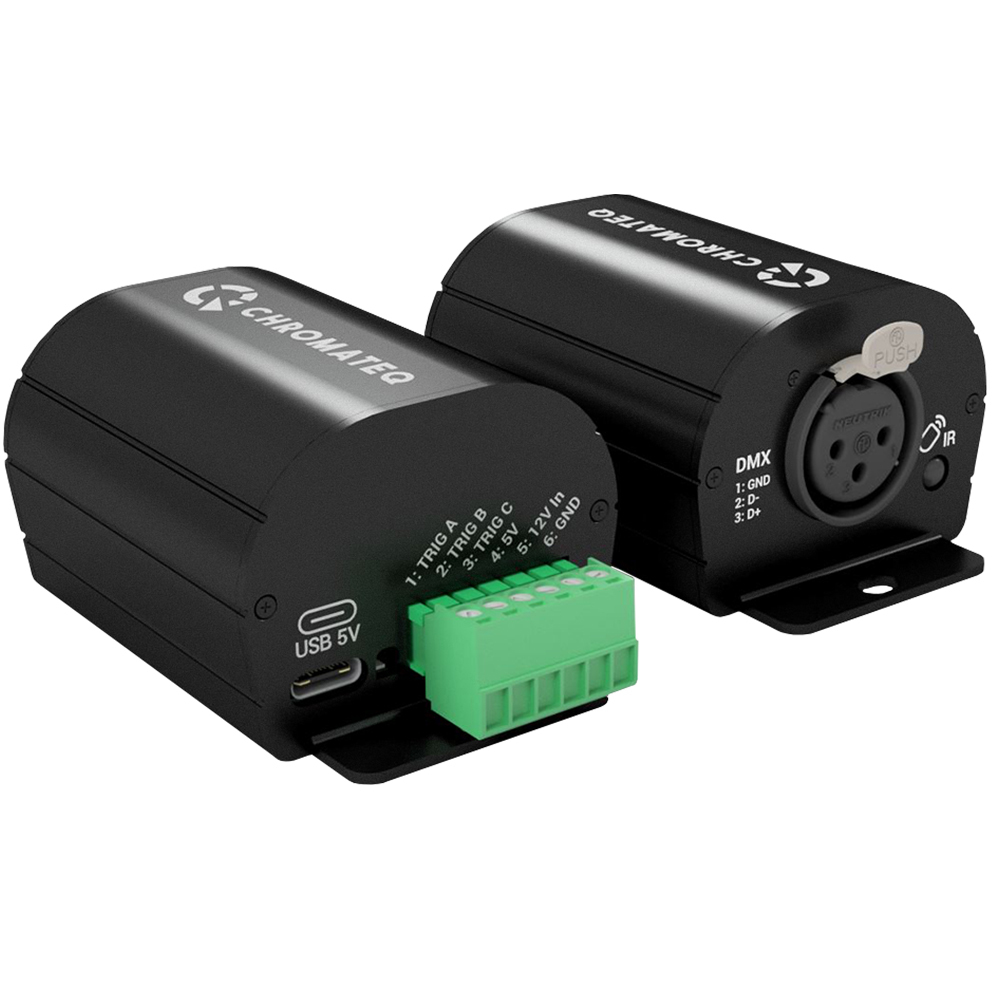

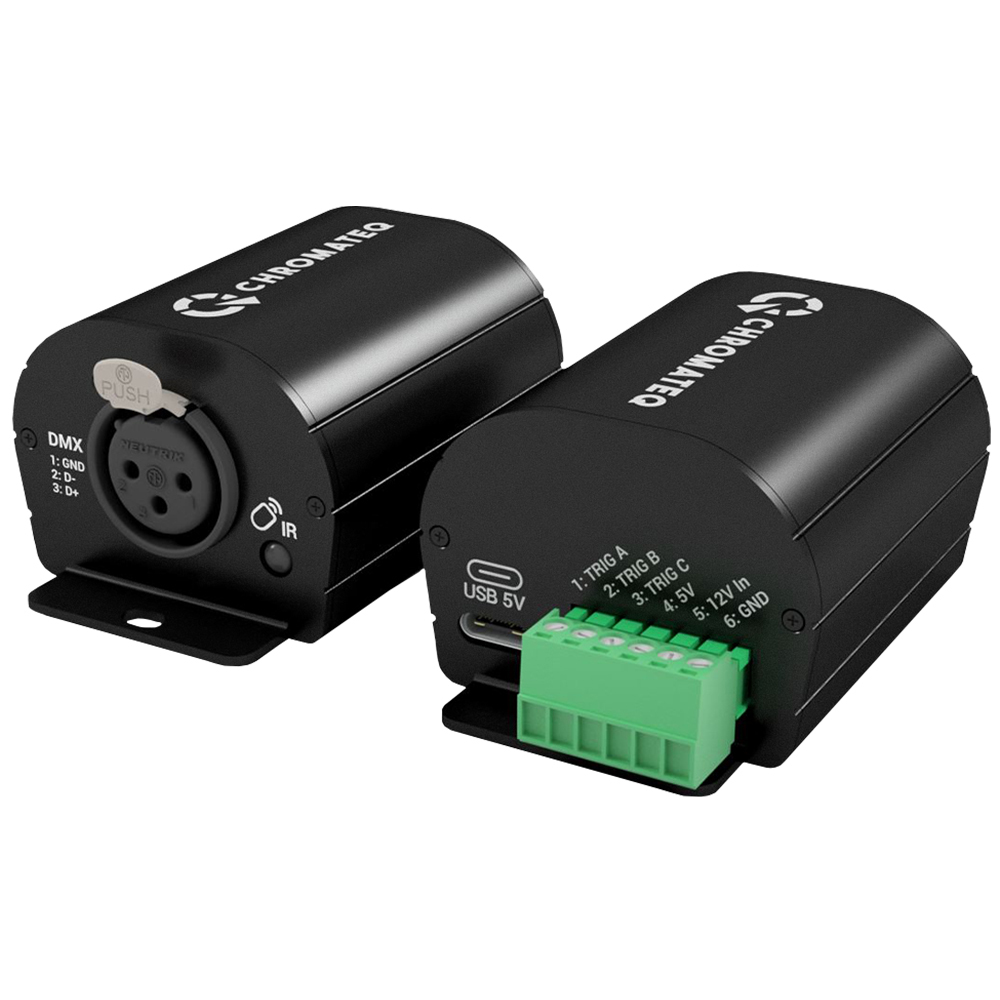

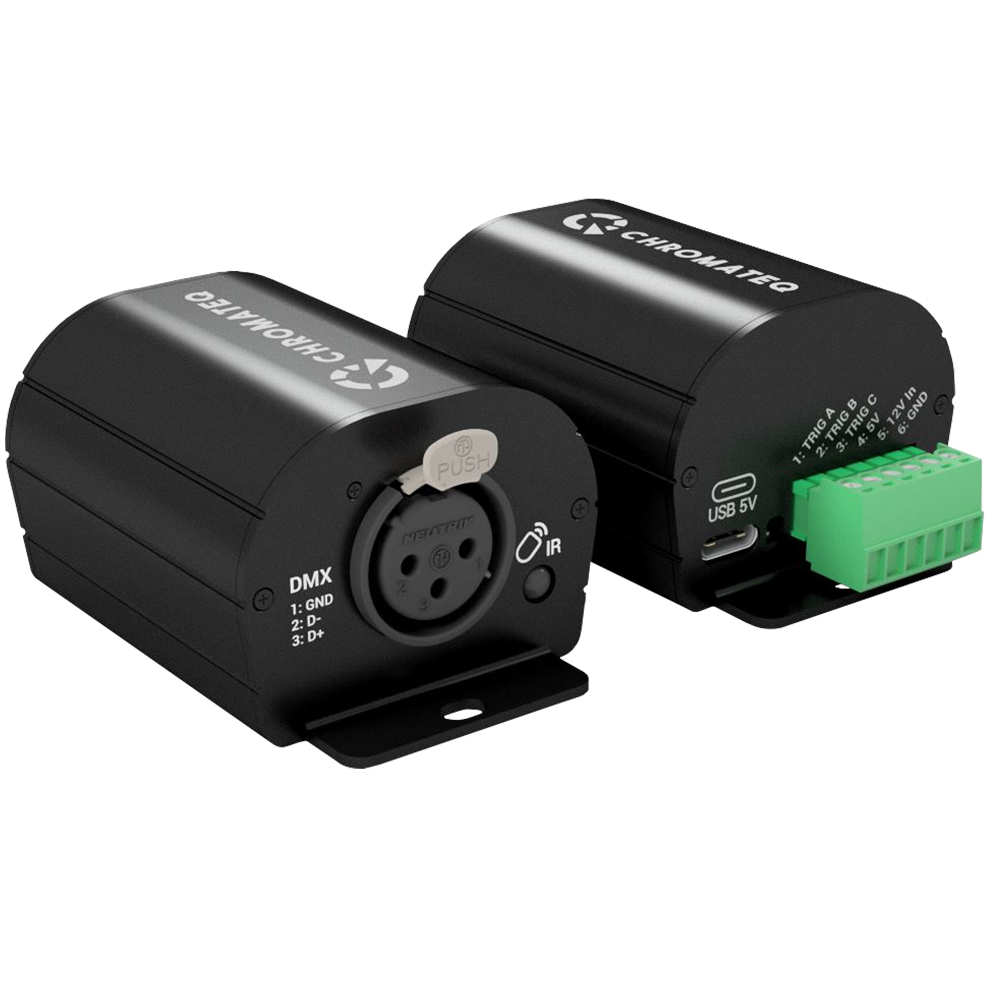

Chromateq CLUB512 DMX Interface with Software and IR Remote

$399.00
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Chromateq CLUB512 is our new professional package designed for entry-level budgets and users looking for an easy-to-use DMX controller. The Attractively-priced for tight budgets, small projects, DMX system testing and promotional packages.

Newly designed aluminium housing with a beautiful finish and updated electronics that work with all the latest 2022. Chromateq software (as well as older versions of LED Player and Pro DMX). Capable of 3 trigger options and equipped with DC 5-18V input this USB to DMX interface includes an infrared remote control and USB 5V power supply in the package. It is the perfect hardware for easy integration projects.

Technical Data



DMX Output: 512 In/Out channels PC and 512 Out Stand Alone
Input: USB-C (5V. DC, 0.1A)
Zone: 1 Zone, play 1 scene/sequence at time in Stand Alone
Memory: Internal memory (200 KB, 200 to 2000 DMX step capacity)
Infrared (scenes, play, pause, dimmer, speed): Additional Infrared commands and additional commands on triggers
DMX Modes: DMX In/Out, DMX Record, DMX Trigger
Stand Alone Options: 16-bit and fine channel management, Cross Fade time between scenes, Default start scene when power up
Triggers: 3 Triggers, Contact on external T. Block
Max DMX outputs (USB): x12 USB interfaces connected = 12 DMX max
Power: DC In USB-C 5V DC + 5-18V DC Input on Terminal Block
Dimensions (mm / in): H: 55 (2.16), W: 50 (1.96), D: 37.5 (1.47)
Weight: 0.85 Kg (1.87 lb)
Housing: Extruded Aluminum
I/O Connectors: USB-C 2.0, 3 pin XLR (XLR5 optional), 6 pin T. BLock
Operating Temperature: -40 to +85 C°
IP Rating: IP40
Certifications: CE, LVD, RoHS
International Warranty: 1 year

(CLUB512)

SKU CLUB512
Brand CHROMATEQ
