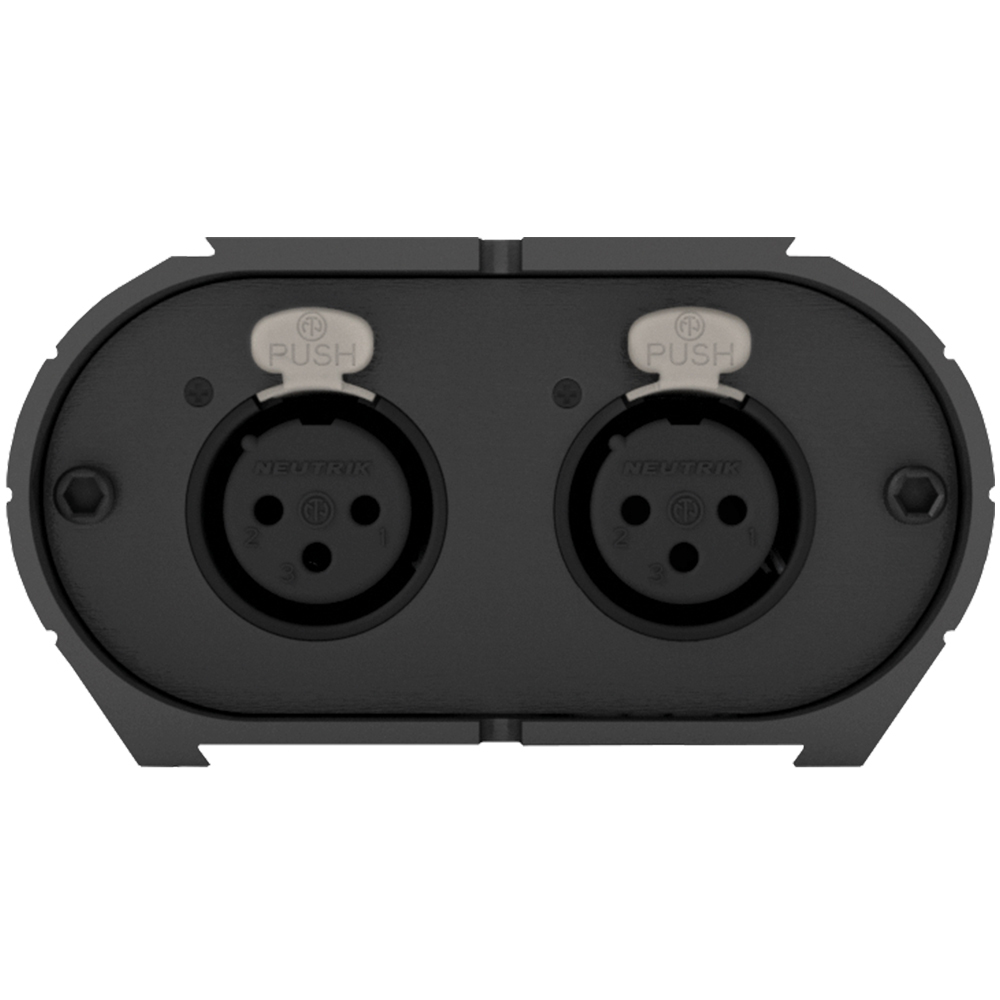

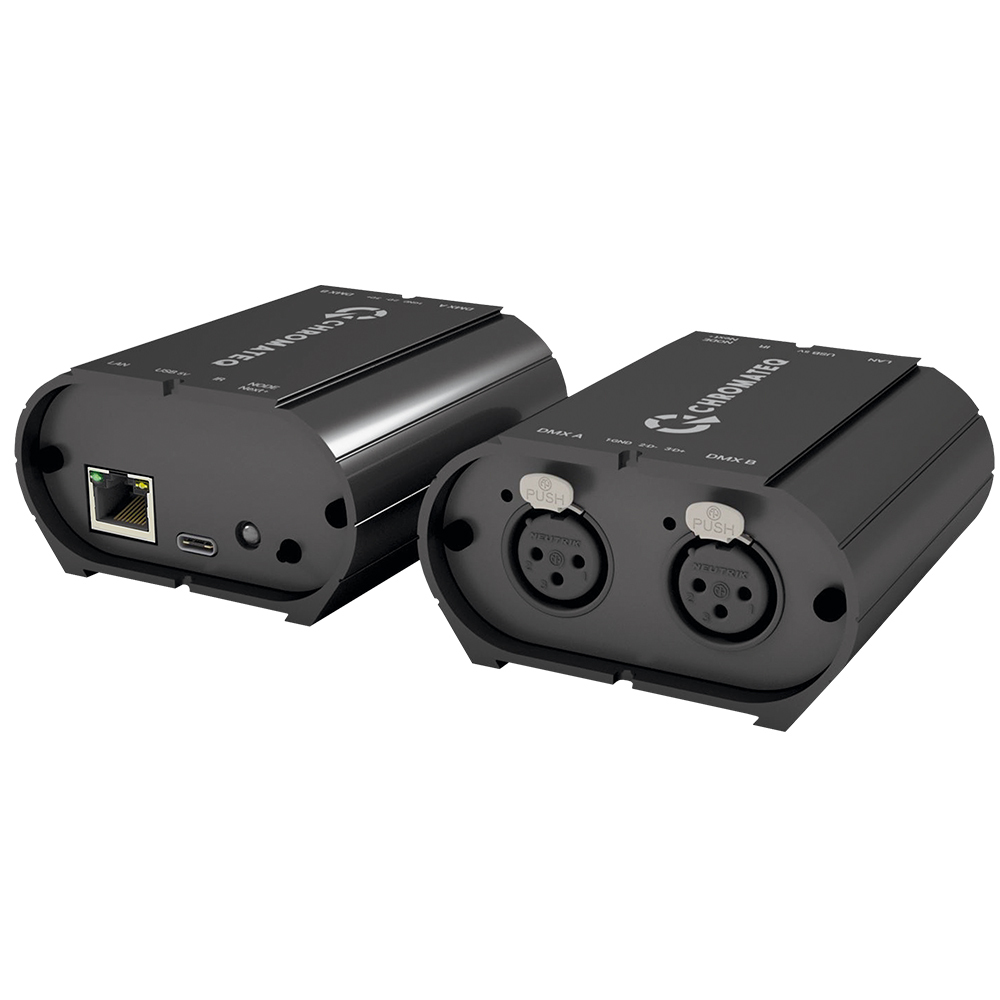

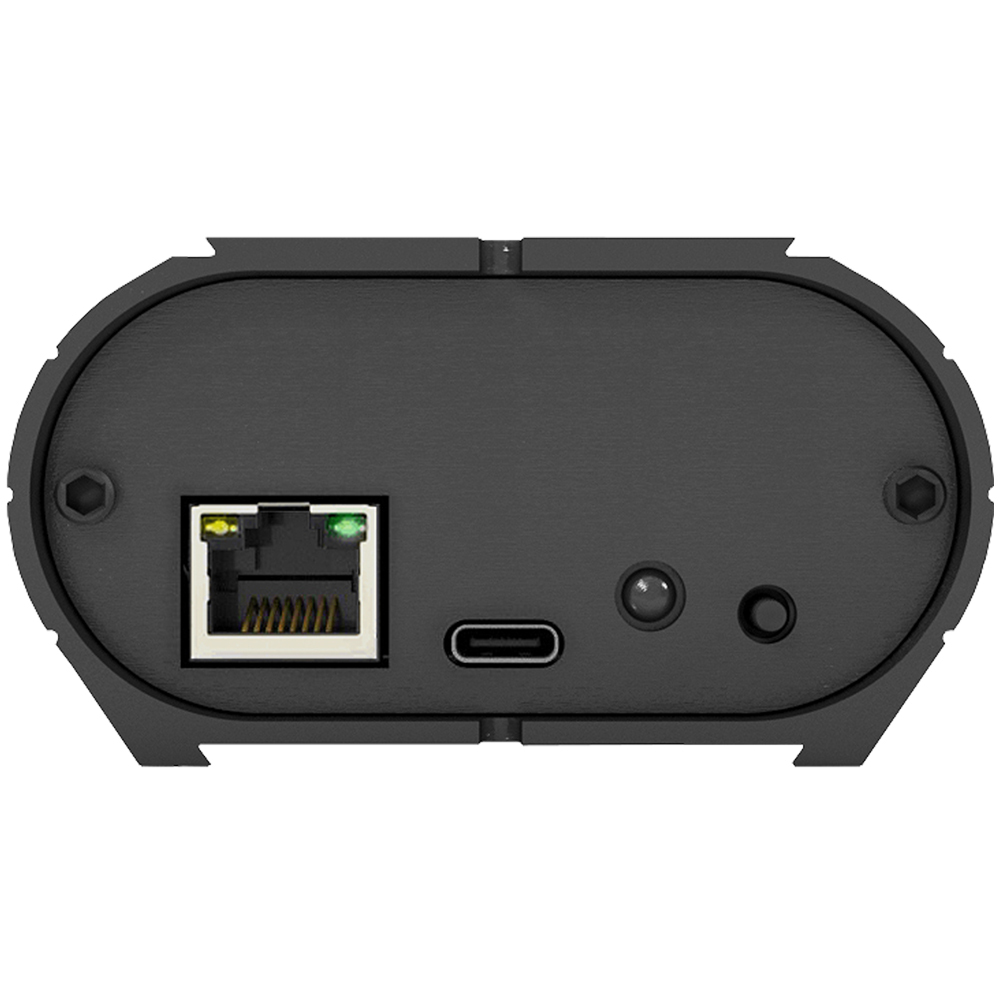

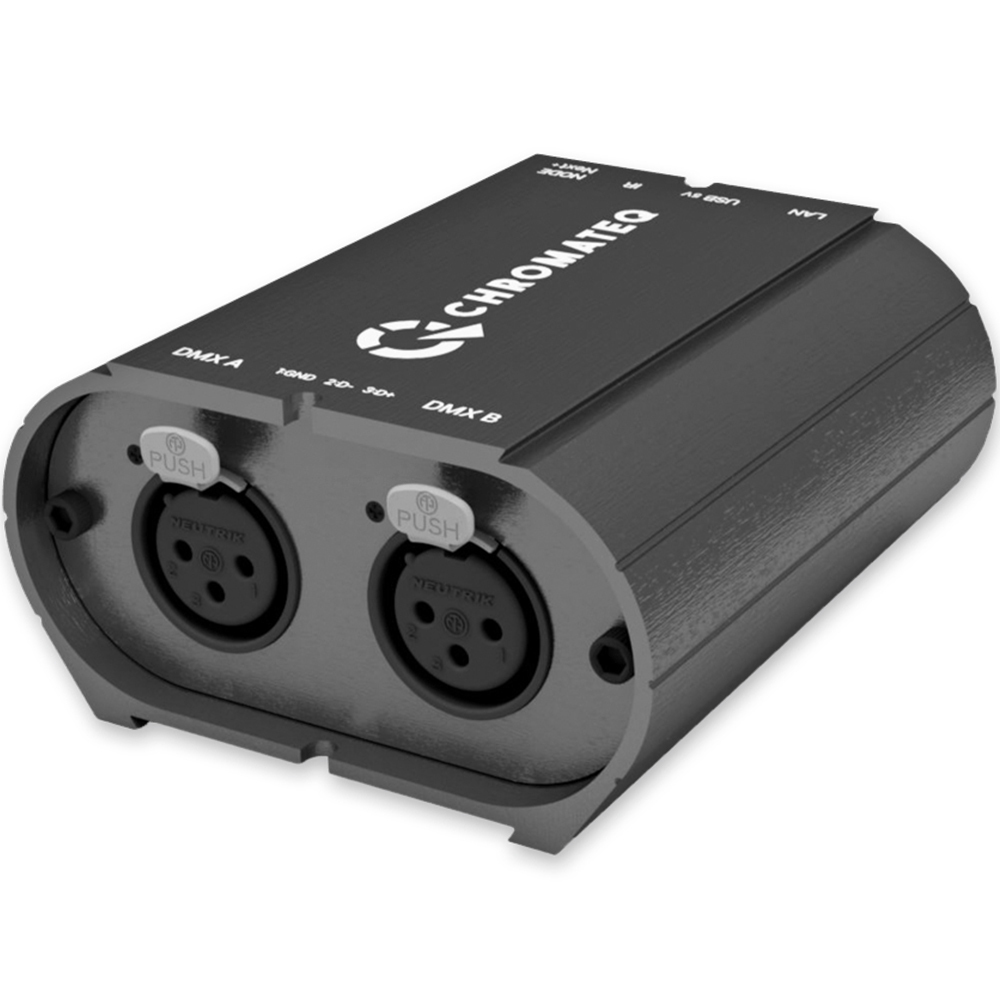

Chromateq CLUB-E1024 USB DMX Interface and Software

$749.00
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

The Chromateq Club-E 1024 is ideal for advanced users, experienced lighting professionals and demanding projects. Chromateq’s CLUB-E excels at live show control, audio and video timeline synchronization, and precise sound-to-light automation, using the suite of Chromateq software that transforms any computer into a powerful lighting control console.

Newly designed aluminium housing with beautiful brushed anodized finish and updated electronics that work with all the latest 2022 Chromateq software (as well as older versions of LED Player and Pro DMX).

Hardware & DMX (Software & Live)
LED PLAYER / PRO DMX / PIXXEM (In/Out): 1024 (2×512)
Ethernet (10 Mb/s): Yes (LAN, compatible with Wifi router)
USB-C: Yes (5V. DC, 0.2A)
Max interface connected: 12 (USB – 24 DMX) / 128 (Ethernet – 256 DMX)
RDM (Remote Device Management, bi-directional DMX communication): Yes, with Pro DMX 2 only
Dimensions (mm/in): H: 90 (3.54), W: 80 (3.15), D: 45 (1.77)
Weight / Operating Temperature / Certification: 0.19 Kg (0.42 lb) / -40 to +85 C° / CE, RoHS

Stand Alone

LED PLAYER / PRO DMX / PIXXEM (In/Out): 1024 (2×512, 2U.)
Zone (Scene play a time): 1
NODE (Art-Net & sACN to DMX decoder, DHCP, IP, Unicast, broadcast): 2×512 Out per interface
USB Type C: Yes
Power: 5V. DC, 0.25A input by USB-C
Wi-Light 2 APP Configuration: Yes (LAN)

Memory (Stand Alone)

Memory Step capacity: 100 ~ 1024 (300 Kb)
Max Scene capacity: 512

Triggers (Stand Alone)

Infrared remote (scenes, play, pause, dimmer, speed, black out)​: Yes (Remote Unit is Optional)​
Button: NEXT scene or NODE mode selection (hold 5s)
Wi-Light 2 APP, UDP, JSON (requires a WIFI router): Yes (LAN)
UDP / Ethernet triggers and commands (from SDK): Yes

Software

Chromateq 2022 software: Yes
LED PLAYER: 2×512 per interface, up to 64×512 DMX Outputs
PRO DMX: 30 mns Audio and Video Timeline
PIXXEM: 8×512 Artnet, 128×128 or 16384 Pixels
STUDIO DMX: 3D viewer in real time (Full mode)
WI-LIGHT 2 – Mobile APP: Software and device control from LAN

Art-Net, sACN, DVI, DMX in/Out

ART-NET, sACN Output (LED PLAYER, PRO DMX): 2×512 per connected devices
ART-NET, sACN Output (PIXXEM): 8×512 per connected devices
DVI supported resolution (PIXXEM): 128×128 / 16 384 pixels
ART-NET, sACN Input: No
DMX Input, control and Record: Yes

Triggers and additional options

MIDI, RS232, DMX IN, Keyboard, Hyperlinks: Yes
MIDI control, Audio BEAT, BPM, Wi-Light 2, UDP: Yes
User Interface customization: Yes
Audio, Video and Lighting timeline synchronization: Yes, 30 minutes

(CLUB-E1024)

SKU CLUB-E1024
Brand CHROMATEQ
