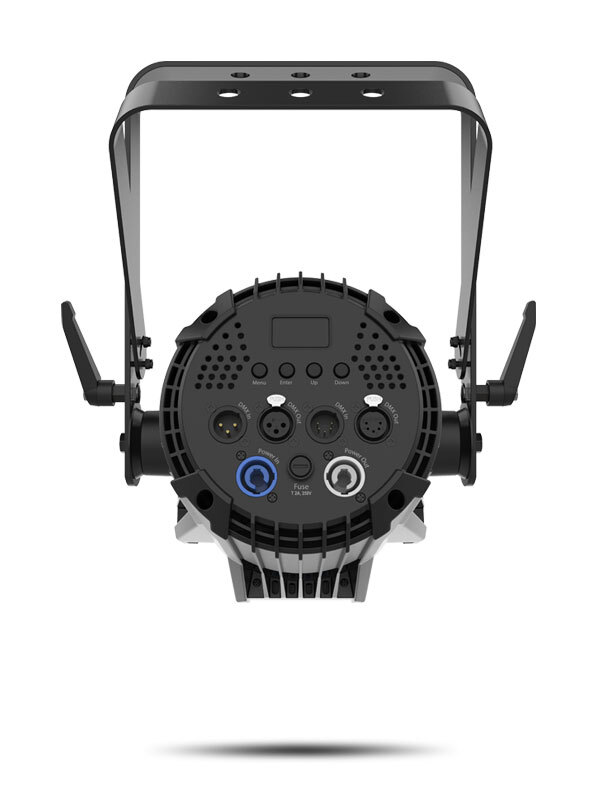

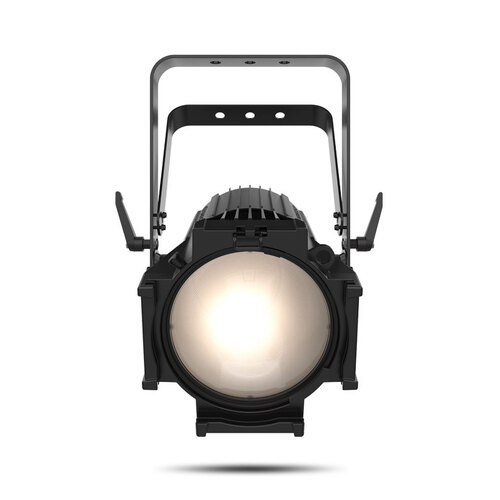

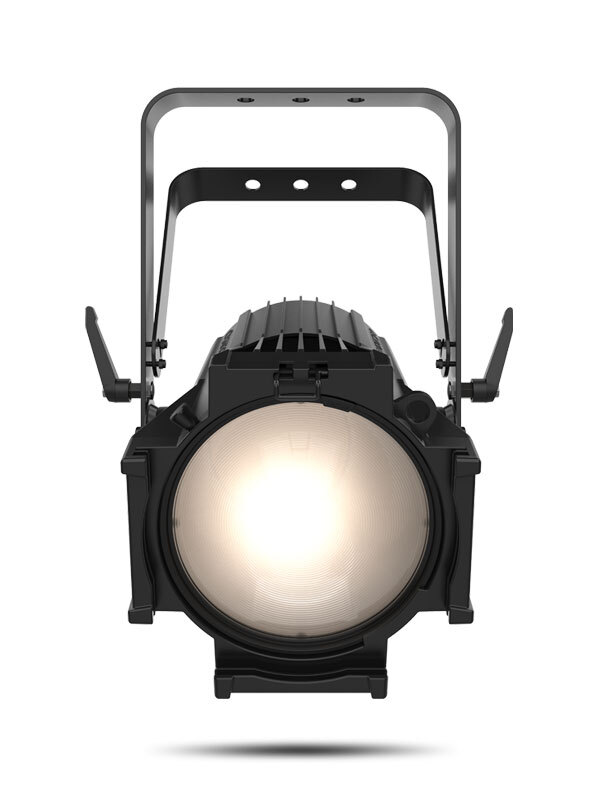

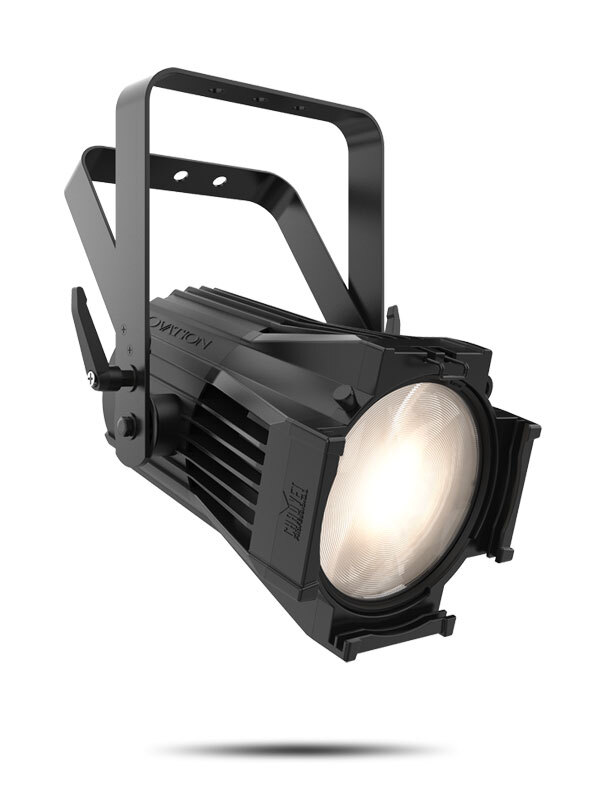

CHAUVET PROFESSIONAL Ovation P-56VW

SPECIFICATIONS

OPTICAL

• Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 92-93
• Beam Angle (Medium lens): 21°
• Beam Angle (Wide lens): 54°
• Beam Angle (Wide lens w/ egg crate): 40°
• Field Angle (Medium lens): 35°
• Field Angle (Wide lens): 84°
• Field Angle (Wide lens w/ egg crate): 66°
• Lumens (Medium Lens): 3,967
• Lumens (Wide Lens): 4,476
• Illuminance (Medium Lens): 1220 lux @ 5 m
• Illuminance (Wide Lens): 220 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 29 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight: 12 lb (5.5 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 3, 5, 6, 8, 11, 15 or 17
• Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 11 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
• Power and Current: 150 W, 1.22 A @ 120 V, 60 Hz
• Power and Current: 155 W, 0.70 A @ 208 V, 60 Hz
• Power and Current: 158 W, 0.66 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation P-56VW
• Neutrik powerCON power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Wide and Medium Lenses

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5” Barn door
• Ovation 60 deg, 7.5” Honeycomb
