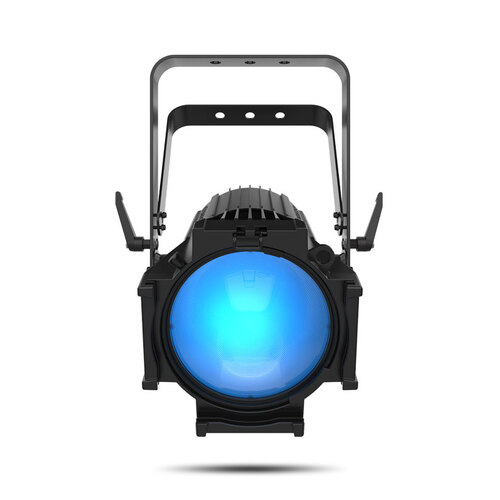

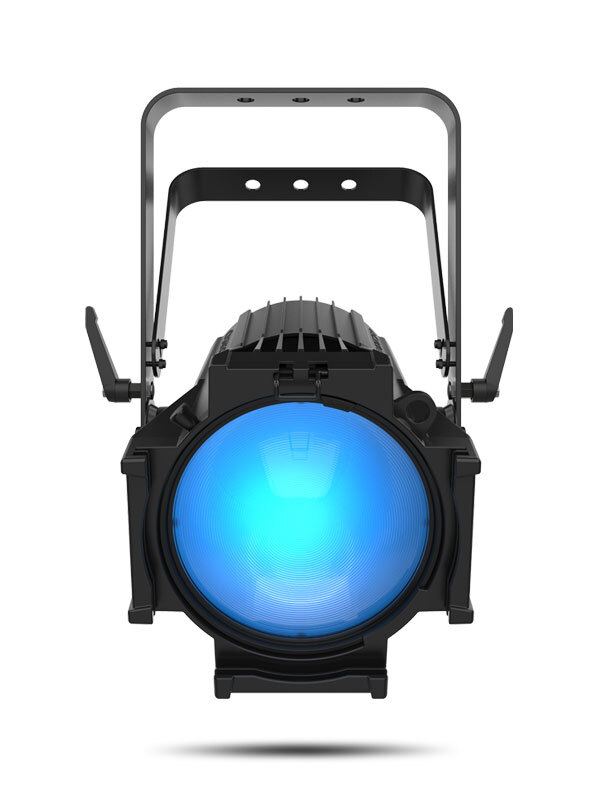

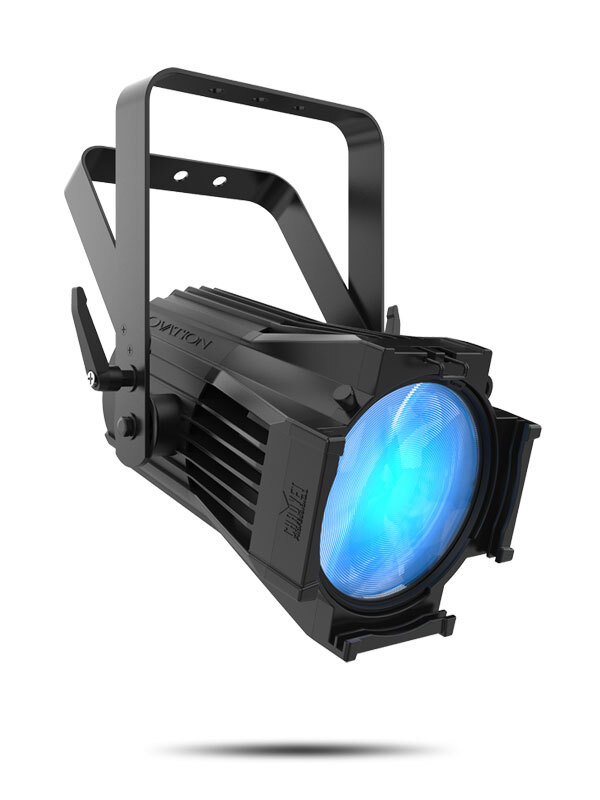

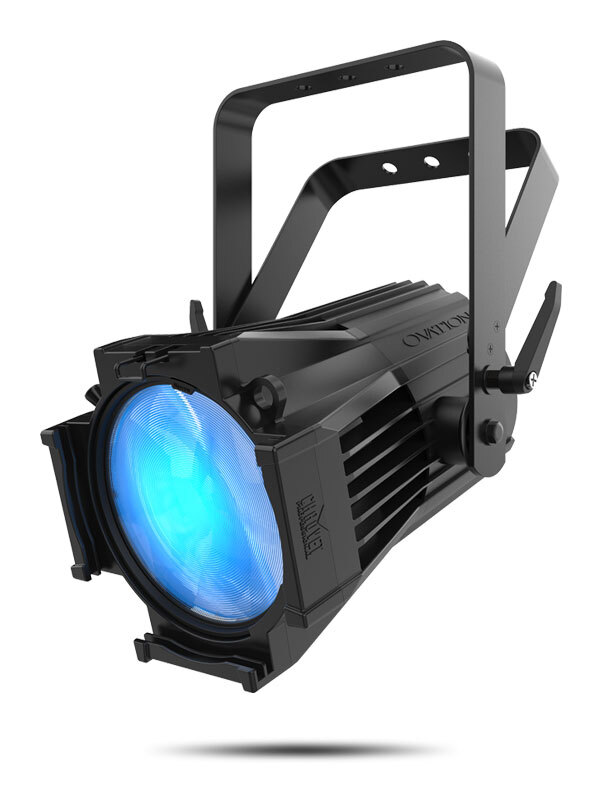

CHAUVET PROFESSIONAL Ovation P-56FC

SPECIFICATIONS

OPTICAL

• Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 6500 K
• Color Temperature (at full): 4889 K
• CRI (3200): 90
• Beam Angle (Medium Lens): 24°
• Beam Angle (Wide Lens): 73°
• Field Angle (Medium Lens): 41°
• Field Angle (Wide Lens): 105°
• Lumens (Medium Lens): 5,436
• Lumens (Wide Lens): 5,216
• Illuminance (Medium Lens): 1,250 lux @ 5 m
• Illuminance (Wide Lens): 197 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight: 12.2 lb (5.6 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

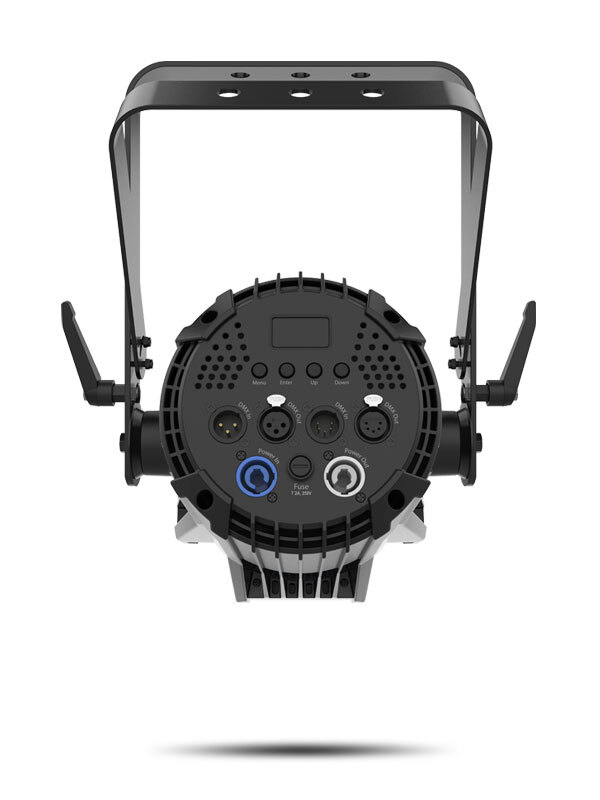

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
• Power and Current: 167 W, 1.740 A @ 100 V, 60 Hz
• Power and Current: 164 W, 1.413 A @ 120 V, 60 Hz
• Power and Current: 158 W, 0.813 A @ 208 V, 60 Hz
• Power and Current: 156 W, 0.747 A @ 230 V, 50 Hz
• Power and Current: 155 W, 0.716 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation P-56FC
• Neutrik powerCON power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Medium and Wide Lens

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5” Barndoor V2
• Ovation 60 deg, 7.5” Honeycomb
