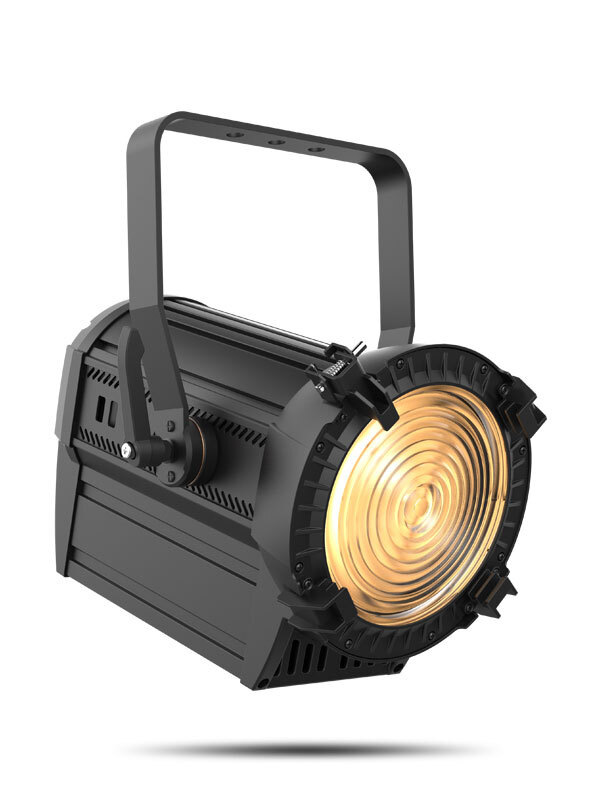

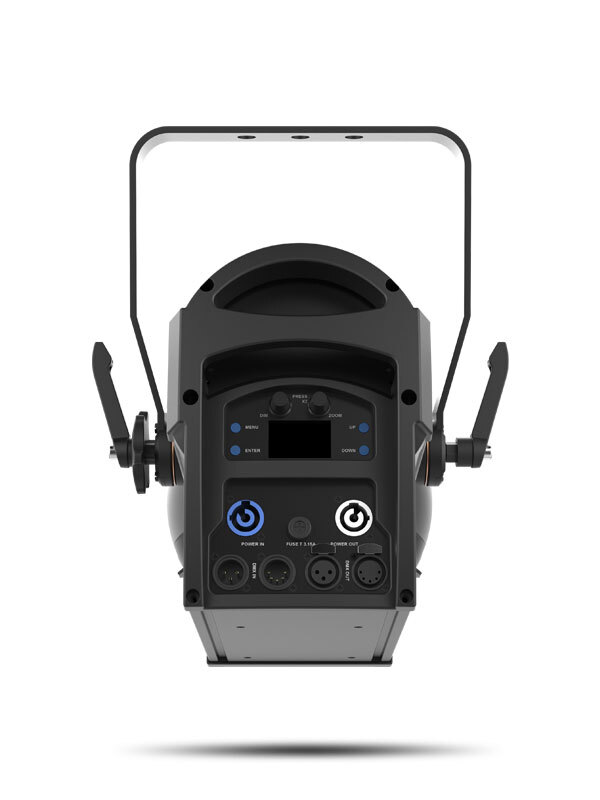

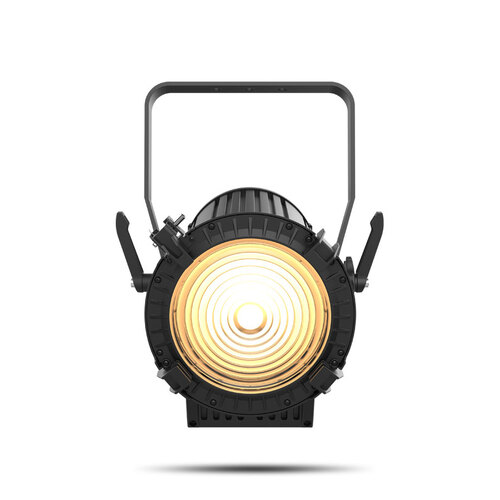

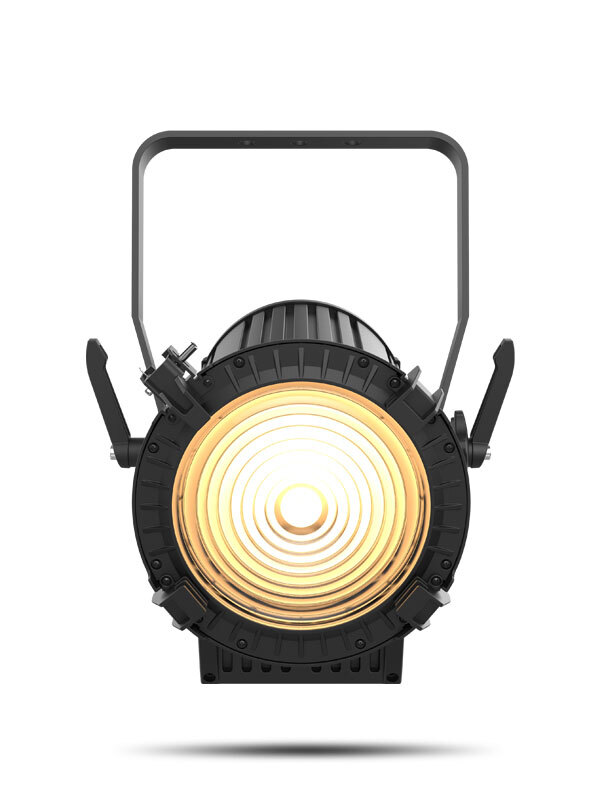

CHAUVET PROFESSIONAL Ovation FD-205WW

SPECIFICATIONS

OPTICAL

• Light Source 1 LEDs (WW) 230 W, (2.5 A), 3069 K, 50,000 hours life expectancy
• Color Temperature (at full): 3069 K
• CRI: 96
• Beam Angle: 11° to 53°
• Field Angle: 20° to 72°
• Zoom Range: 11° to 72°
• Lumens (20°): 6,414
• Lumens (72°): 9,047
• Illuminance (20°): 5,678 lux @ 5 m
• Illuminance (72°): 450 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic or External Dimmer Rack
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 18 Hz
• Dim Modes: 5
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 16.22 x 11.18 x 10.28 in (412 x 284 x 261 mm)
• Weight: 14 lb (6.4 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM, Dimmer
• DMX Channels: 1, 2 or 5
• Modes/Personalities: 3 personalities (UNO, DOS, STD-P)

ELECTRICAL

• Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
• Power Linking: 8 units @ 120 V; 16 units @ 230 V
• Power and Current: 182 W, 1.52 A @ 120 V, 60 Hz
• Power and Current: 188 W, .819 A @ 230 V, 50 Hz
• Breaker Size: T3.15 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation FD-205WW
• Neutrik® powerCON® power cord
• Gel frame (7.5 in/190.5 mm accessories)

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5″ Barndoor
