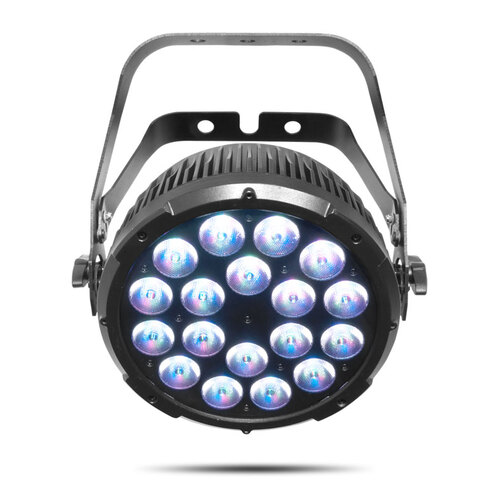

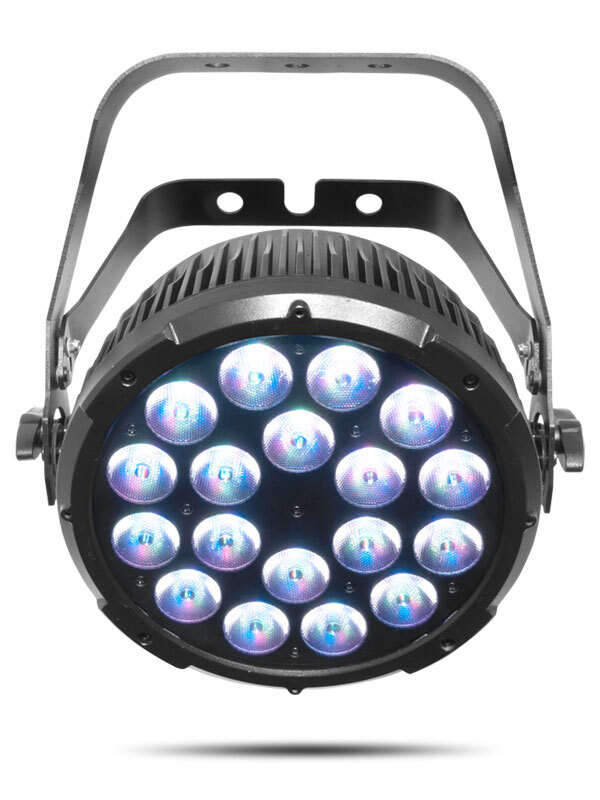

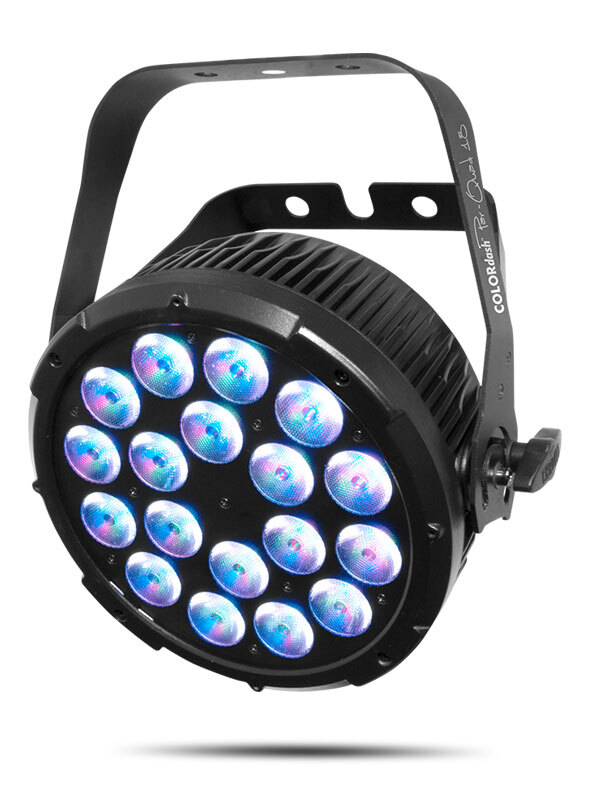

CHAUVET PROFESSIONAL COLORdash Par-Quad 18

SPECIFICATIONS

OPTICAL

• Light Source: 18 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Installed Optics: 20°
• Beam Angle: 18°
• Field Angle: 32.5°
• Illuminance: 1,210 lux @ 5 m
• PWM Frequency: 600 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 12.7 x 11.7 x 4.1 in (323 x 298 x 106 mm)
• Weight: 10.2 lb (4.6 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 9.25 in/235 mm accessories

CONNECTIONS

• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 4, 6 or 10
• Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V, 25 units @ 240 V
• Power and Current: 118 W, 1.00 A @ 120 V, 60 Hz
• Power and Current: 116 W, 0.59 A @ 208 V, 60 Hz
• Power and Current: 115 W, 0.54 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• COLORdash Par-Quad 18
• Neutrik powerCON power cord
• Gel frame holder (9.25 in/235 mm accessories)
• Gel frame

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3- or 5-pin DMX Cables
